Toyota Lexus ES240/350

2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 2 illustrations

Illustrations

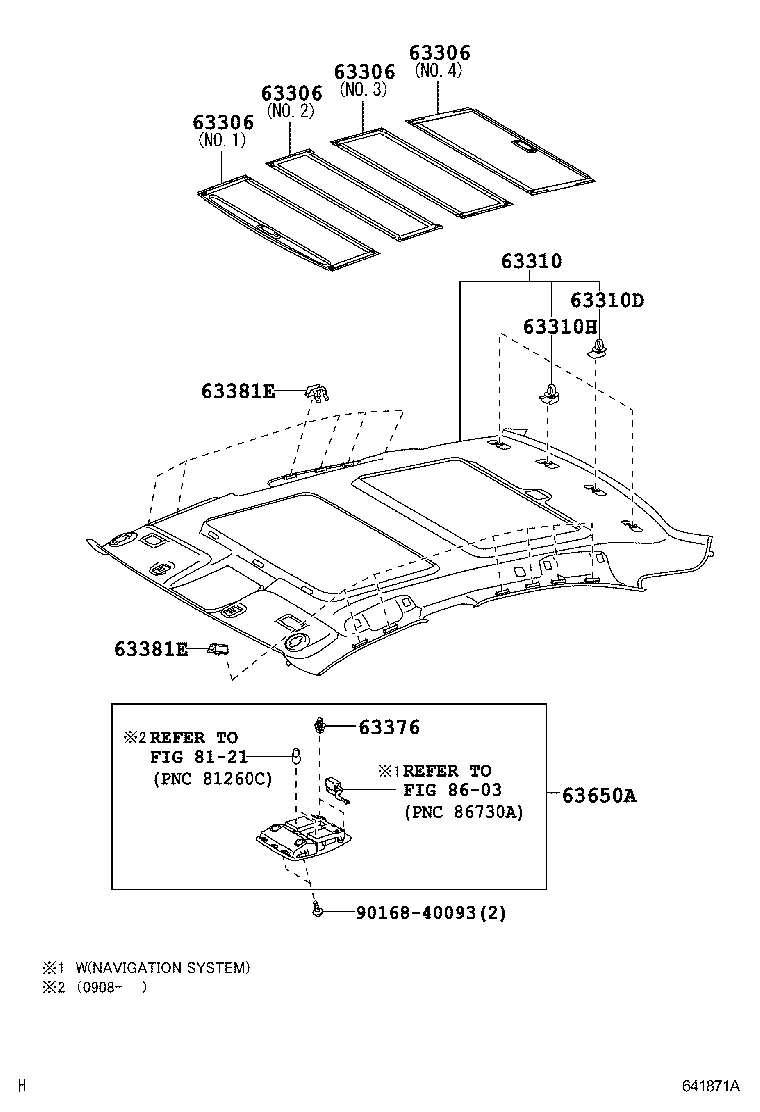

Figure 641870A 641870A 2006-05 → — Figure 641871A 641871A 2006-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63376 Clip, Headlining
63381E Retainer, Roof Headlining Trim, Front
63650A Box Assy, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
