Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

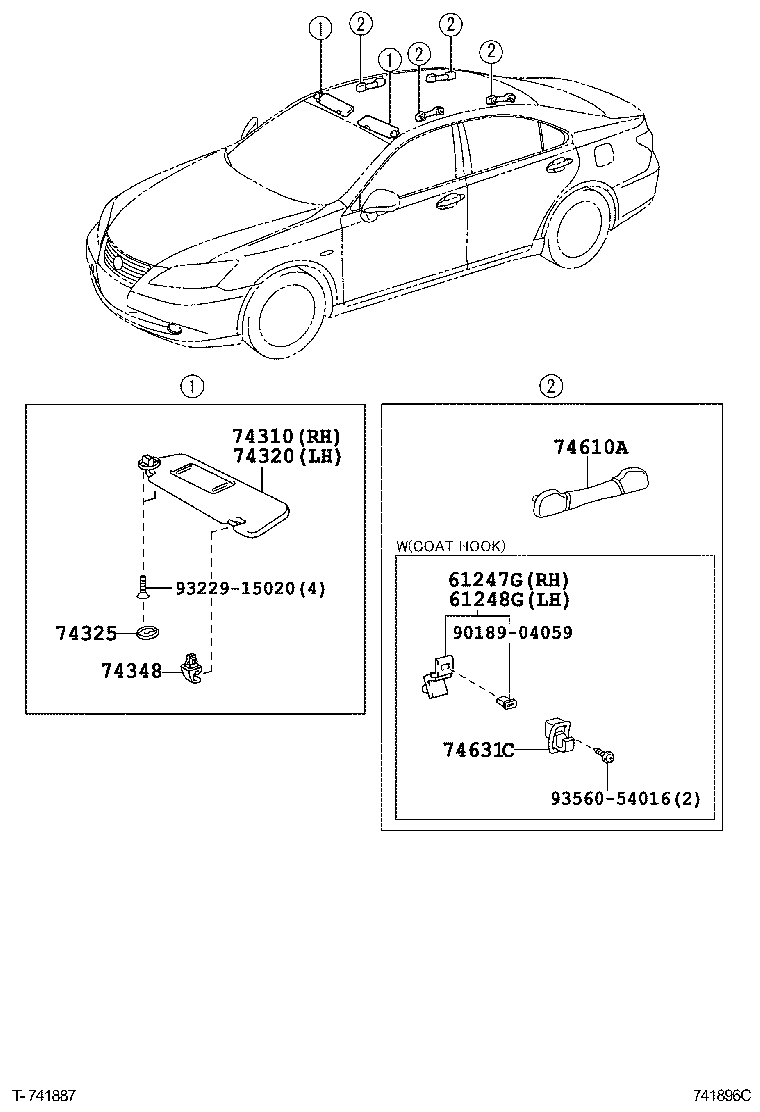

Armrest & Visor
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61247G | Reinforcement, Roof Side Rail, Inner RH |
| 61248G | Reinforcement, Roof Side Rail, Inner LH |
| 74221 | Cover, Door Armrest, RH |
| 74222 | Cover, Door Armrest, LH |
| 74230A | Panel Assy, Front Door Armrest Base, RH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |
| 74250 | Armrest Assy, Rear RH |
| 74260 | Armrest Assy, Rear LH |
| 74261 | Cover, Rear Door Armrest, RH |
| 74262 | Cover, Rear Door Armrest, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74631C | Hook, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
