Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

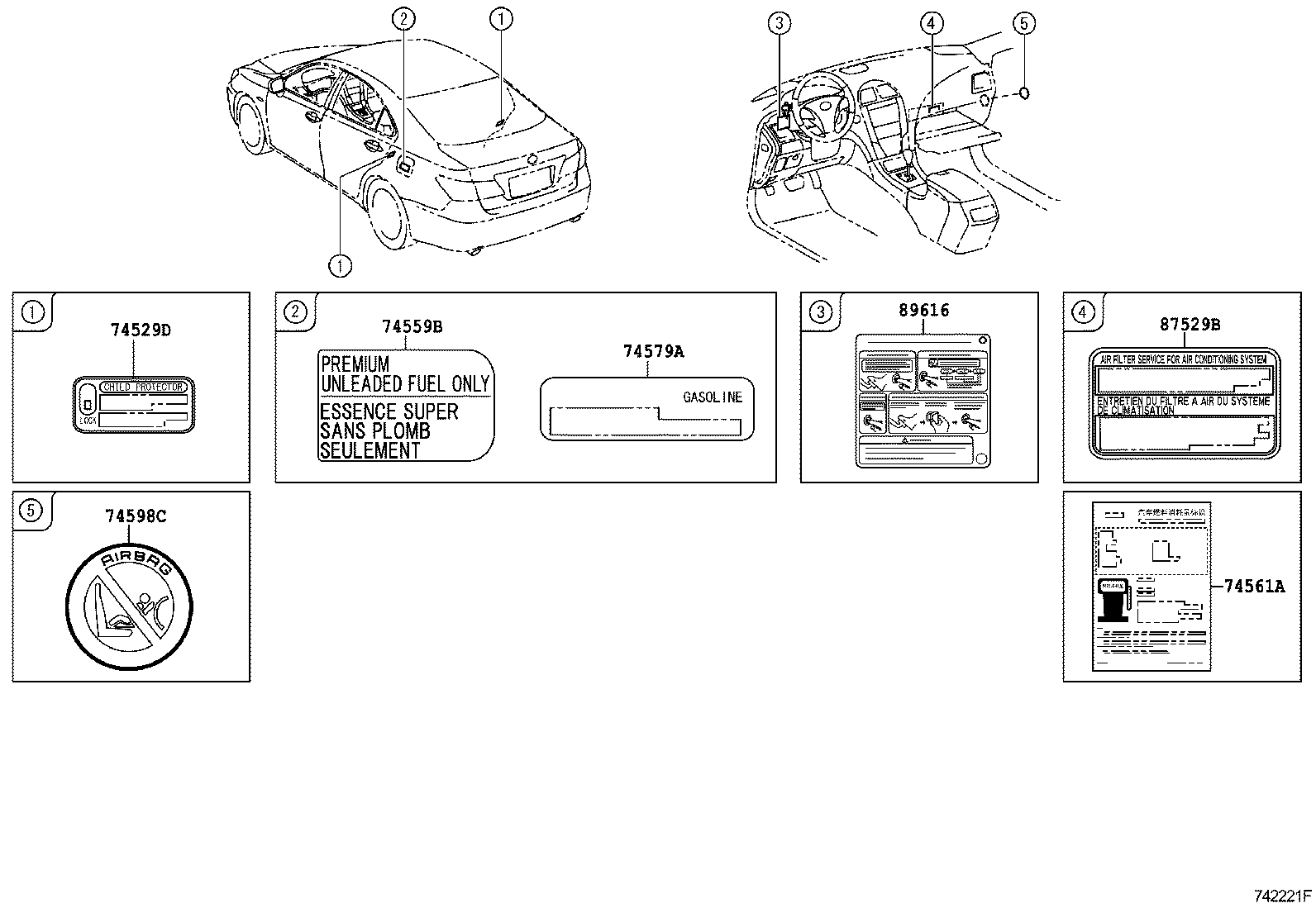

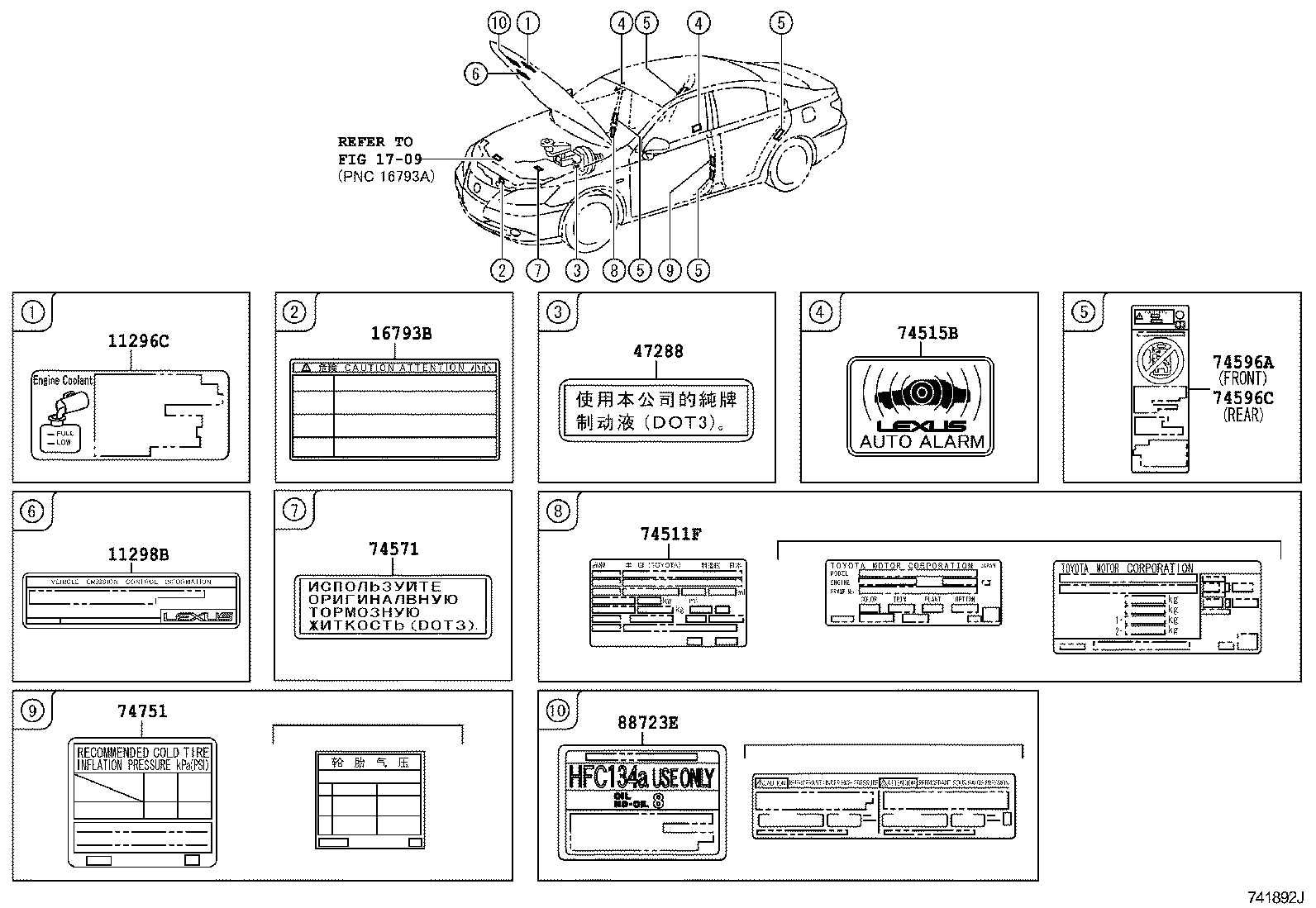

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 16793E | Label, Cooling Fan Caution |
| 47288 | Label, Brake Fluid Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74529D | Plate, Child Protector Lock Caution |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74571 | Plate, Brake Fluid Caution |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74596C | Label, Side Airbag Caution, NO.2 |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
