Fog Lamp

5 part groups · 2 illustrations

Illustrations

813674 2006-05 → 2009-08

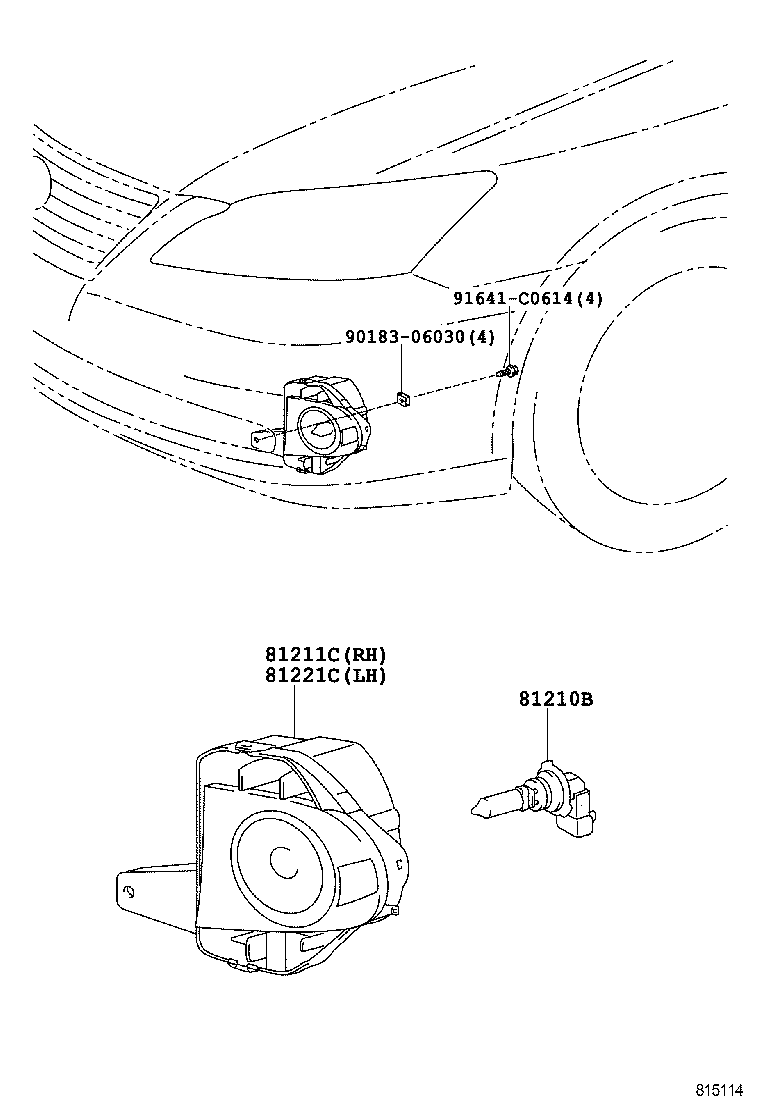

815114 2009-08 → 2012-06

Part groups

PNC	Description
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
