Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

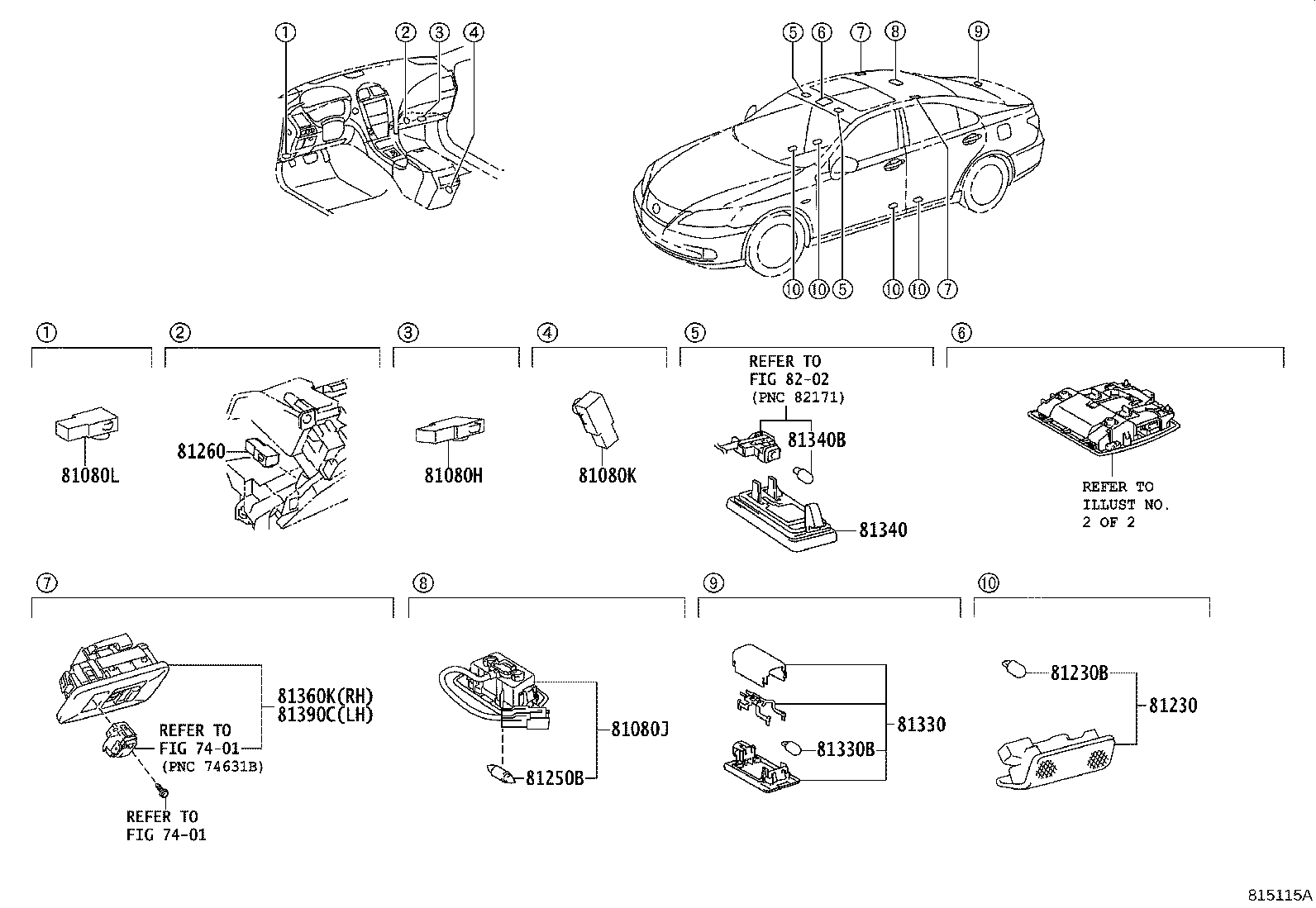

Interior Lamp
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81250A | Lamp Assy, Spot |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81250D | Lamp Assy, Rear Room, RH |
| 81260 | Lamp Assy, Glove Box |

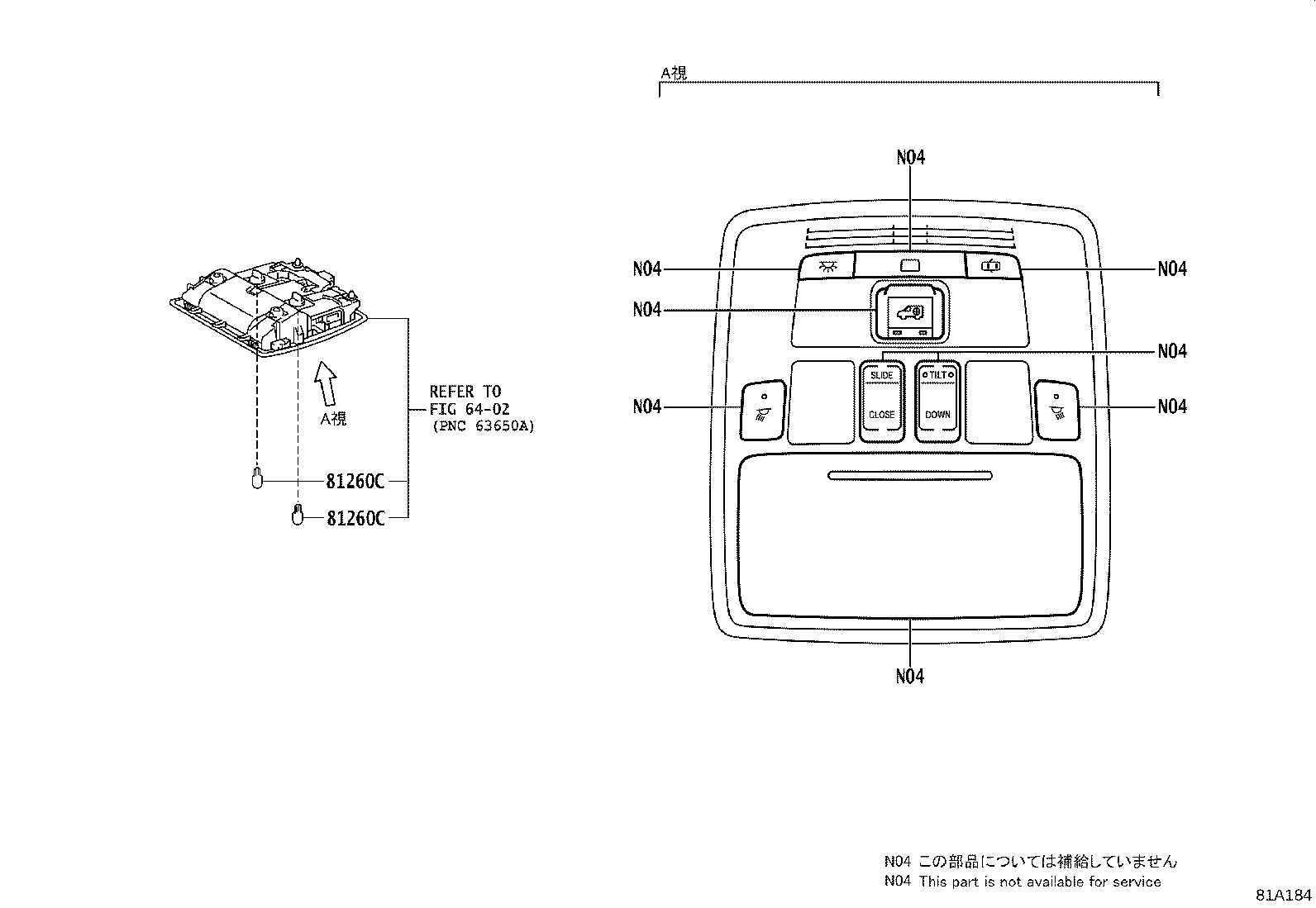

| 81260C | Bulb(FOR MAP LAMP) |
| 81290D | Lamp Assy, Rear Room, LH |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81390C | Lamp Assy, Spot, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
