Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

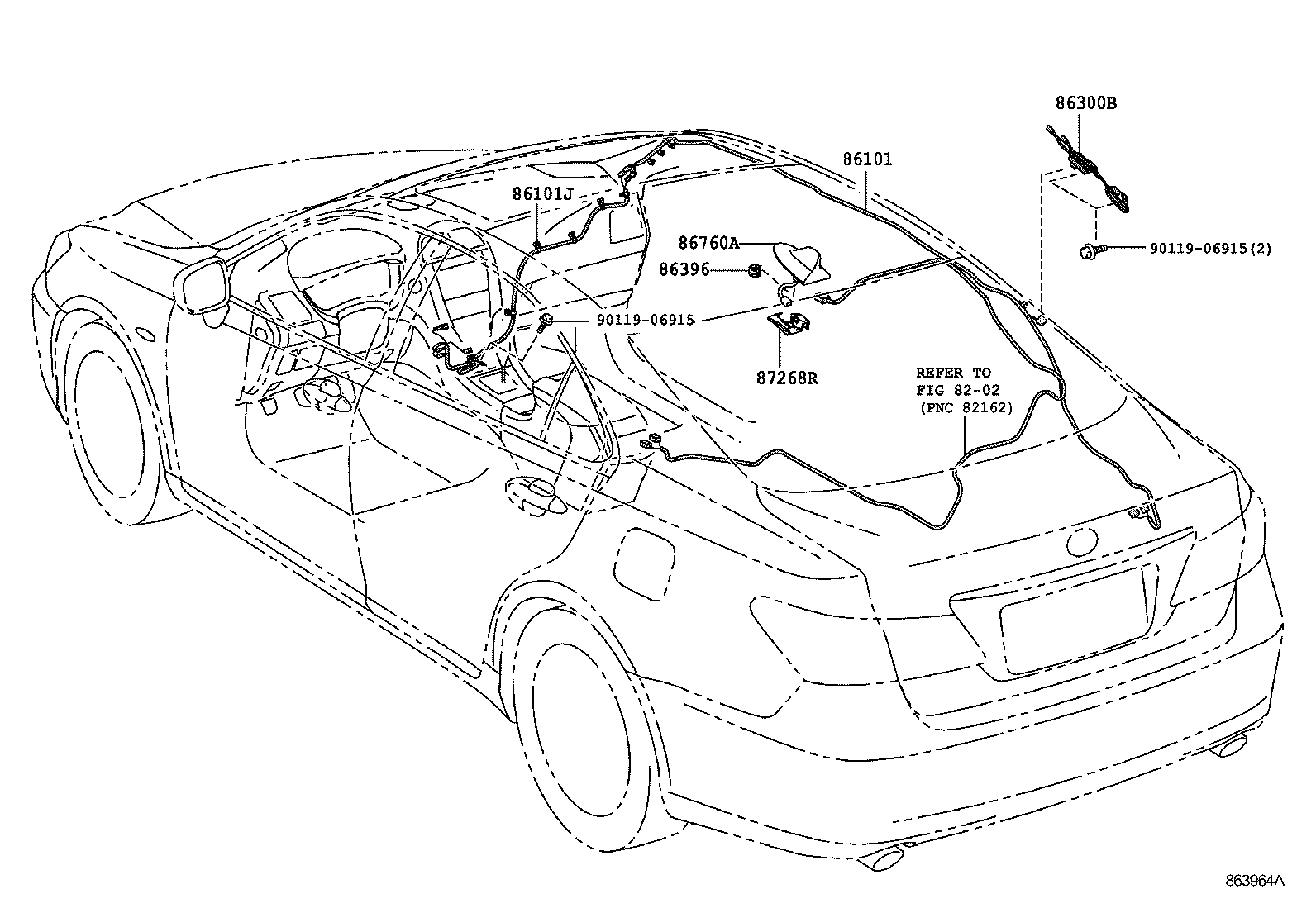

Antenna
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86396 | Nut, Antenna |
| 86760A | Antenna Assy, Telephone |
| 87268R | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
