Toyota Lexus ES240/350

2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 2 illustrations

Illustrations

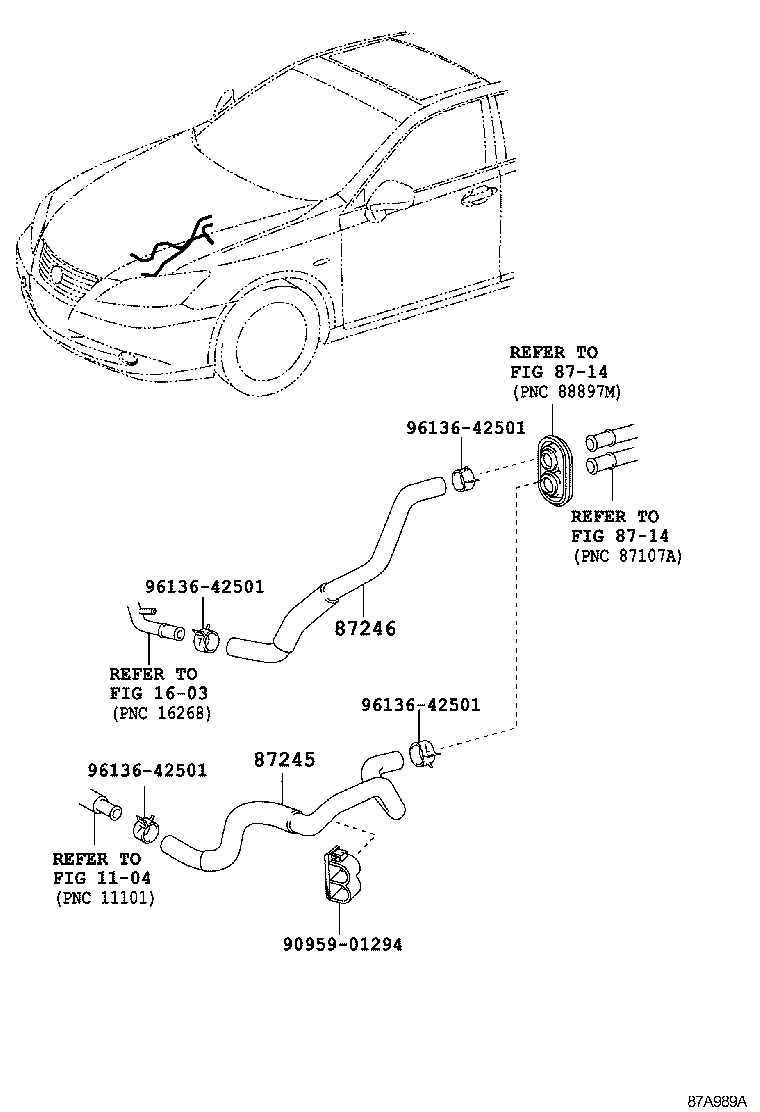

Figure 878352B 878352B 2006-05 → — Figure 87A989A 87A989A 2009-08 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
