Engine Oil Cooler

18 part groups · 3 illustrations

Illustrations

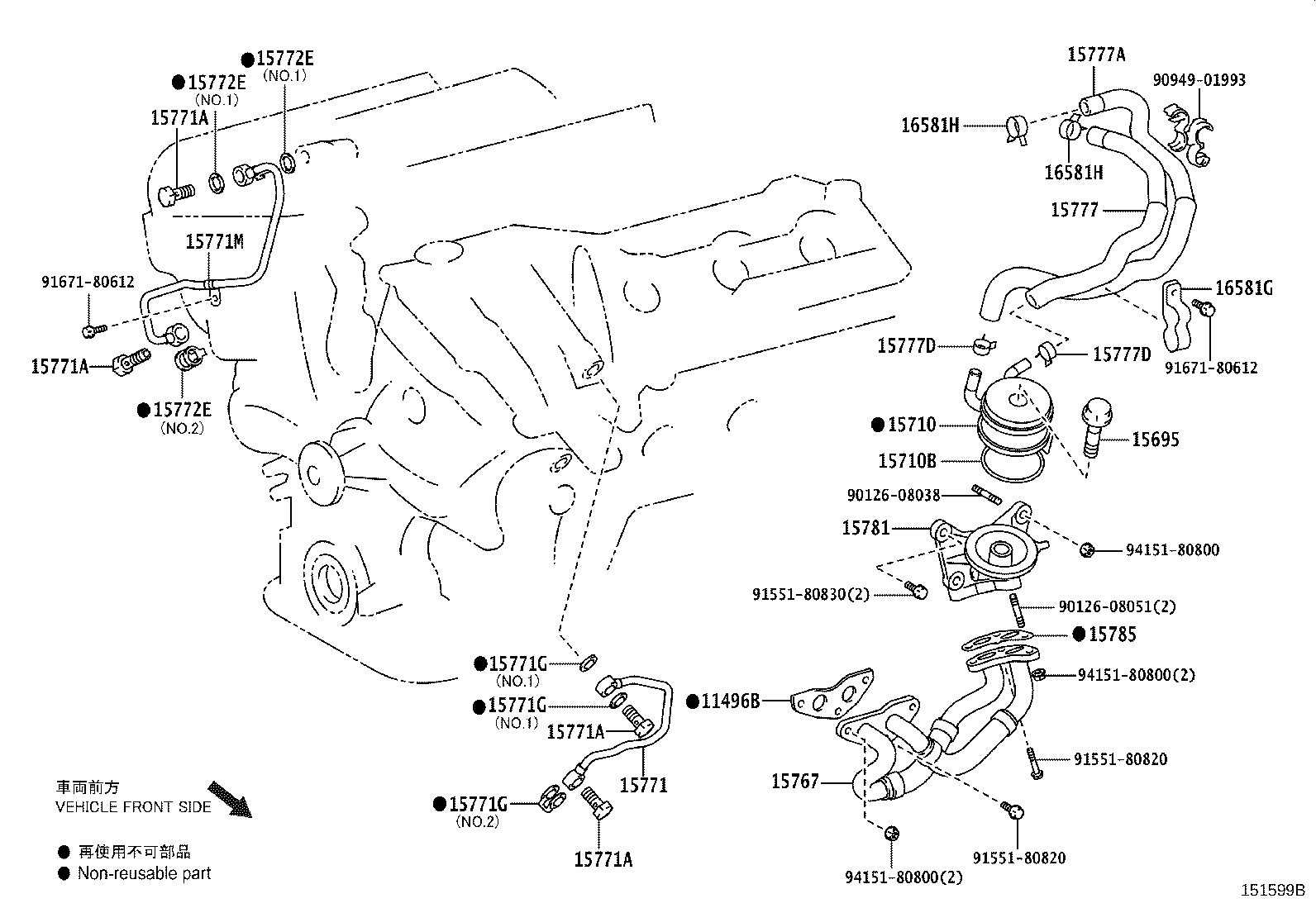

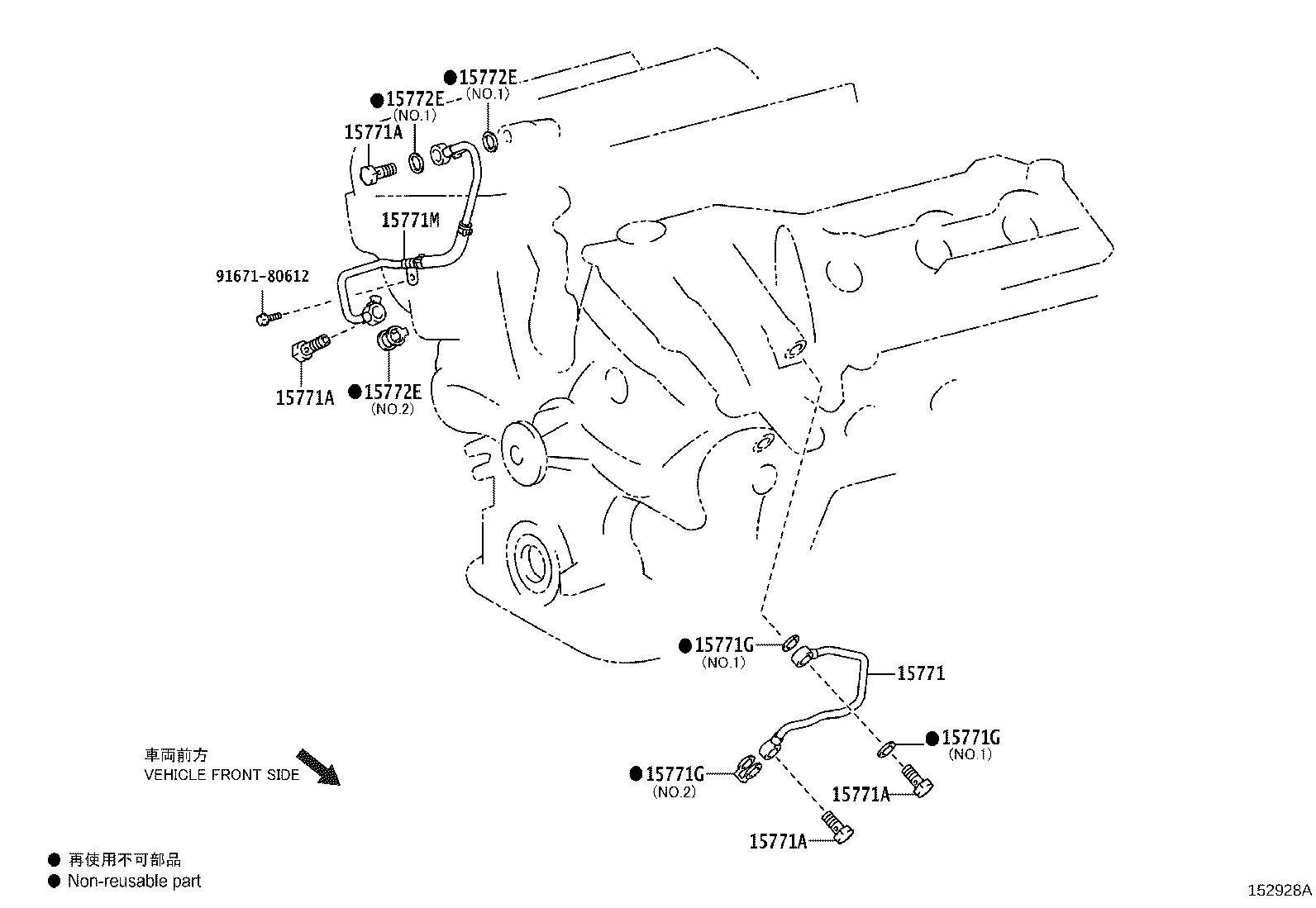

Figure 152337C 152337C 2015-07 → — Figure 152928A 152928A 2012-06 → — Figure 151599B 151599B 2012-06 → —

Part groups

PNCDescription
11496B Gasket, Oil Hole Cover
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15725 Gasket, Oil Cooler Cover
15767 Pipe, Oil Cooler
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15771M Pipe, Oil
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
16581G Clamp, Hose(FOR OIL COOLER HOSE)
16581H Clip, Hose(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
