Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282390 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

21 part groups · 5 illustrations

Illustrations

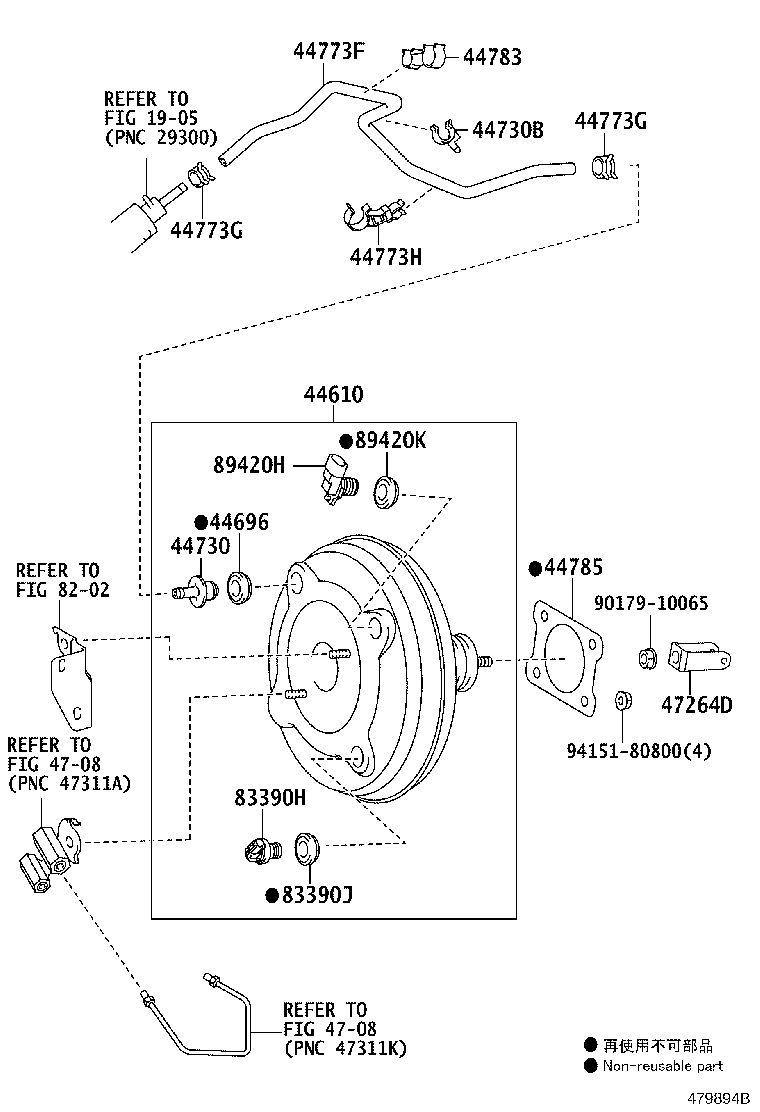

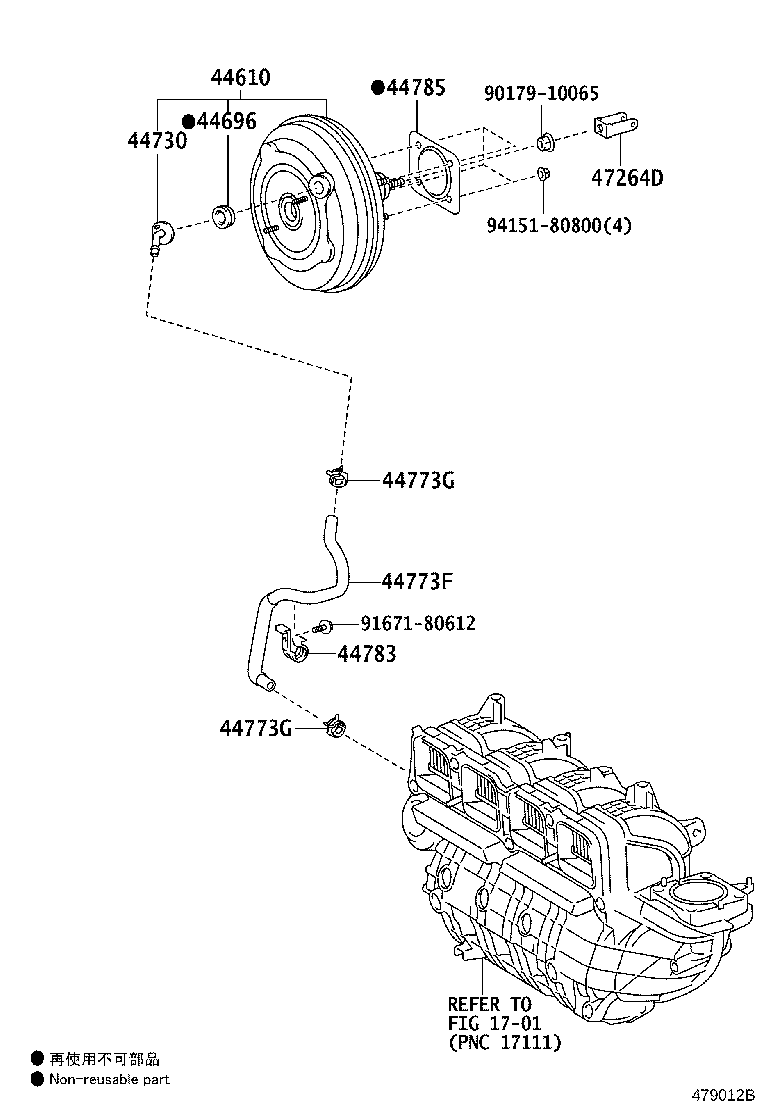

Figure 478427B 478427B 2012-06 → — Figure 478428B 478428B 2012-06 → — Figure 479012B 479012B 2013-08 → — Figure 479013B 479013B 2013-08 → — Figure 479894B 479894B 2015-07 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44773H Clamp(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
