Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282390 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 4 illustrations

Illustrations

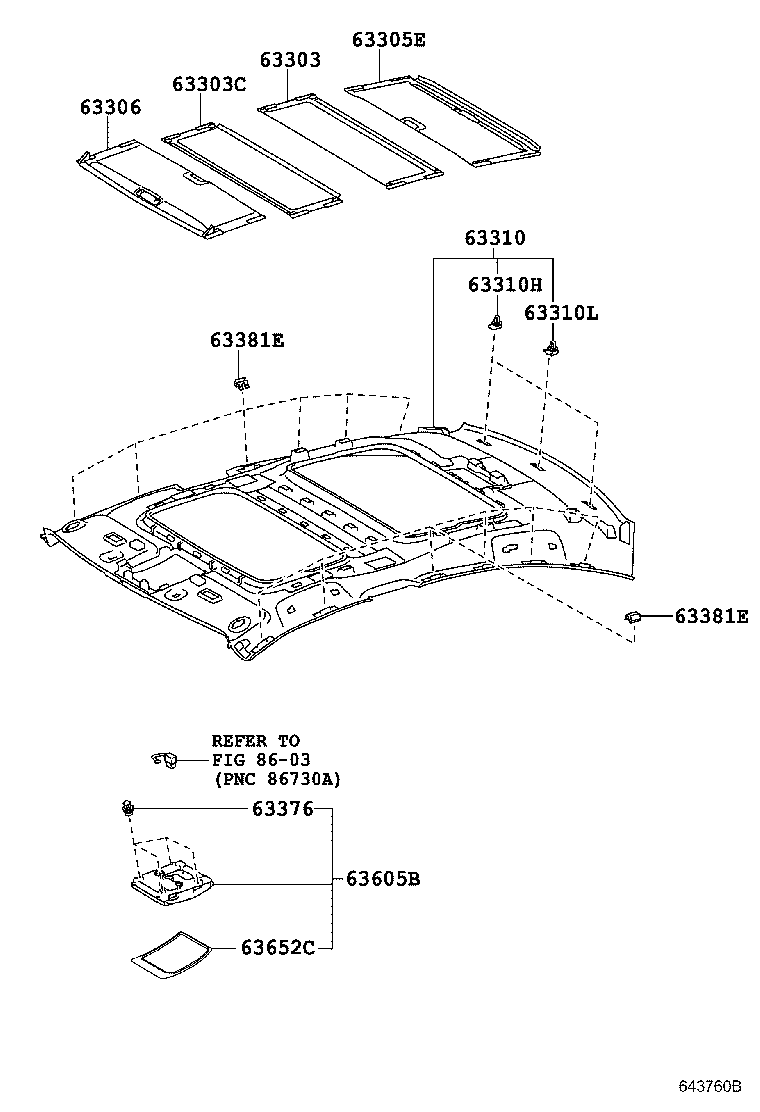

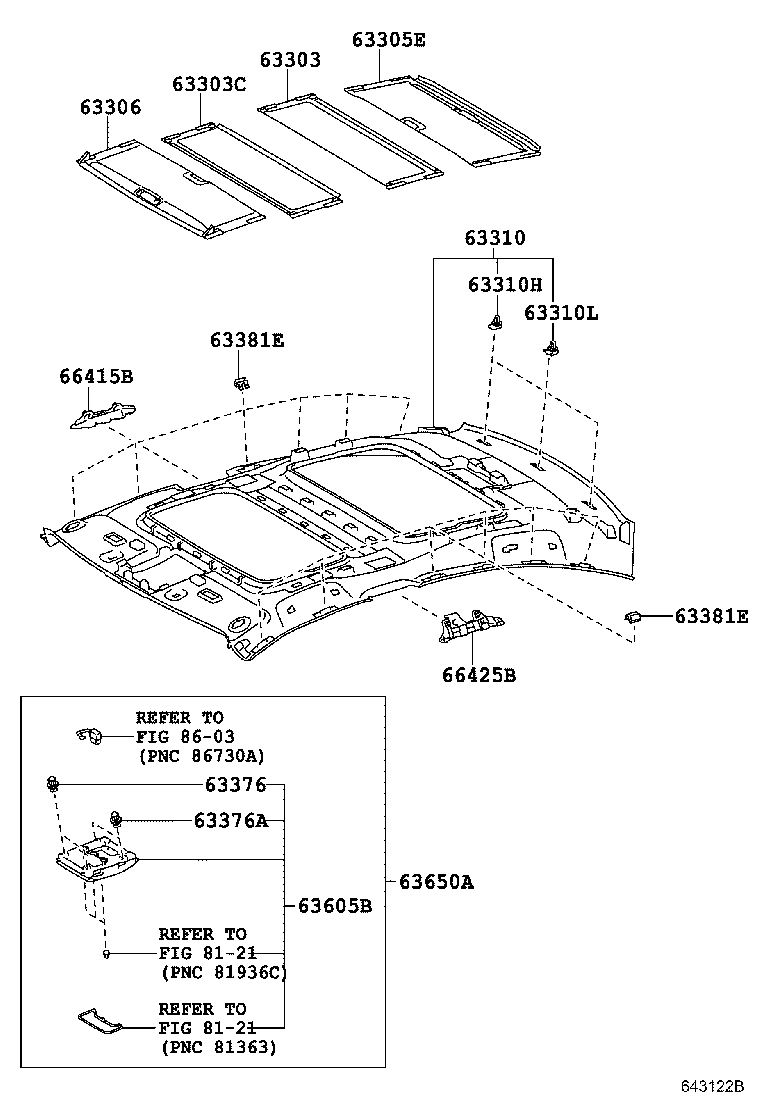

Figure 643121B 643121B 2012-06 → 2015-07 Figure 643122B 643122B 2012-06 → 2015-07 Figure 643759B 643759B 2015-07 → — Figure 643760B 643760B 2015-07 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63303C Trim Sub-assy, Sunshade, NO.2 Front
63305E Trim Sub-assy, Sunshade, NO.3
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63310L Cap(FOR ROOF HEADLINING)
63376 Clip, Headlining
63376A Clip, Headlining, NO.2
63381E Retainer, Roof Headlining Trim, Front
63605B Box Sub-assy, Roof Console
63650A Box Assy, Roof Console
63652C Cover, Roof Console Box
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
