Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282390 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

12 part groups · 3 illustrations

Illustrations

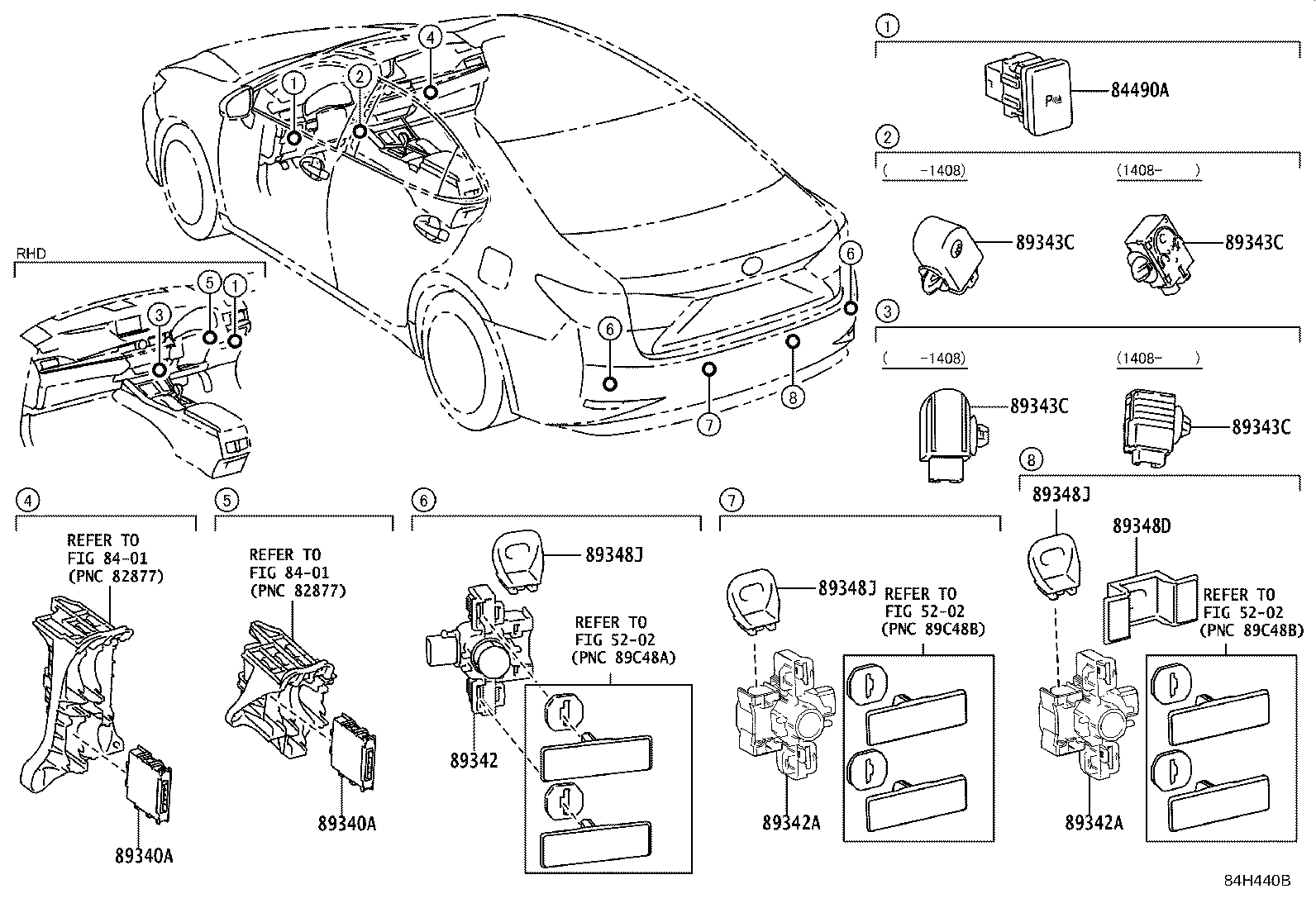

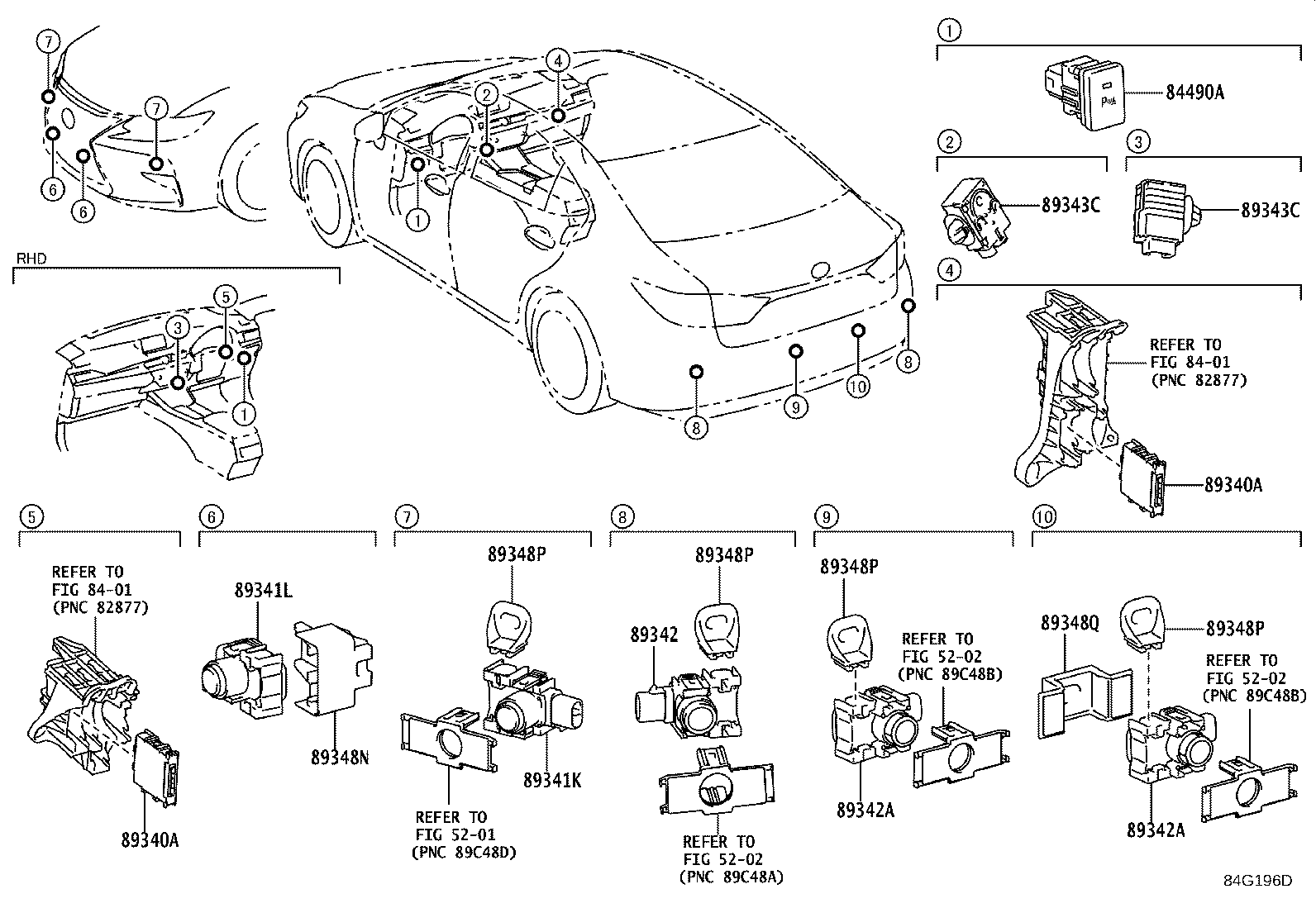

Figure 84D547B 84D547B 2012-06 → 2015-07 Figure 84H440B 84H440B 2012-06 → 2015-07 Figure 84G196D 84G196D 2015-07 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348J Clip, Ultrasonic Sensor
89348N Clip, Ultrasonic Sensor, NO.1
89348P Clip, Ultrasonic Sensor, NO.2
89348Q Clip, Ultrasonic Sensor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
