Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

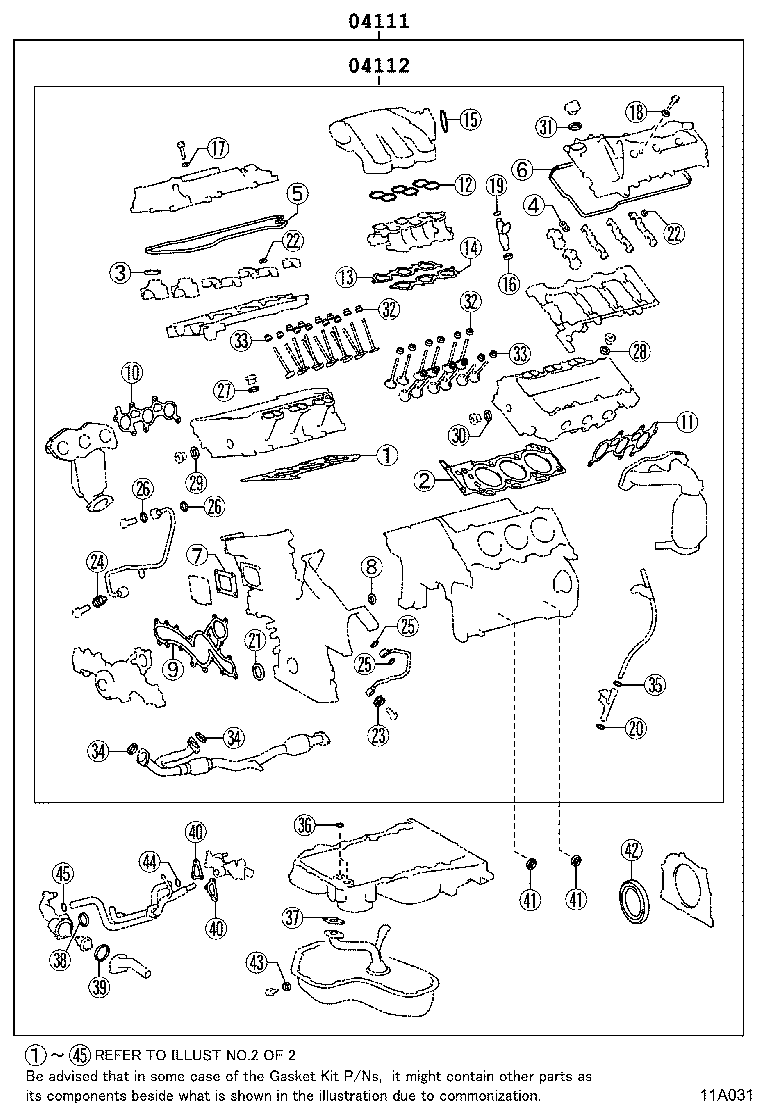

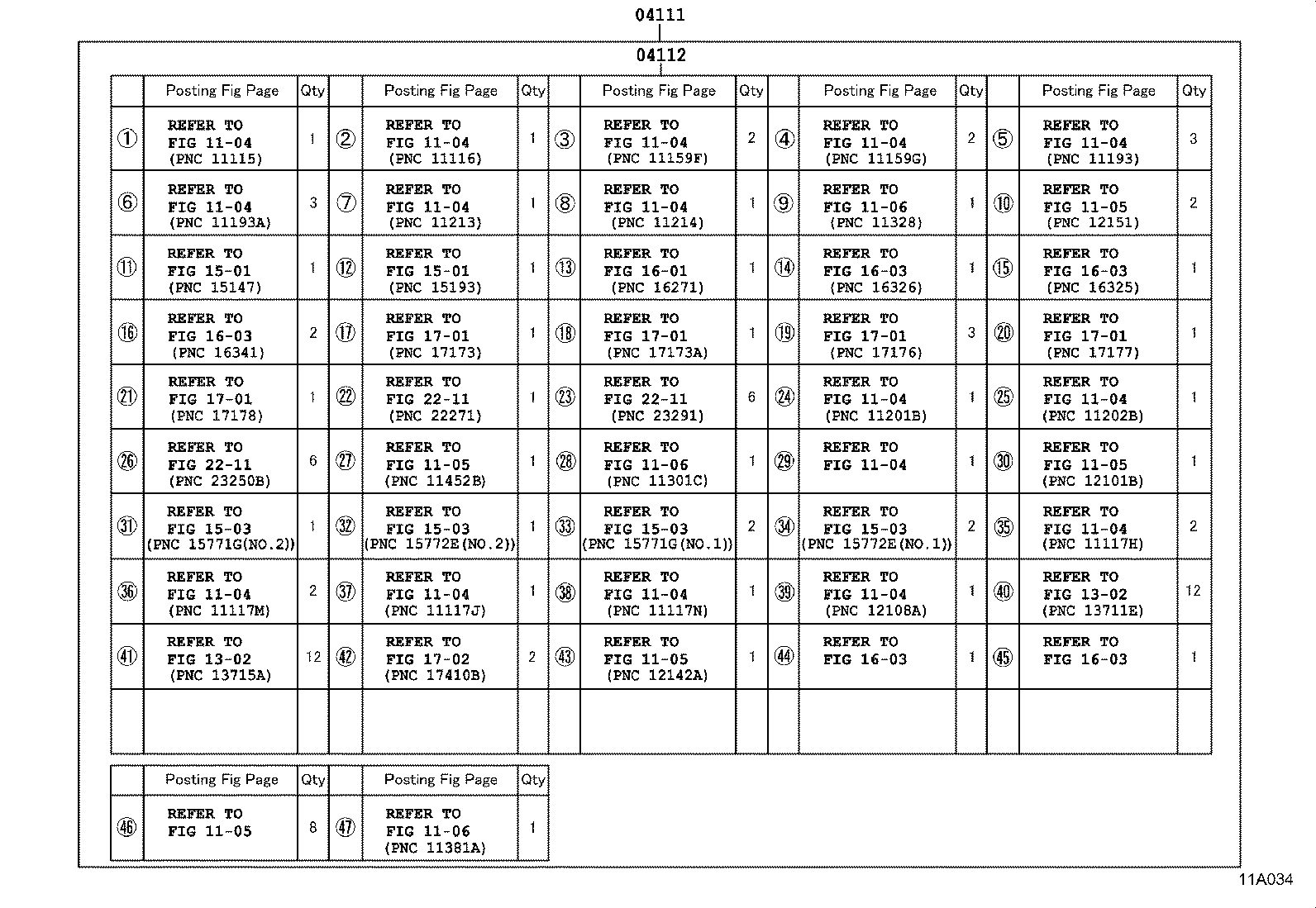

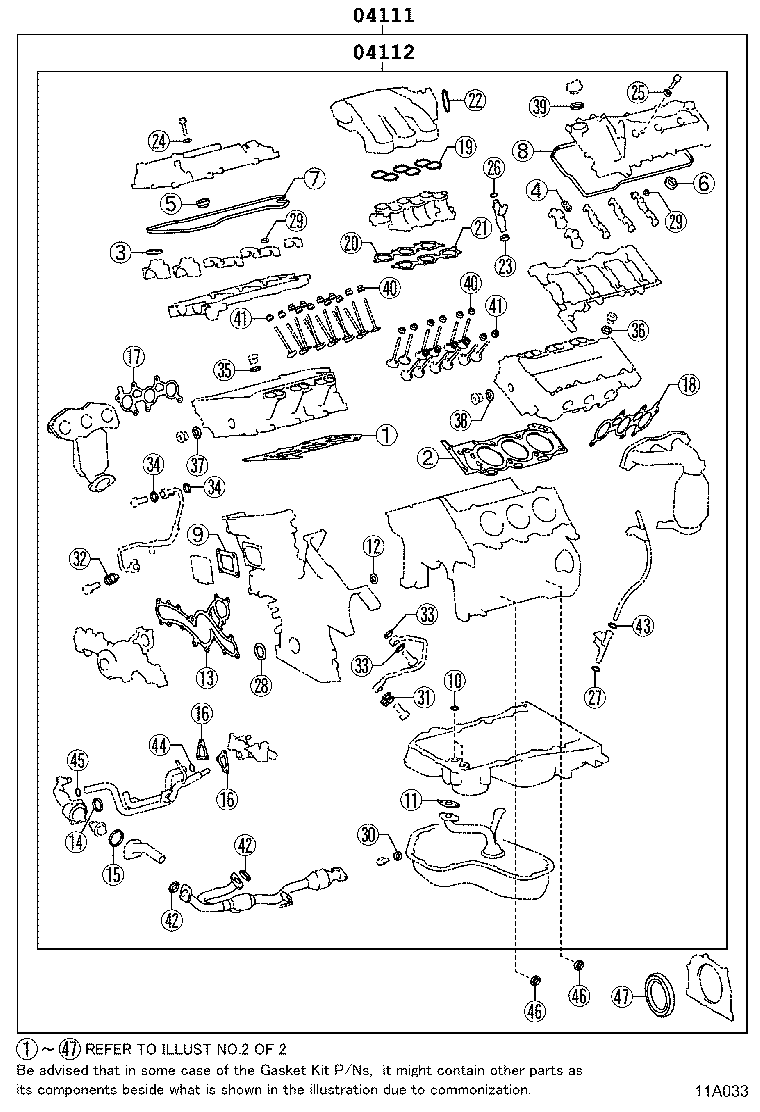

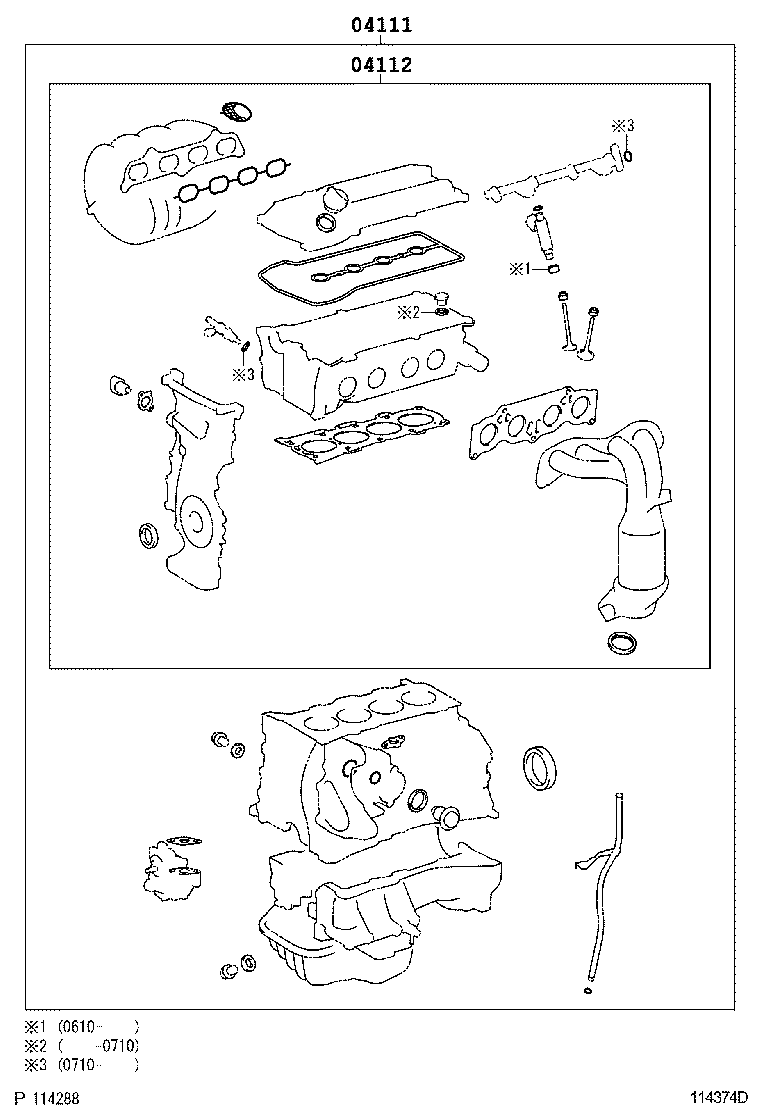

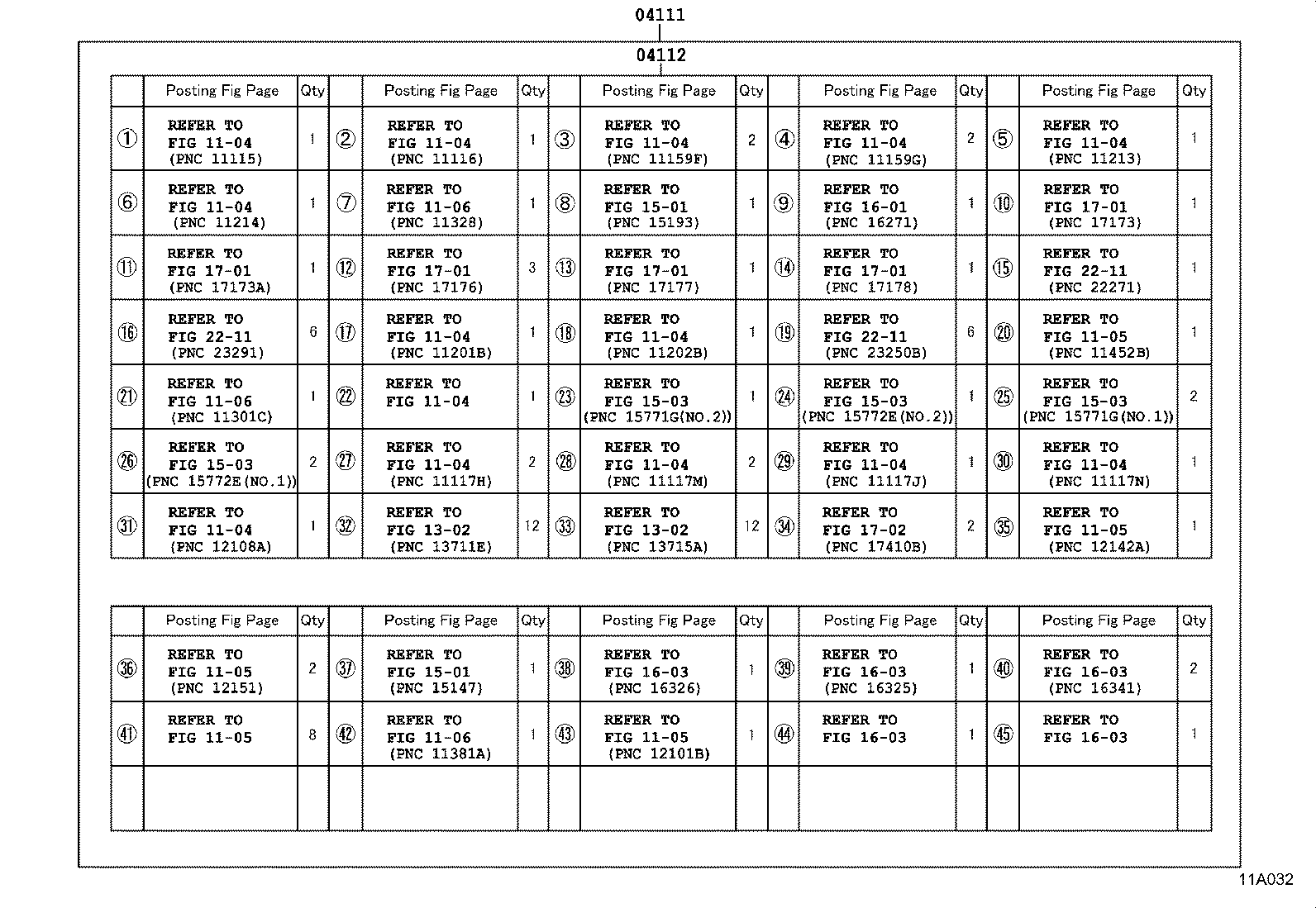

Figure 114211D 114211D 2006-05 → — Figure 114374D 114374D 2006-08 → — Figure 11A031 11A031 2006-05 → 2011-08 Figure 11A032 11A032 2006-05 → 2011-08 Figure 11A033 11A033 2011-08 → 2012-06 Figure 11A034 11A034 2011-08 → 2012-06

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
