Toyota Camry/Hybrid (ASIA)
2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General
Supported model
Data version 2013-01
Shift Lever & Retainer
22 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

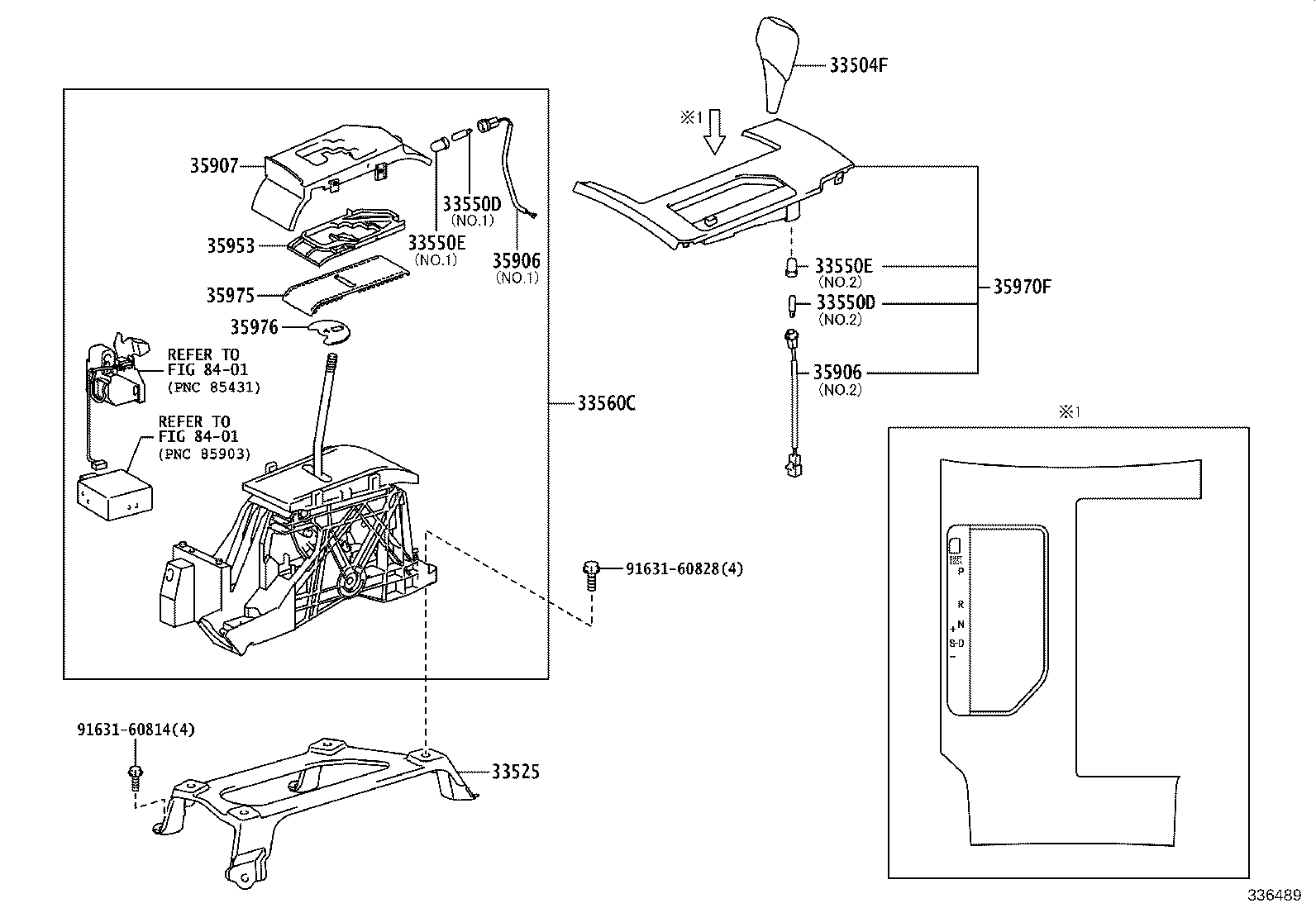

| 33504F | Knob Sub-assy, Shift Lever |
| 33525 | Support, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560C | Lever Assy, Shift, Lower |
| 33563 | Button, Shift Lock Release |
| 33723Q | Nut (FOR CONNECTING ROD SWIVEL) |

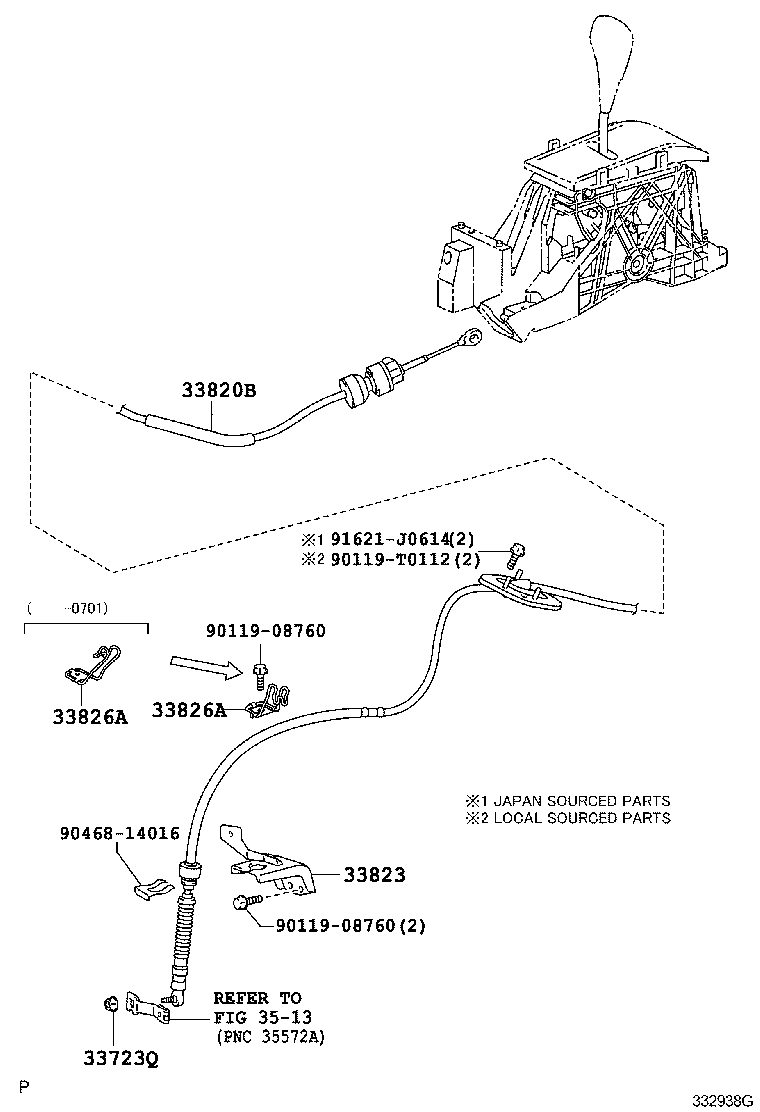

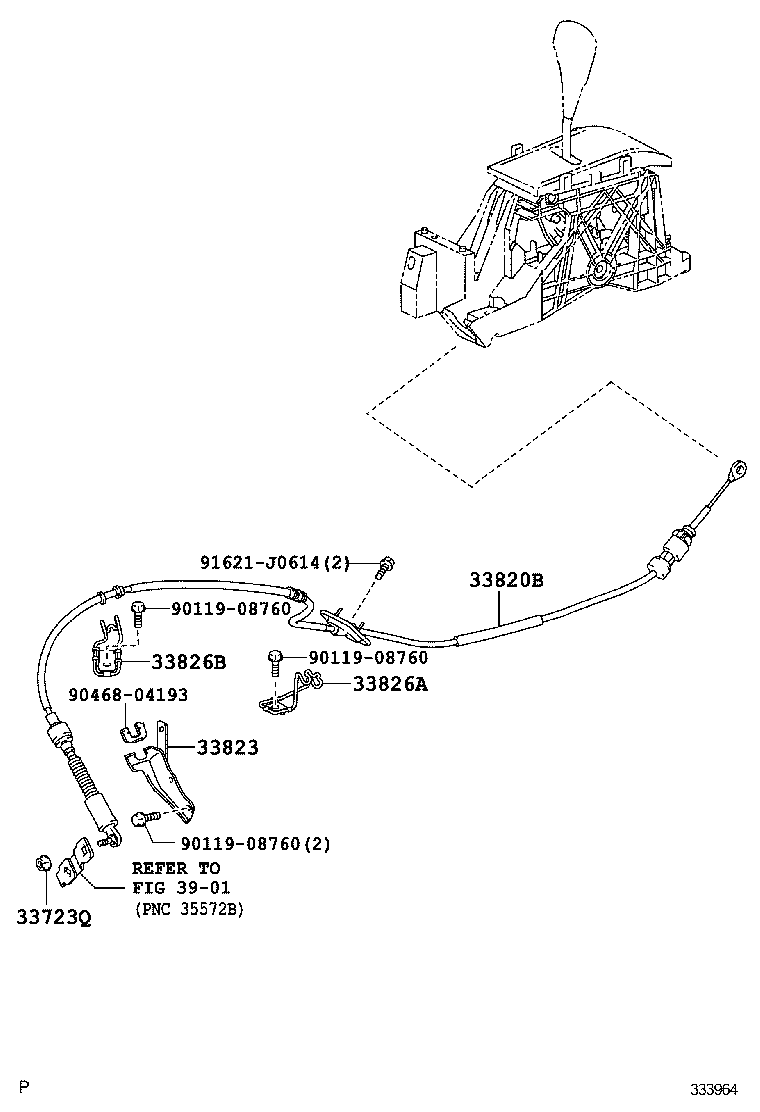

| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33826A | Bracket, Transmission Control Cable, NO.2 |
| 33826B | Bracket, Transmission Control Cable, NO.3 |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35921 | Plate, Control Position Indicator |
| 35952 | Lens, Position Indicator |
| 35953 | Guide, Position Indicator Light |
| 35970F | Housing Assy, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35972 | Cover, Position Indicator Housing |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
