Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 4 illustrations

Illustrations

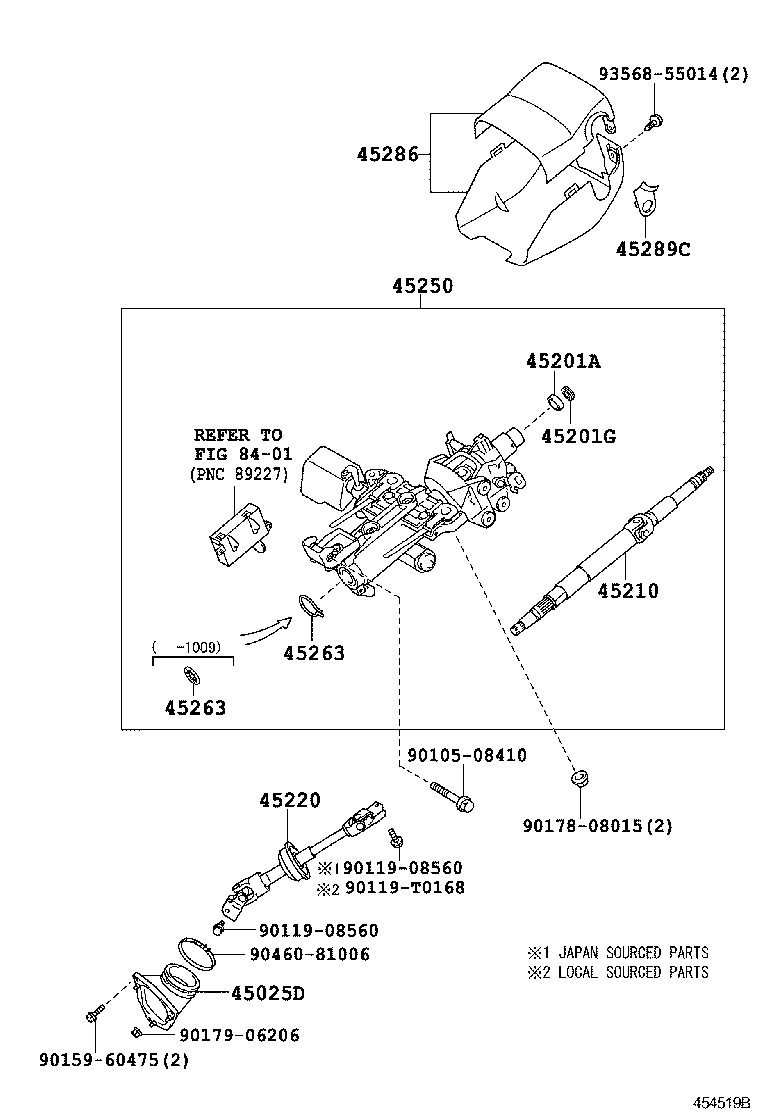

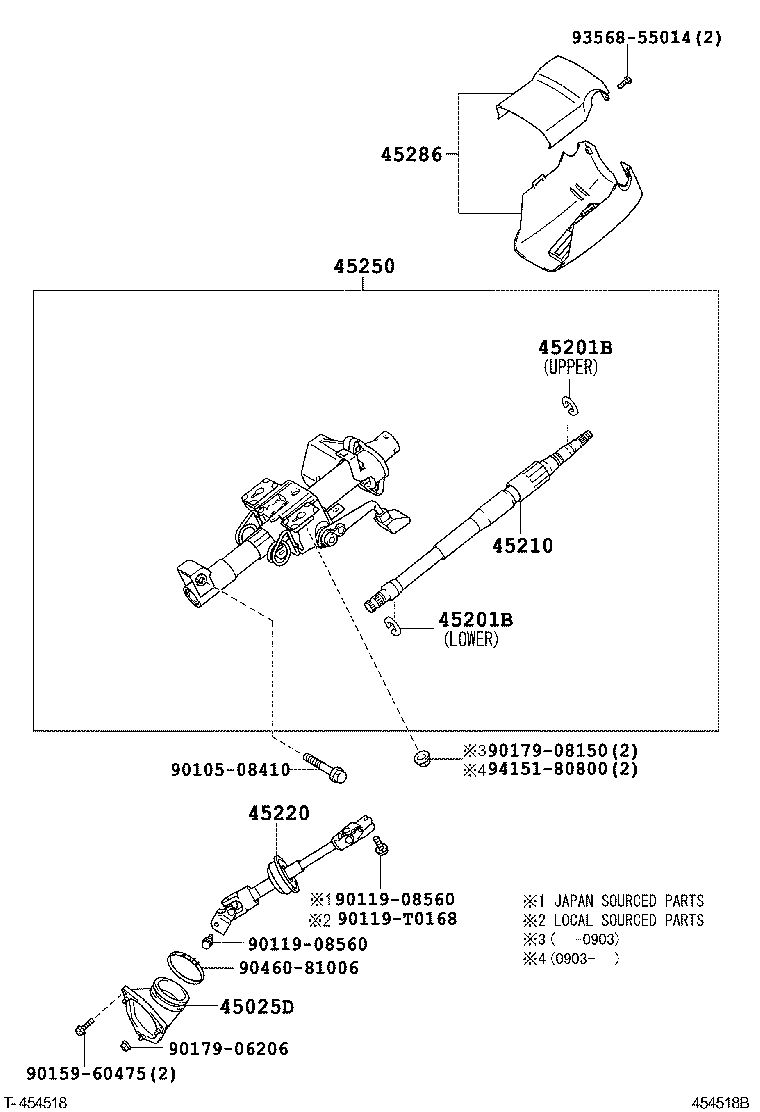

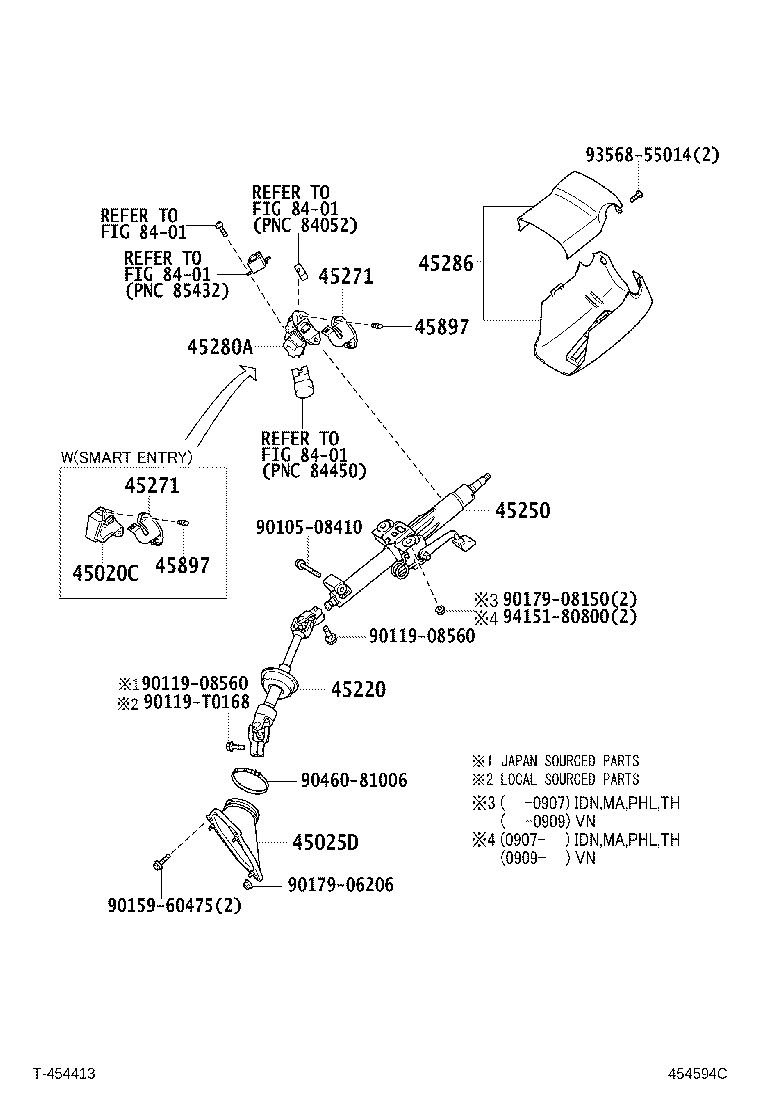

Figure 454517C 454517C 2006-05 → — Figure 454518B 454518B 2006-05 → — Figure 454519B 454519B 2006-05 → — Figure 454594C 454594C 2006-08 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45263 Ring, Steering Column, NO.1
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
45289C Cover, Steering Column, Lwr NO.2
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
