Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 14 illustrations

Illustrations

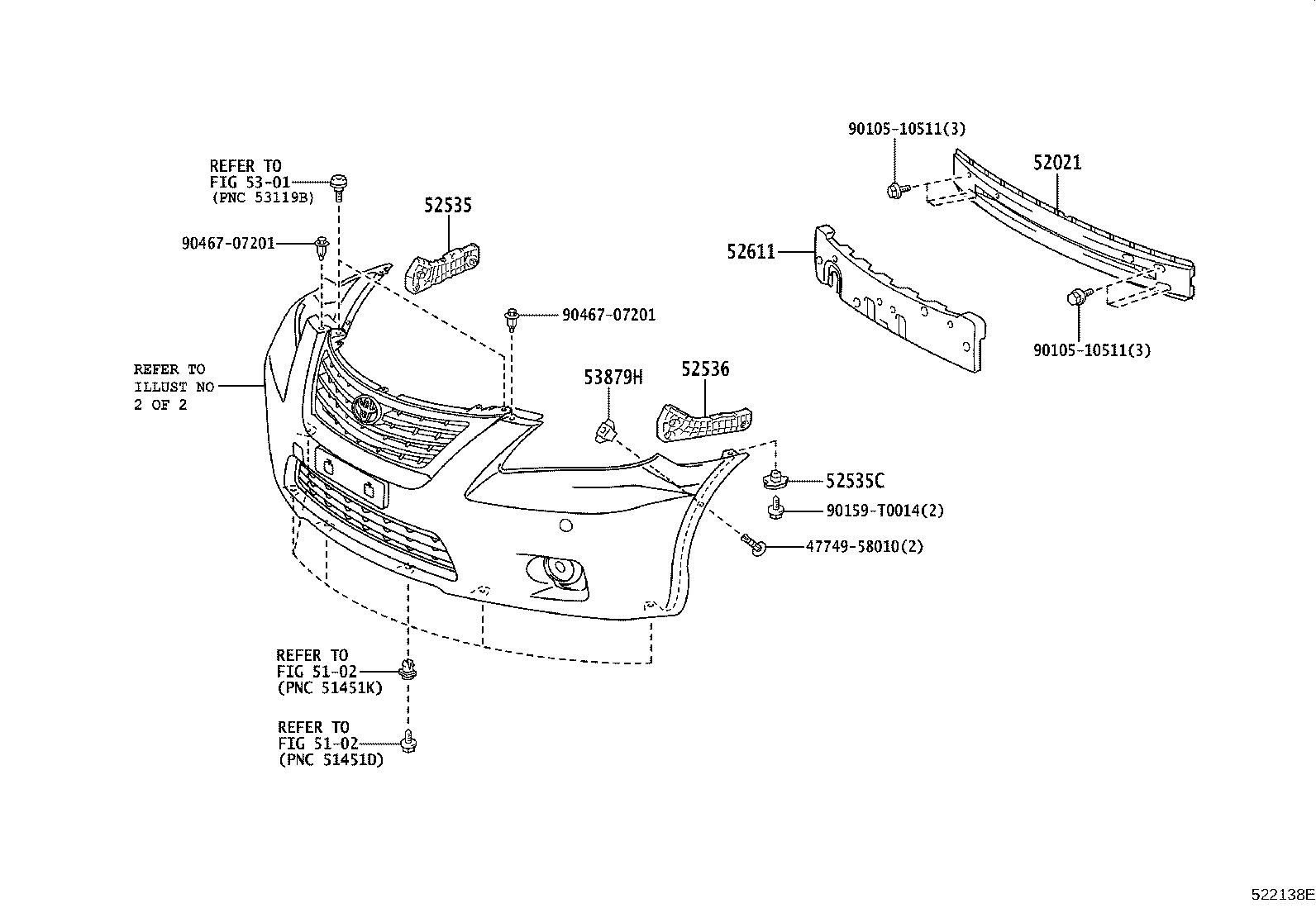

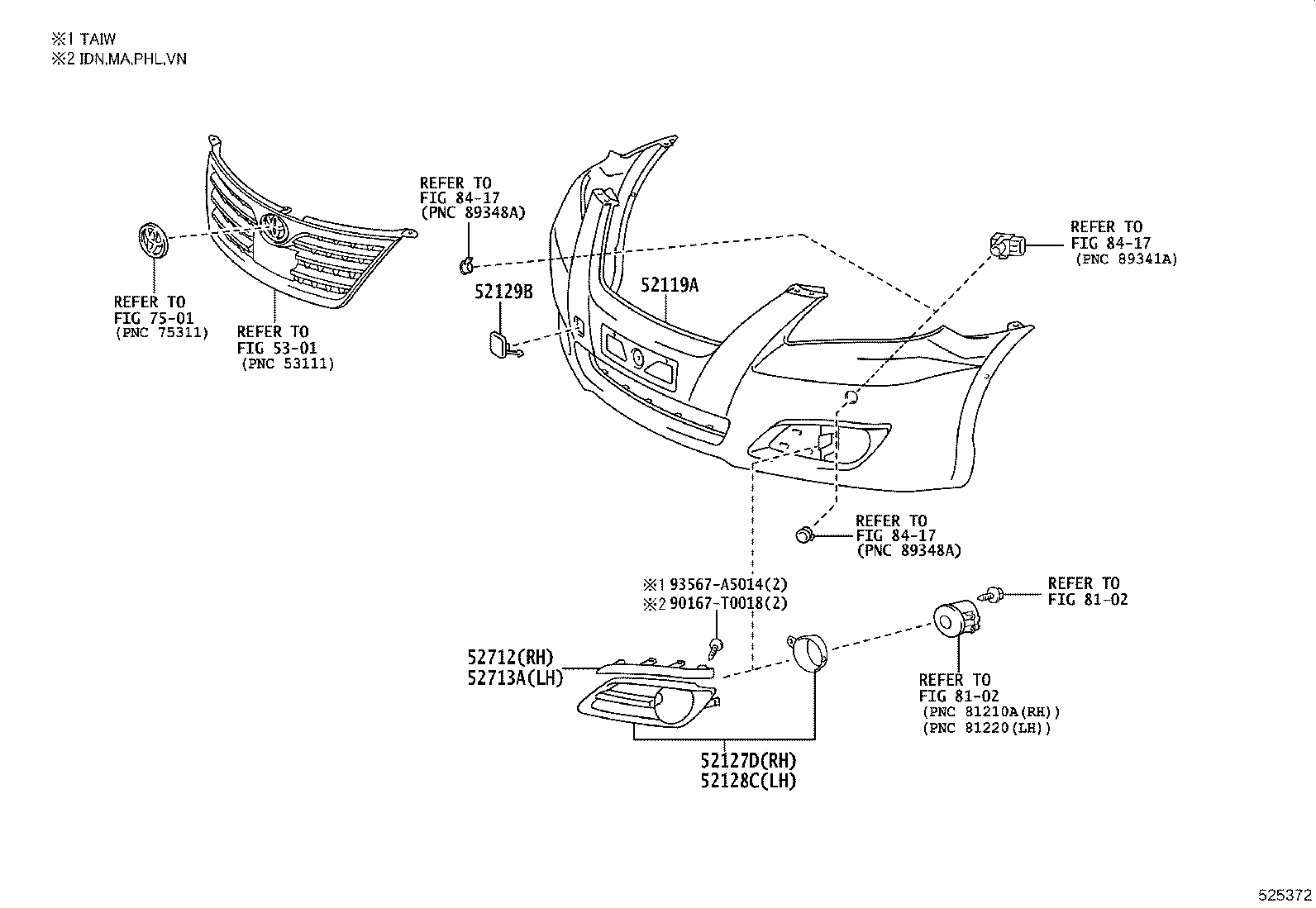

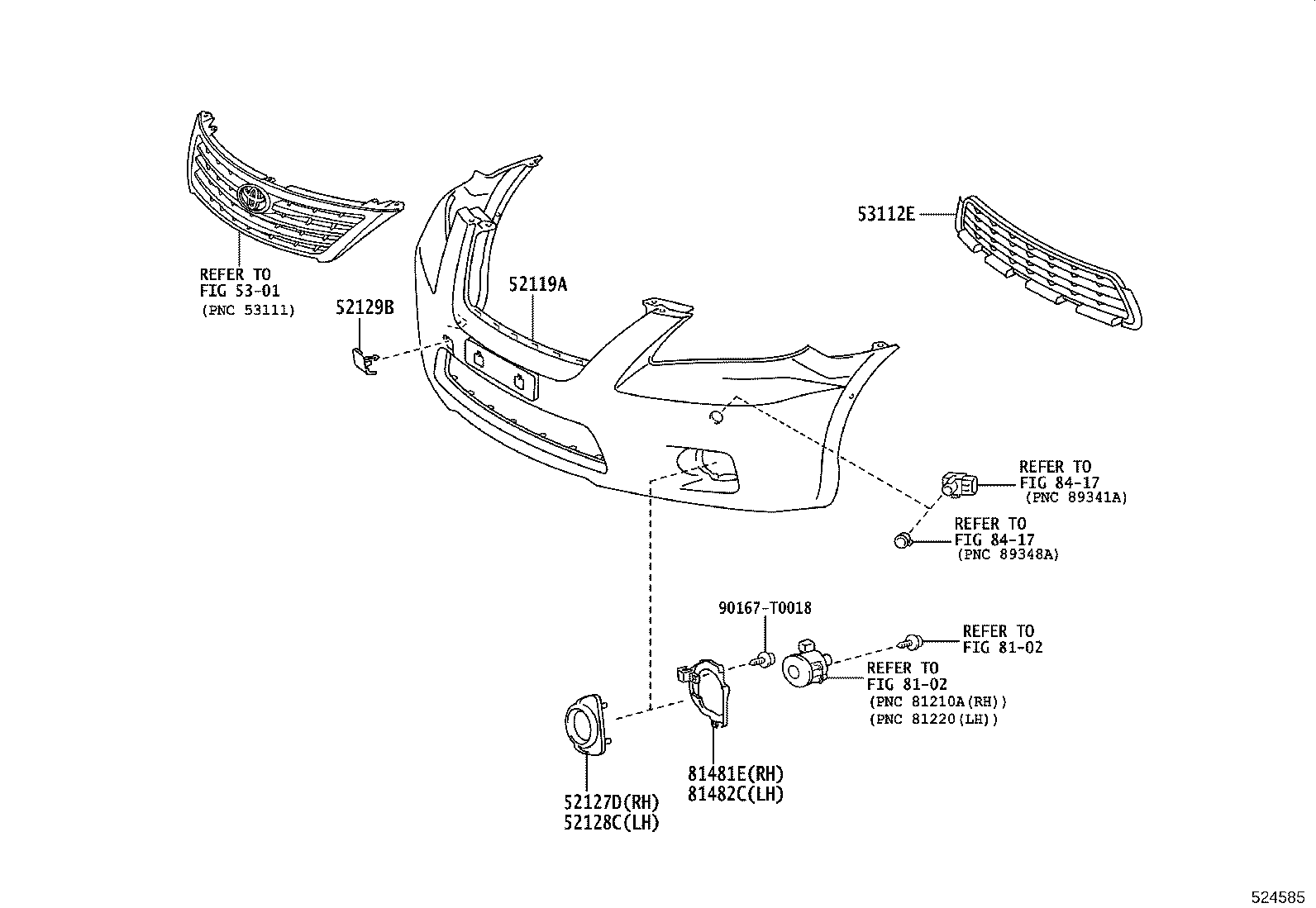

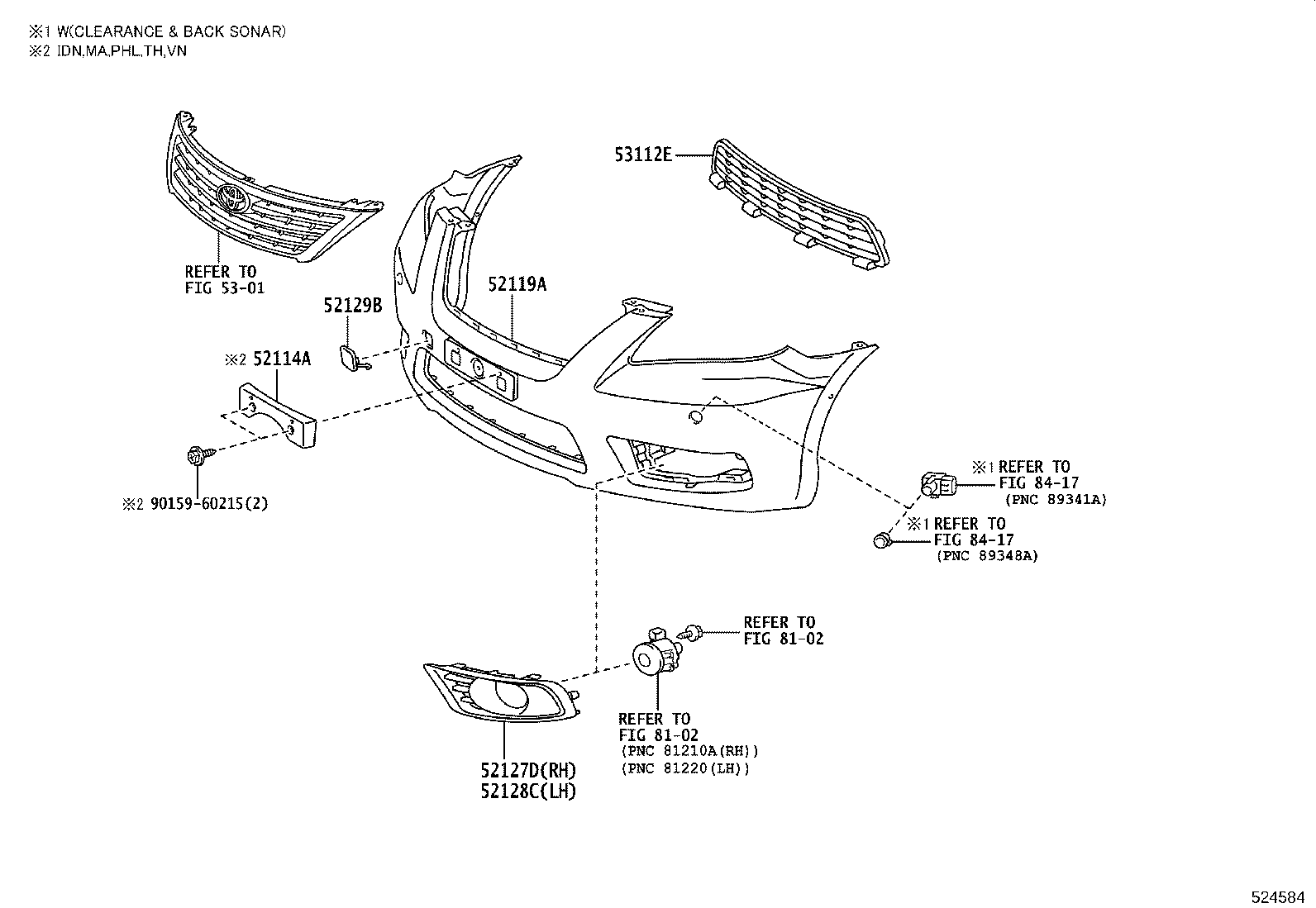

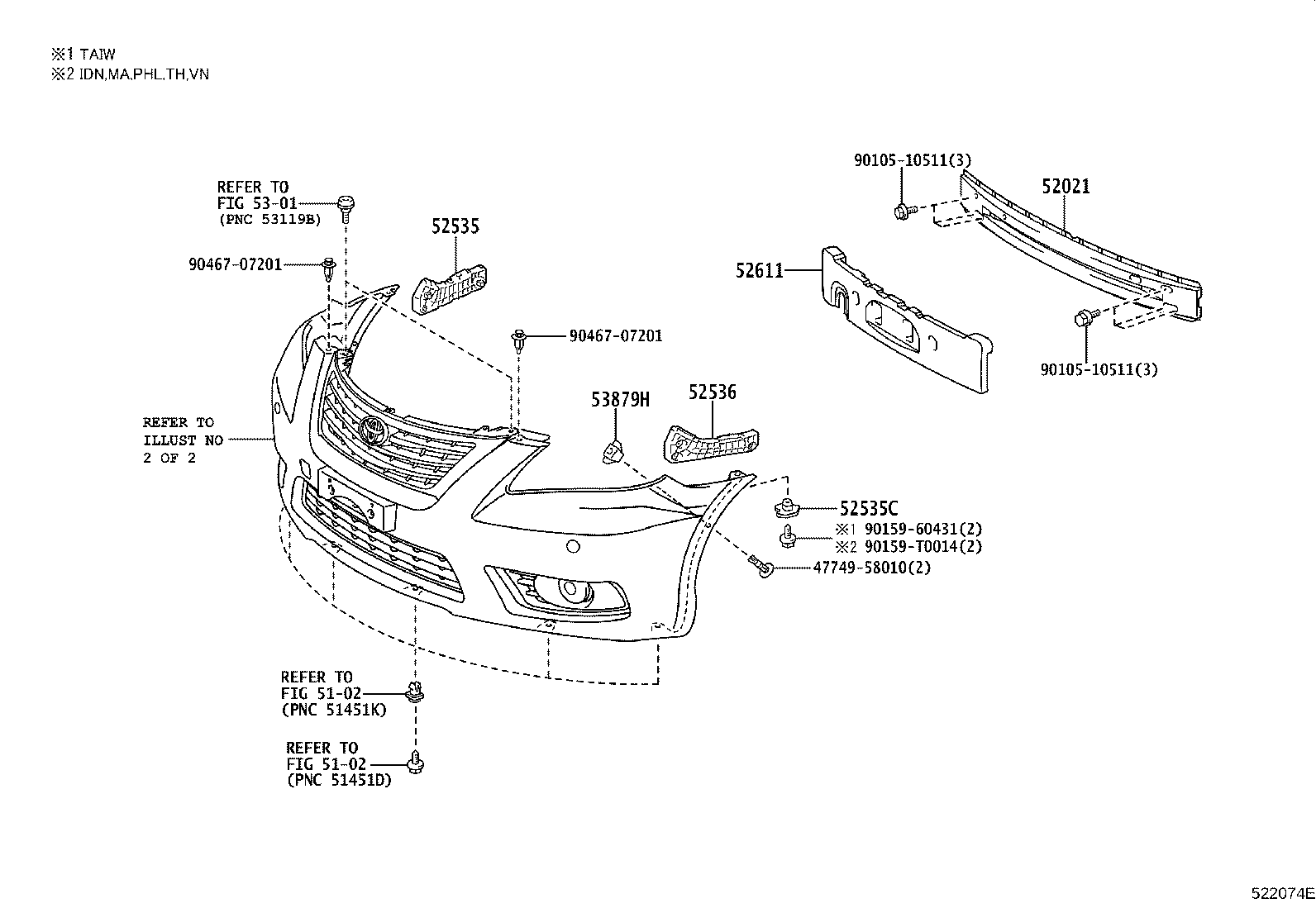

Figure 521557H 521557H 2006-05 → 2009-03 Figure 521557H 521557H 2006-08 → 2009-07 Figure 521557H 521557H 2006-11 → 2009-09 Figure 525372 525372 2006-05 → 2009-03 Figure 525372 525372 2006-08 → 2009-07 Figure 525372 525372 2006-11 → 2009-09 Figure 522074E 522074E 2009-03 → — Figure 522074E 522074E 2009-07 → — Figure 522074E 522074E 2009-09 → — Figure 524584 524584 2009-03 → — Figure 524584 524584 2009-07 → — Figure 524584 524584 2009-09 → — Figure 522138E 522138E 2009-07 → — Figure 524585 524585 2009-07 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
