Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

38 part groups · 5 illustrations

Illustrations

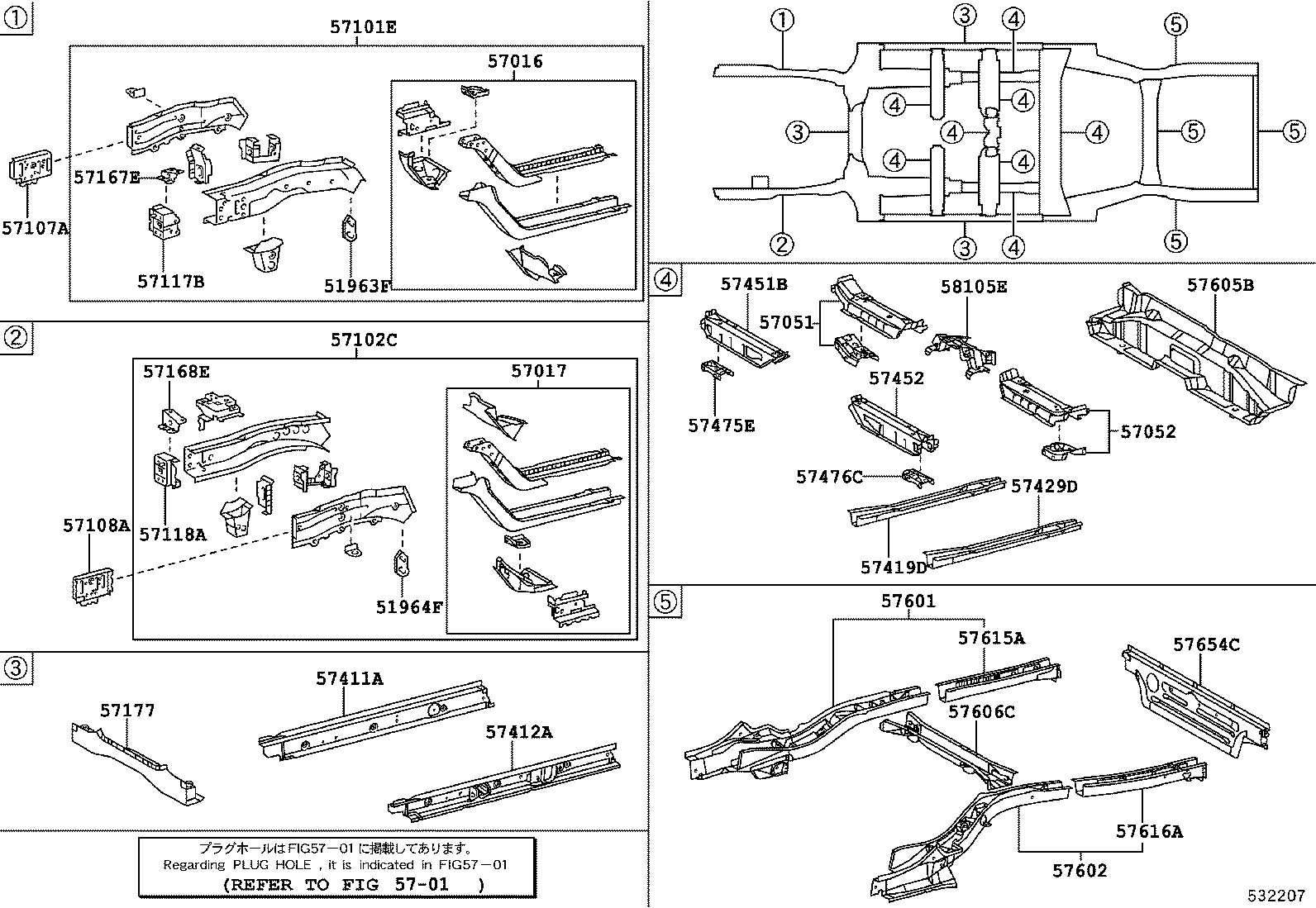

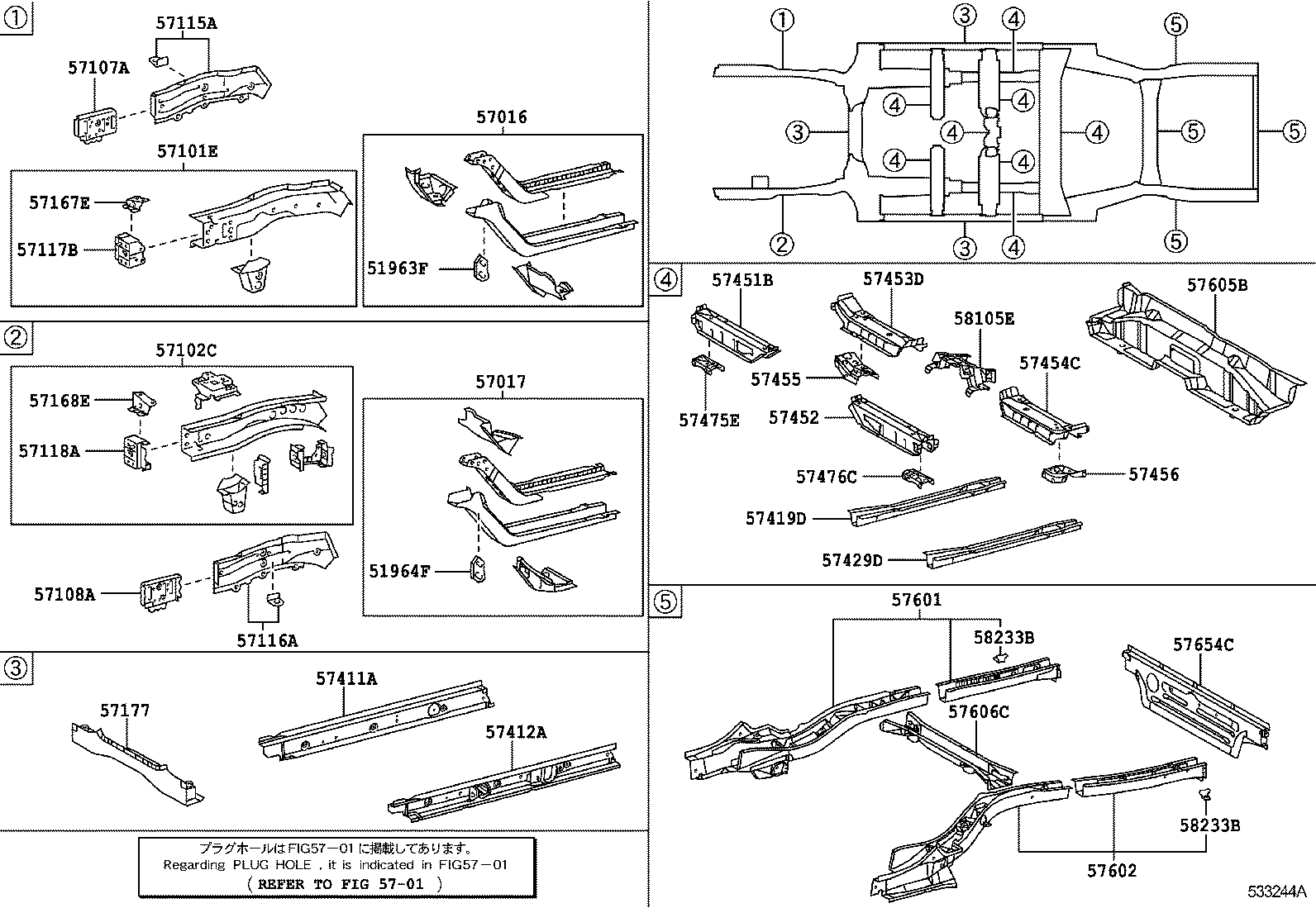

Figure 532284A 532284A 2006-08 → 2009-07 Figure 532284A 532284A 2006-08 → 2009-09 Figure 532207 532207 2006-05 → — Figure 533244A 533244A 2009-07 → — Figure 533244A 533244A 2009-09 → —

Part groups

PNCDescription
51963F Hook, Transport
51964F Hook, Transport, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57051 Member Sub-assy, Front Floor Cross, RH
57052 Member Sub-assy, Front Floor Cross, LH
57101E Member Sub-assy, Front Side, Inner RH
57102C Member Sub-assy, Front Side, Inner LH
57107A Plate Sub-assy, Front Side Member, NO.2 RH
57108A Plate Sub-assy, Front Side Member, NO.2 LH
57115A Plate, Front Side Member, Outer RH
57116A Plate, Front Side Member, Outer LH
57117B Reinforcement, Front Bumper Mounting, RH
57118A Reinforcement, Front Bumper Mounting, LH
57167E Gusset, Front Crossmember Side, RH
57168E Gusset, Front Crossmember Side, LH
57177 Crossmember, Front Side Member TO Dash Panel
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57419D Reinforcement, Front Floor Under, Rear RH
57429D Reinforcement, Front Floor Under, Rear LH
57451B Member, Front Floor Cross, RH
57452 Member, Front Floor Cross, LH
57453D Member, Front Floor Cross Side, RH
57454C Member, Front Floor Cross Side, LH
57455 Bracket, Front Seat Mounting, Outside RH
57456 Bracket, Front Seat Mounting, Outside LH
57475E Plate, Front Floor Crossmember, RH
57476C Plate, Front Floor Crossmember, LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
57654C Member, Rear Floor Cross, NO.3
58105E Panel Sub-assy, Front Floor Rear Upper Sub
58233B Bracket, Exhaust Pipe Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
