Toyota Camry/Hybrid (ASIA)
2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General
Supported model
Data version 2013-01

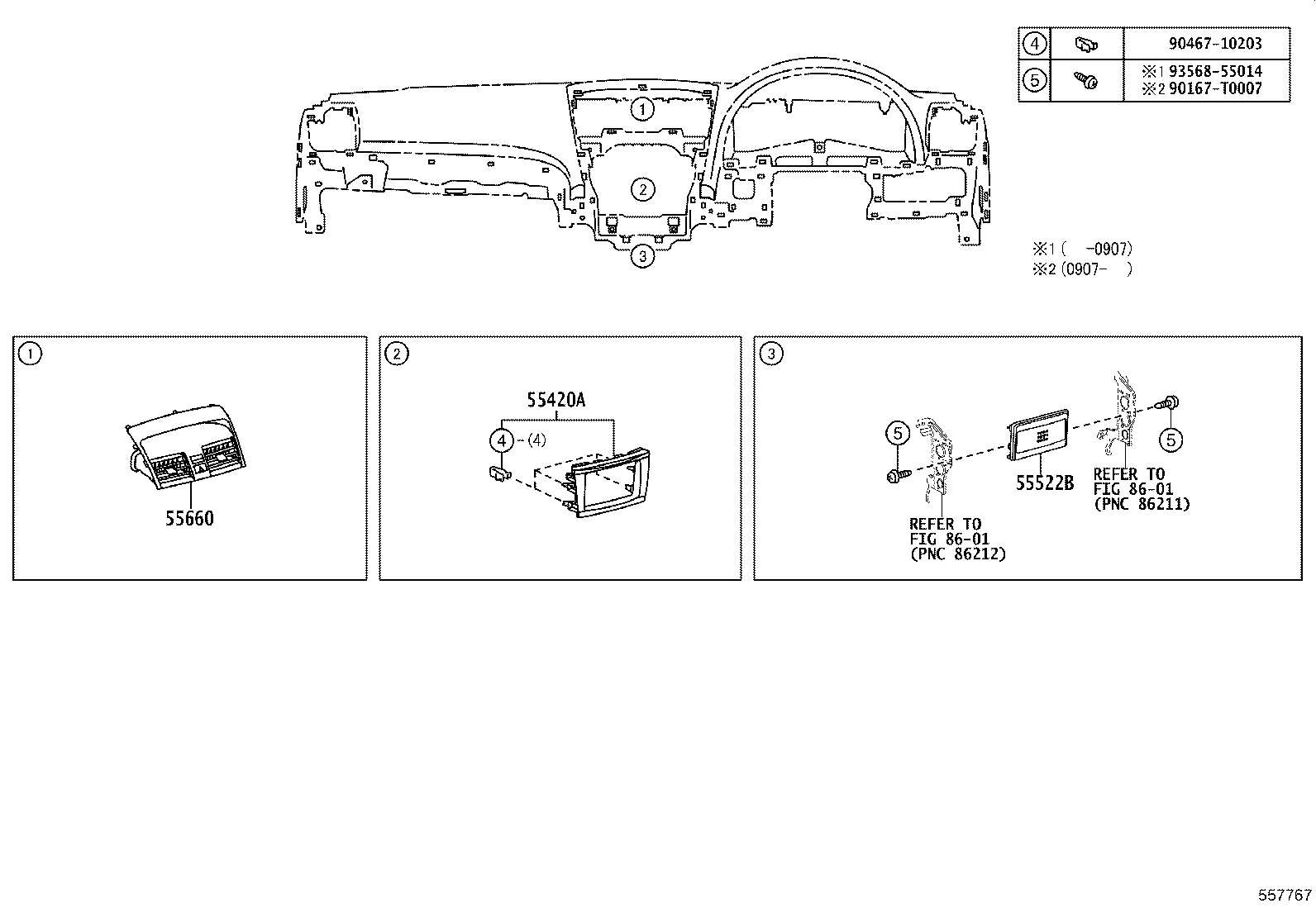

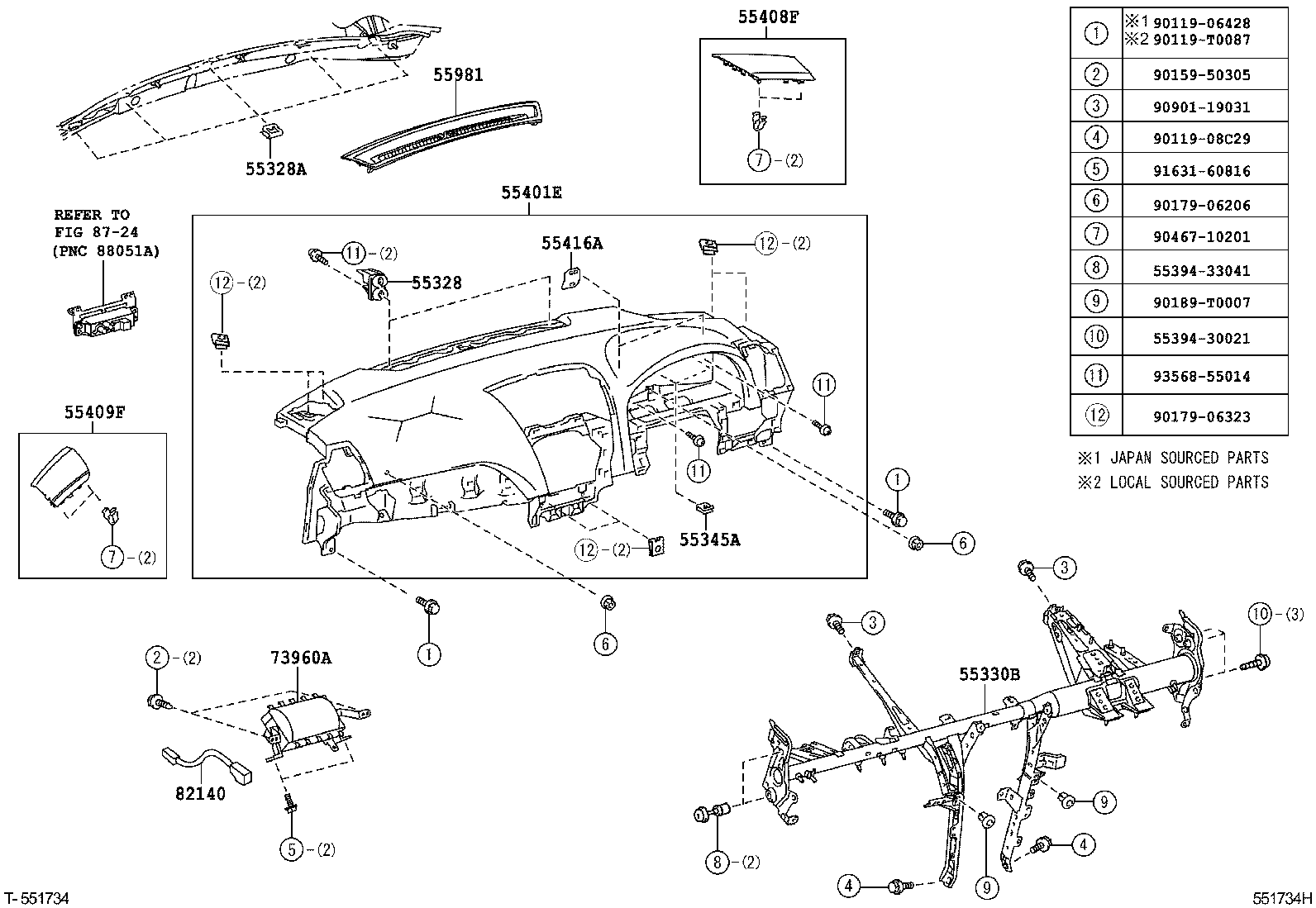

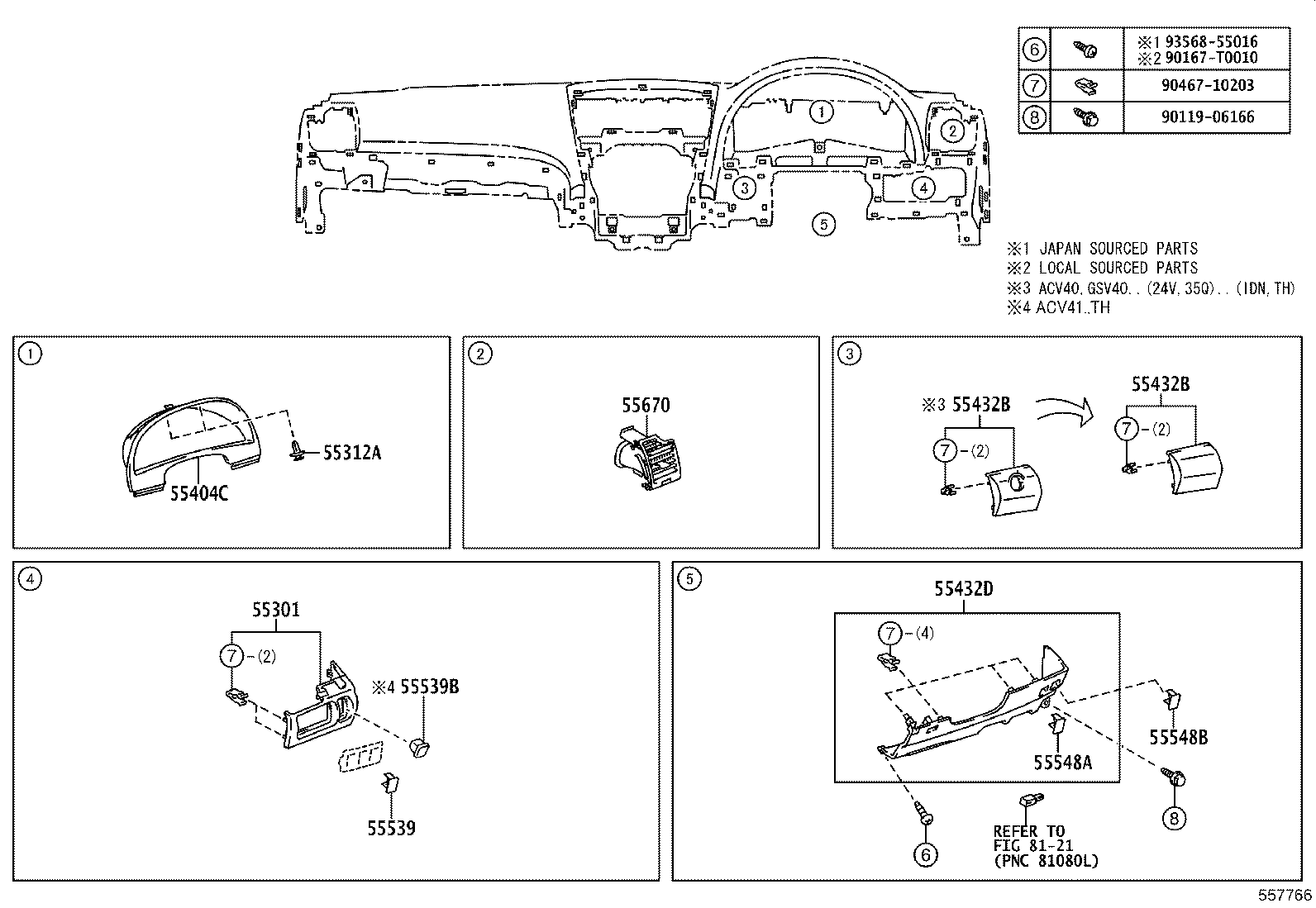

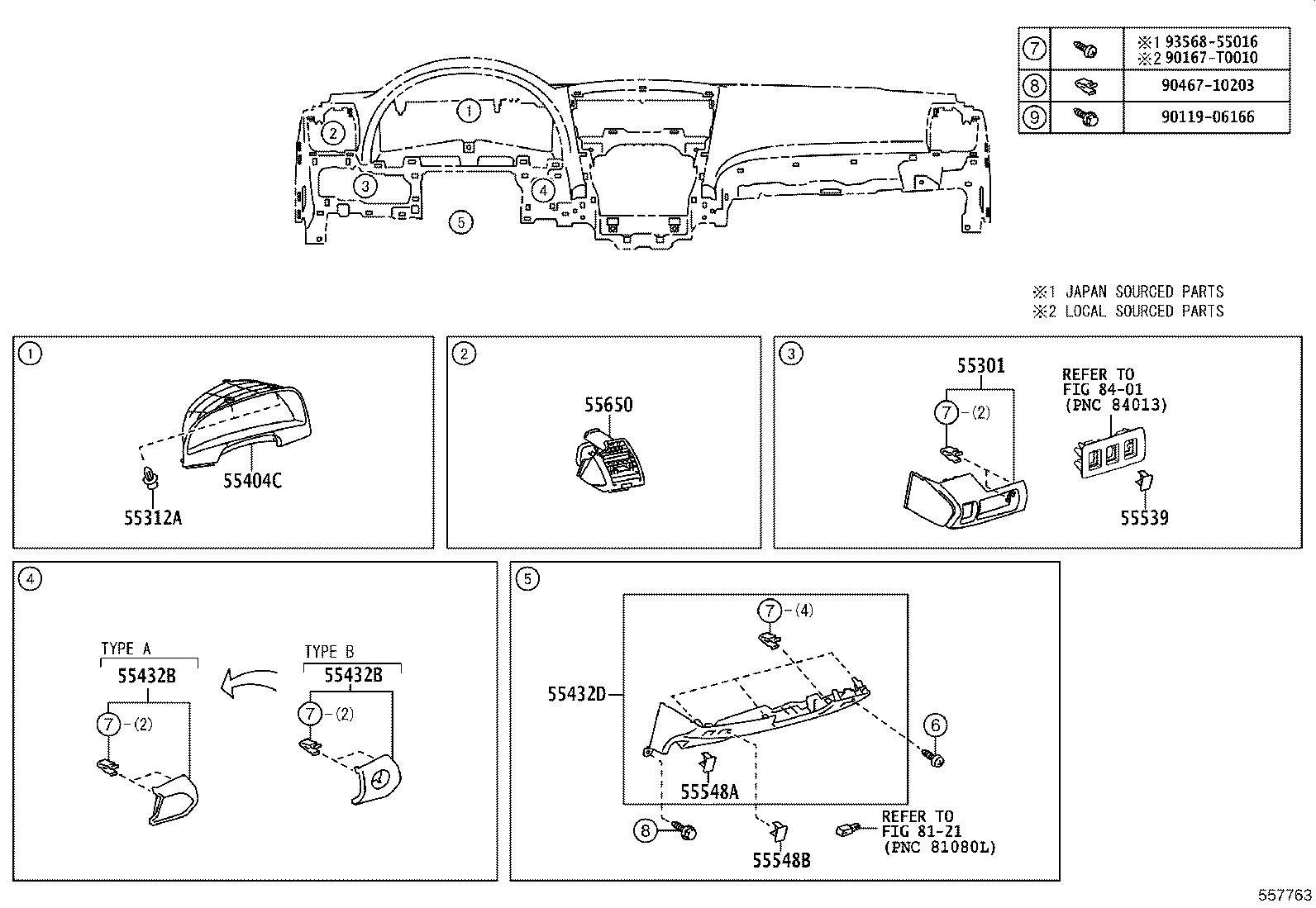

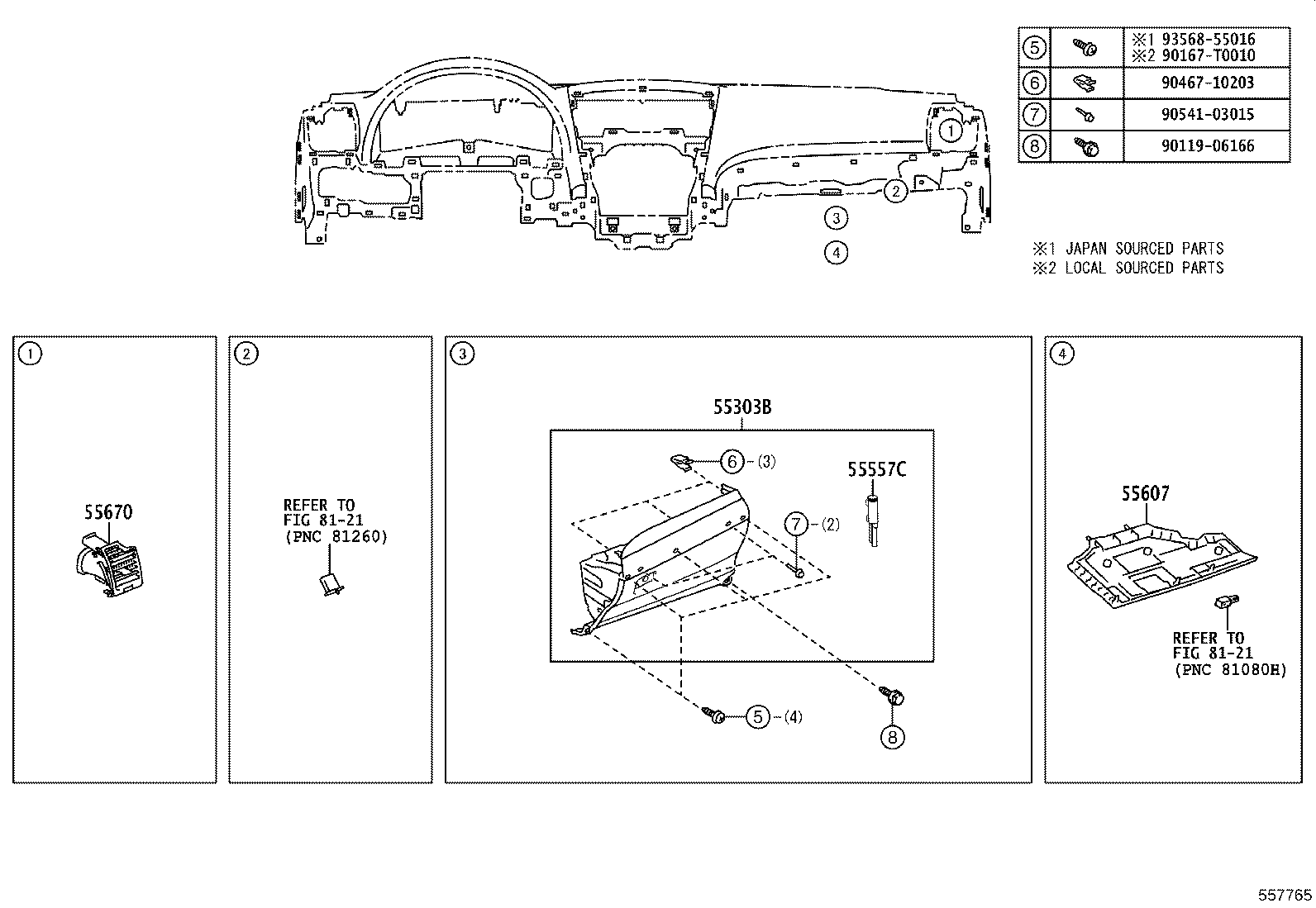

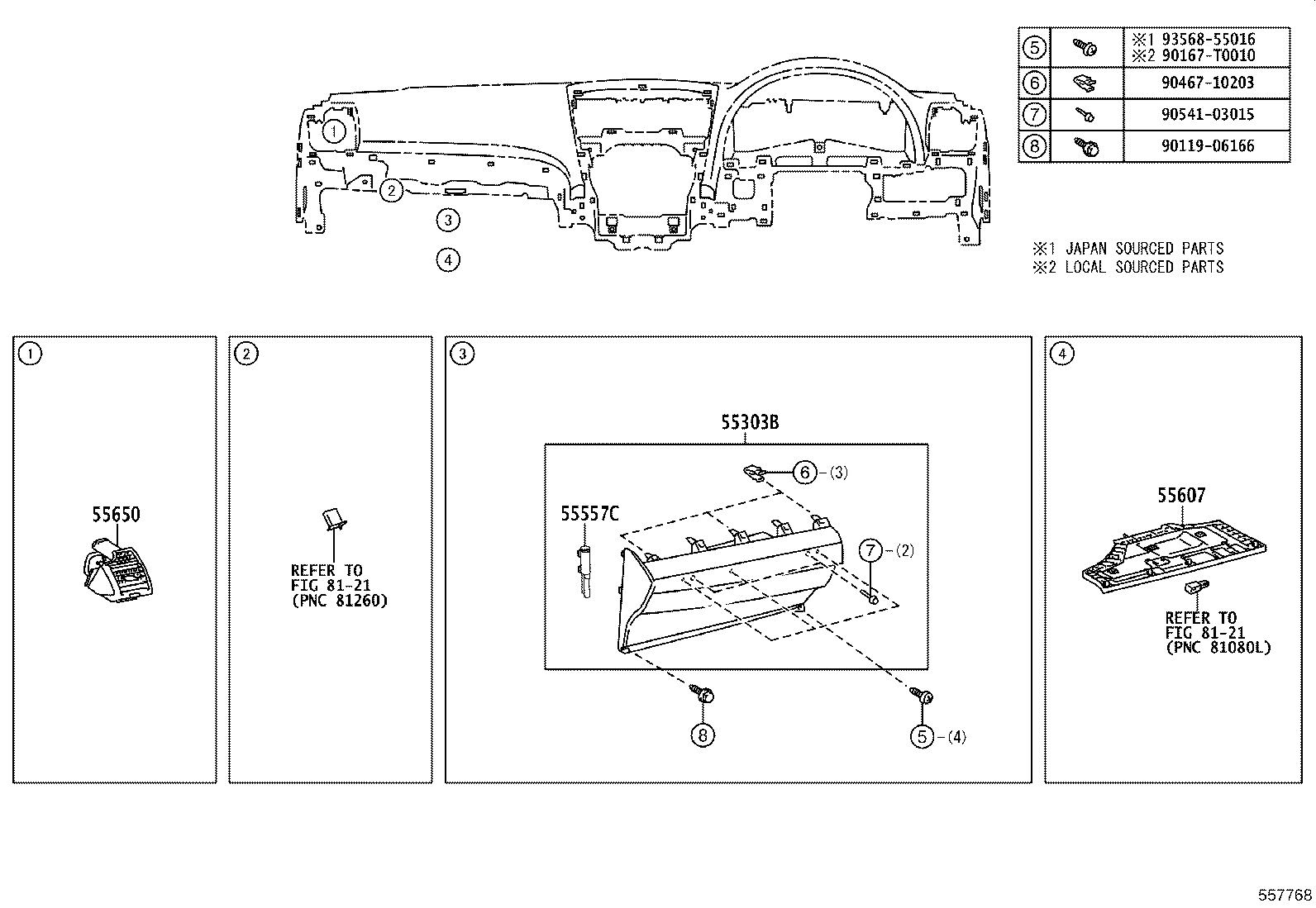

Instrument Panel & Glove Compartment
28 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55312A | Clip, Instrument Panel |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55548A | Cover, Instrument Panel Hole |
| 55548B | Cover, Instrument Panel Hole |
| 55557C | Damper, Glove Compartment Door |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
