Luggage Compartment Door & Lock

13 part groups · 2 illustrations

Illustrations

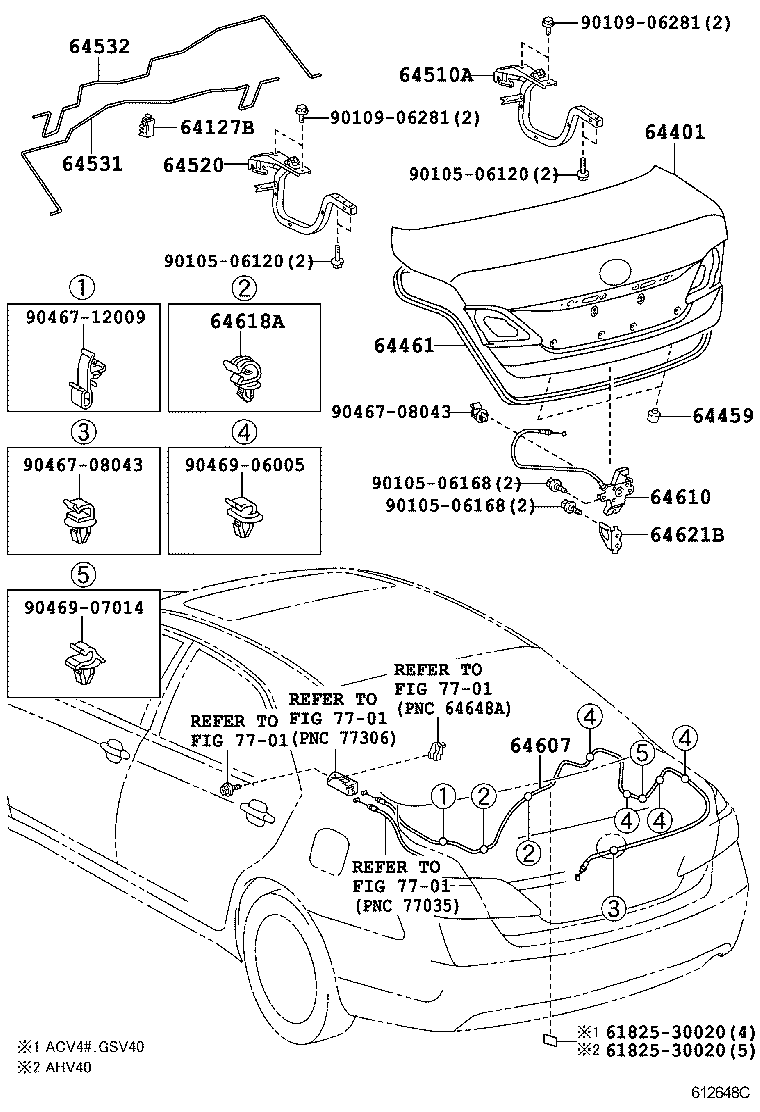

Figure 612567F 612567F 2006-05 → — Figure 612648C 612648C 2006-08 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510A Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64607 Cable Sub-assy, Luggage Door Lock Control
64607A Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610 Lock Assy, Luggage Compartment Door
64618A Clamp, Luggage Lock Control Cable
64621B Striker, Luggage Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
