Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 3 illustrations

Illustrations

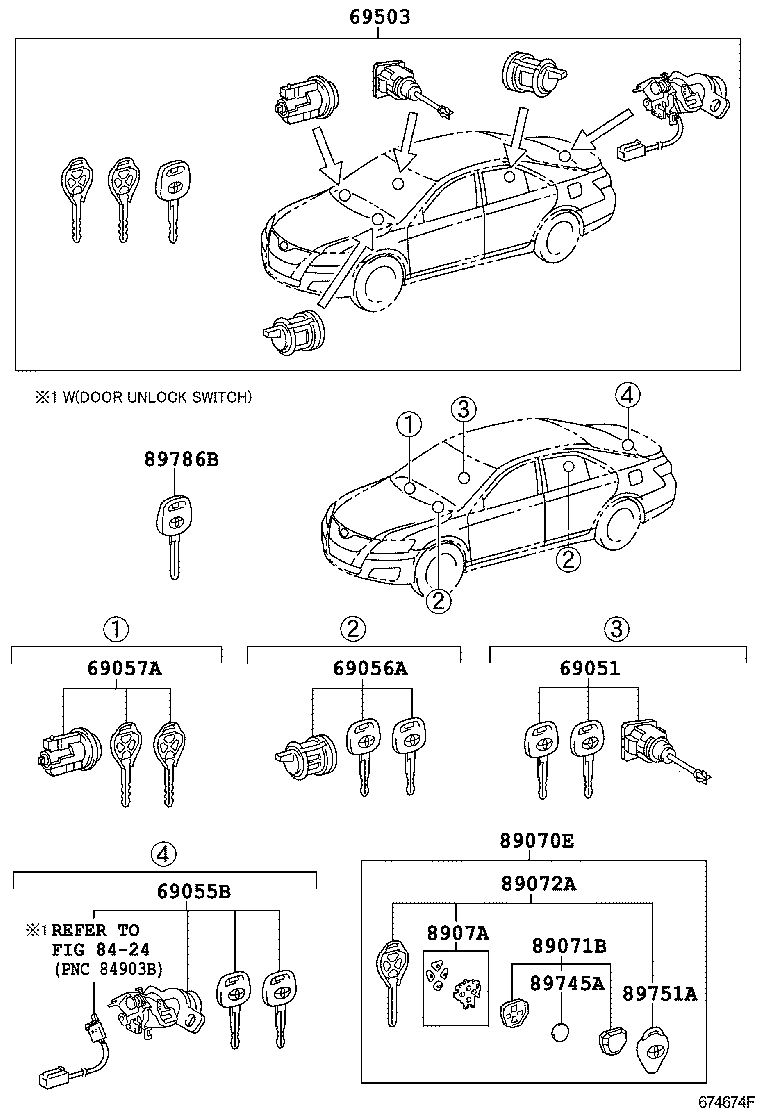

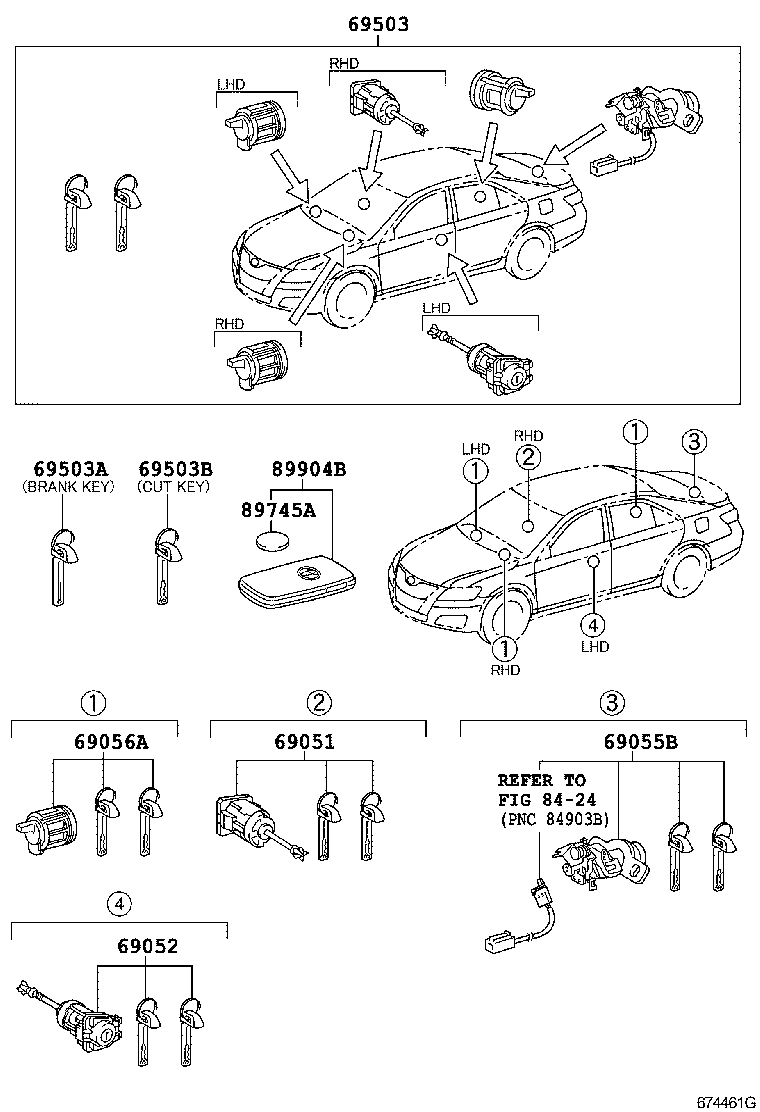

Figure 674460G 674460G 2006-05 → — Figure 674674F 674674F 2006-08 → — Figure 674461G 674461G 2006-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
