Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

21 part groups · 4 illustrations

Illustrations

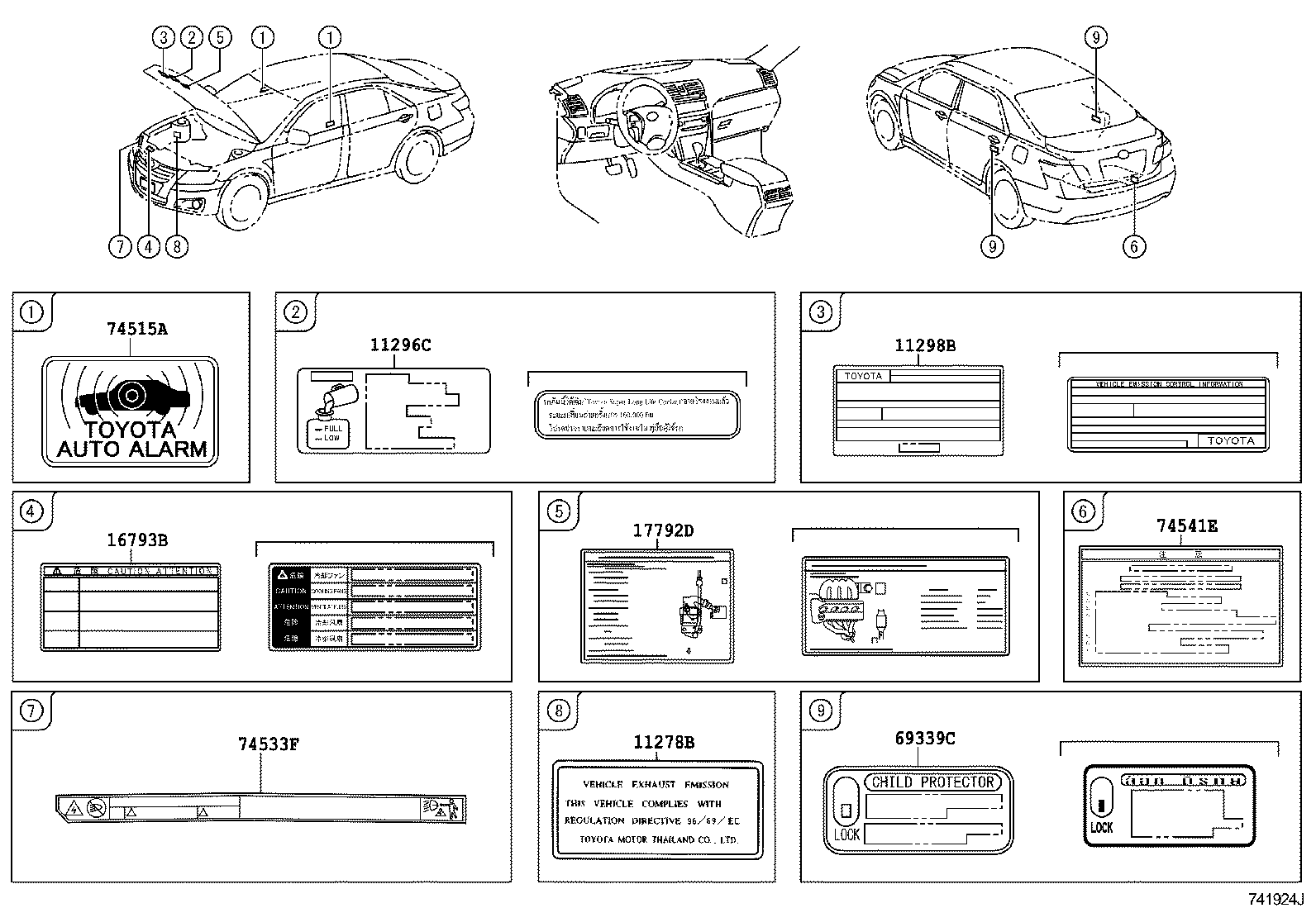

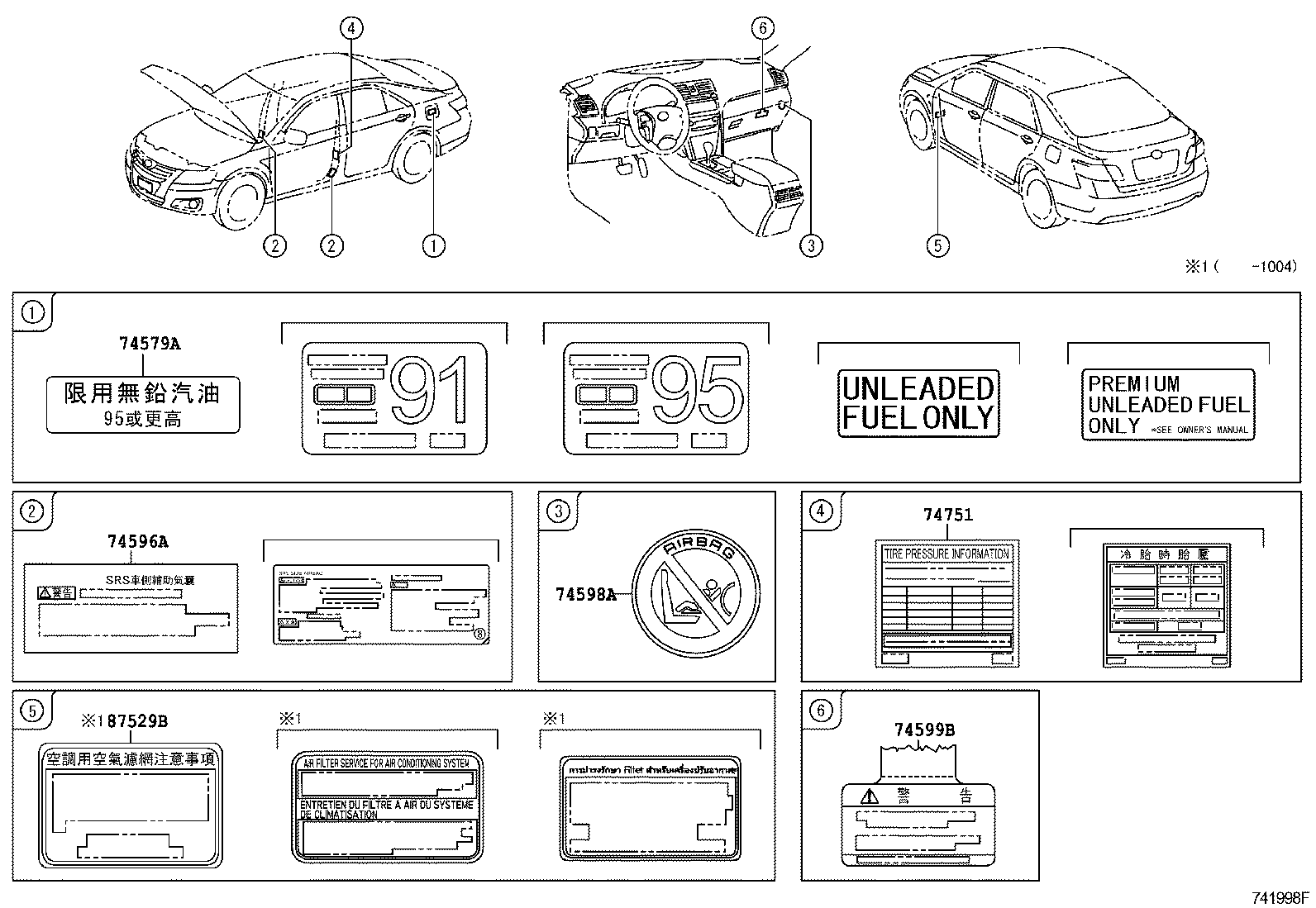

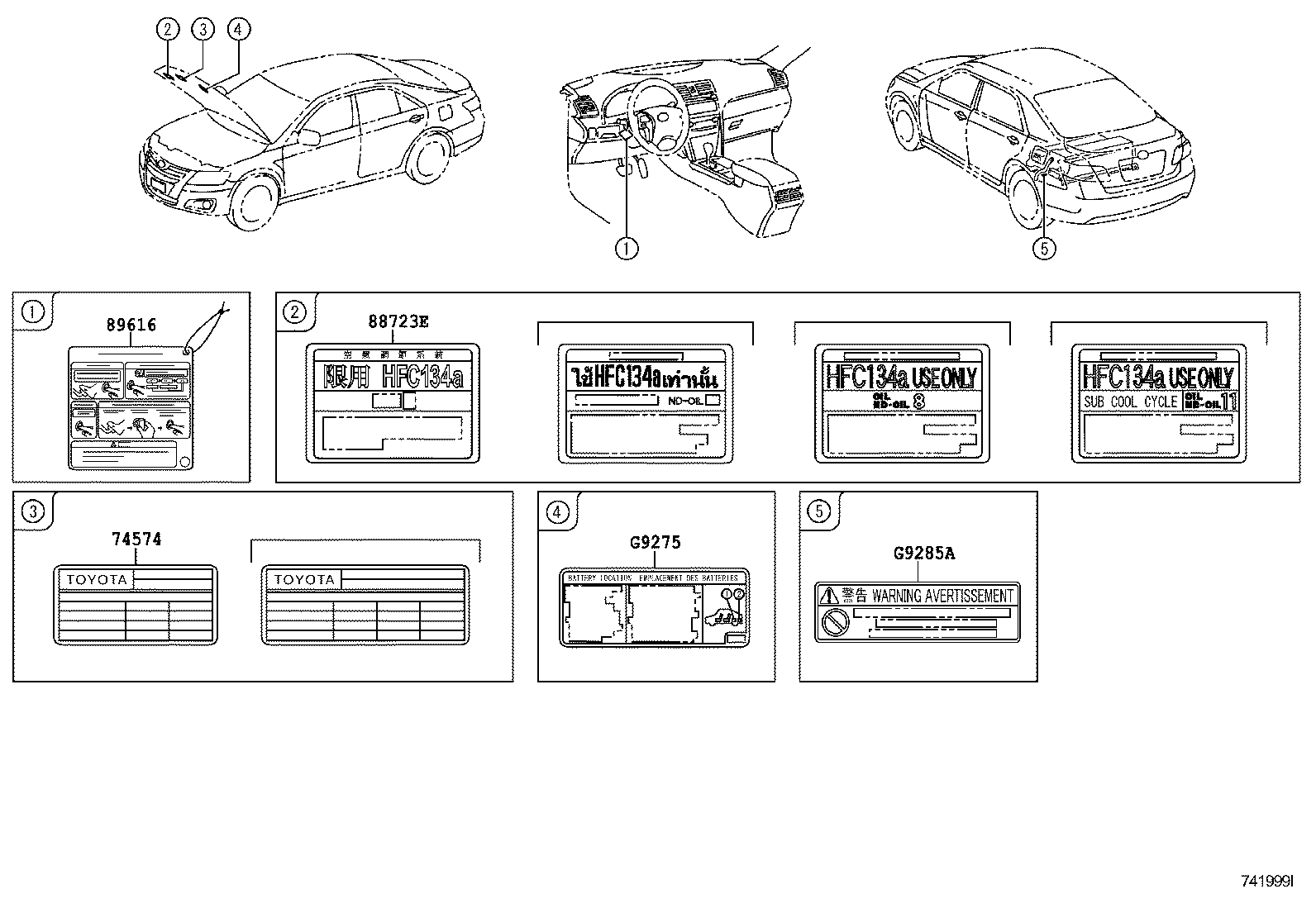

Figure 746126 746126 2009-07 → — Figure 741924J 741924J 2006-05 → — Figure 741998F 741998F 2006-05 → — Figure 741999I 741999I 2006-05 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11293D Label, Engine Caution
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74515A Plate, Theft Warning
74533F Label, Headlamp Voltage Caution
74541E Plate, Compact Spare Tire Caution
74574 Plate, Noise Identification
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
G9275 Label, Battery Caution, NO.1
G9285A Label, HV Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
