Toyota Camry/Hybrid (ASIA)
2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General
Supported model
Data version 2013-01

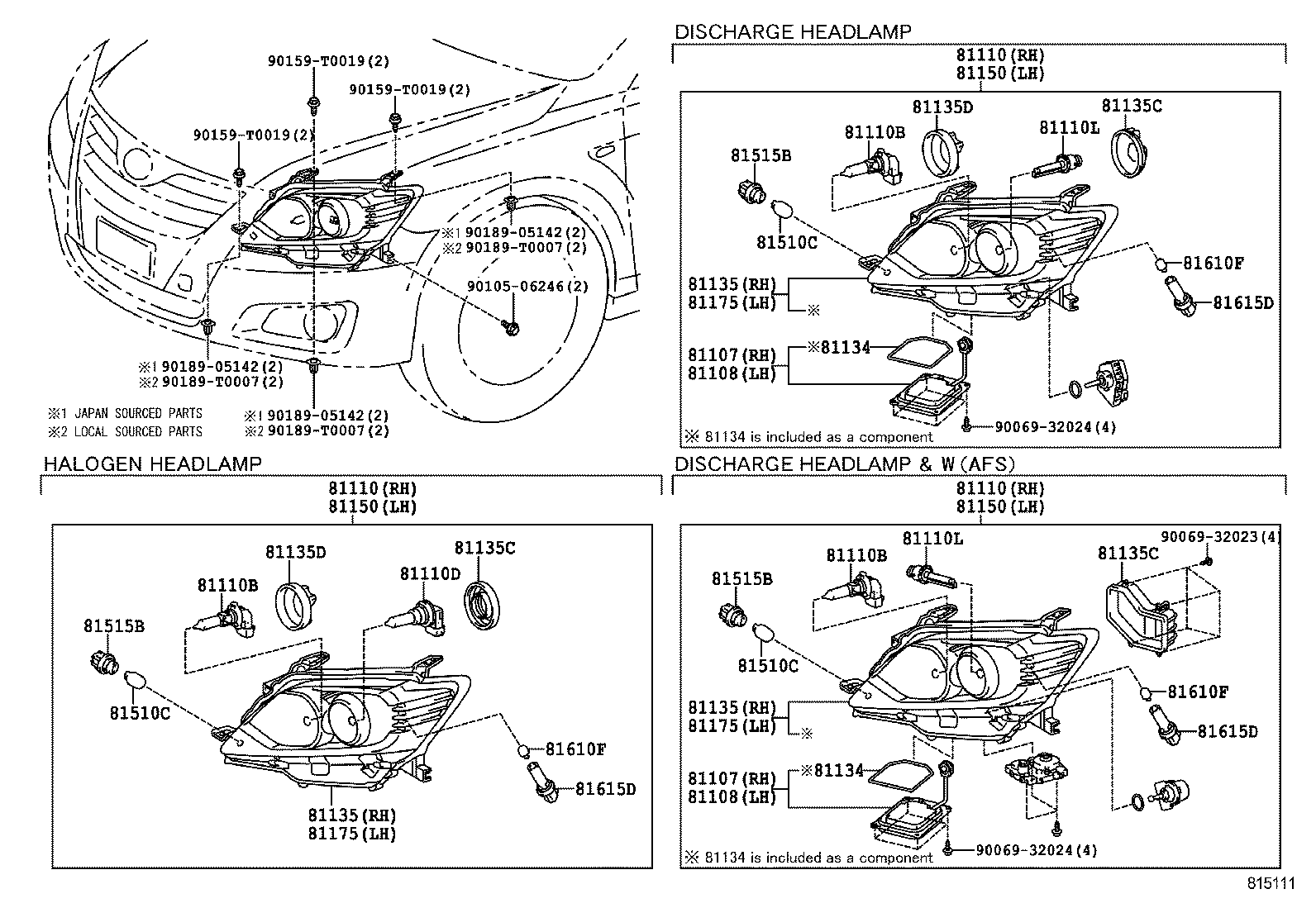

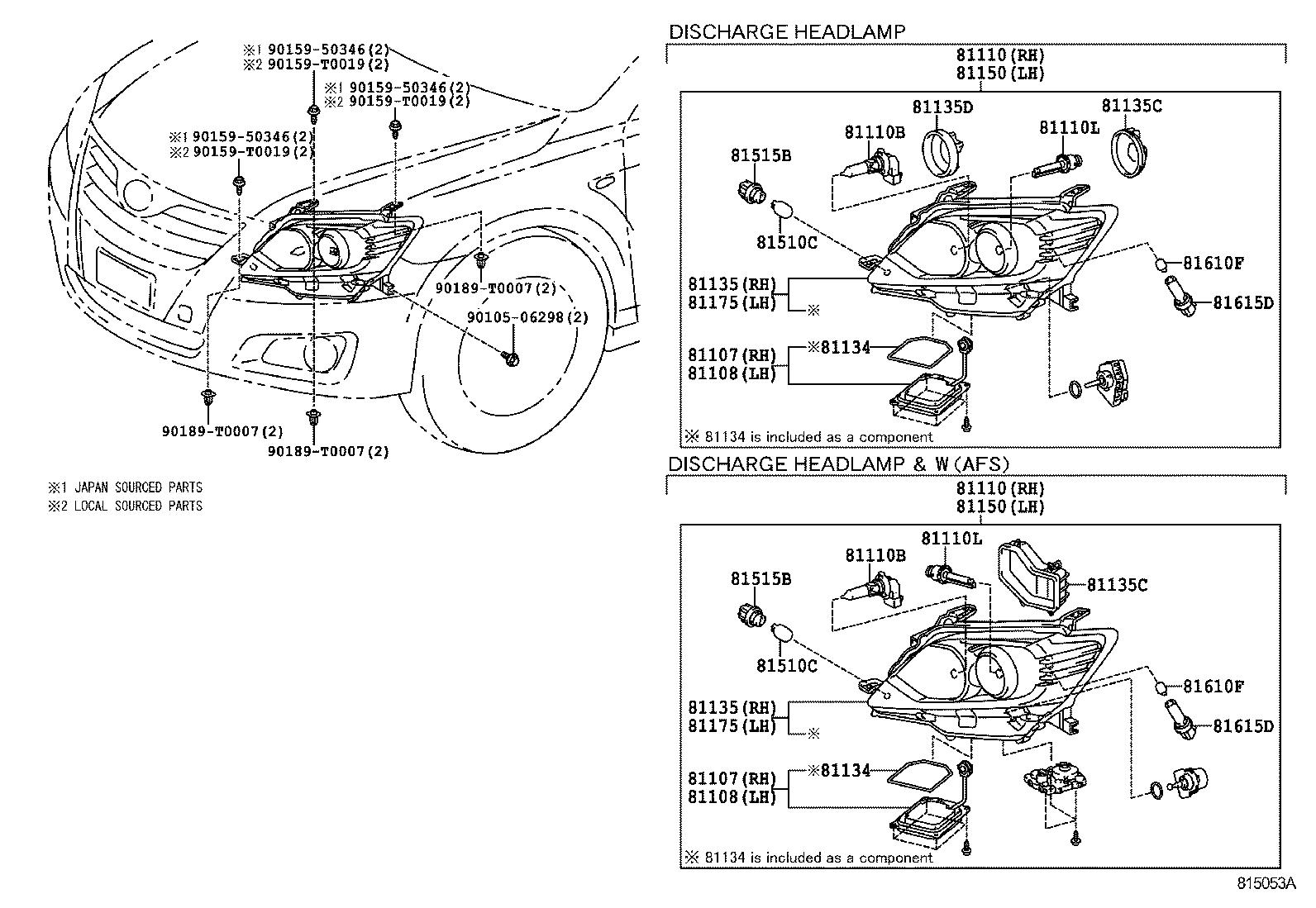

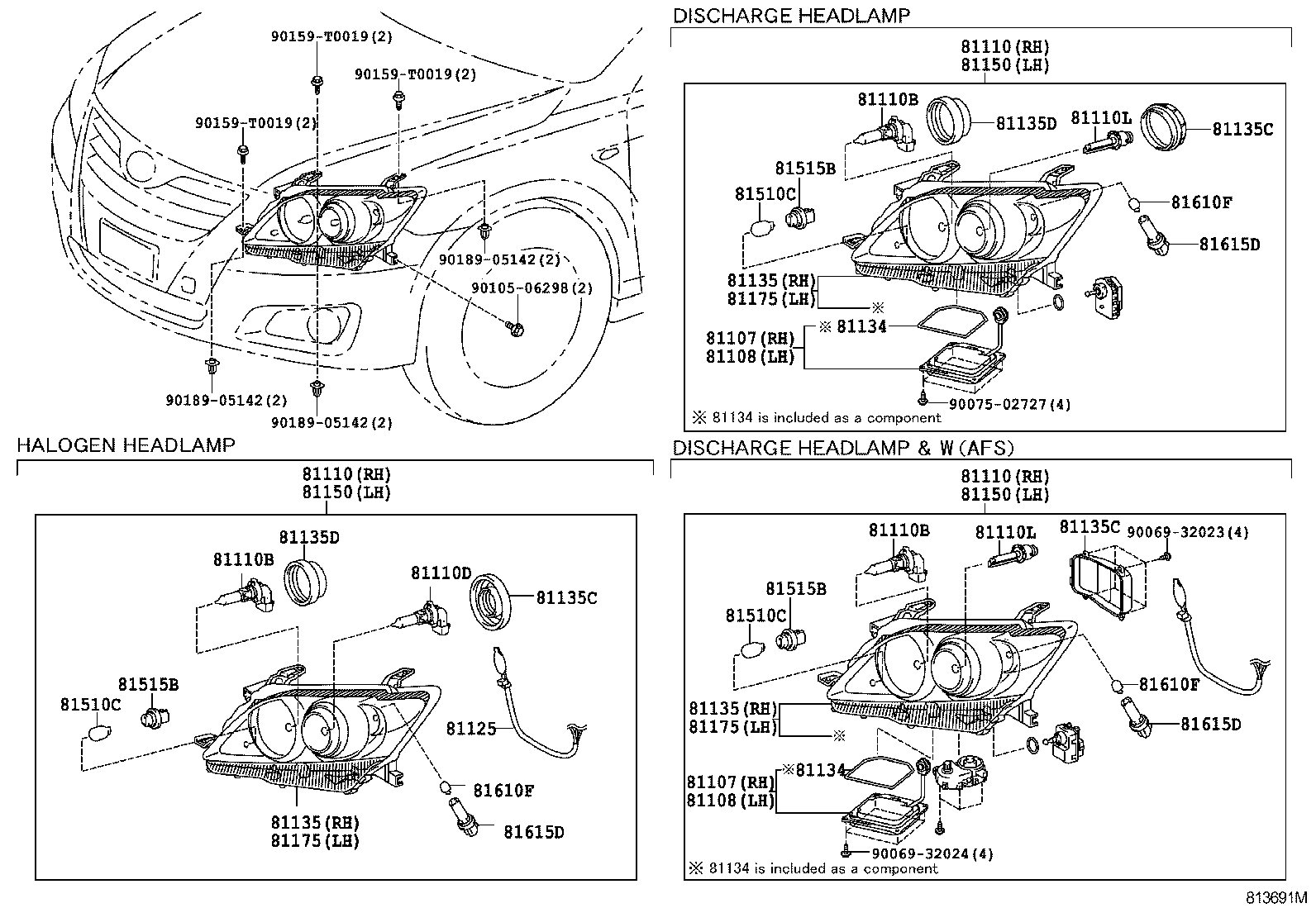

Headlamp
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81117B | Gasket |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81135D | Cover, Headlamp Back, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
