Toyota Camry/Hybrid (ASIA)
2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General
Supported model
Data version 2013-01
Interior Lamp

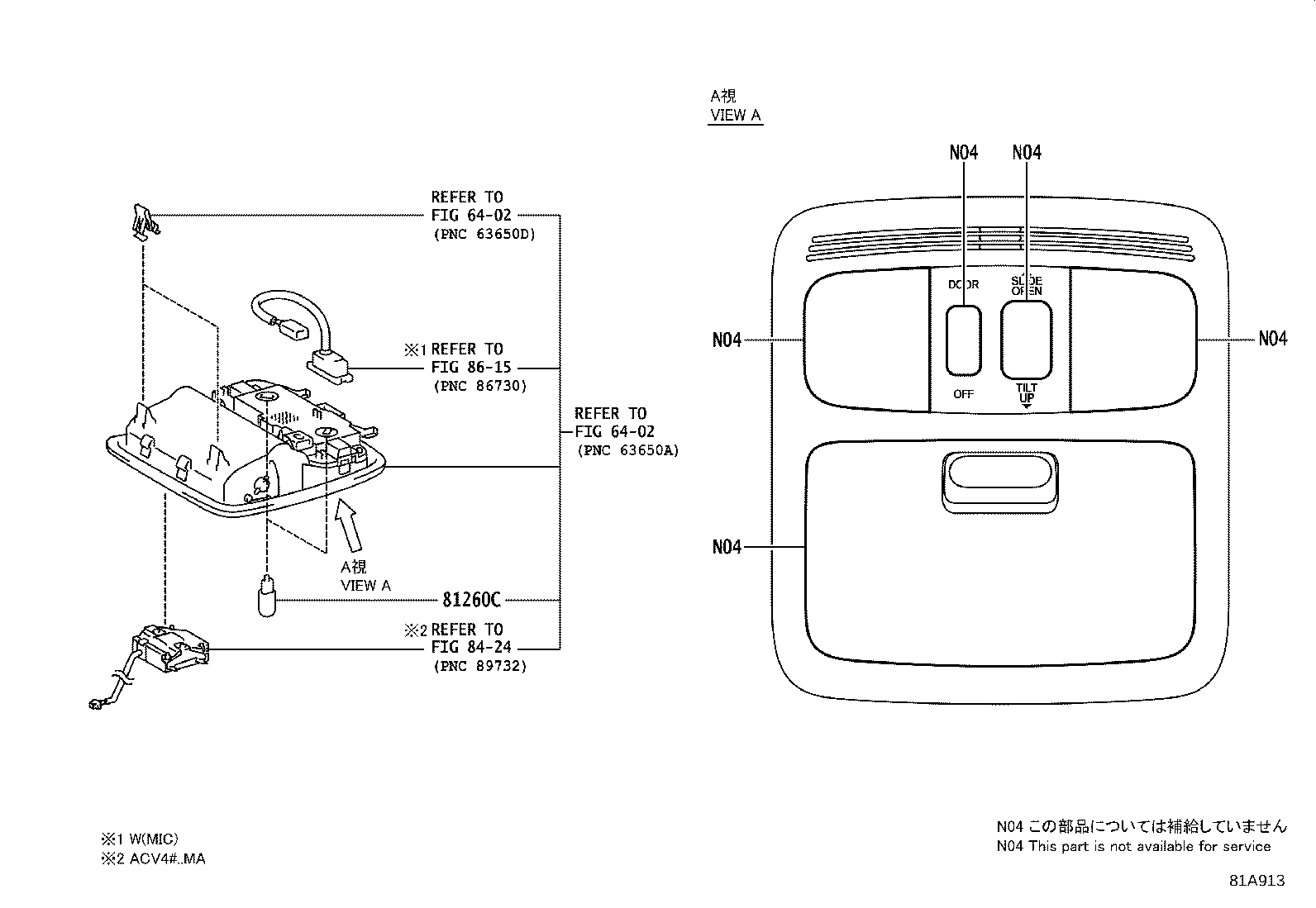

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81090 | Lamp Assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260C | Bulb(FOR MAP LAMP) |
| 81260F | Bulb(FOR GLOVE BOX LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
