Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

8 part groups · 9 illustrations

Illustrations

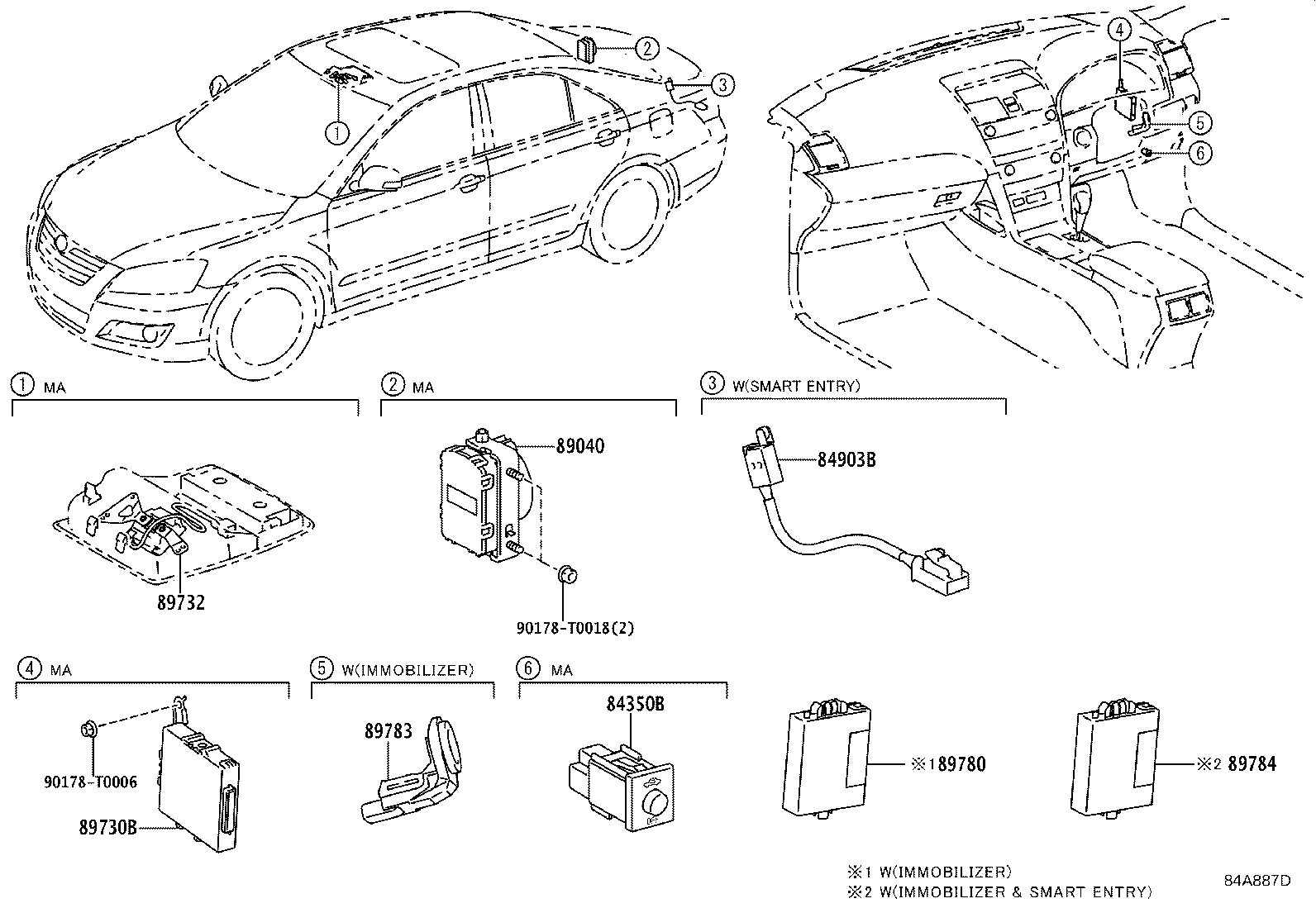

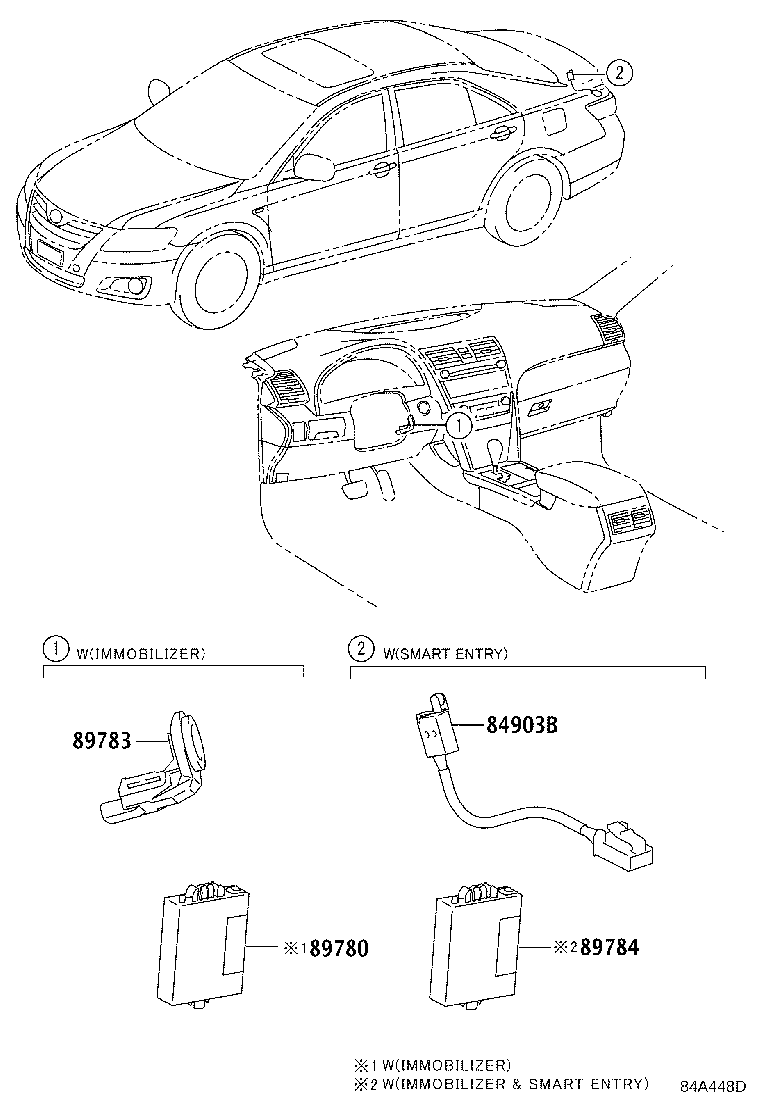

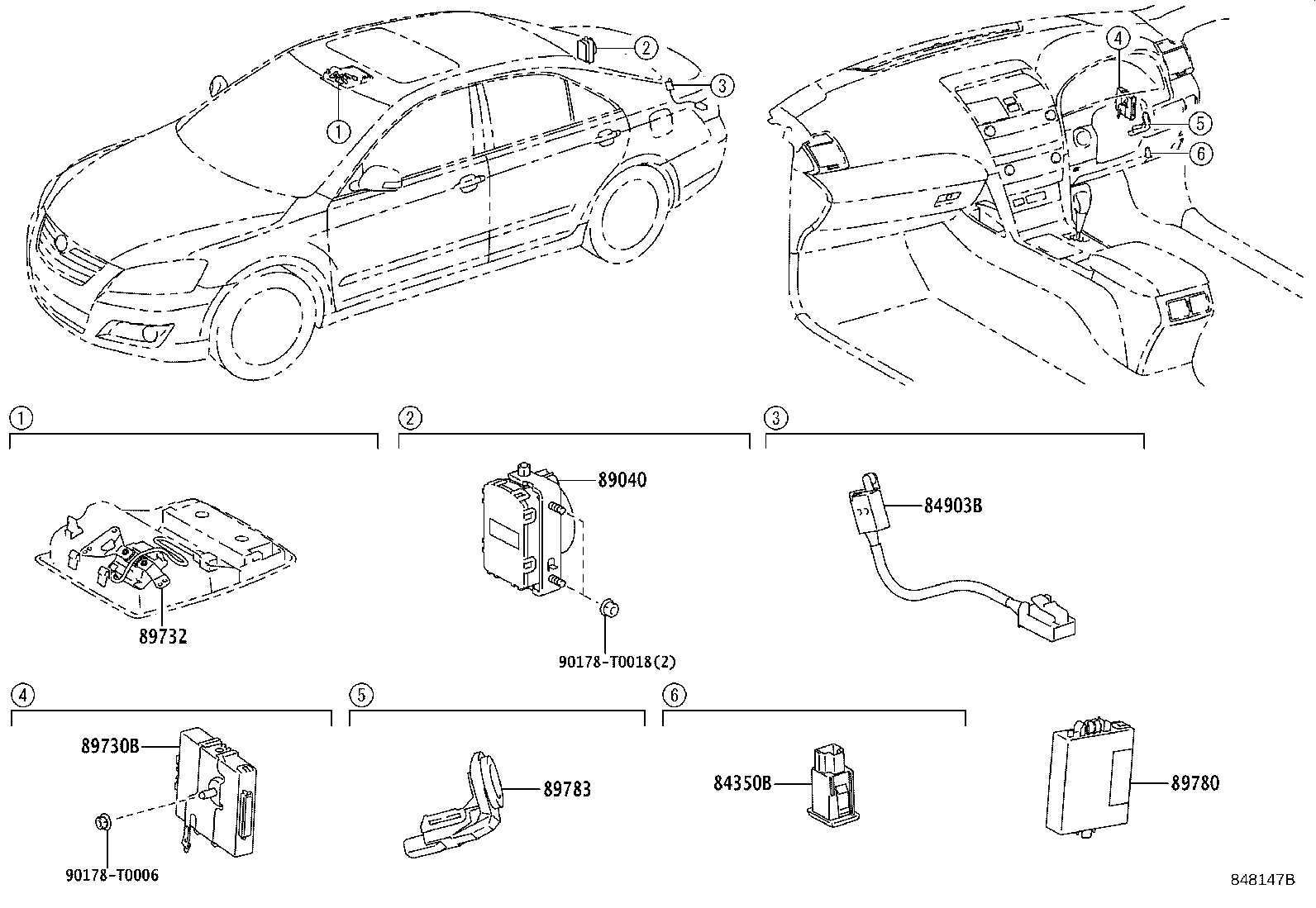

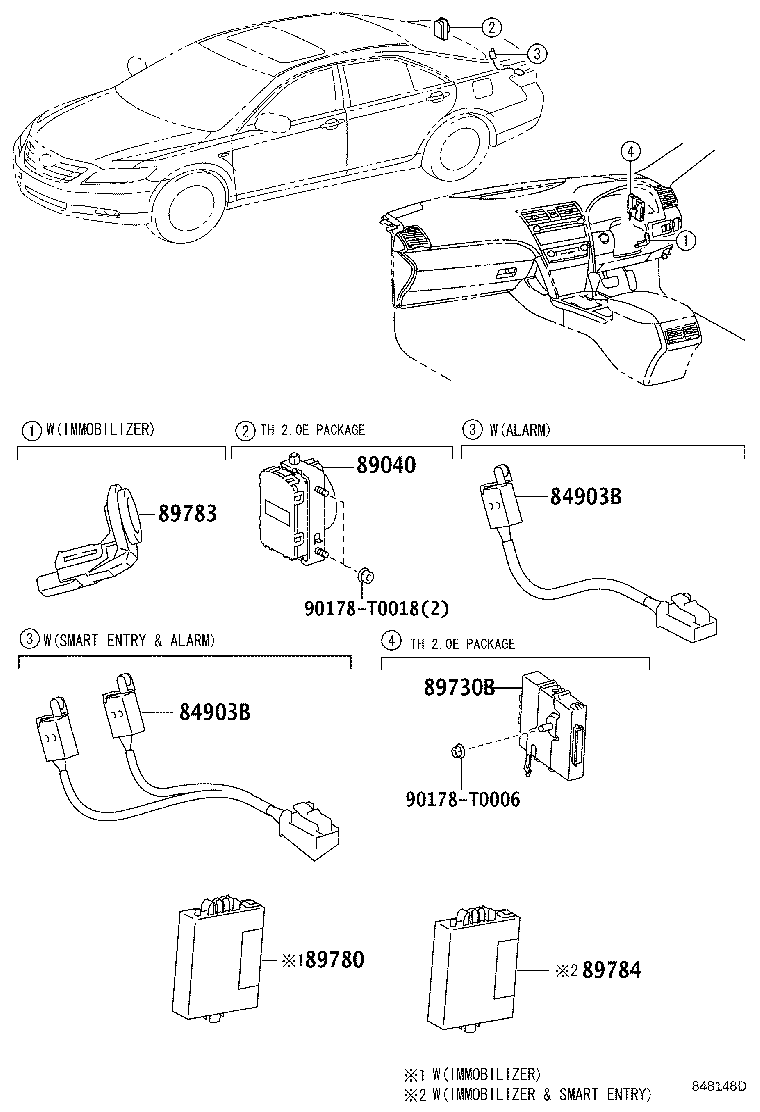

Figure 847886E 847886E 2006-05 → 2009-03 Figure 847886E 847886E 2006-08 → 2009-07 Figure 847886E 847886E 2006-11 → 2009-09 Figure 848148D 848148D 2006-08 → 2009-07 Figure 848147B 848147B 2006-08 → 2009-07 Figure 84A448D 84A448D 2009-03 → — Figure 84A448D 84A448D 2009-07 → — Figure 84A448D 84A448D 2009-09 → — Figure 84A887D 84A887D 2009-07 → —

Part groups

PNCDescription
84350B Switch Assy, Theft Warning Sensor
84903B Switch Sub-assy, Door Unlock
89040 Siren Assy, Theft Warning
89730B Computer Assy, Theft Warning
89732 Sensor, Theft Warning Radar
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
