Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 6 illustrations

Illustrations

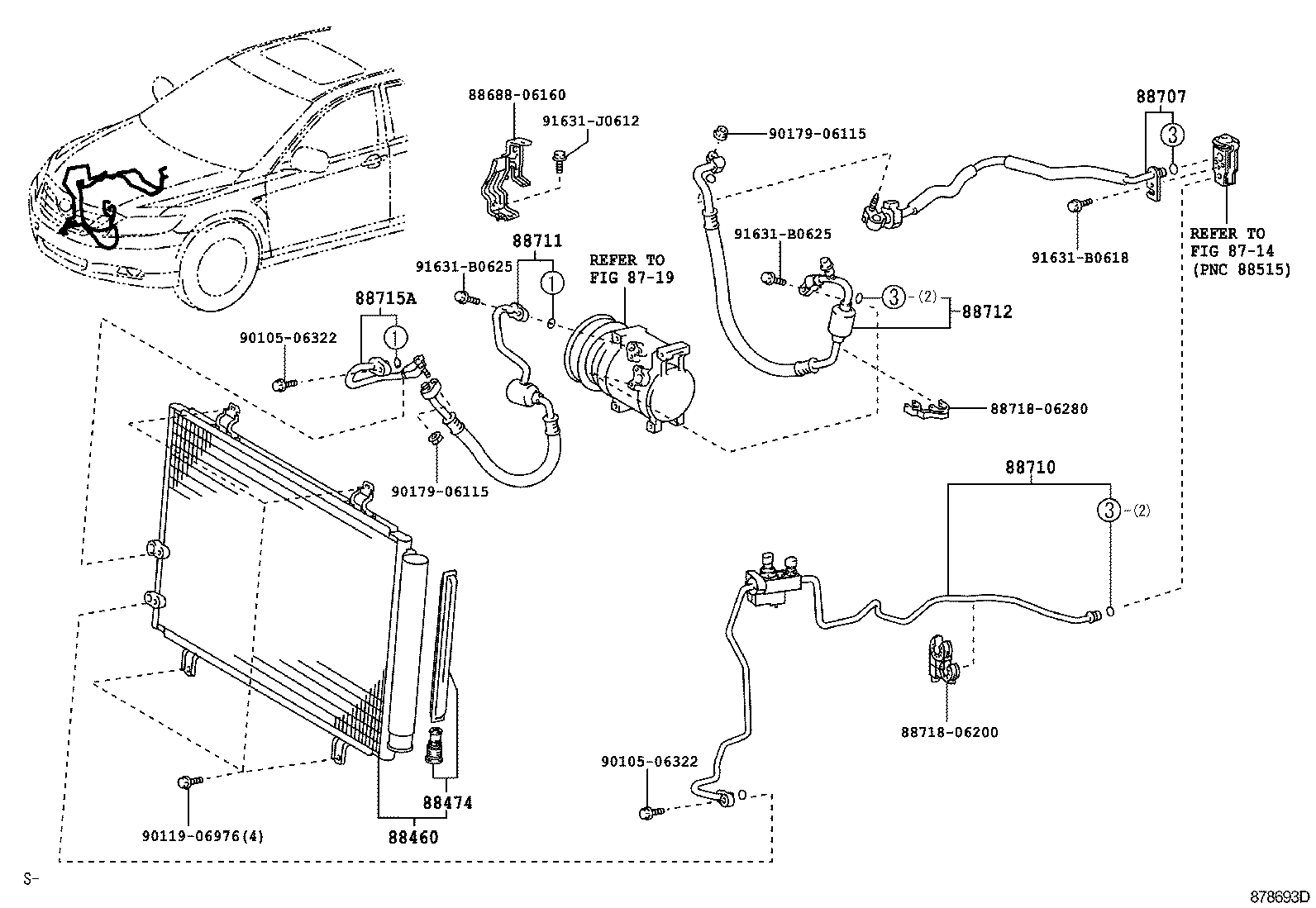

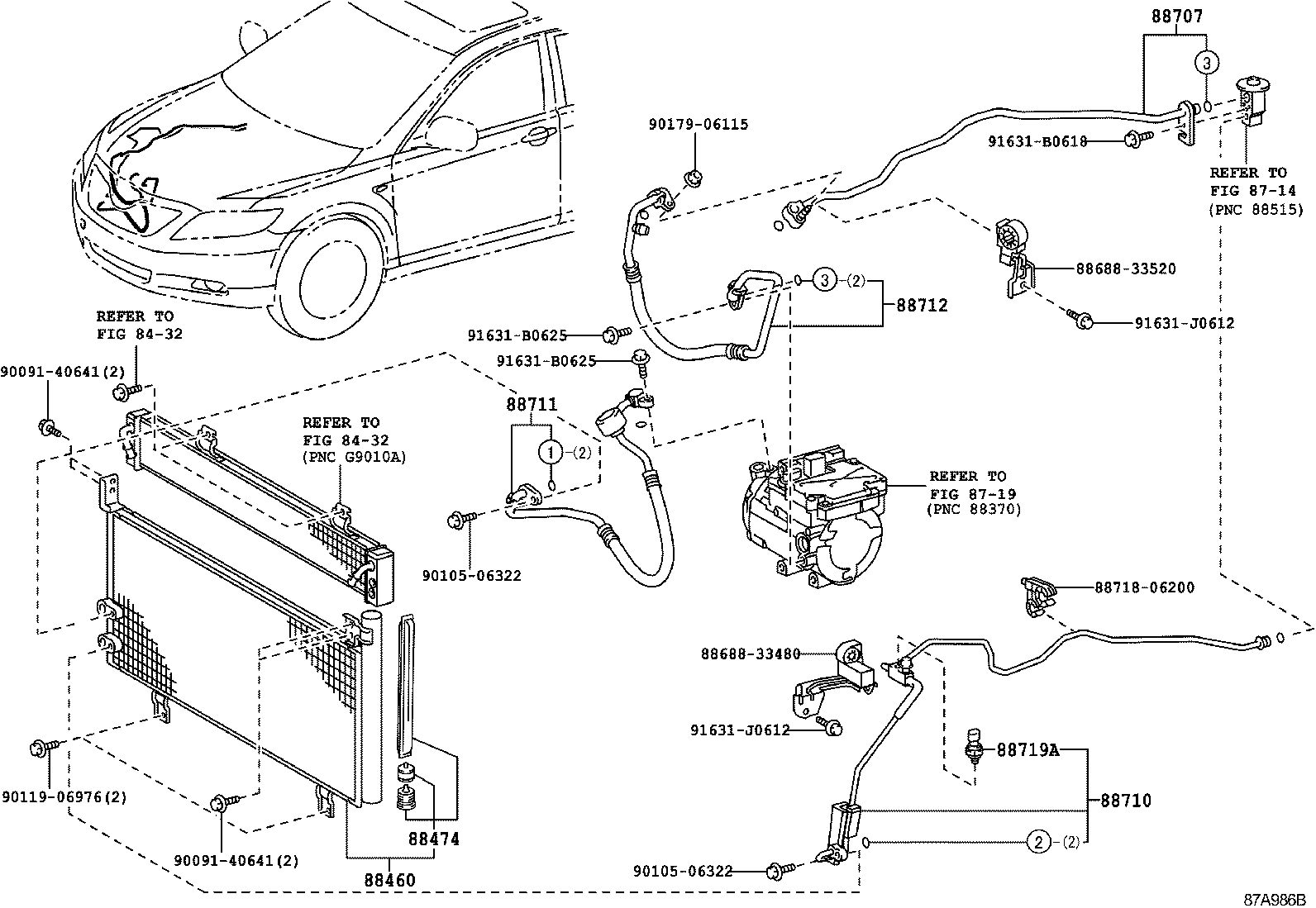

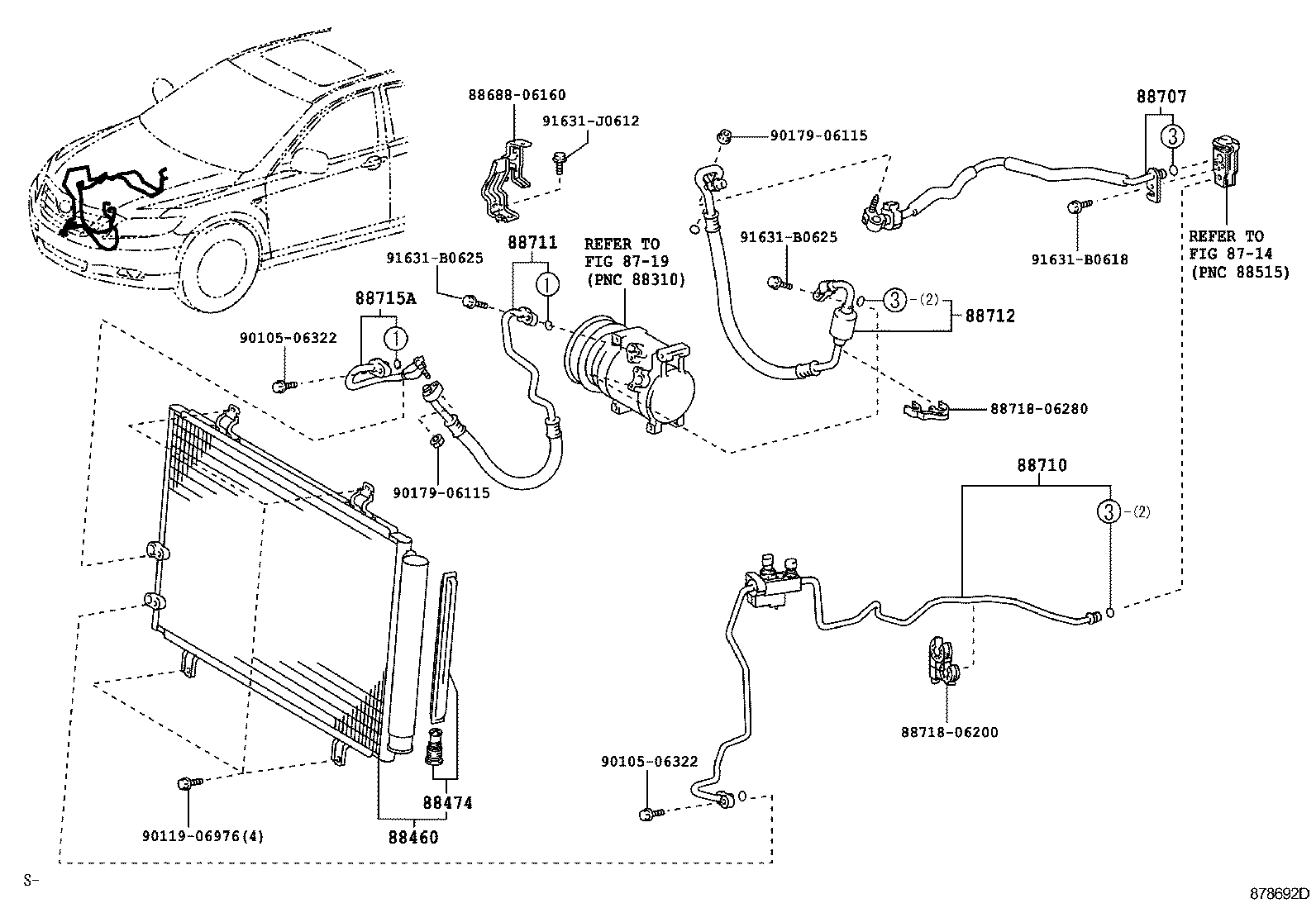

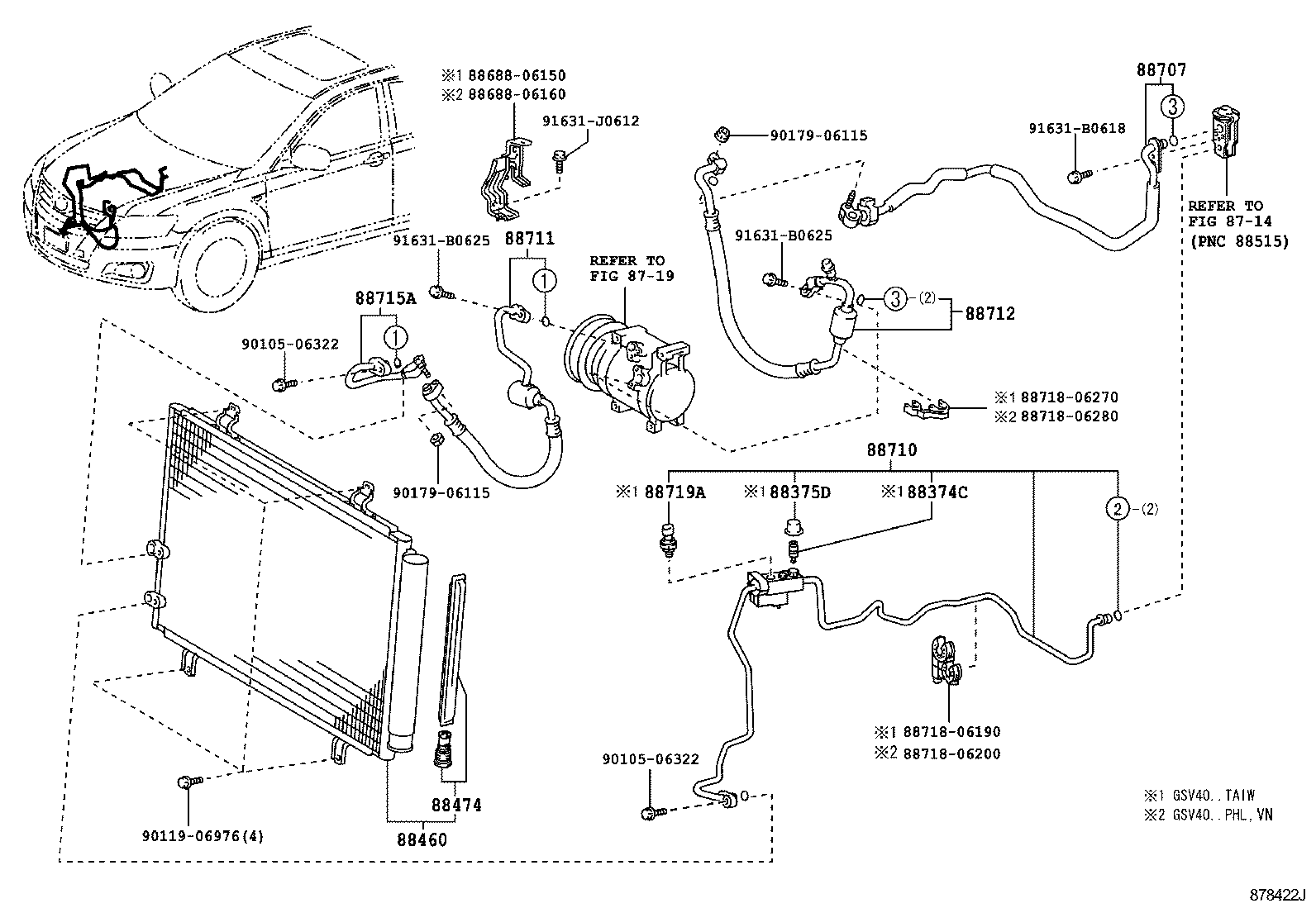

Figure 878421I 878421I 2006-05 → — Figure 878692D 878692D 2006-08 → — Figure 878422J 878422J 2006-05 → — Figure 878693D 878693D 2006-08 → — Figure 87A986B 87A986B 2009-07 → — Figure 878425B 878425B 2006-05 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
