Toyota Camry/Hybrid (ASIA)

2006-05 → 2012-07 · chassis ACV4#,AHV40,GSV40 · catalogue 283310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

13 part groups · 3 illustrations

Illustrations

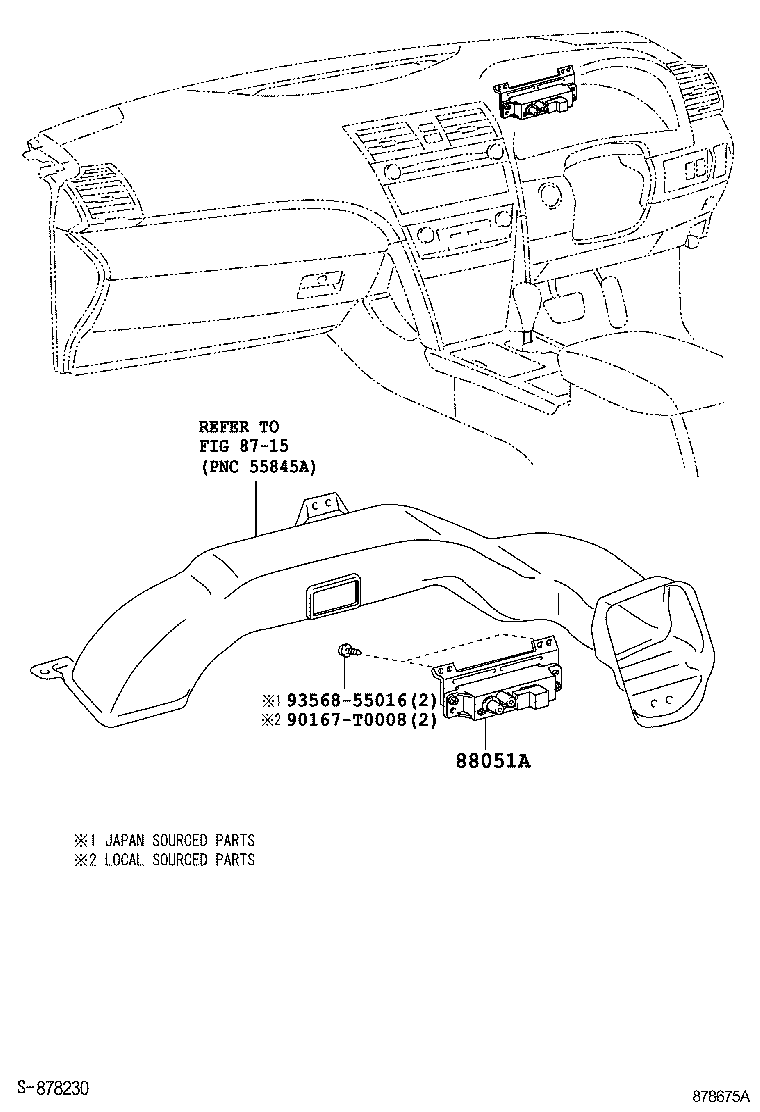

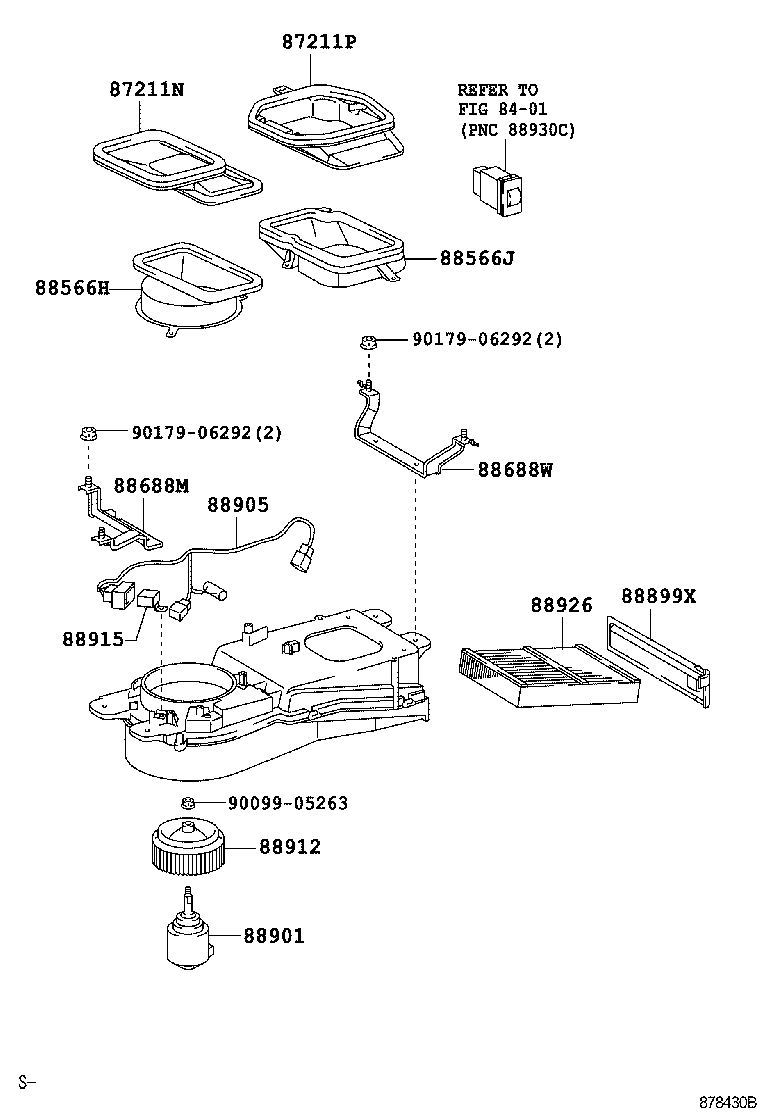

Figure 878428B 878428B 2006-05 → — Figure 878675A 878675A 2006-08 → — Figure 878430B 878430B 2006-05 → —

Part groups

PNCDescription
87211N Duct, Air Purifier Air, NO.1
87211P Duct, Air Purifier Air, NO.2
88051A Generator Sub-assy,Ion
88566H Duct, Air, NO.1
88566J Duct, Air, NO.2
88688M Bracket, Air Purifier, NO.2
88688W Bracket, Air Purifier, NO.1
88899X Plate, Air Purifier Cover
88901 Motor Sub-assy, Air Purifier
88905 Wire Sub-assy, Air Purifier, NO.1
88912 Fan, Air Purifier
88915 Resistor, Air Purifier
88926 Filter, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
