Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

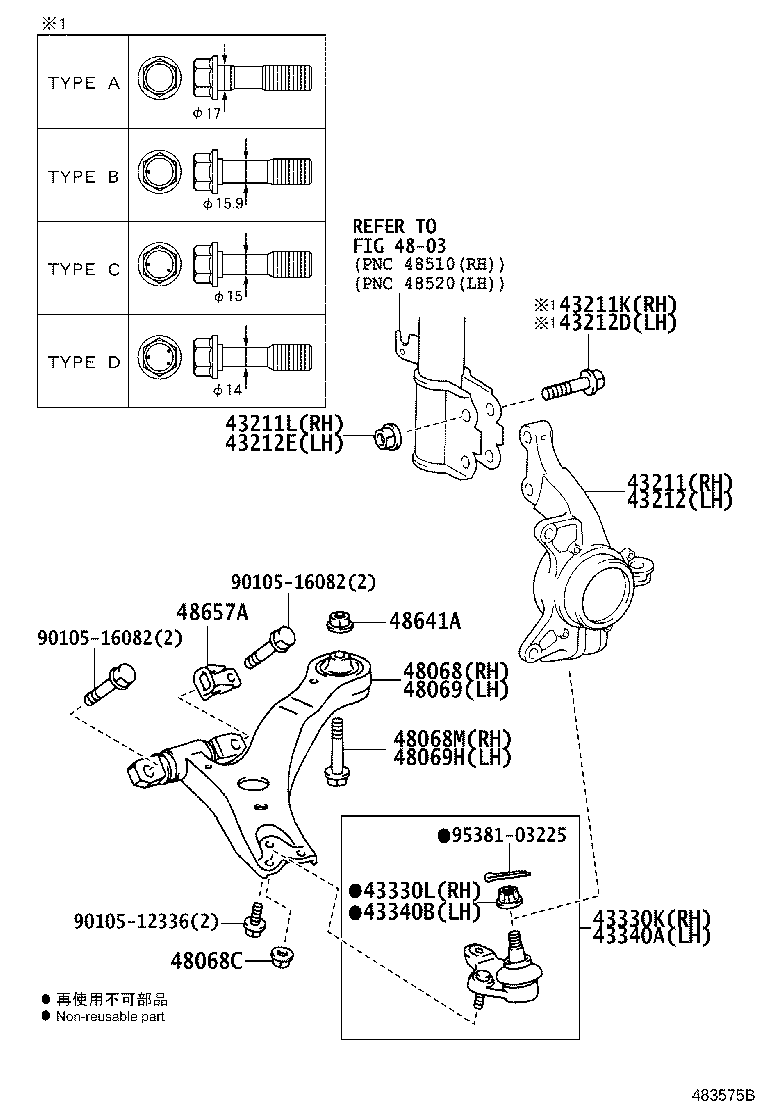

Exploded illustration 483575B 43340A — JOINT ASSY, LOWER BALL, FRONT LH (4 parts) 43330K — JOINT ASSY, LOWER BALL, FRONT RH (4 parts) 43340B — NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) (5 parts) 43211L — NUT (FOR STEERING KNUCKLE RH) (2 parts) 43212E — NUT (FOR STEERING KNUCKLE LH) (2 parts) 43211K — BOLT (FOR STEERING KNUCKLE RH) (8 parts) 43212D — BOLT (FOR STEERING KNUCKLE LH) (8 parts) 43211 — KNUCKLE, STEERING, RH (6 parts) 43212 — KNUCKLE, STEERING, LH (6 parts) 9010516082 — not listed in this catalogue 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (4 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (4 parts) 48657A — STOPPER, FRONT LOWER ARM BUSH (2 parts) 9538103225 — not listed in this catalogue 43330L — NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) (5 parts) 4803 — not listed in this catalogue 9010516082 — not listed in this catalogue 48641A — NUT(FOR SUSPENSION LOWER ARM SHAFT) (4 parts) 9010512336 — not listed in this catalogue 48068C — NUT(FOR FRONT SUSPENSION LOWER ARM) (2 parts) 48068M — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) (7 parts) 48069H — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) (7 parts)
483575B · 17 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
43211 — Knuckle, Steering, RH
43211-06200 Knuckle, Steering, RH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
43211-06210 Knuckle, Steering, RH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH —
43211-58010 Knuckle, Steering, RH
2012-07 → 2015-04 ended
ACV51,ASV50 VN —
43211-06200 Knuckle, Steering, RH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
43211-06210 Knuckle, Steering, RH
2015-02 → 2018-11 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH —
43211-58010 Knuckle, Steering, RH
2015-04 → 2019-03 ended
ASV5# VN —
43211K — Bolt (FOR STEERING KNUCKLE RH)
90105-17012 note Bolt (FOR STEERING KNUCKLE RH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17013 note Bolt (FOR STEERING KNUCKLE RH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17014 note Bolt (FOR STEERING KNUCKLE RH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17015 note Bolt (FOR STEERING KNUCKLE RH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17012 note Bolt (FOR STEERING KNUCKLE RH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17013 note Bolt (FOR STEERING KNUCKLE RH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17014 note Bolt (FOR STEERING KNUCKLE RH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17015 note Bolt (FOR STEERING KNUCKLE RH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
43211L — Nut (FOR STEERING KNUCKLE RH)
90178-17002 Nut (FOR STEERING KNUCKLE RH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90178-17002 Nut (FOR STEERING KNUCKLE RH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
43212 — Knuckle, Steering, LH
43212-06130 Knuckle, Steering, LH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
43212-06140 Knuckle, Steering, LH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH —
43212-58010 Knuckle, Steering, LH
2012-07 → 2015-04 ended
ACV51,ASV50 VN —
43212-06130 Knuckle, Steering, LH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
43212-06140 Knuckle, Steering, LH
2015-02 → 2018-11 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH —
43212-58010 Knuckle, Steering, LH
2015-04 → 2019-03 ended
ASV5# VN —
43212D — Bolt (FOR STEERING KNUCKLE LH)
90105-17012 note Bolt (FOR STEERING KNUCKLE LH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17013 note Bolt (FOR STEERING KNUCKLE LH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17014 note Bolt (FOR STEERING KNUCKLE LH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17015 note Bolt (FOR STEERING KNUCKLE LH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90105-17012 note Bolt (FOR STEERING KNUCKLE LH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17013 note Bolt (FOR STEERING KNUCKLE LH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17014 note Bolt (FOR STEERING KNUCKLE LH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
90105-17015 note Bolt (FOR STEERING KNUCKLE LH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
43212E — Nut (FOR STEERING KNUCKLE LH)
90178-17002 Nut (FOR STEERING KNUCKLE LH)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90178-17002 Nut (FOR STEERING KNUCKLE LH)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
43330K — Joint Assy, Lower Ball, Front RH
43330-09580 Joint Assy, Lower Ball, Front RH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
43330-39845 Joint Assy, Lower Ball, Front RH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
43330-09580 Joint Assy, Lower Ball, Front RH
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
43330-39845 Joint Assy, Lower Ball, Front RH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
43330L — Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2011-12 → 2014-05 ended
ACV51,ASV50,AVV50 IDN,IND,MA,PHL,TH —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2011-12 → 2015-04 ended
ACV51,ASV50,AVV50 TAIW,VN —
90171-T0007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2015-03 → 2020-07 ended
ASV5#,AVV50 TAIW,VN —
90171-T0007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2015-02 → 2018-11 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH —
43340A — Joint Assy, Lower Ball, Front LH
43340-09100 Joint Assy, Lower Ball, Front LH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
43340-39605 Joint Assy, Lower Ball, Front LH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
43340-09100 Joint Assy, Lower Ball, Front LH
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
43340-39605 Joint Assy, Lower Ball, Front LH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
43340B — Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2011-12 → 2014-05 ended
ACV51,ASV50,AVV50 IDN,IND,MA,PHL,TH —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2011-12 → 2015-04 ended
ACV51,ASV50,AVV50 TAIW,VN —
90171-T0007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2015-03 → 2020-07 ended
ASV5#,AVV50 TAIW,VN —
90171-T0007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2015-02 → 2018-11 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH —
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-06111 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
48068-33070 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
48068-06111 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
48068-33070 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
48068C — Nut(FOR FRONT SUSPENSION LOWER ARM)
90178-12015 Nut(FOR FRONT SUSPENSION LOWER ARM)
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
90178-12015 Nut(FOR FRONT SUSPENSION LOWER ARM)
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
48068M — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2011-12 → 2014-05 ended
ACV51,ASV50,AVV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
90119-14146 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
90119-T0486 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
90119-T0486 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-06111 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
48069-33070 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
48069-06111 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
48069-33070 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
48069H — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2011-12 → 2014-05 ended
ACV51,ASV50,AVV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
90119-14146 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
90119-T0486 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2014-05 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
90119-14146 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
90119-T0486 note Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
48641A — Nut(FOR SUSPENSION LOWER ARM SHAFT)
90178-T0048 Nut(FOR SUSPENSION LOWER ARM SHAFT)
2012-03 → 2015-04 ended
AVV50 IND,TH;ACV51,ASV50 IDN,IND,MA,PHL,TH,VN —
90179-14068 Nut(FOR SUSPENSION LOWER ARM SHAFT)
2011-12 → 2015-03 ended
ACV51,ASV50,AVV50 TAIW —
90178-T0048 Nut(FOR SUSPENSION LOWER ARM SHAFT)
2015-02 → 2019-03 ended
ASV5#,AVV50 IDN,IND,MA,PHL,TH,VN —
90179-14068 Nut(FOR SUSPENSION LOWER ARM SHAFT)
2015-03 → 2020-07 ended
ASV51,AVV50 TAIW —
48657A — Stopper, Front Lower Arm Bush
48657-06020 Stopper, Front Lower Arm Bush
2011-12 → 2015-04 ended
ACV51,ASV50;AVV50 IND,TAIW,TH —
48657-06020 Stopper, Front Lower Arm Bush
2015-02 → 2020-07 ended
ASV51,AVV50;ASV50 IDN,IND,MA,PHL,TH,VN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
