Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12

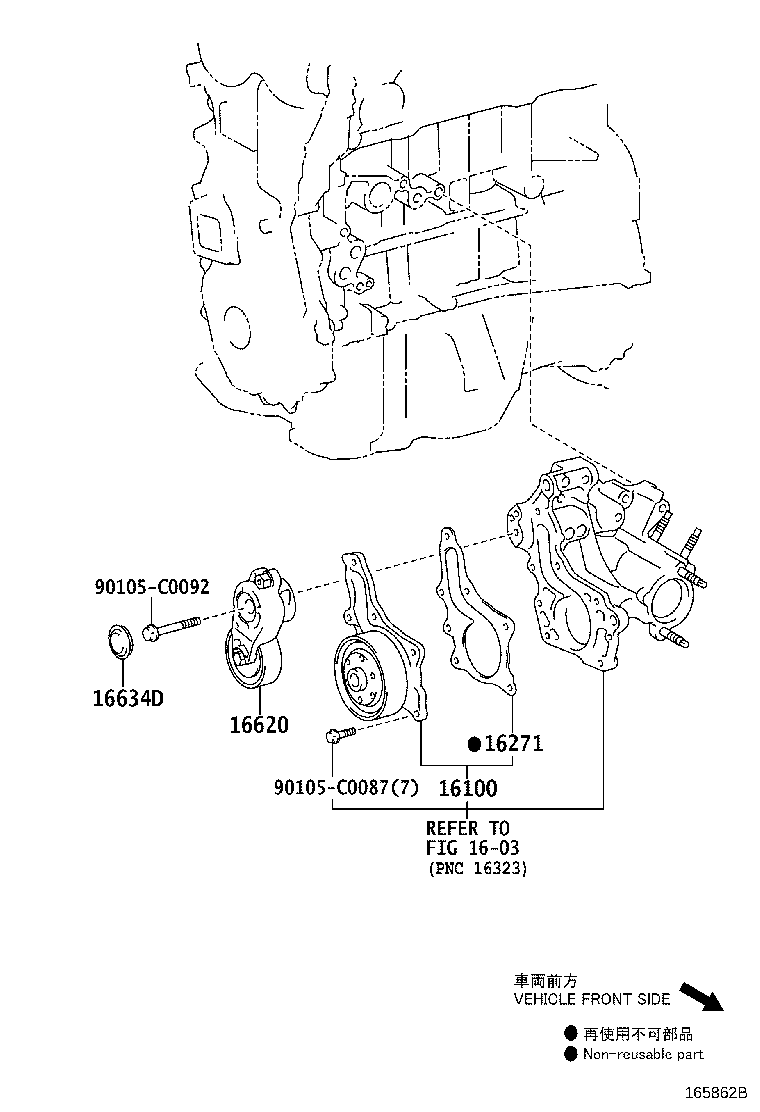

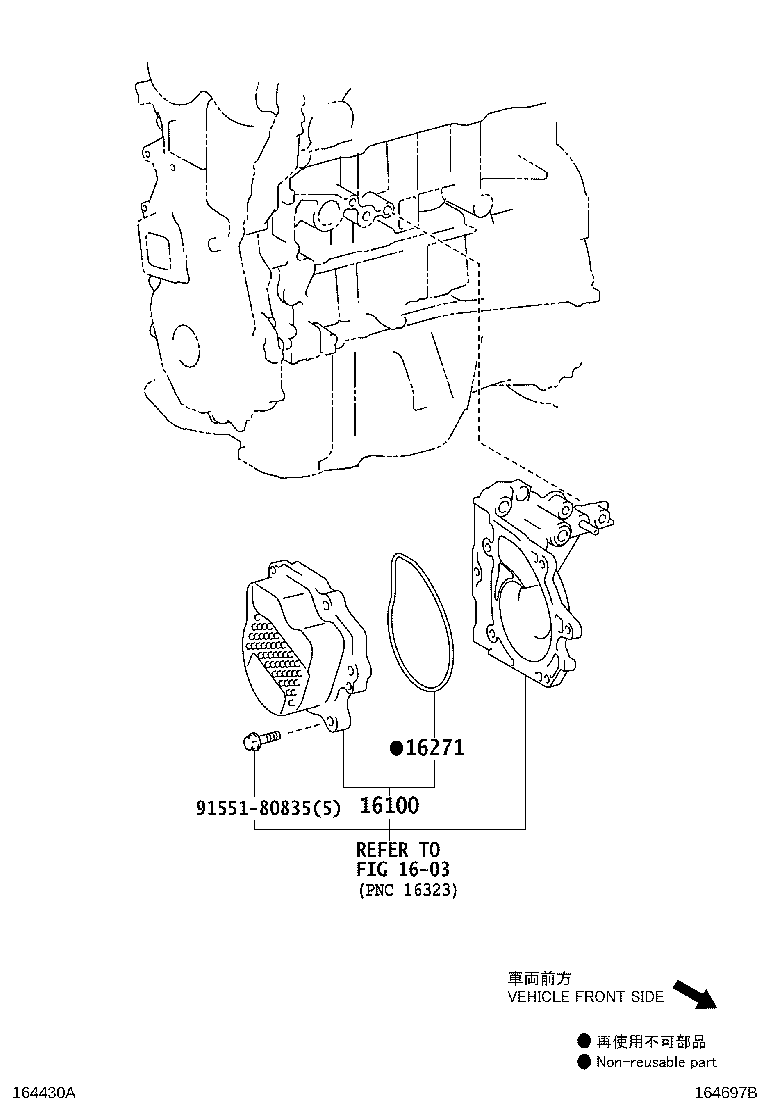

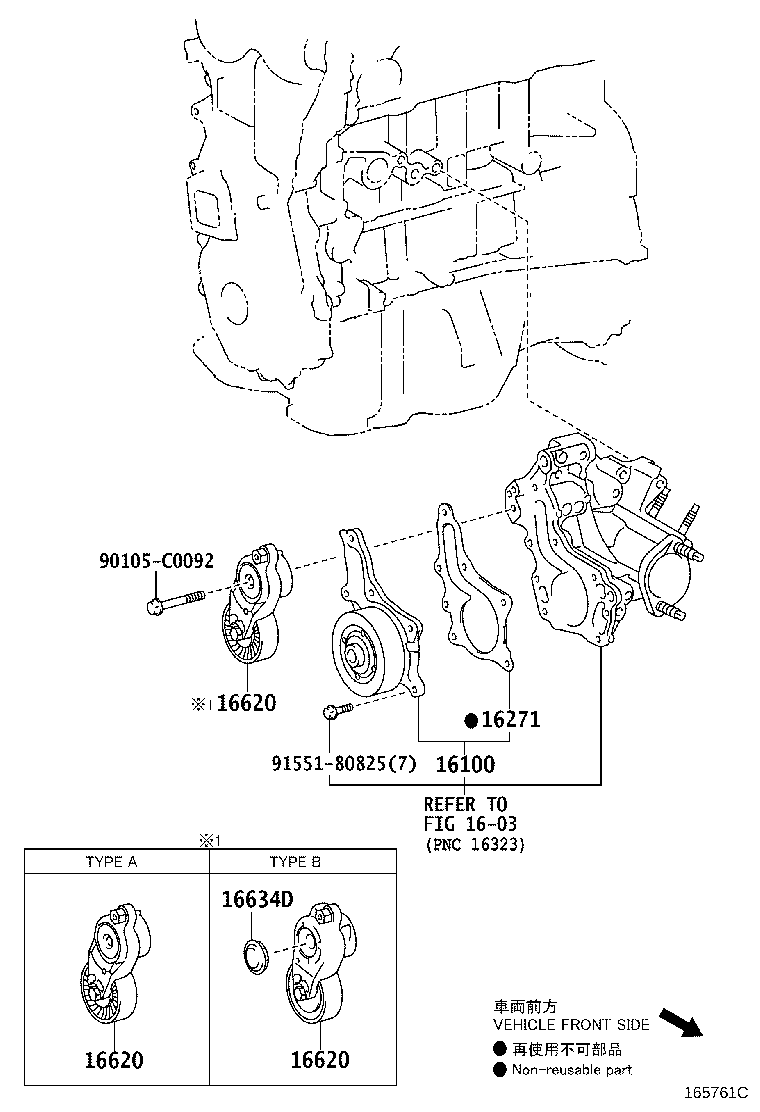

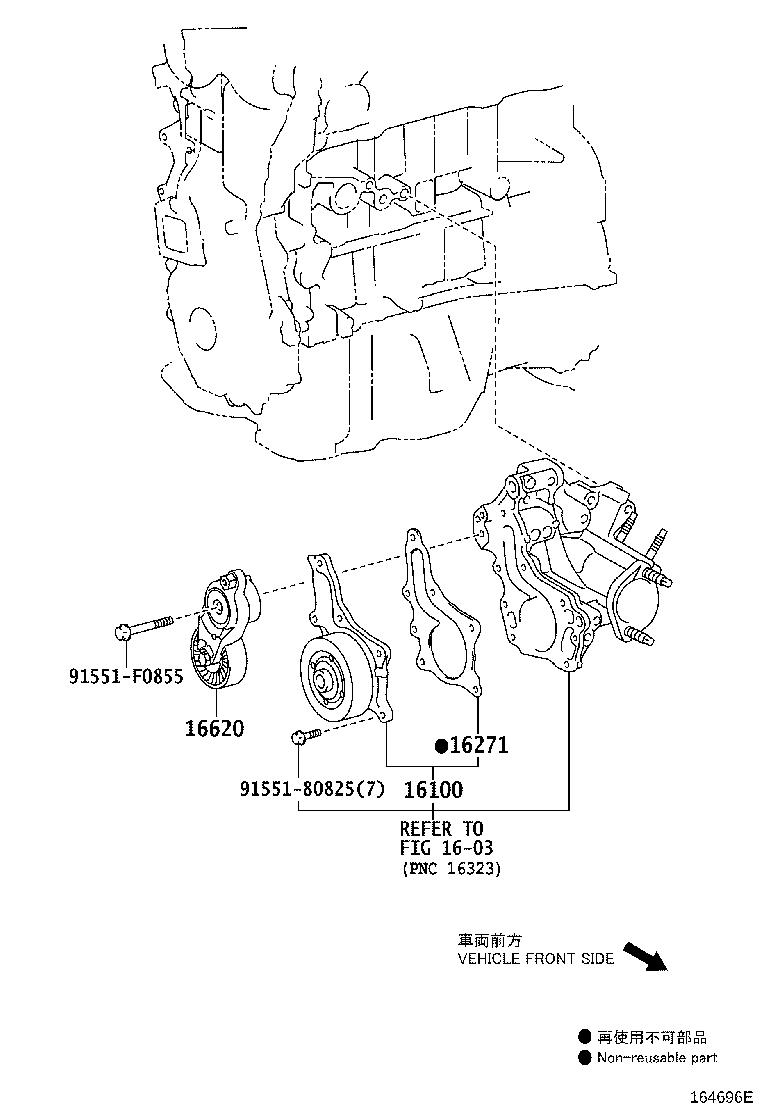

Water Pump
6 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16173 | Pulley, Water Pump |
| 16271 | Gasket, Water Pump |
| 16601 | Tensioner Sub-assy, V-ribbed Belt |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16634D | Cover, Dust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
