Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

21 part groups · 9 illustrations

Illustrations

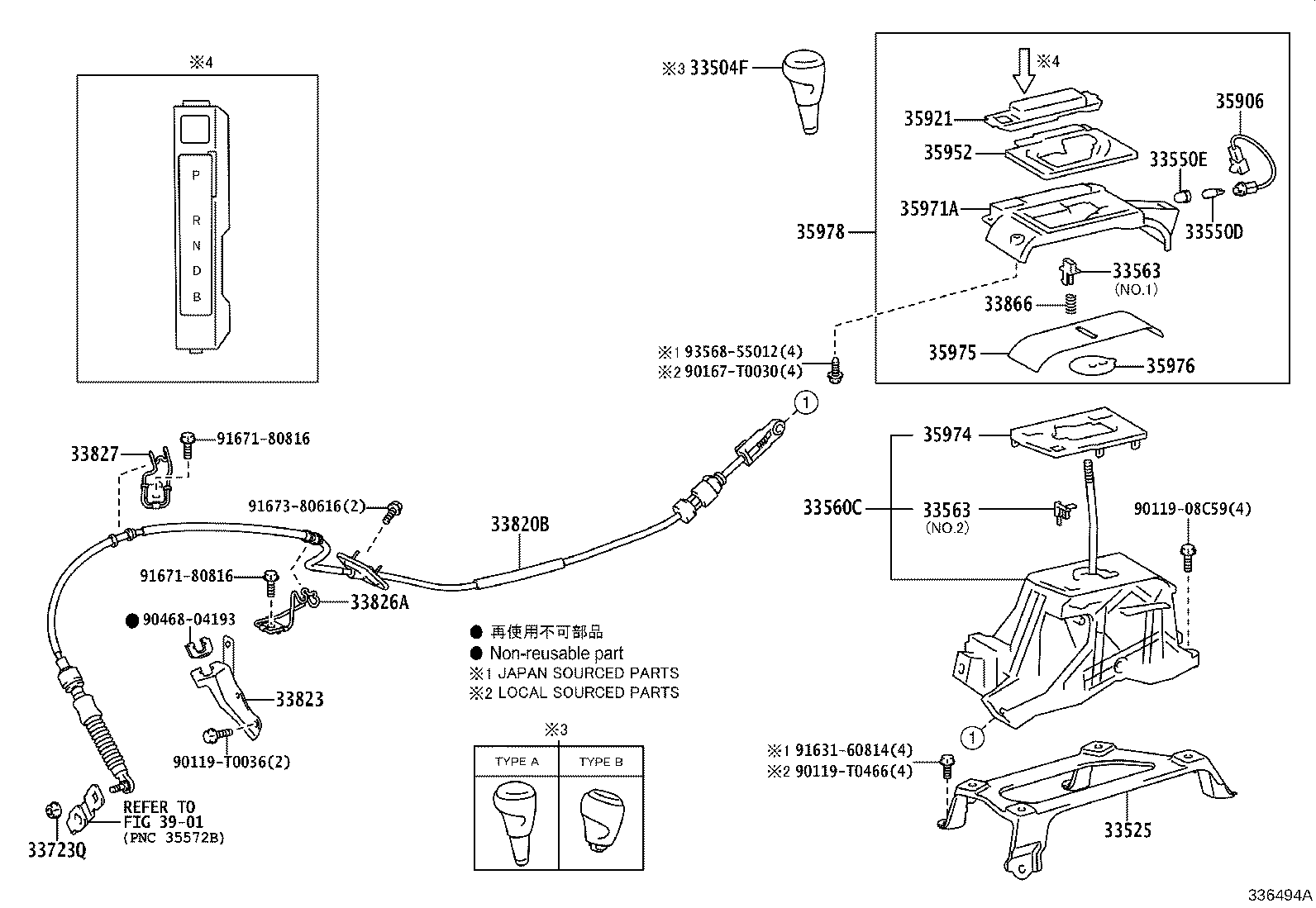

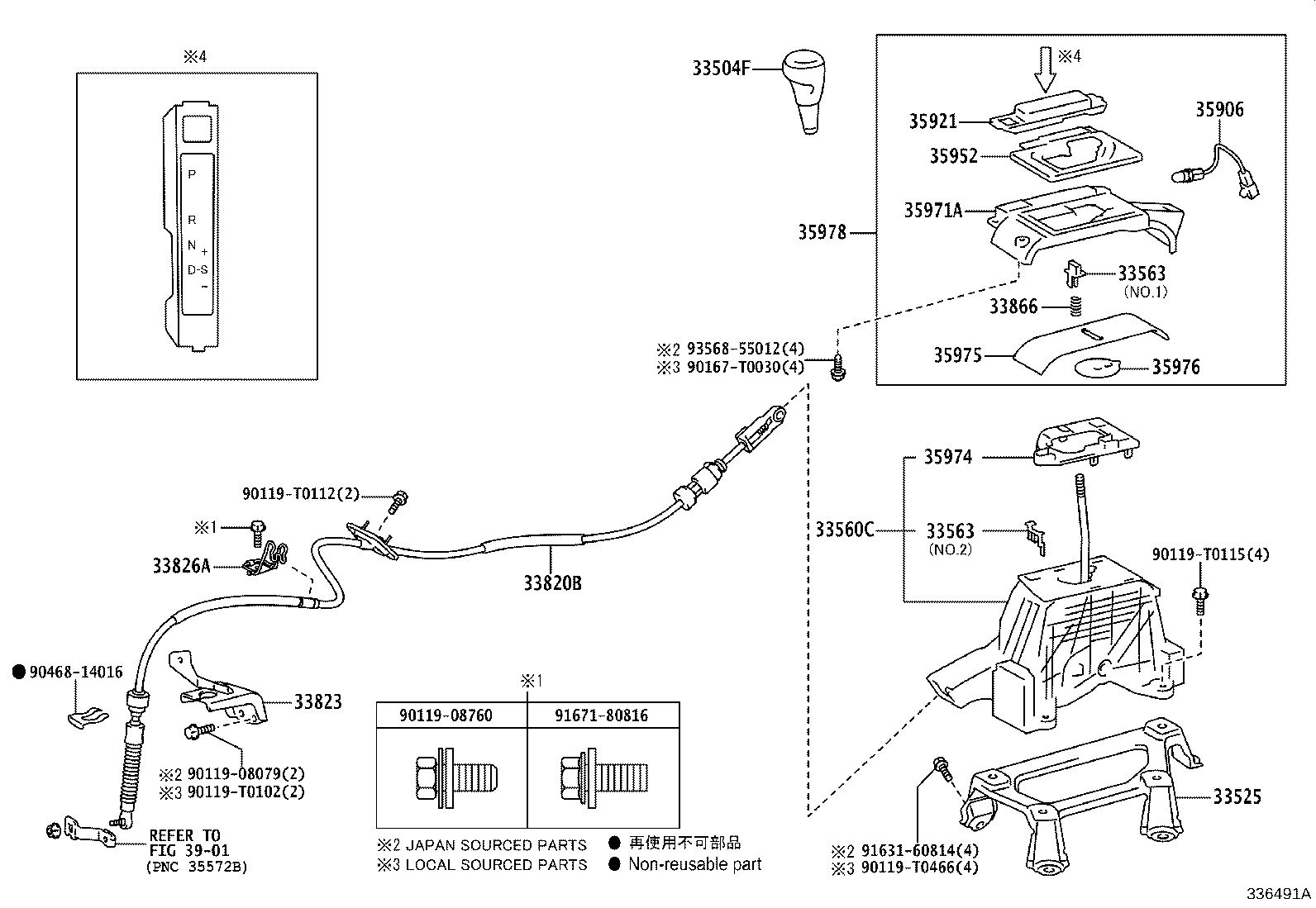

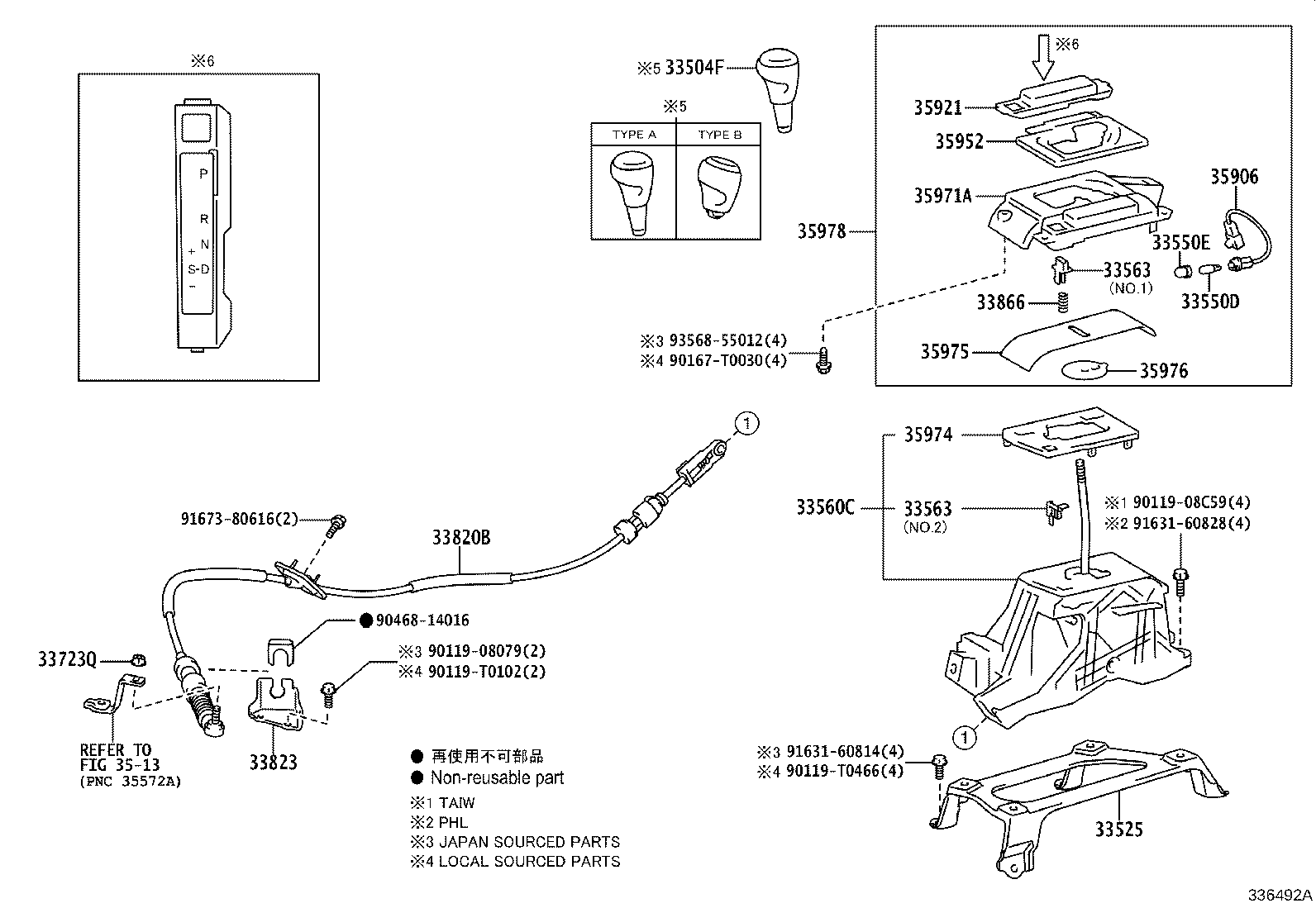

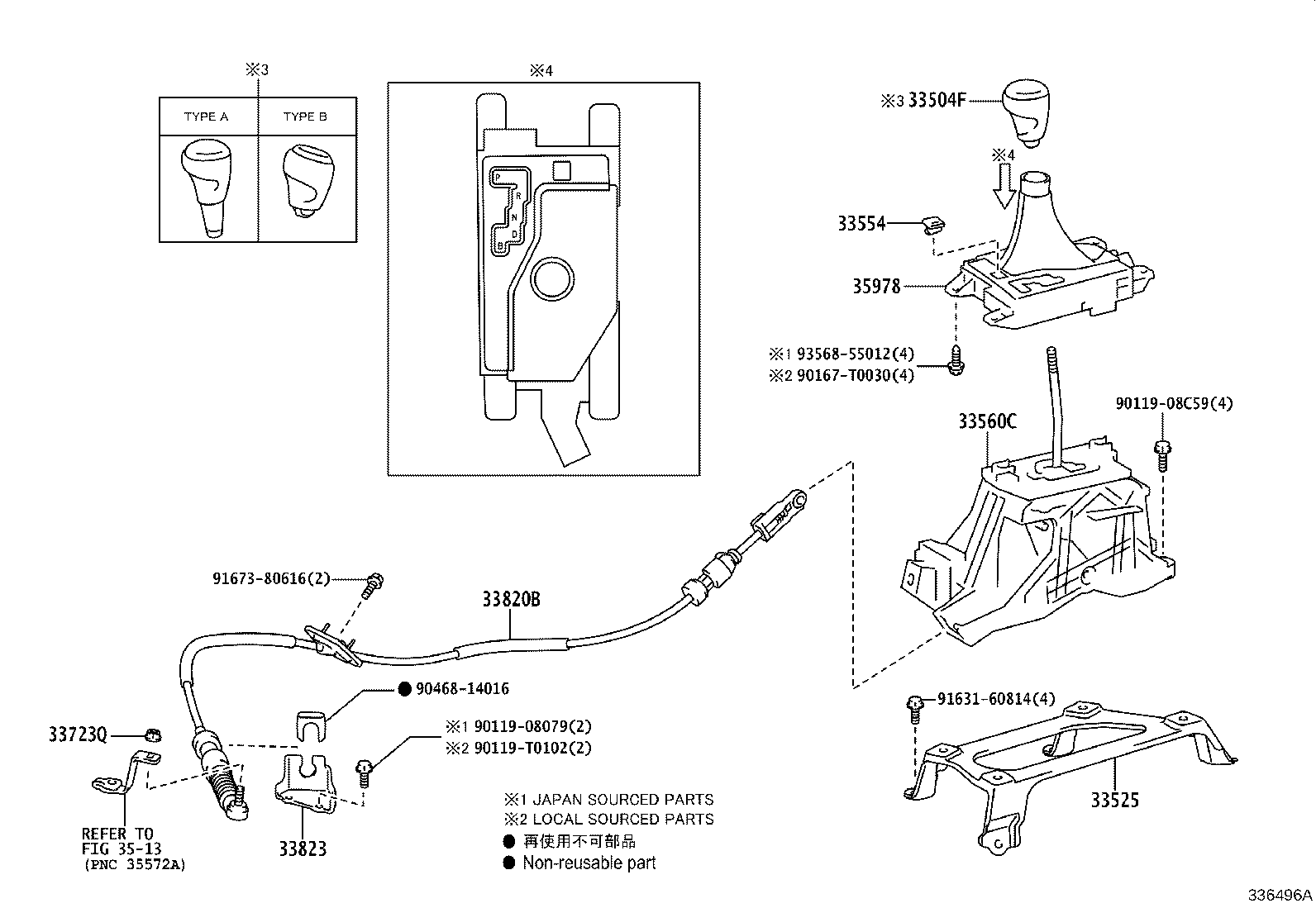

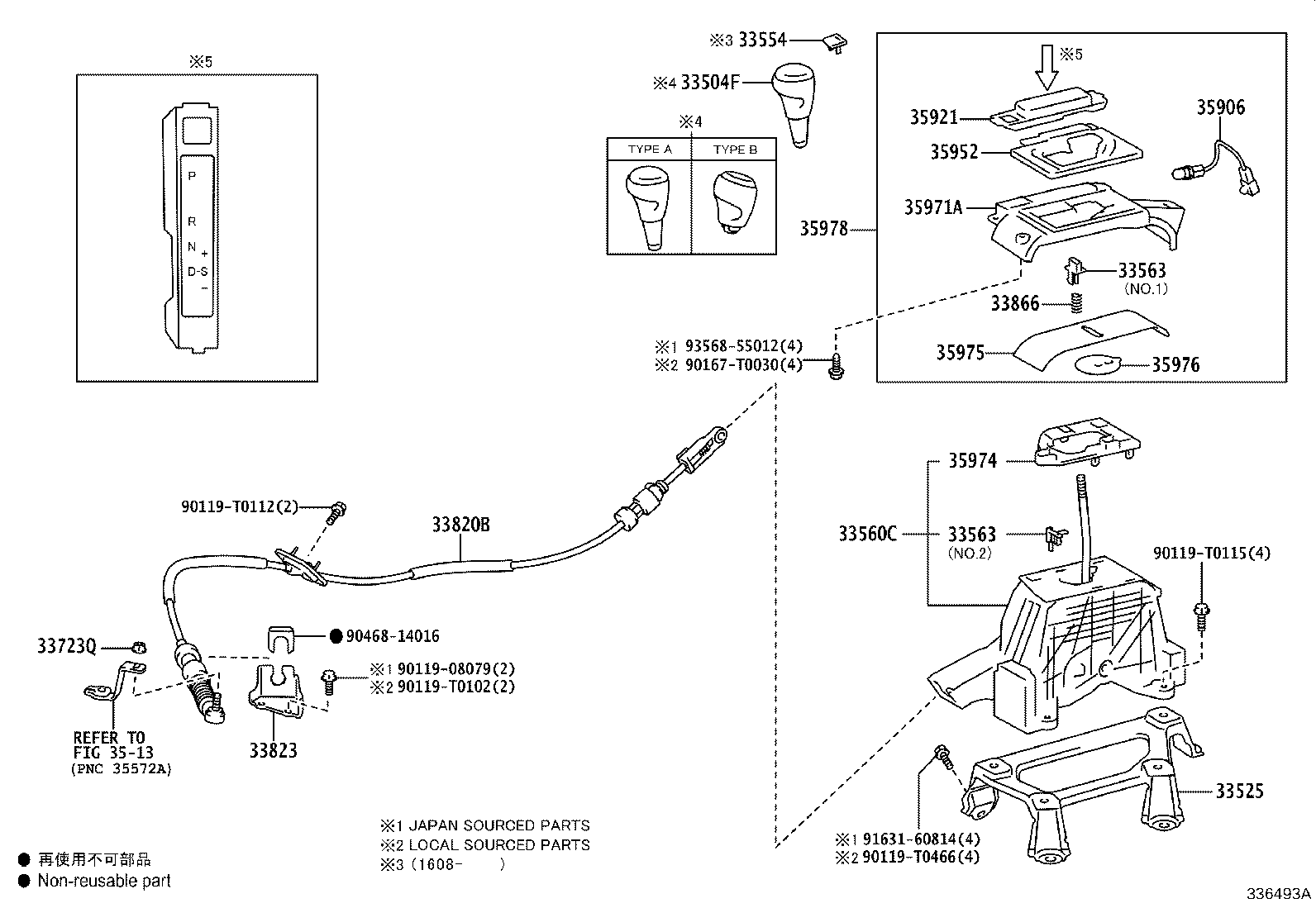

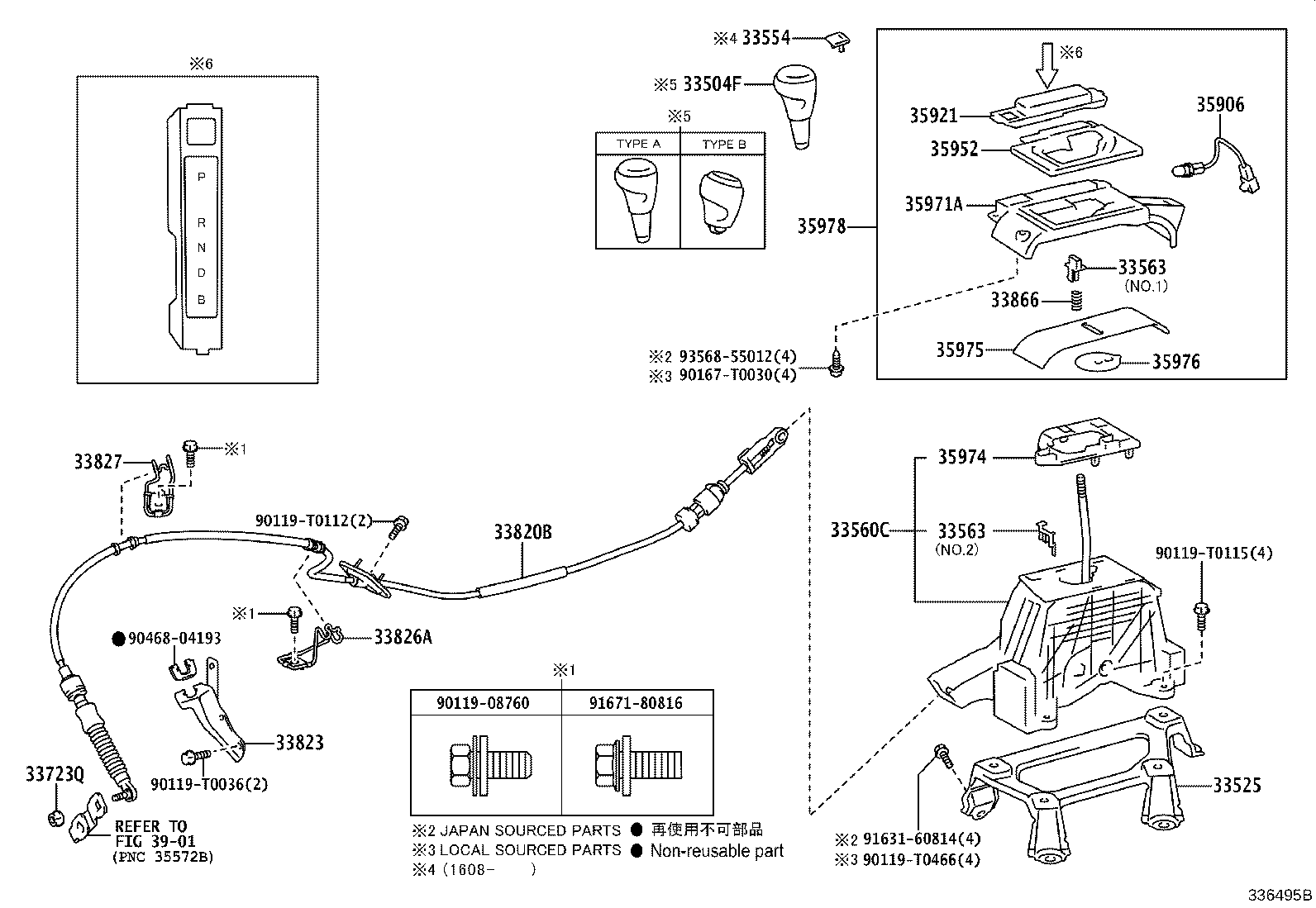

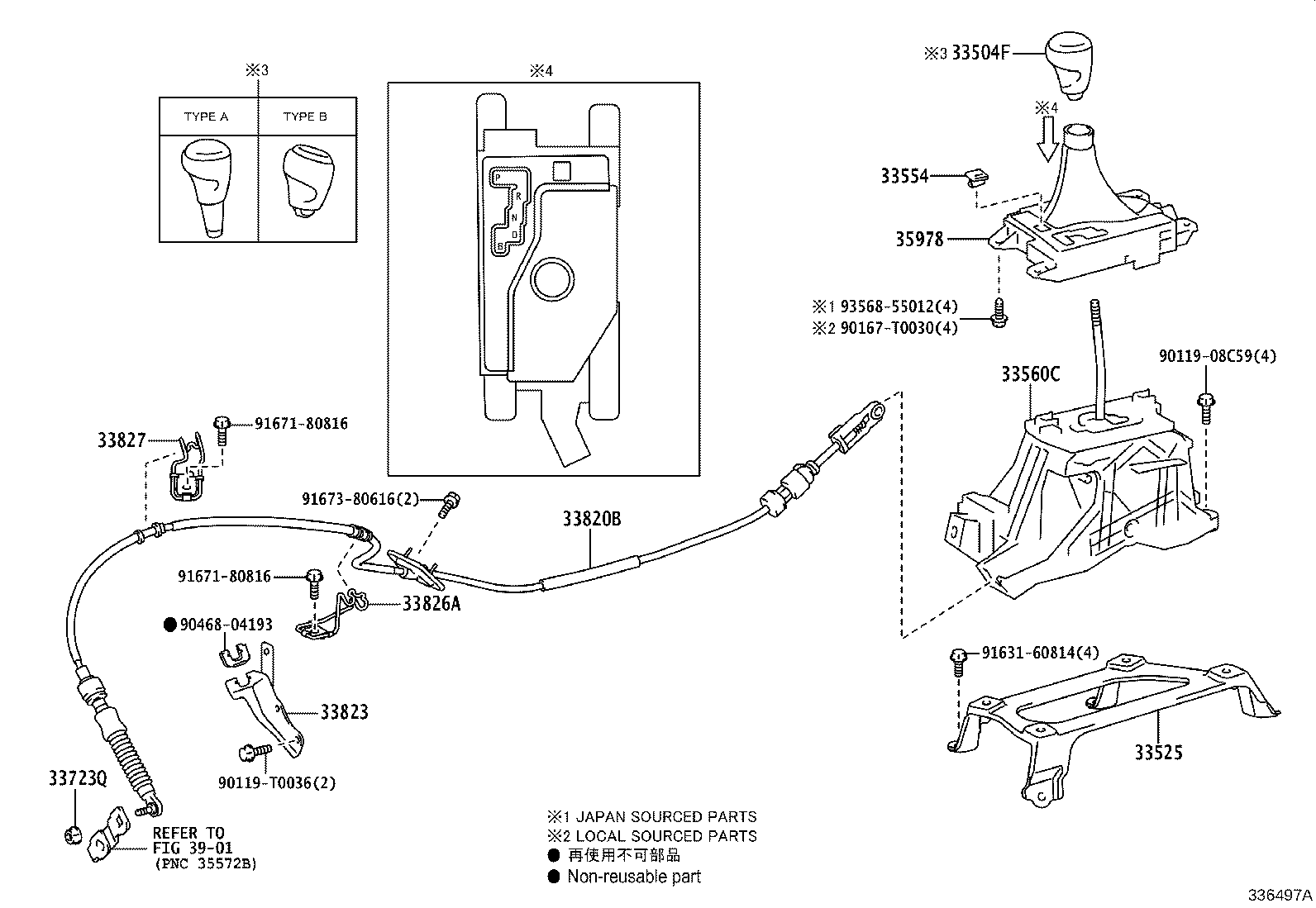

Figure 336490A 336490A 2011-12 → — Figure 336491A 336491A 2012-03 → — Figure 336492A 336492A 2011-12 → — Figure 336492A 336492A 2012-03 → 2016-04 Figure 336493A 336493A 2012-03 → — Figure 336494A 336494A 2012-02 → 2016-04 Figure 336495A 336495A 2012-03 → — Figure 336496A 336496A 2016-04 → — Figure 336497A 336497A 2016-04 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554 Cap, Shift Lever
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
