Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 30 illustrations

Illustrations

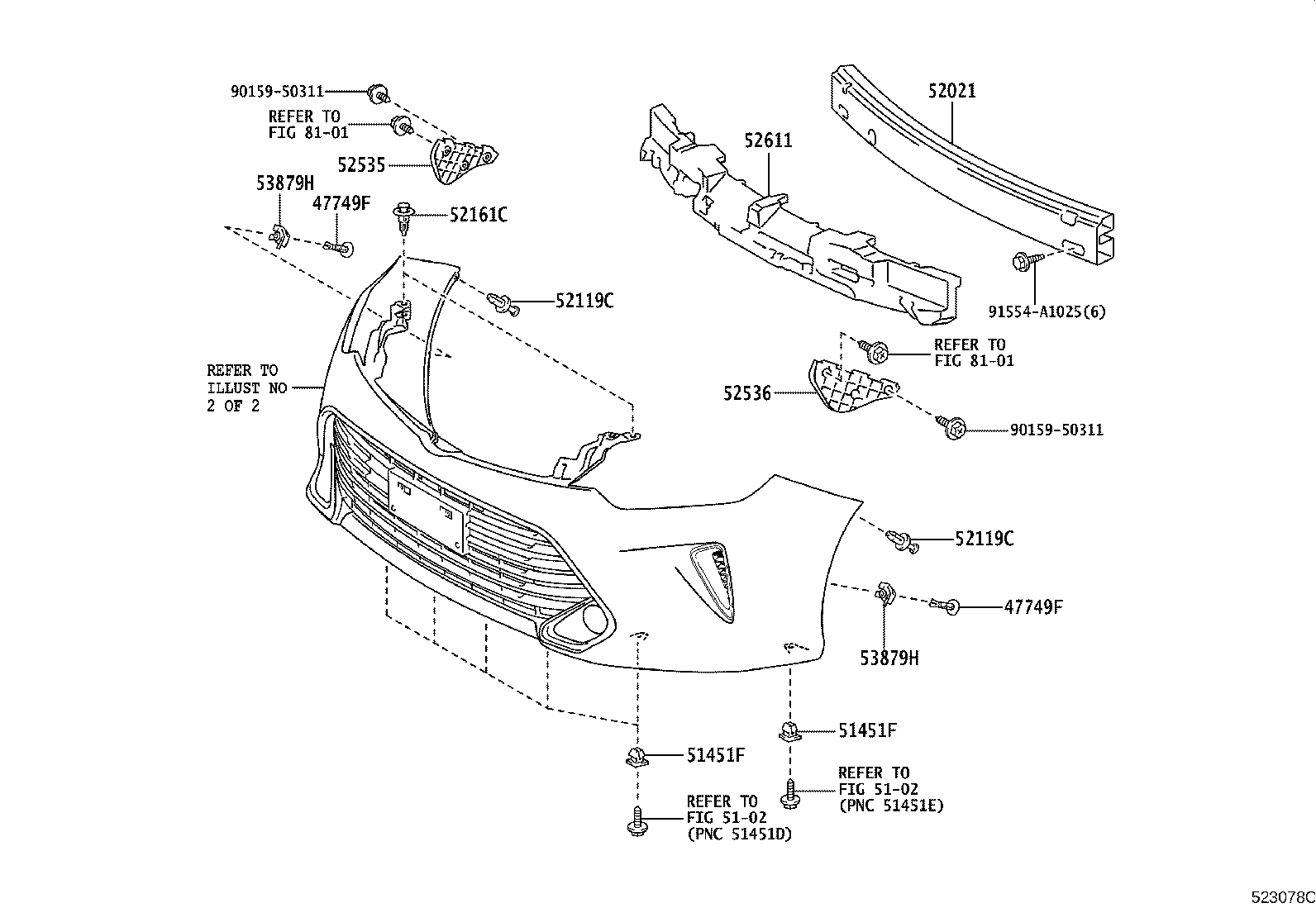

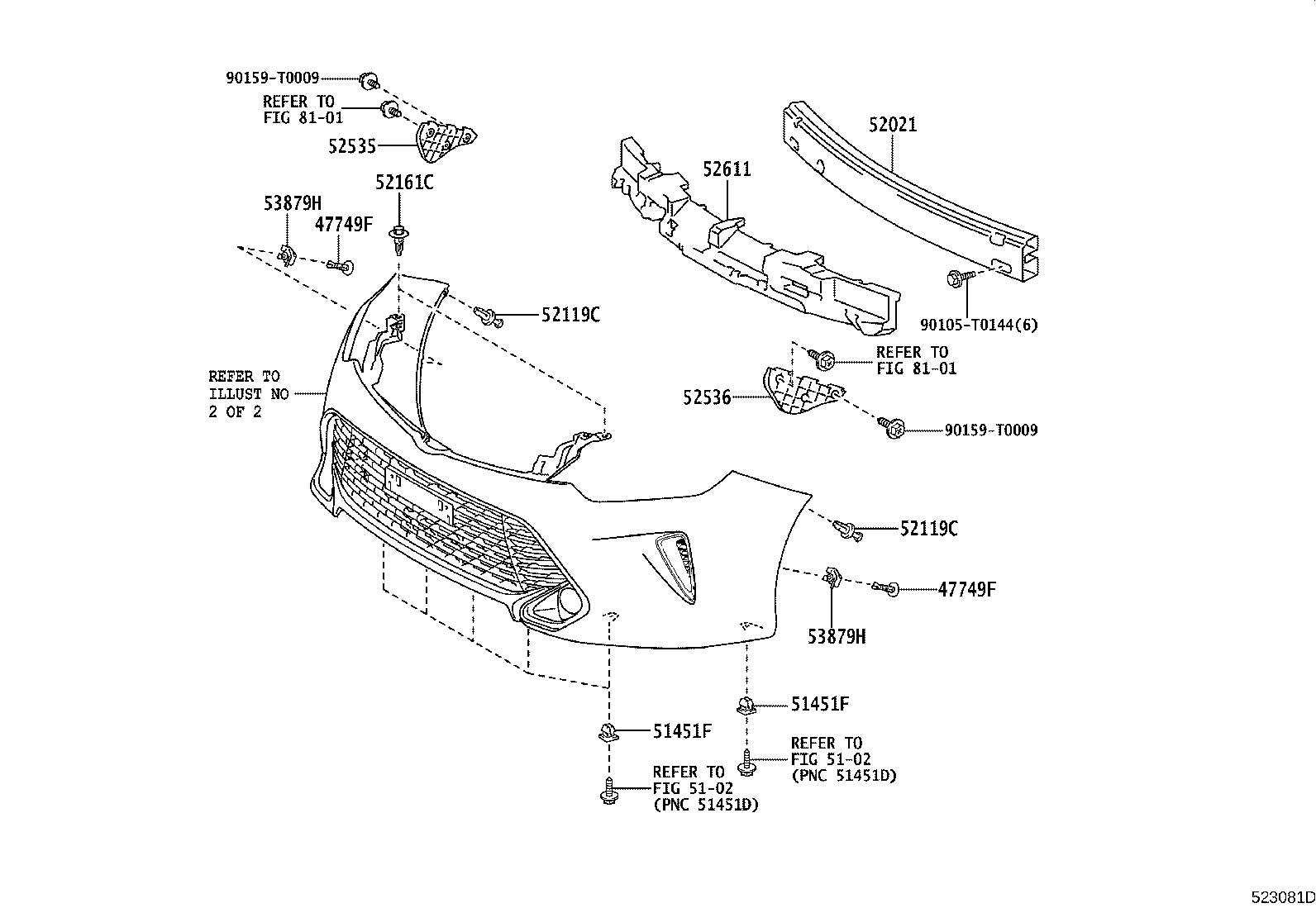

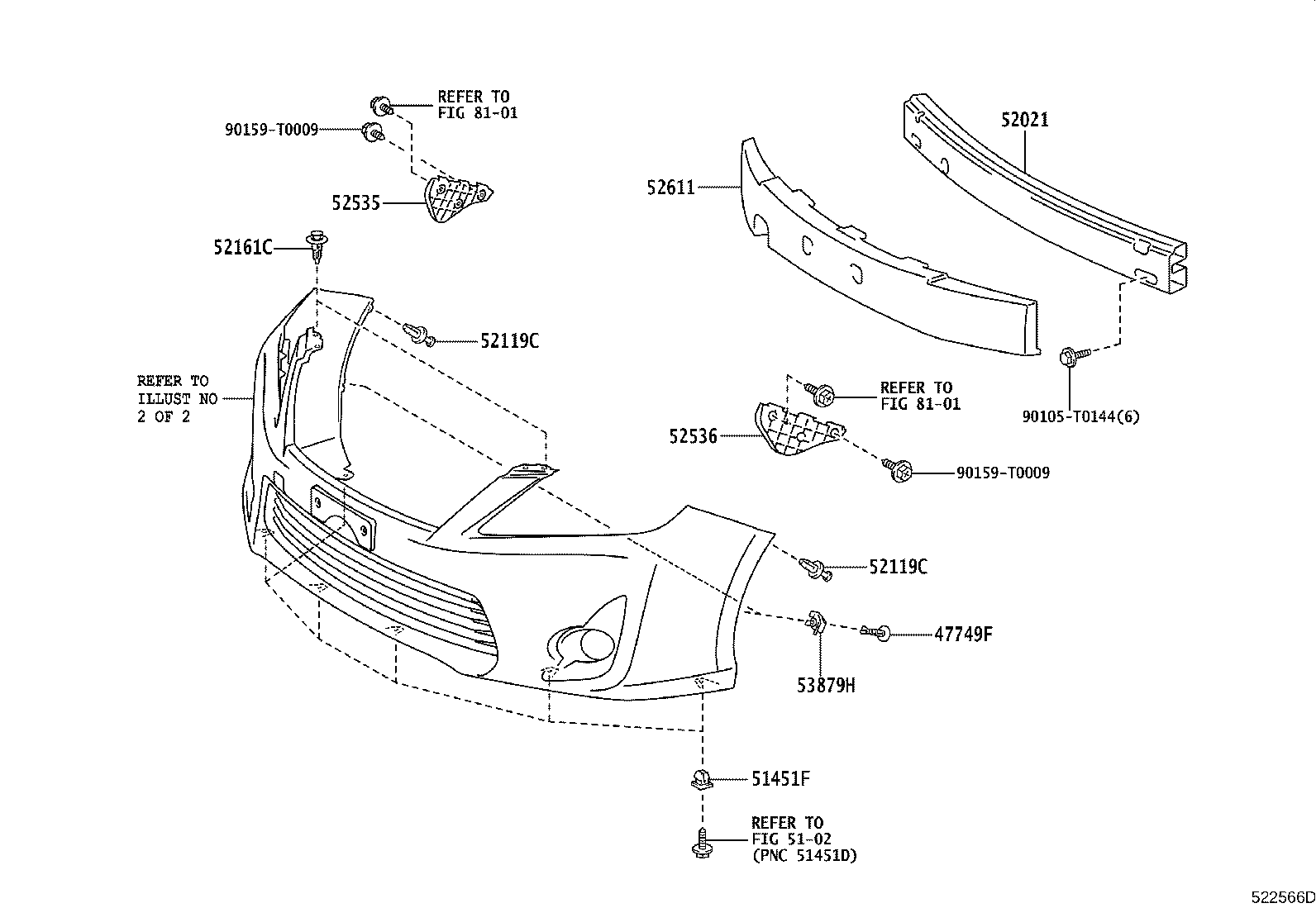

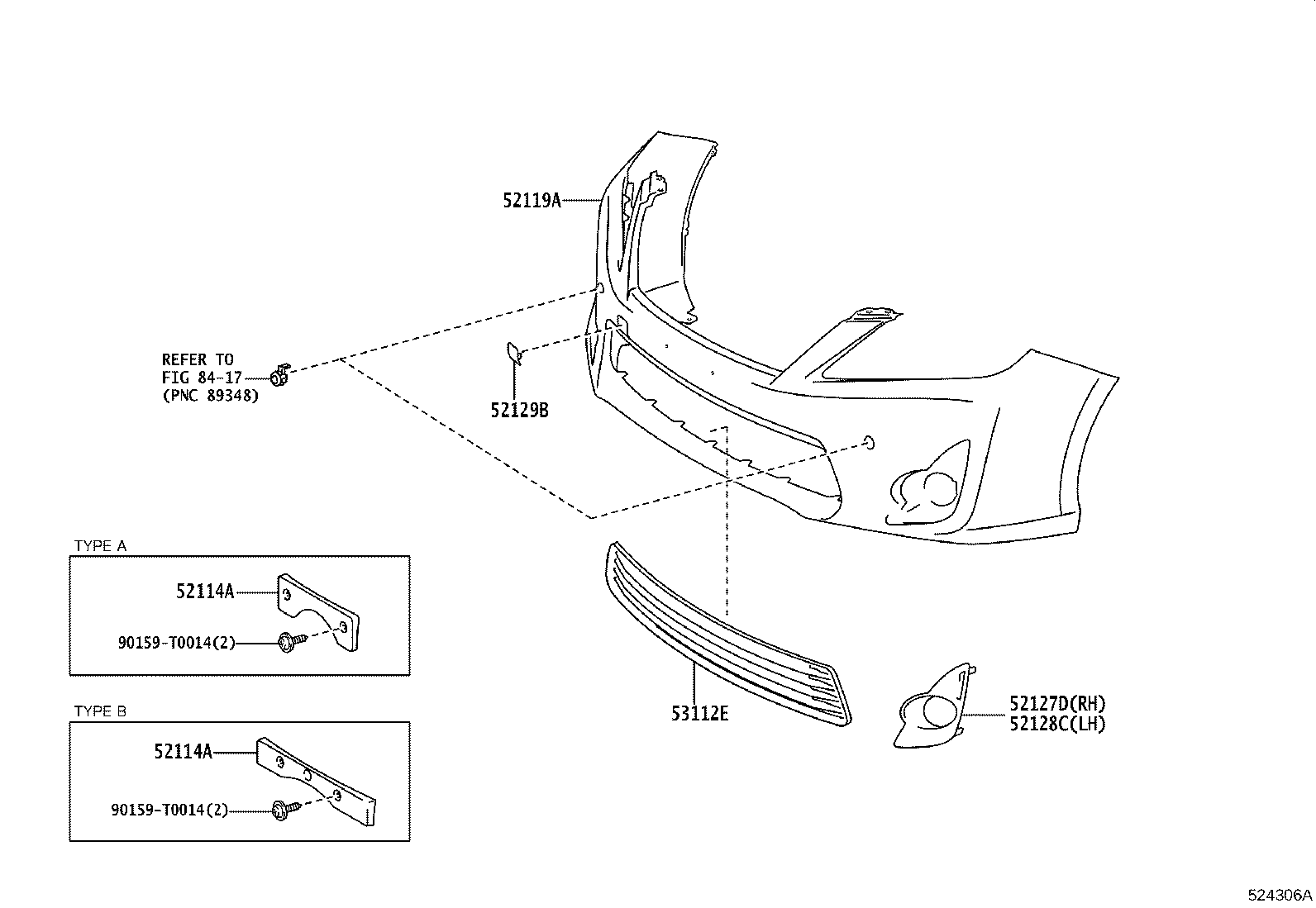

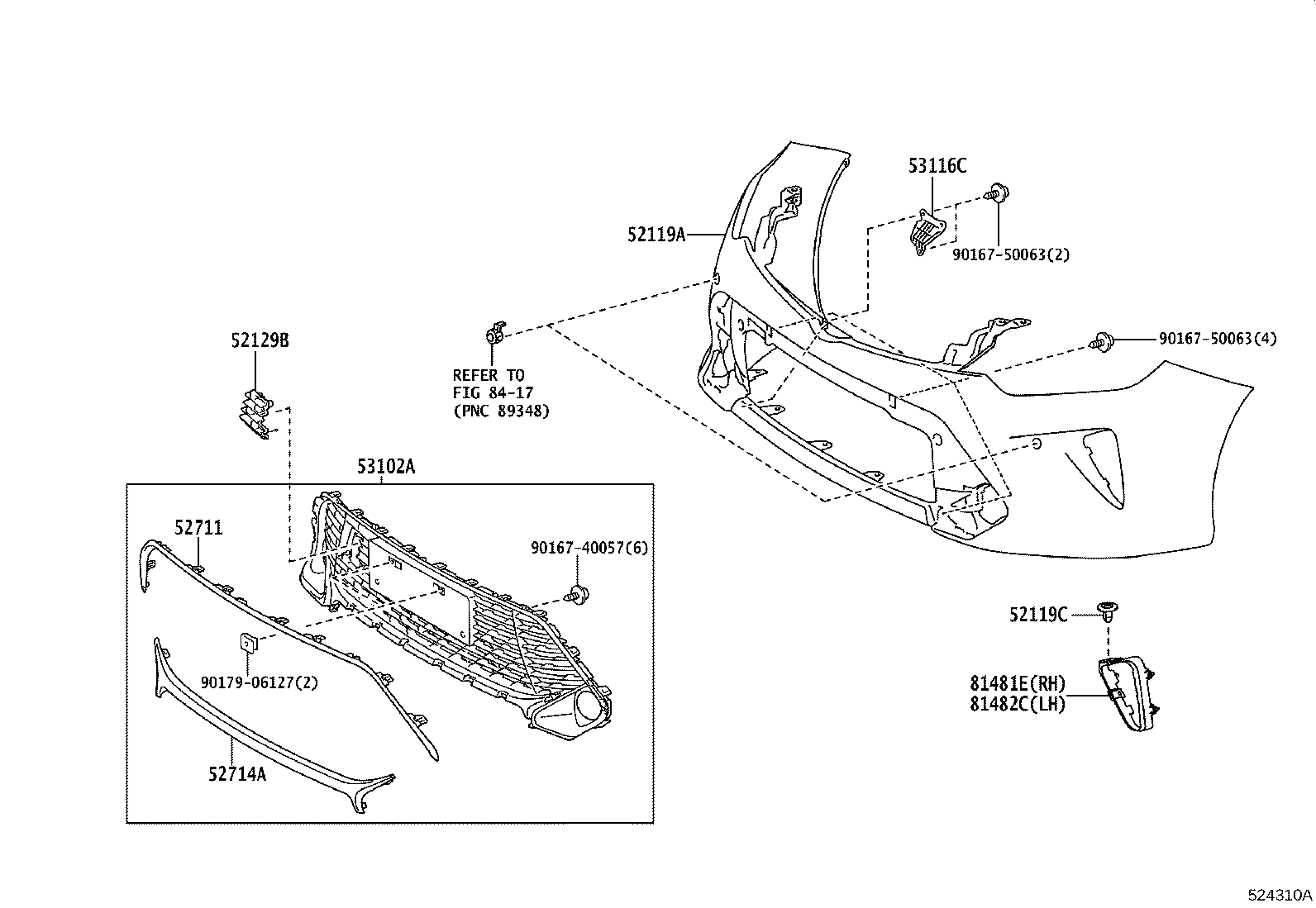

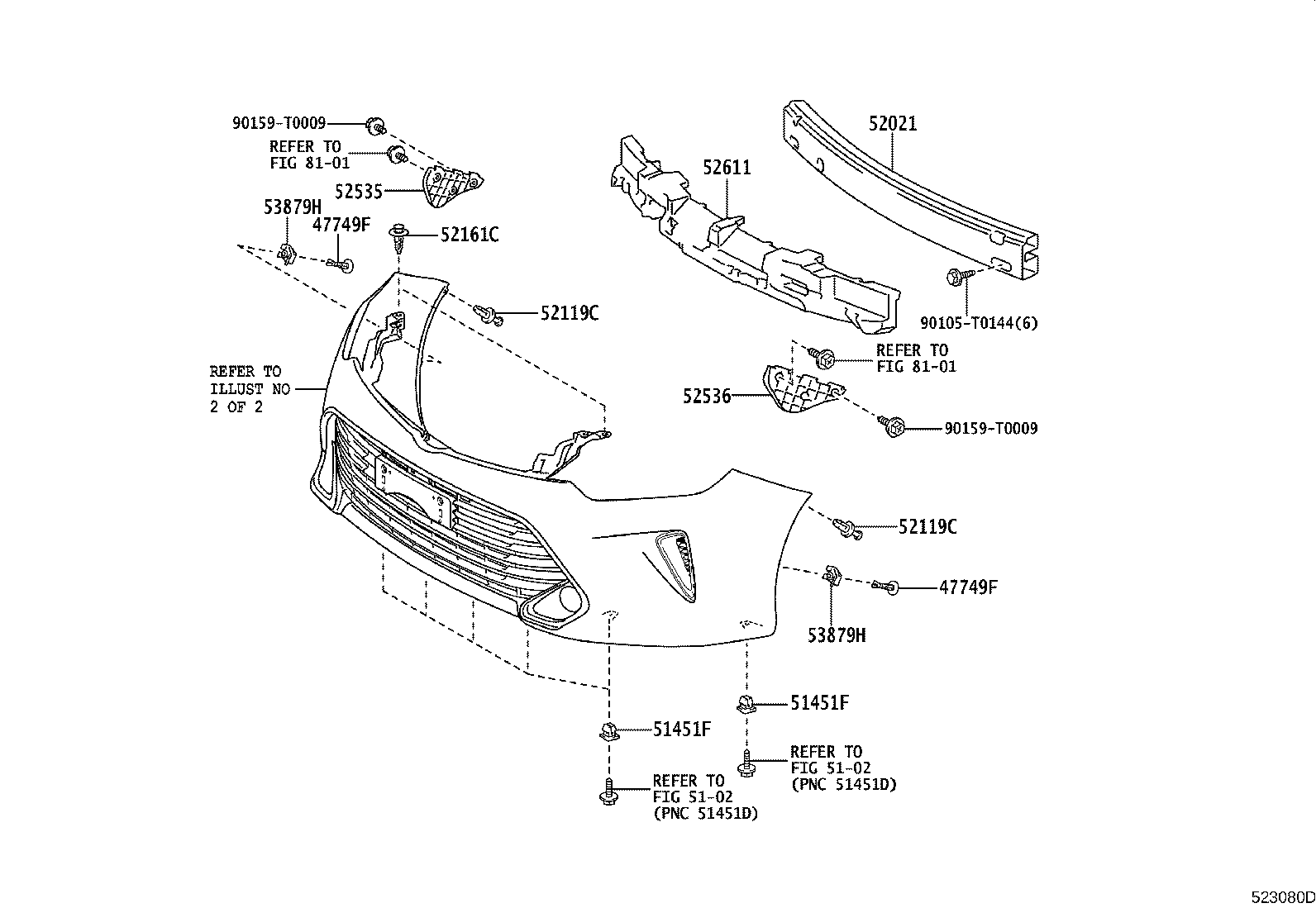

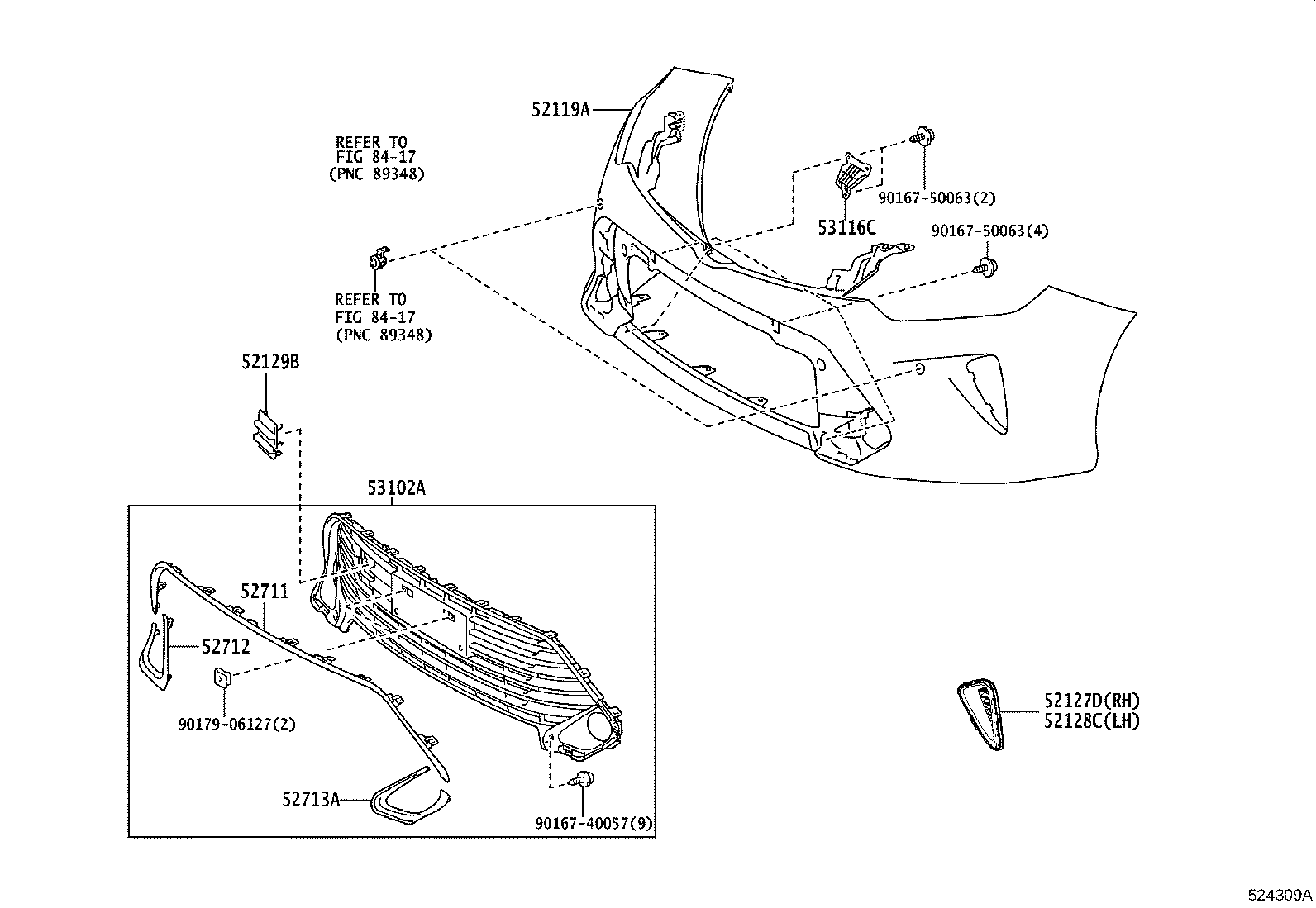

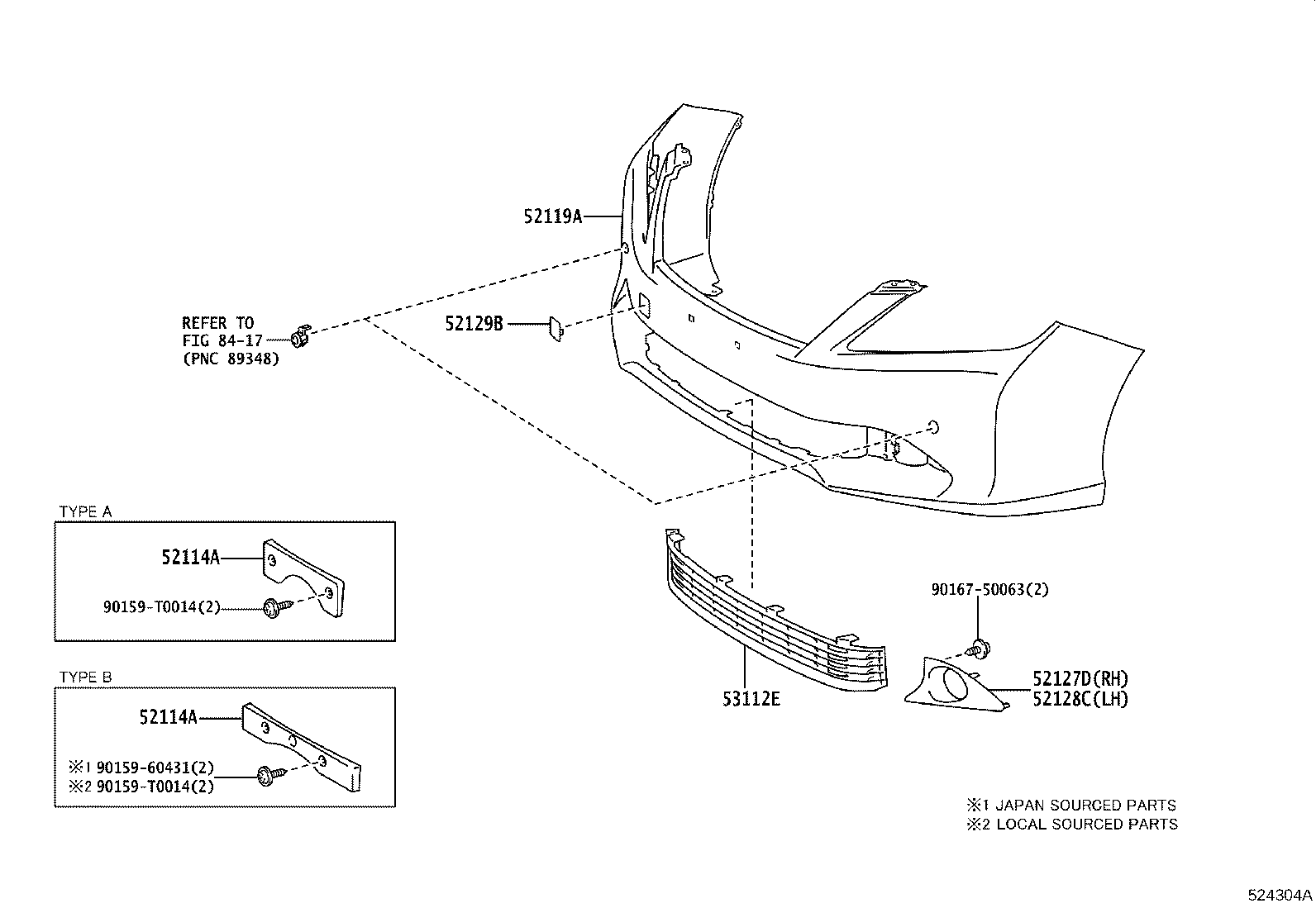

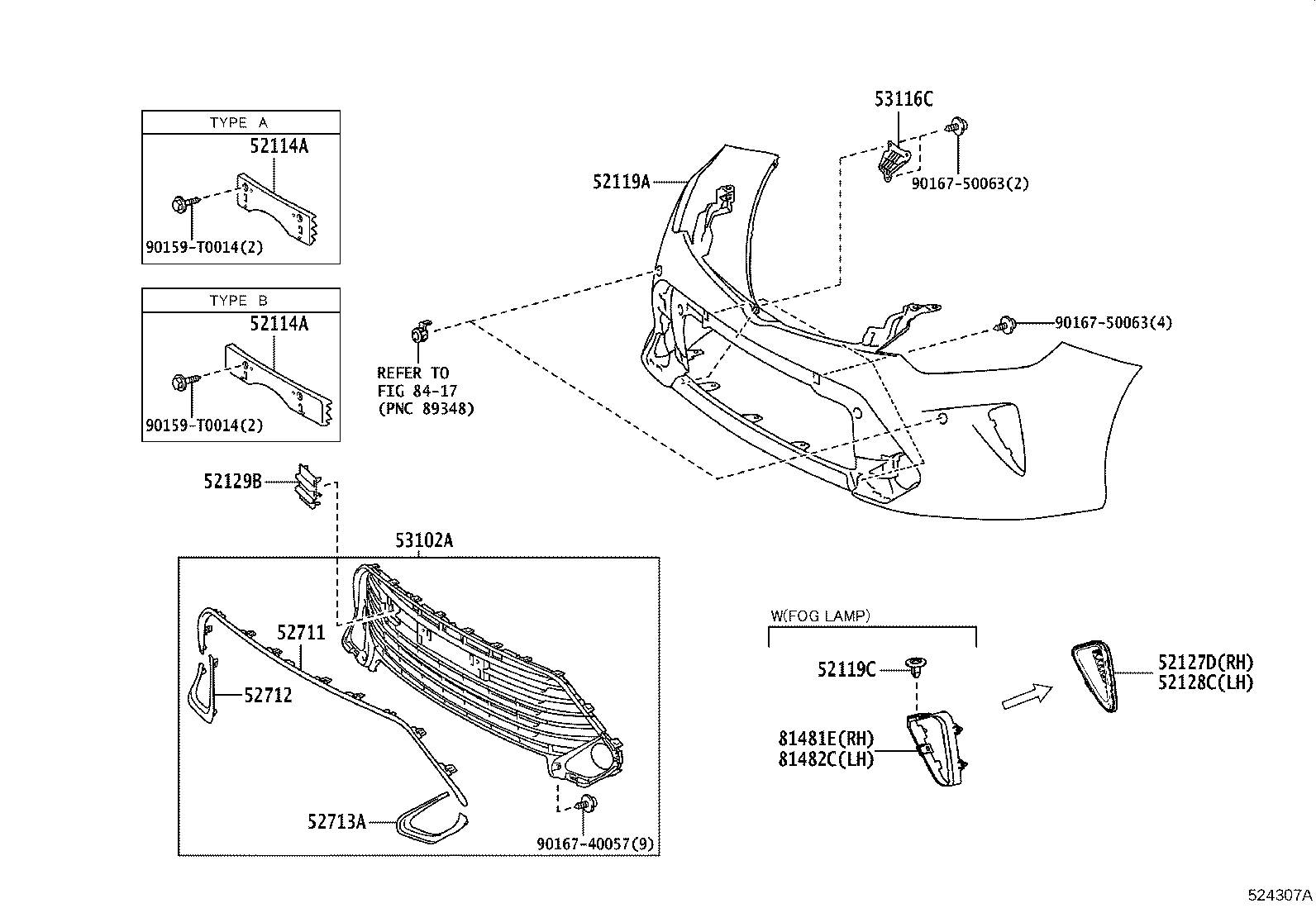

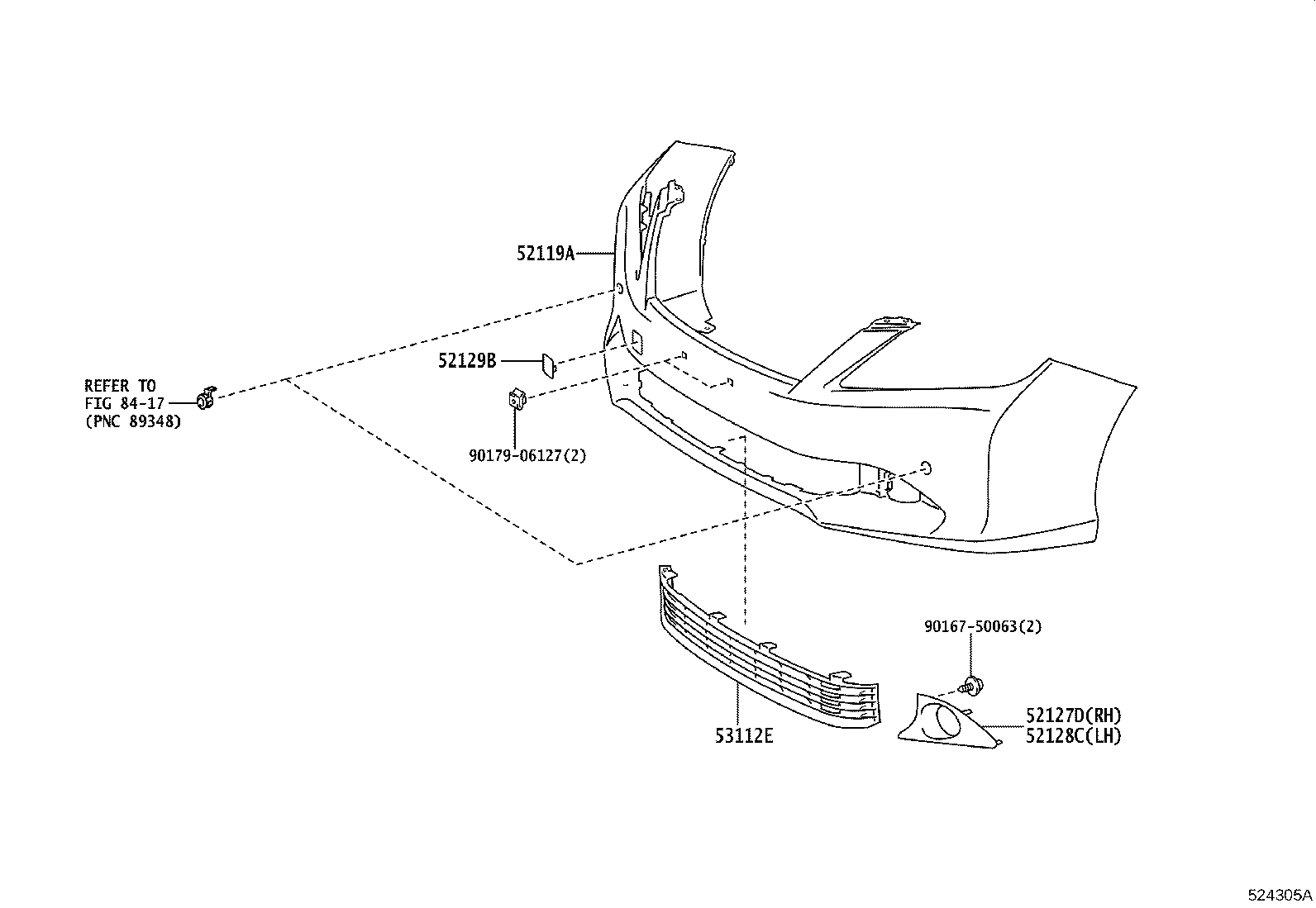

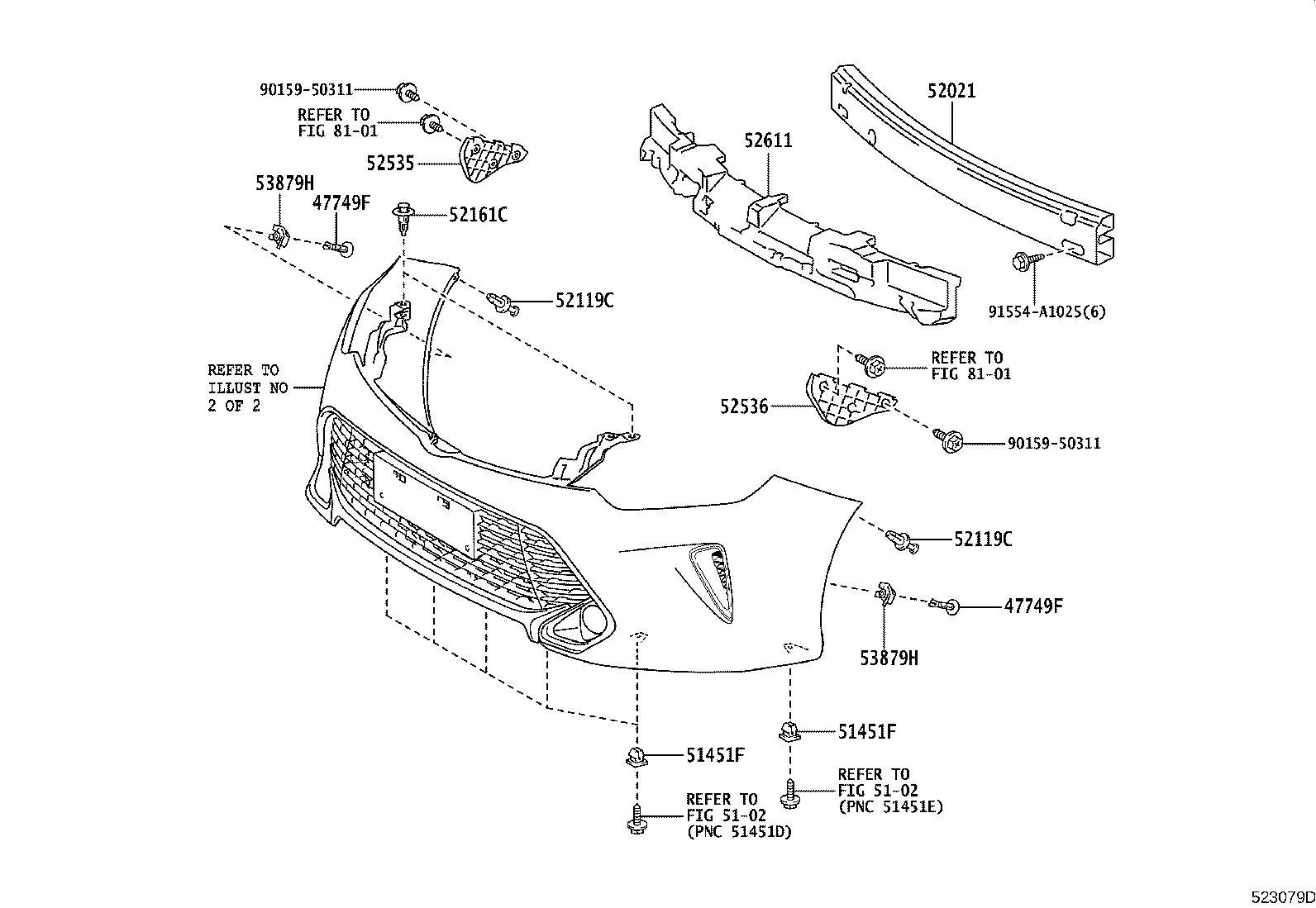

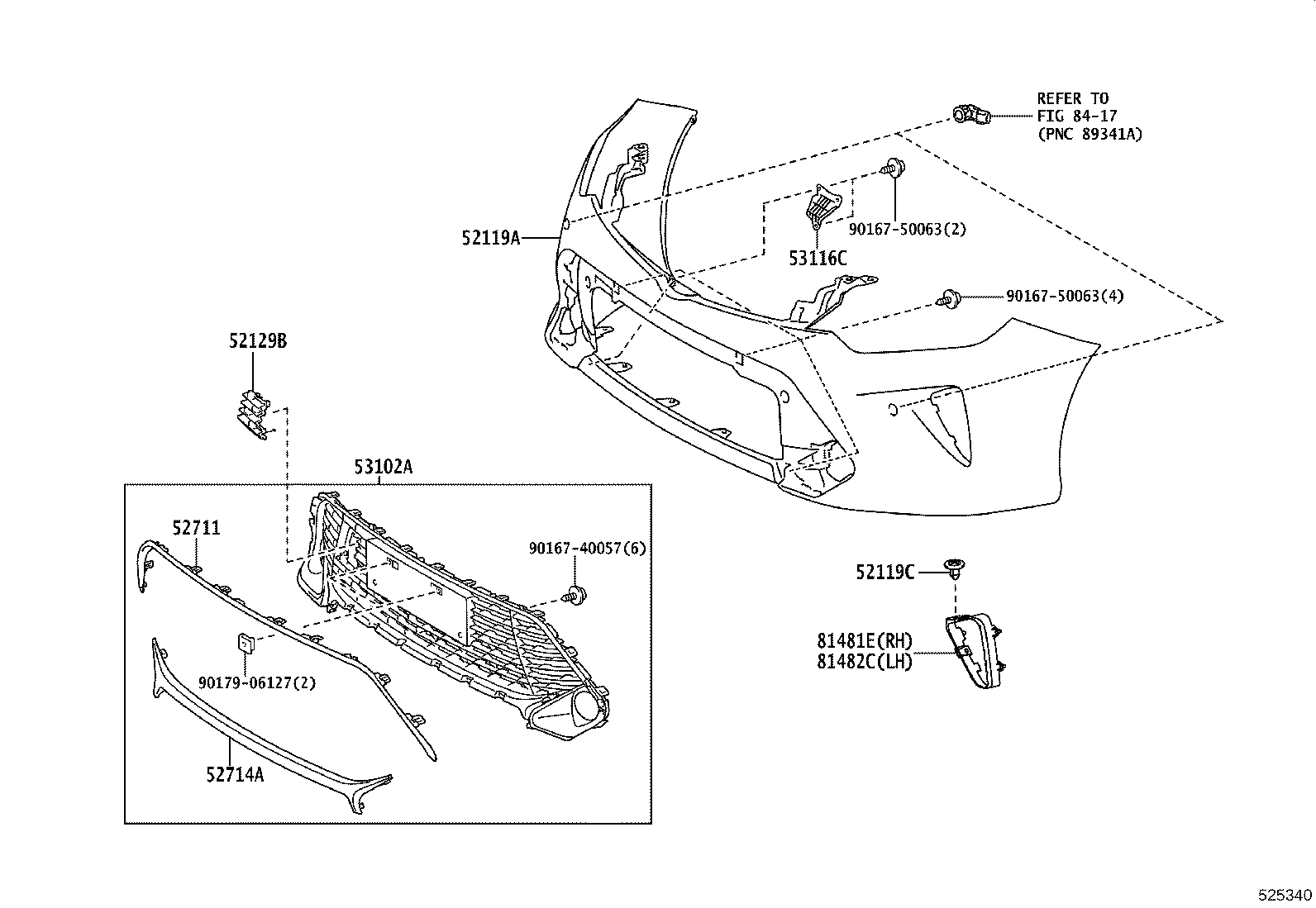

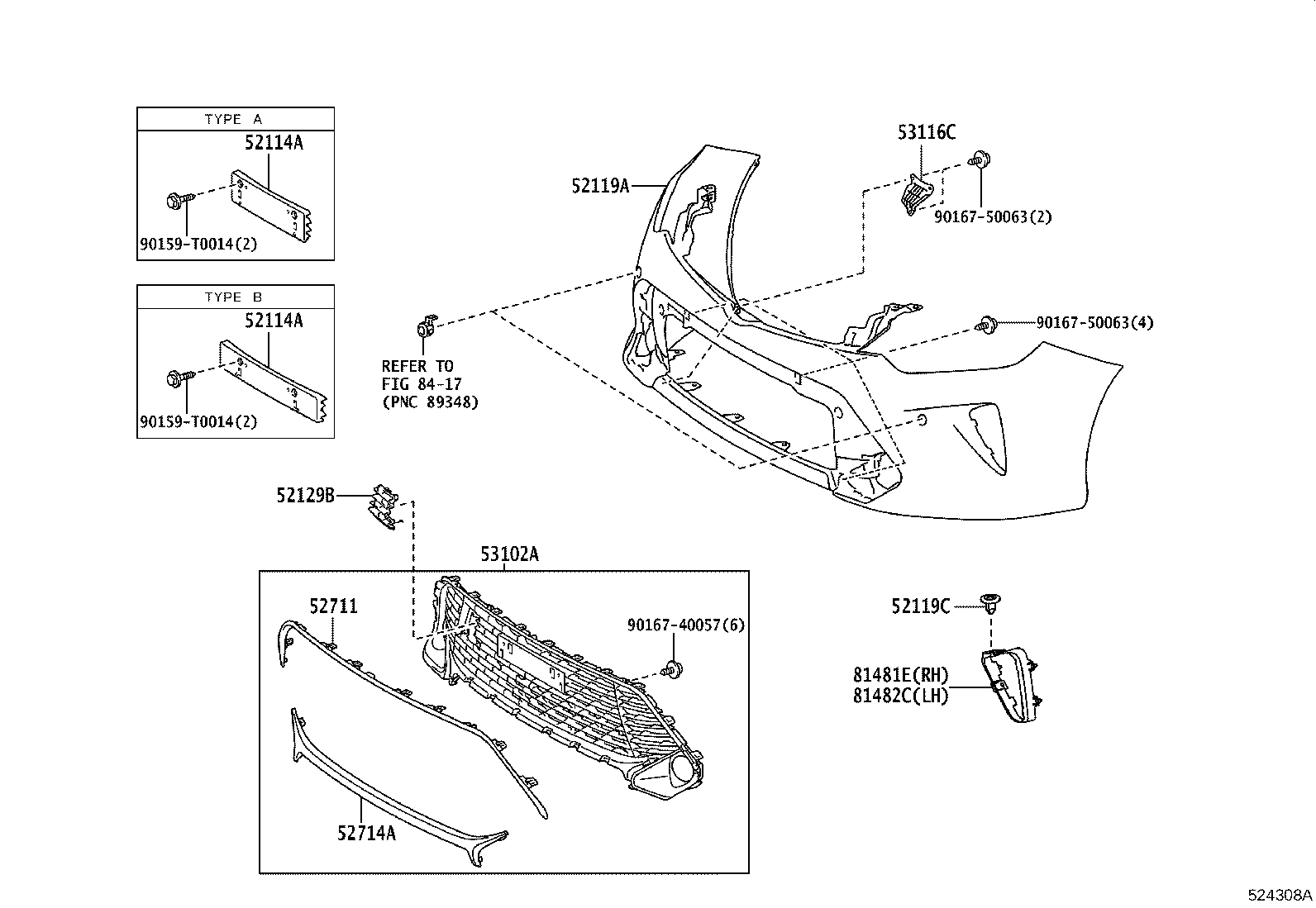

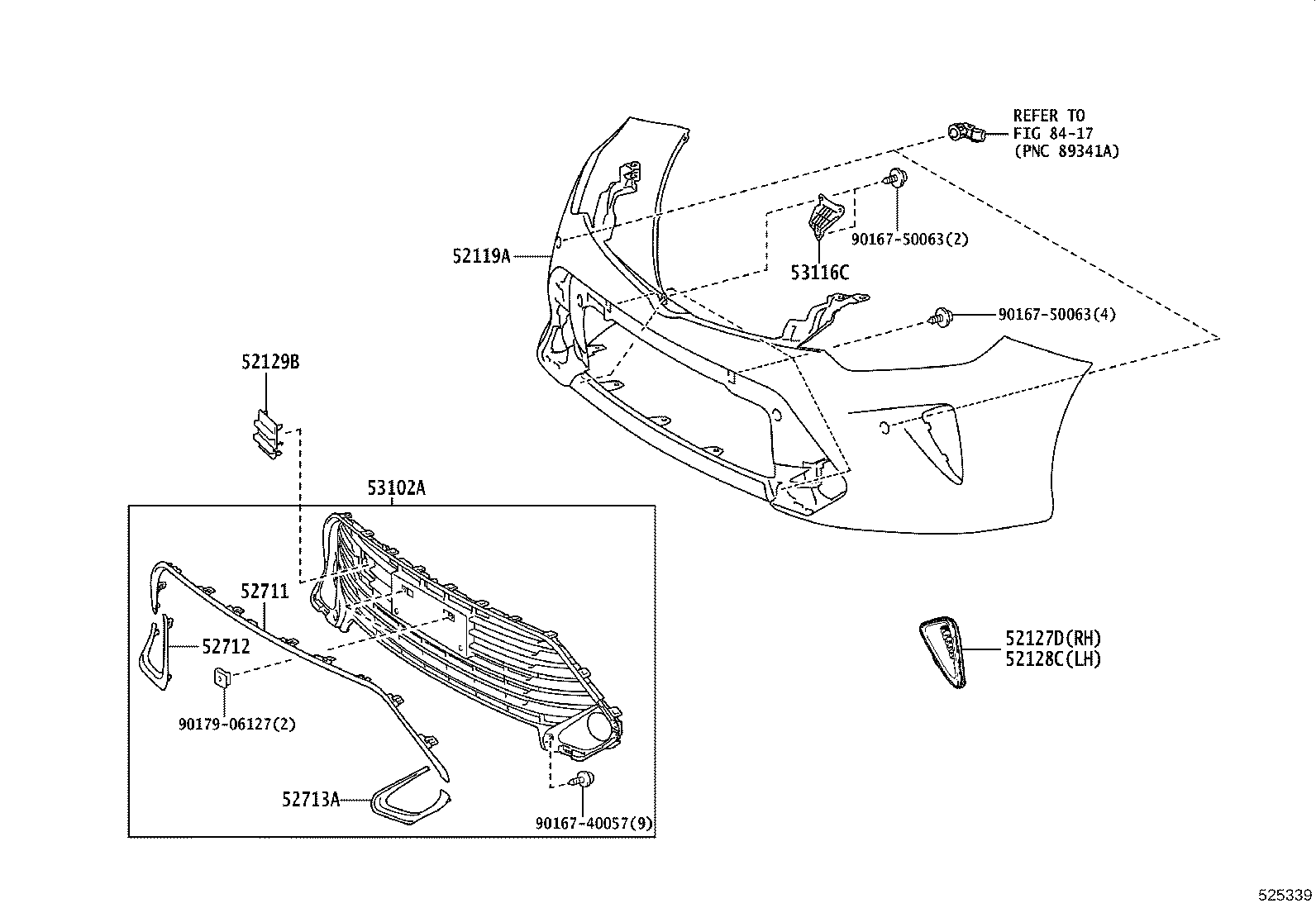

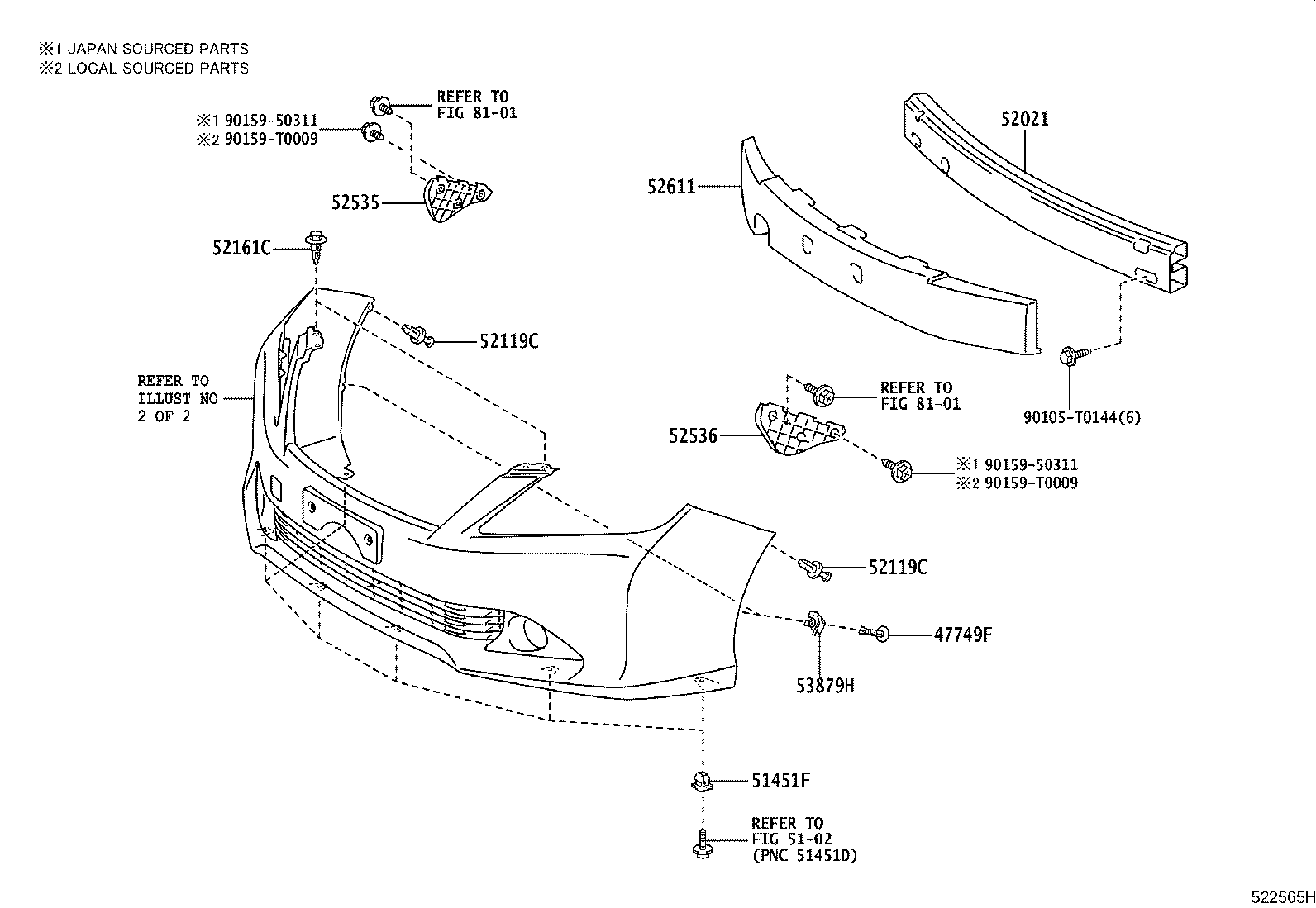

Figure 522951B 522951B 2011-12 → 2015-03 Figure 524305A 524305A 2011-12 → 2015-03 Figure 522565H 522565H 2012-03 → 2015-02 Figure 522565H 522565H 2012-05 → 2015-03 Figure 522565H 522565H 2012-07 → 2015-04 Figure 524304A 524304A 2012-03 → 2015-02 Figure 524304A 524304A 2012-05 → 2015-03 Figure 524304A 524304A 2012-07 → 2015-04 Figure 522566D 522566D 2012-03 → 2015-02 Figure 522566D 522566D 2013-08 → 2015-04 Figure 524306A 524306A 2012-03 → 2015-02 Figure 524306A 524306A 2013-08 → 2015-04 Figure 523080D 523080D 2015-02 → — Figure 523080D 523080D 2015-03 → — Figure 523080D 523080D 2015-04 → — Figure 524307A 524307A 2015-02 → — Figure 524307A 524307A 2015-03 → — Figure 524307A 524307A 2015-04 → — Figure 523081D 523081D 2015-02 → — Figure 523081D 523081D 2015-03 → — Figure 523081D 523081D 2015-04 → — Figure 524308A 524308A 2015-02 → — Figure 524308A 524308A 2015-03 → — Figure 524308A 524308A 2015-04 → — Figure 523078C 523078C 2015-03 → — Figure 524309A 524309A 2015-03 → 2016-04 Figure 525339 525339 2016-04 → — Figure 523079D 523079D 2015-03 → — Figure 524310A 524310A 2015-03 → 2016-04 Figure 525340 525340 2016-04 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52714A Moulding, Front Bumper, NO.2
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53116C Bracket, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
