Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 9 illustrations

Illustrations

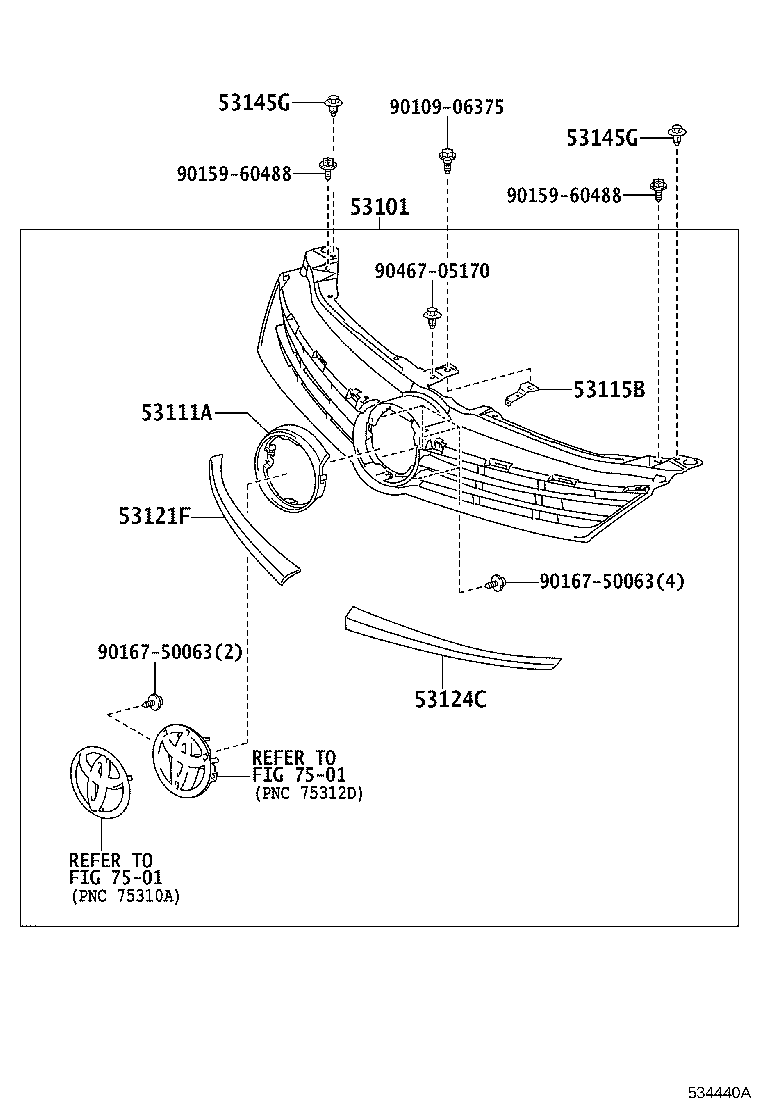

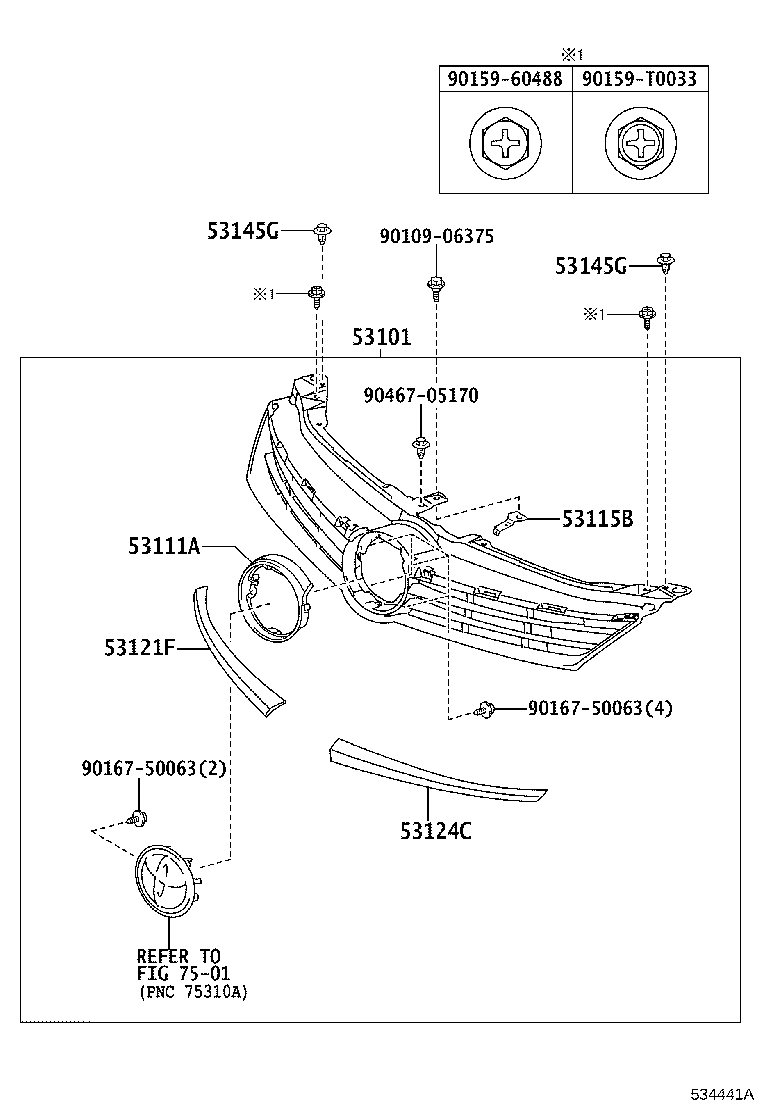

Figure 533612D 533612D 2011-12 → 2015-02 Figure 533612D 533612D 2011-12 → 2015-03 Figure 533612D 533612D 2011-12 → 2015-04 Figure 534440A 534440A 2015-02 → — Figure 534440A 534440A 2015-03 → — Figure 534440A 534440A 2015-04 → — Figure 534441A 534441A 2015-02 → — Figure 534441A 534441A 2015-03 → — Figure 534441A 534441A 2015-04 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53111A Grille, Radiator, Outside
53115B Bracket, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
53124C Moulding, Radiator Grille, Upper LH
53145G Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
