Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

27 part groups · 5 illustrations

Illustrations

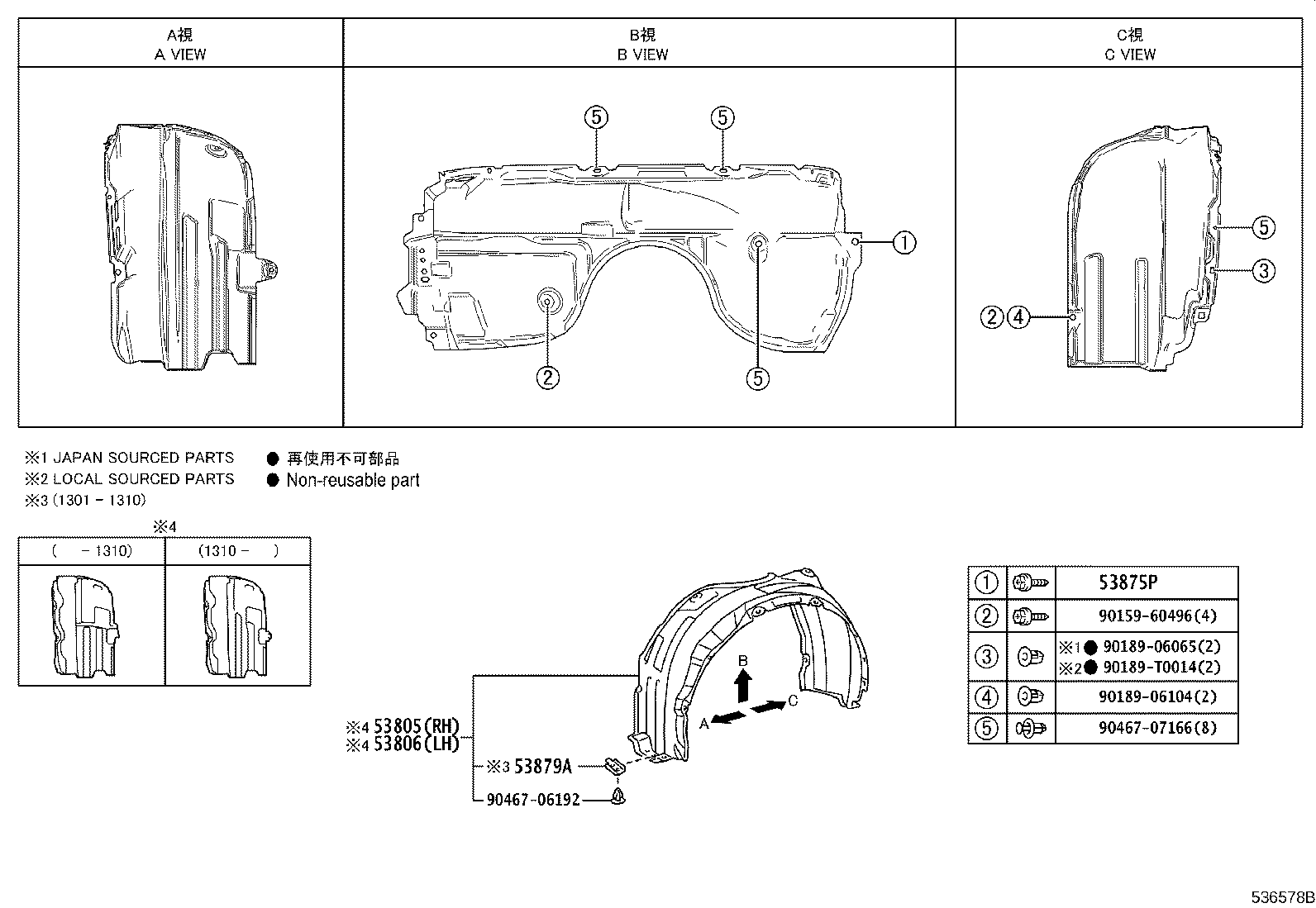

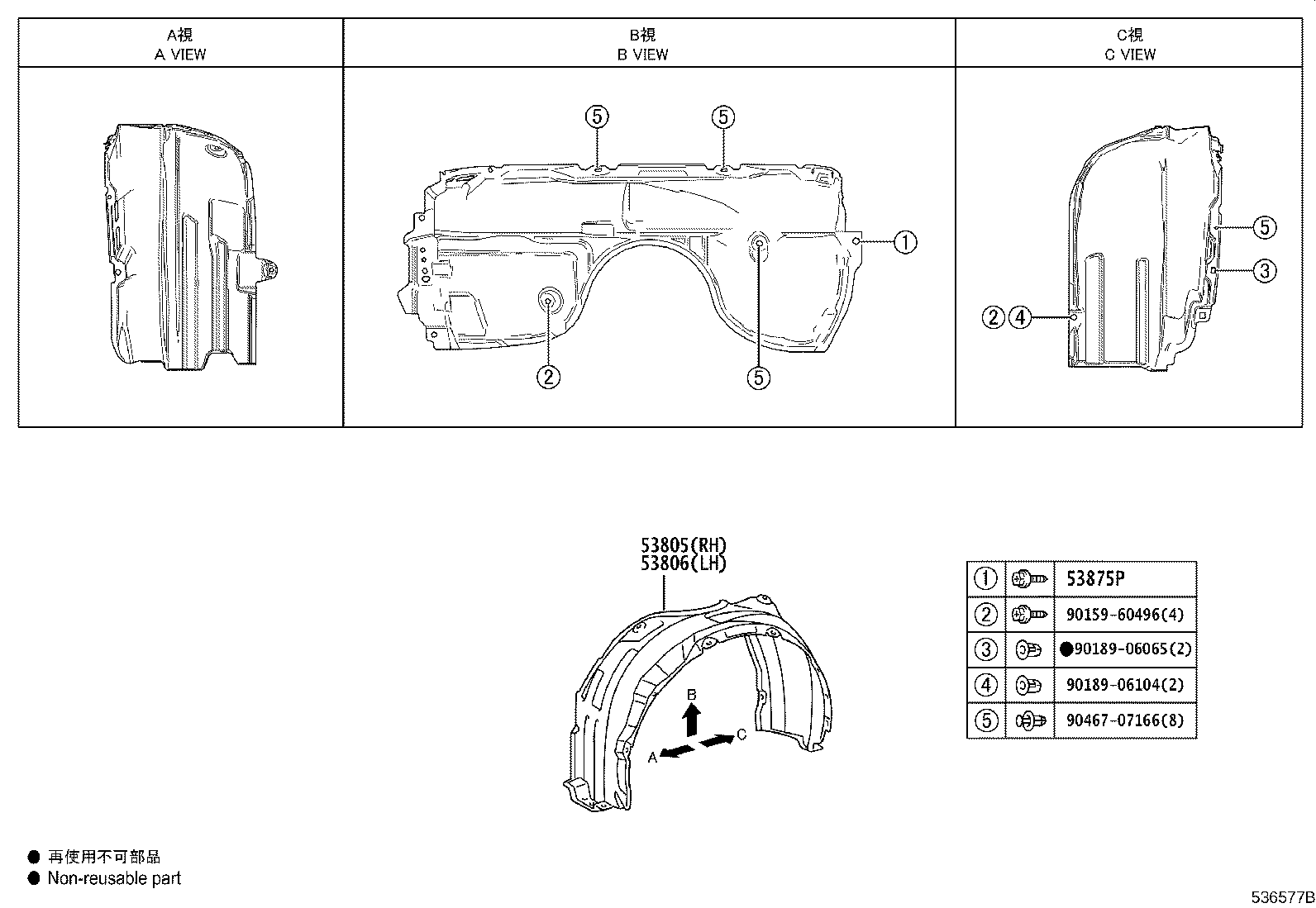

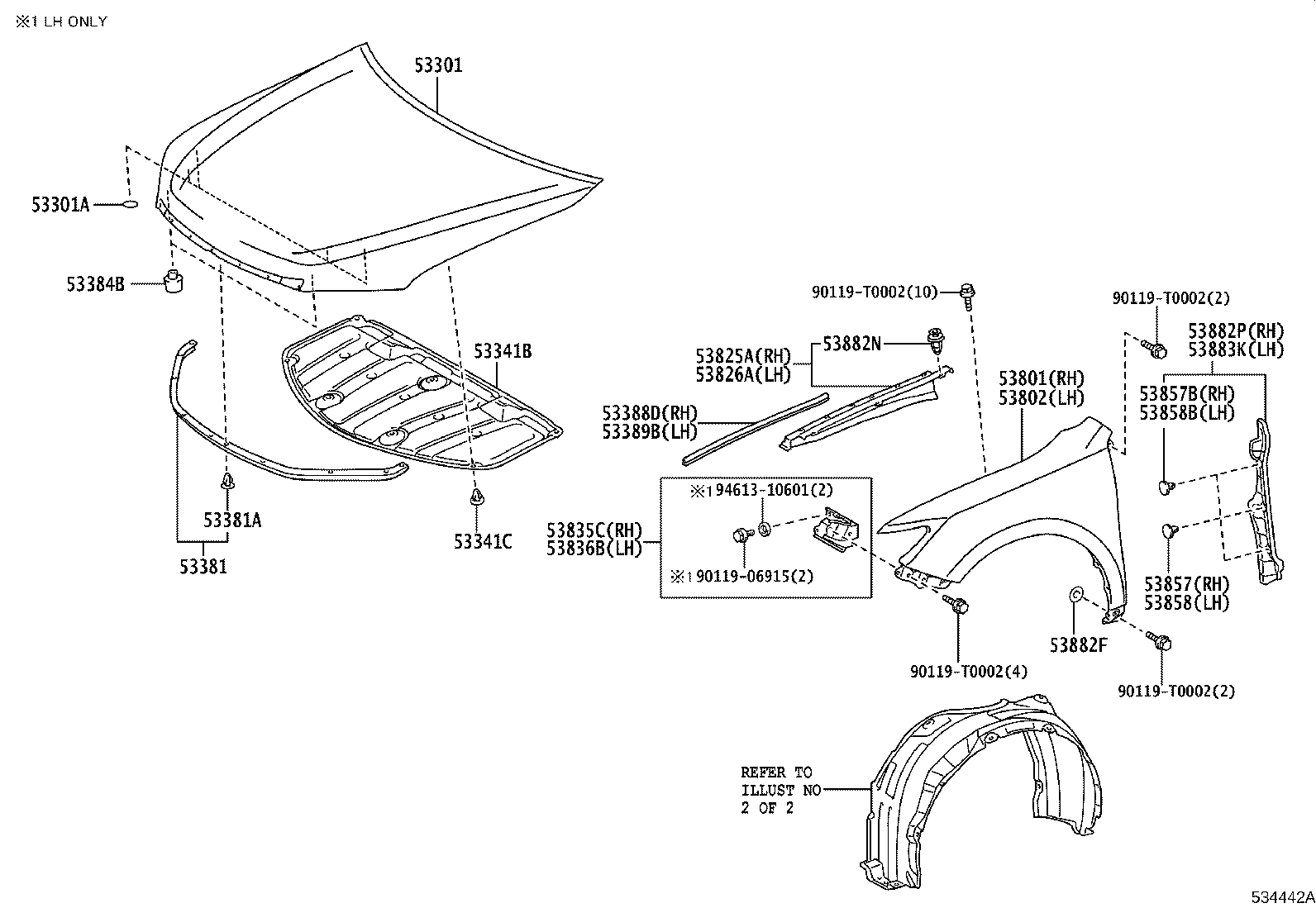

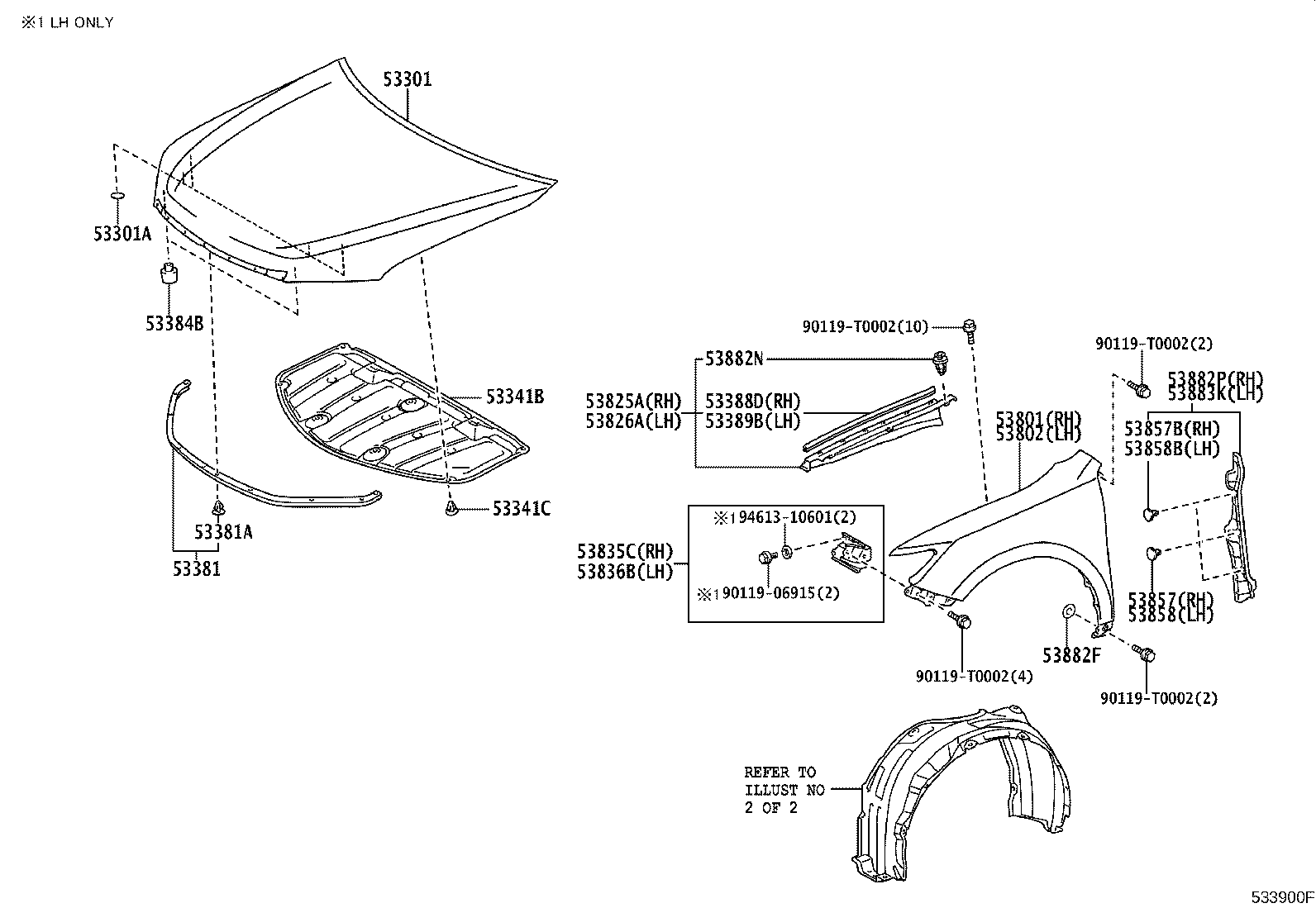

Figure 533613F 533613F 2011-12 → — Figure 533900F 533900F 2012-03 → — Figure 534442A 534442A 2012-05 → — Figure 536577B 536577B 2011-12 → — Figure 536578B 536578B 2012-03 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301A Plug, Hole(FOR HOOD)
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875P Screw, NO.1
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
