Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12

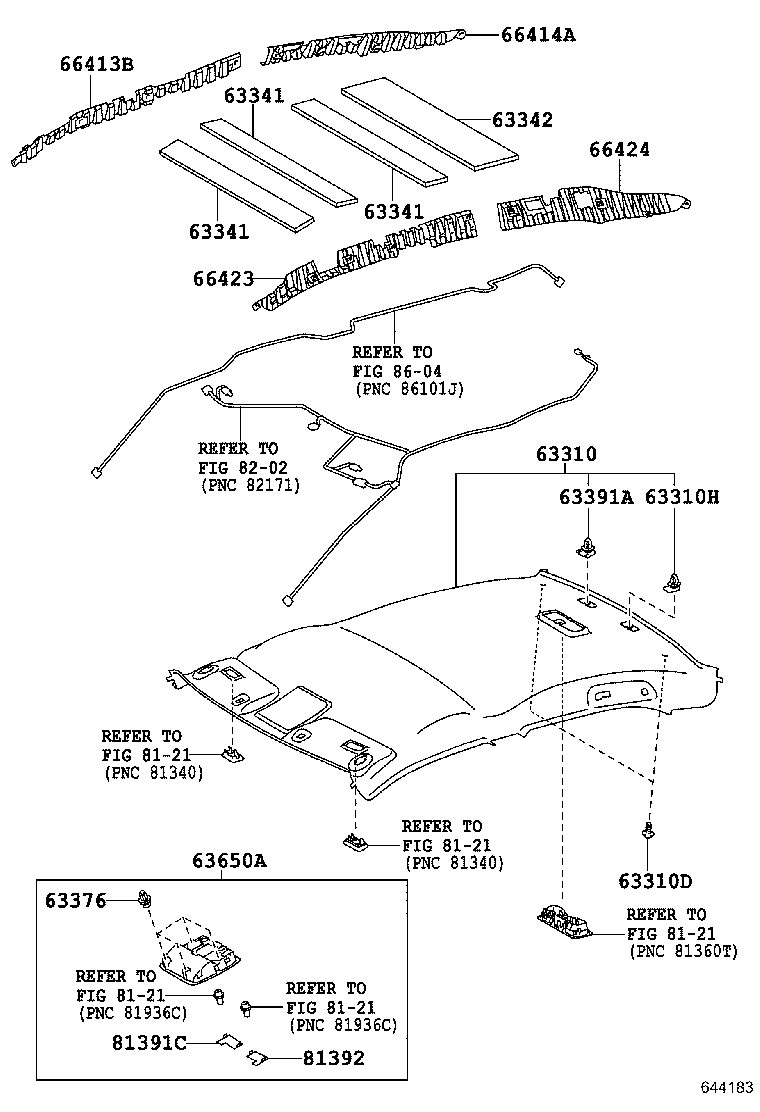

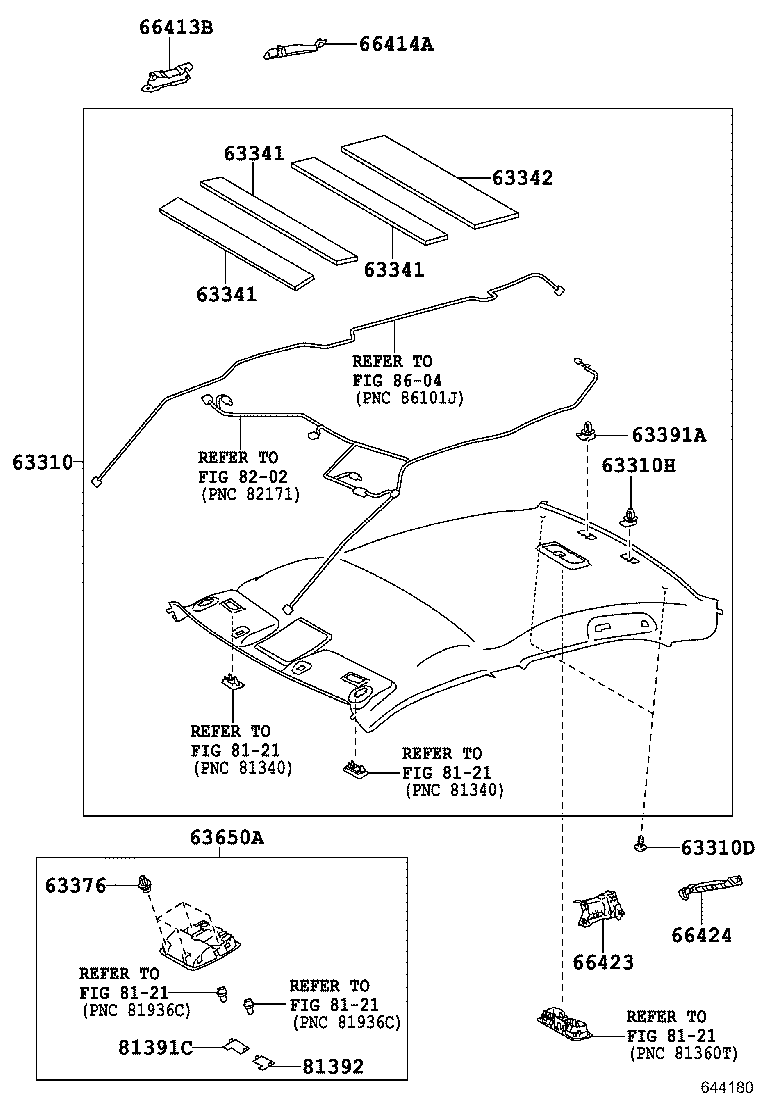

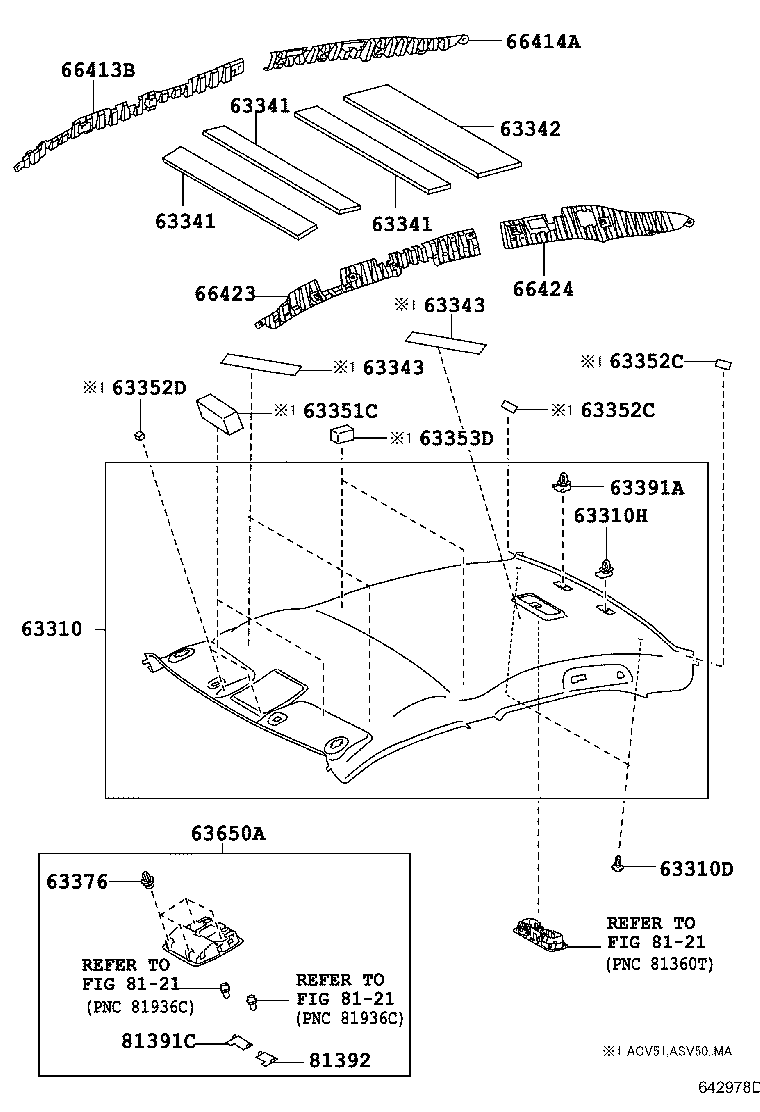

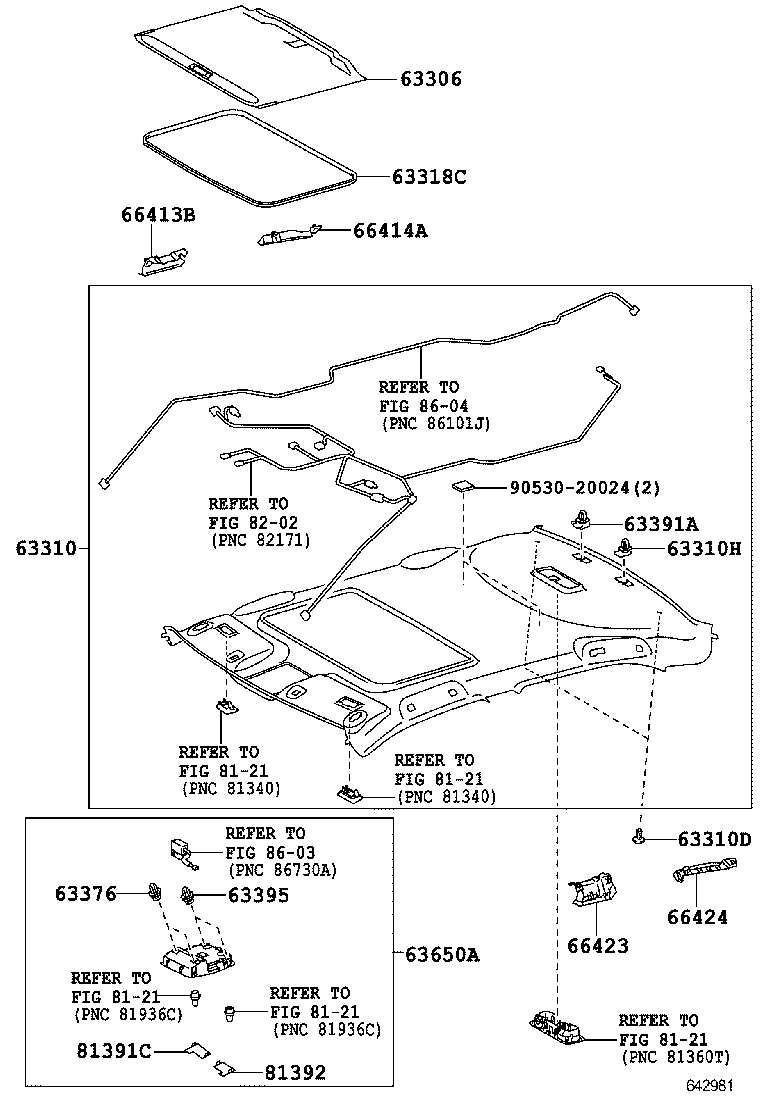

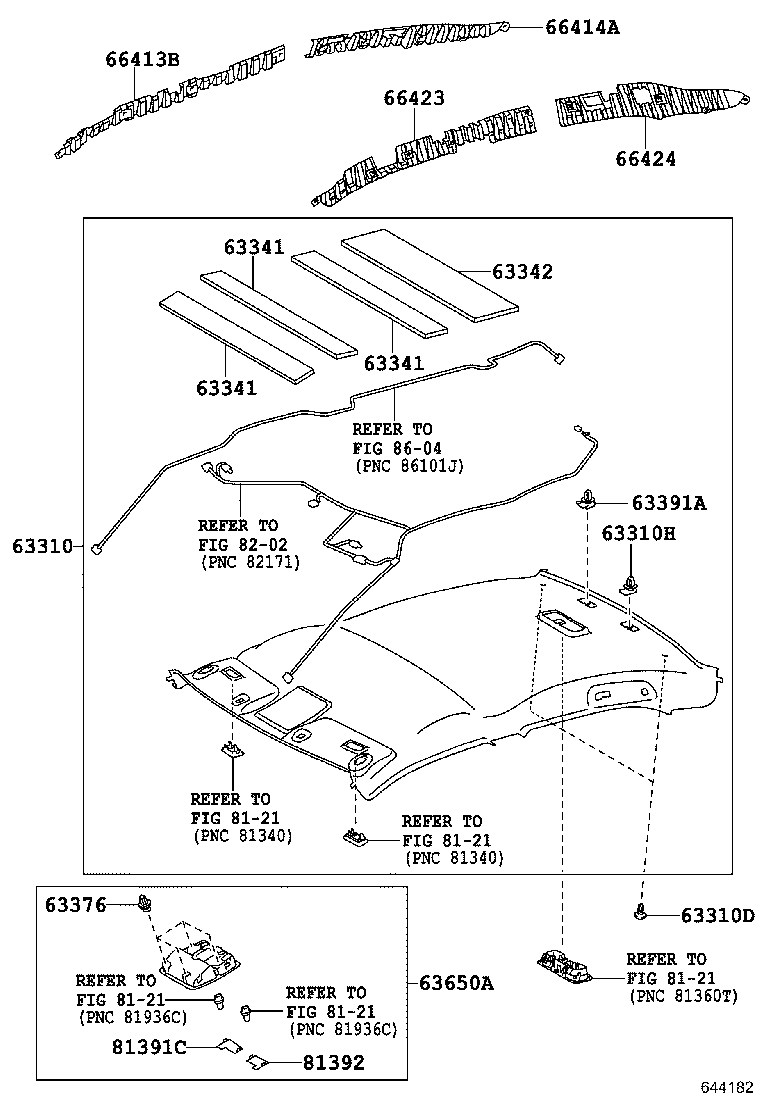

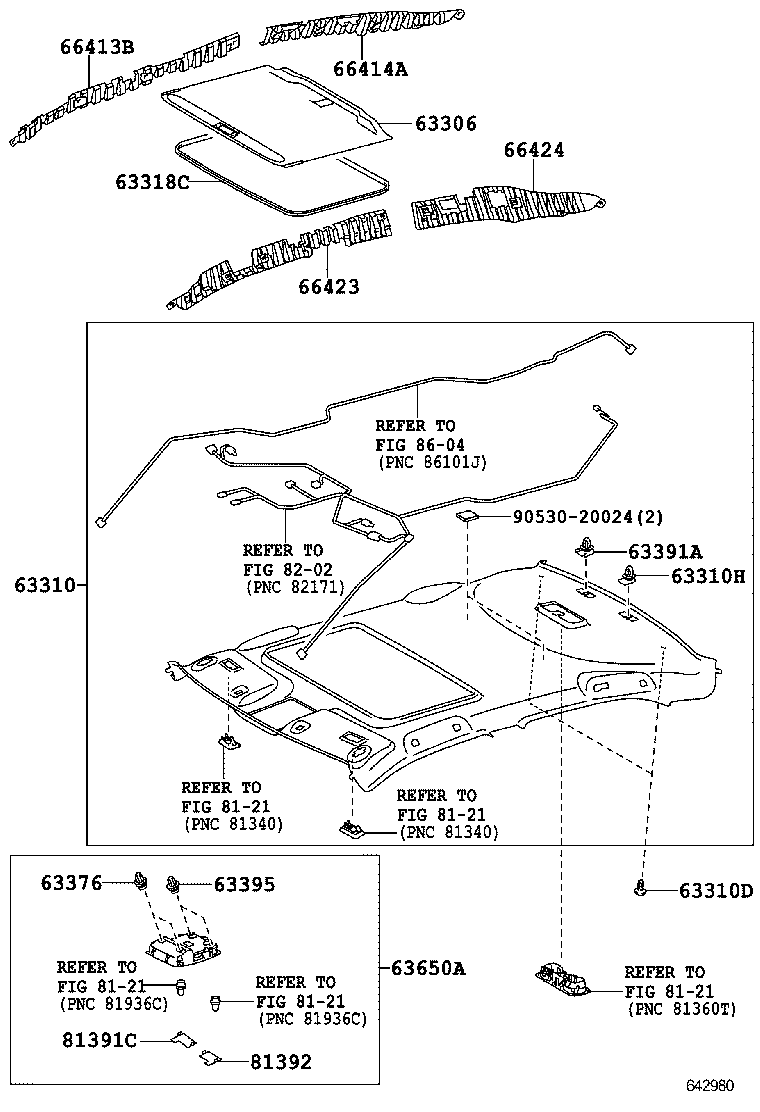

Roof Headlining & Silencer Pad
22 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351C | Pad, Roof Headlining |
| 63352C | Pad, Roof Headlining, End |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353D | Pad, Roof Headlining, Center |
| 63376 | Clip, Headlining |
| 63391A | Clip(FOR ROOF HEADLINING TRIM) |
| 63395 | Clip, Roof Headlining Trim |
| 63650A | Box Assy, Roof Console |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 81391C | Holder, Lens, Front RH |
| 81392 | Holder, Lens, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
