Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12

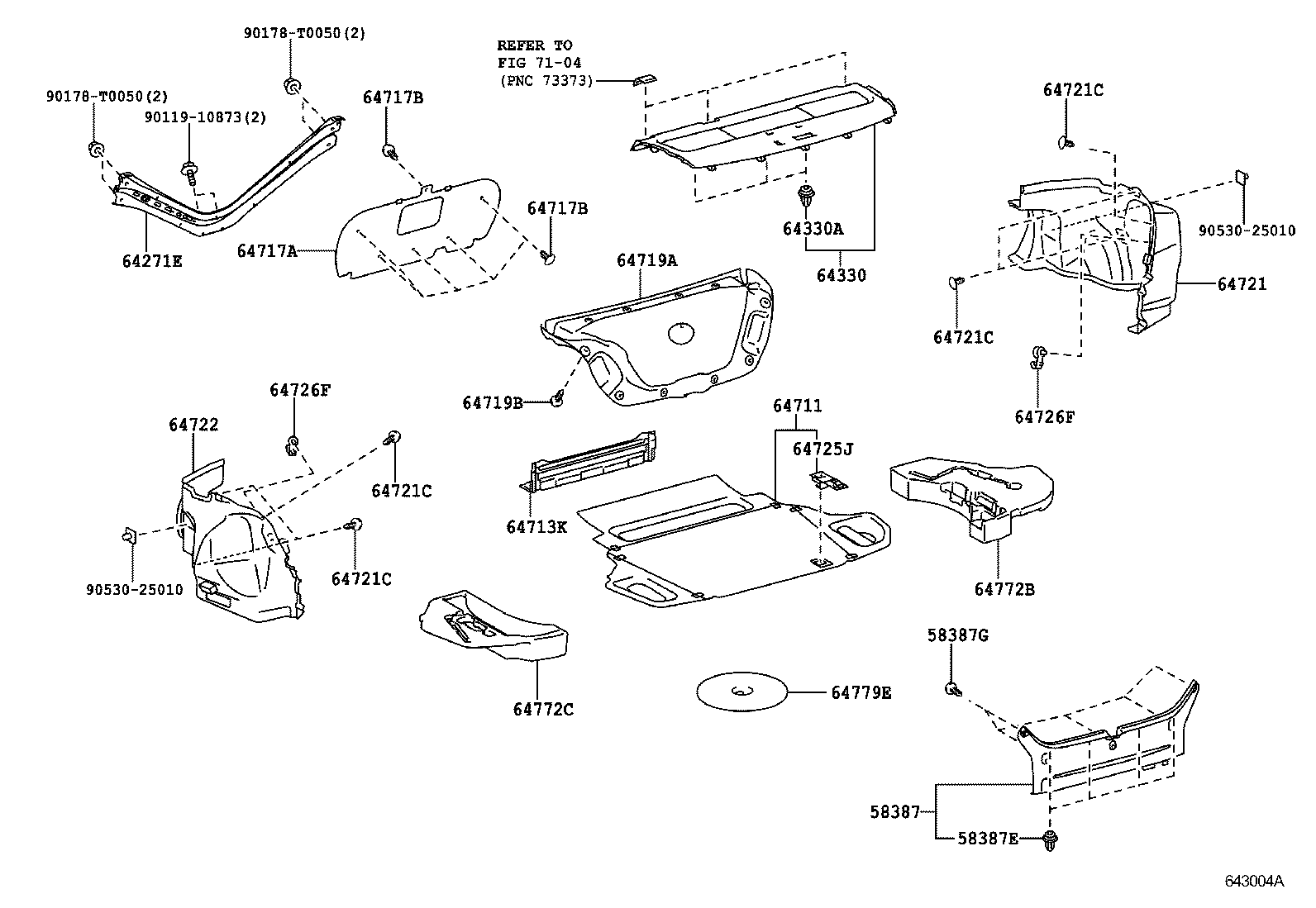

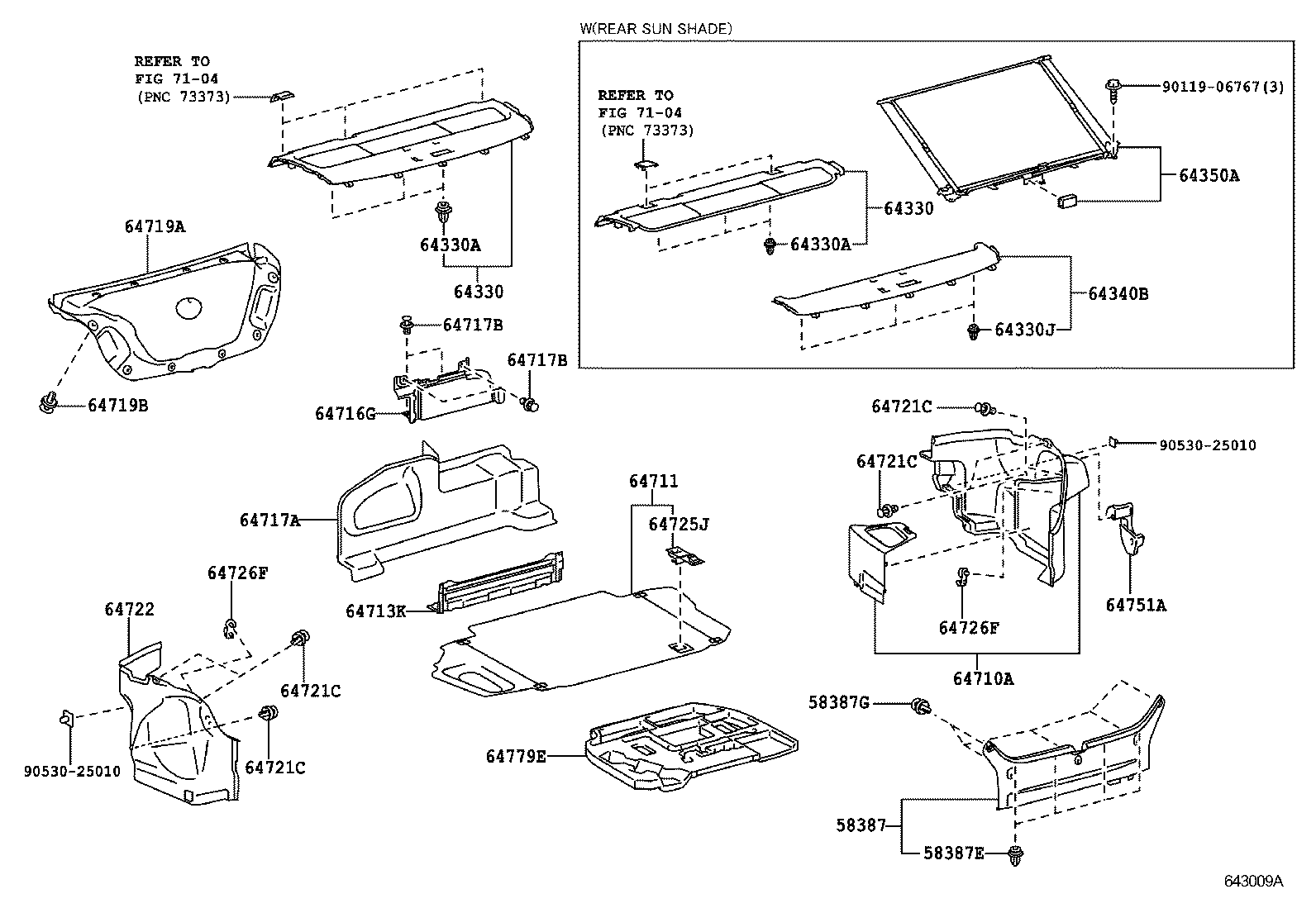

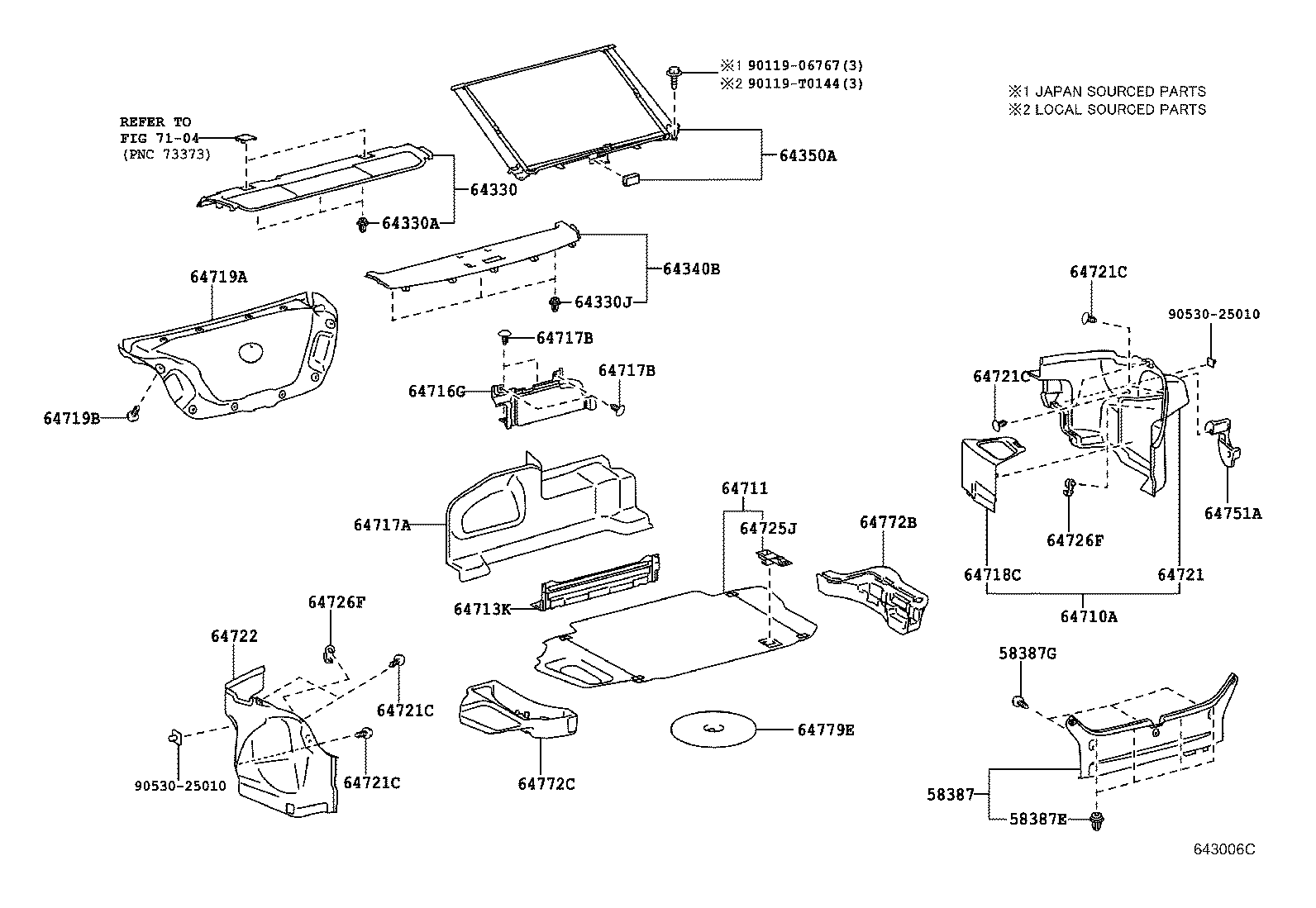

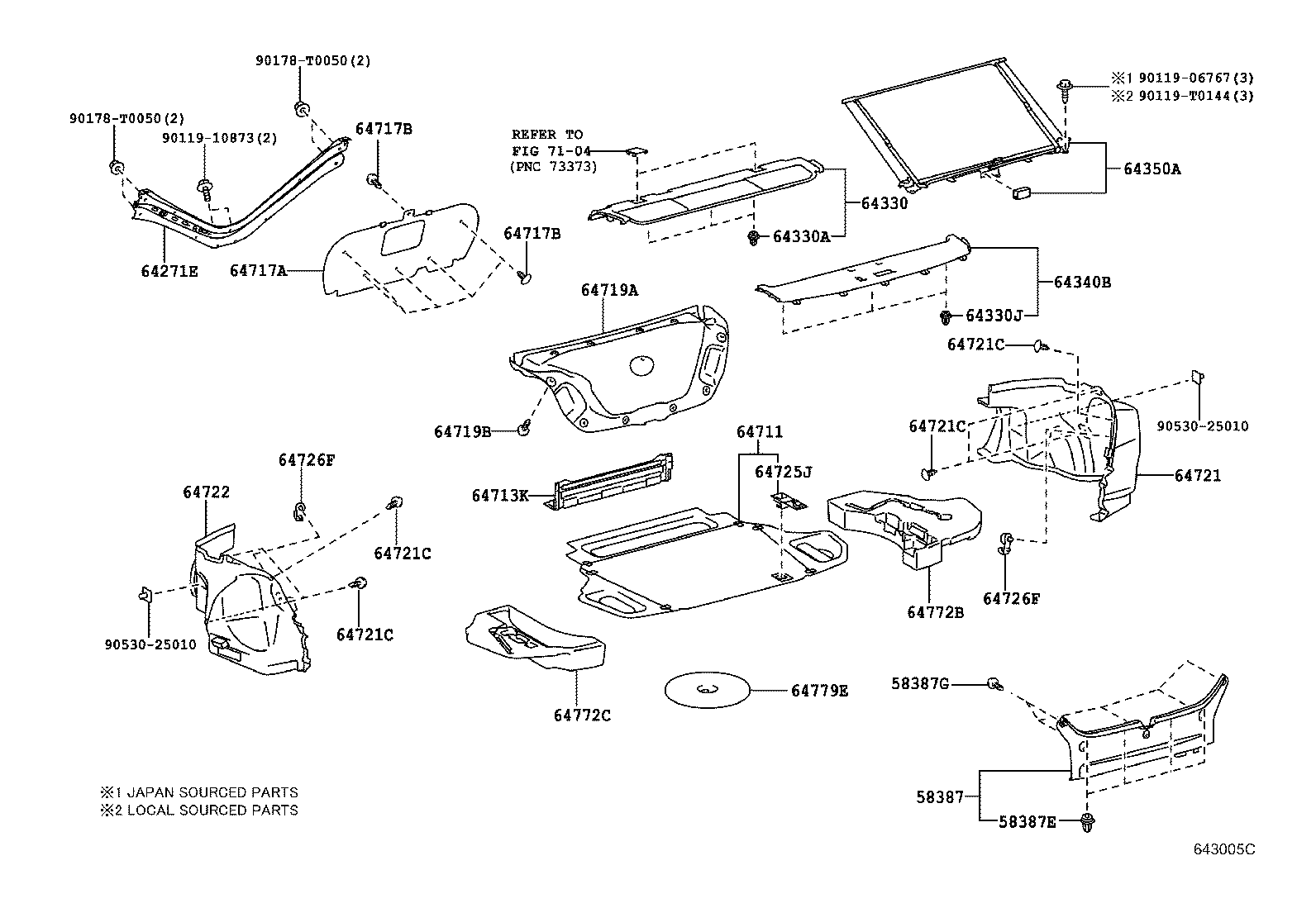

Package Tray Panel & Luggage Compartment Mat
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58387G | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64271E | Panel, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64711 | Mat, Luggage Compartment Floor |
| 64713K | Cover, Luggage Compartment Trim, Front Upper |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 64751A | Bracket, Luggage Compartment Cover, NO.1 |
| 64772B | Pad, Spare Wheel Cover |
| 64772C | Pad, Spare Wheel Cover |
| 64779E | Tray, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
