Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

68 part groups · 48 illustrations

Illustrations

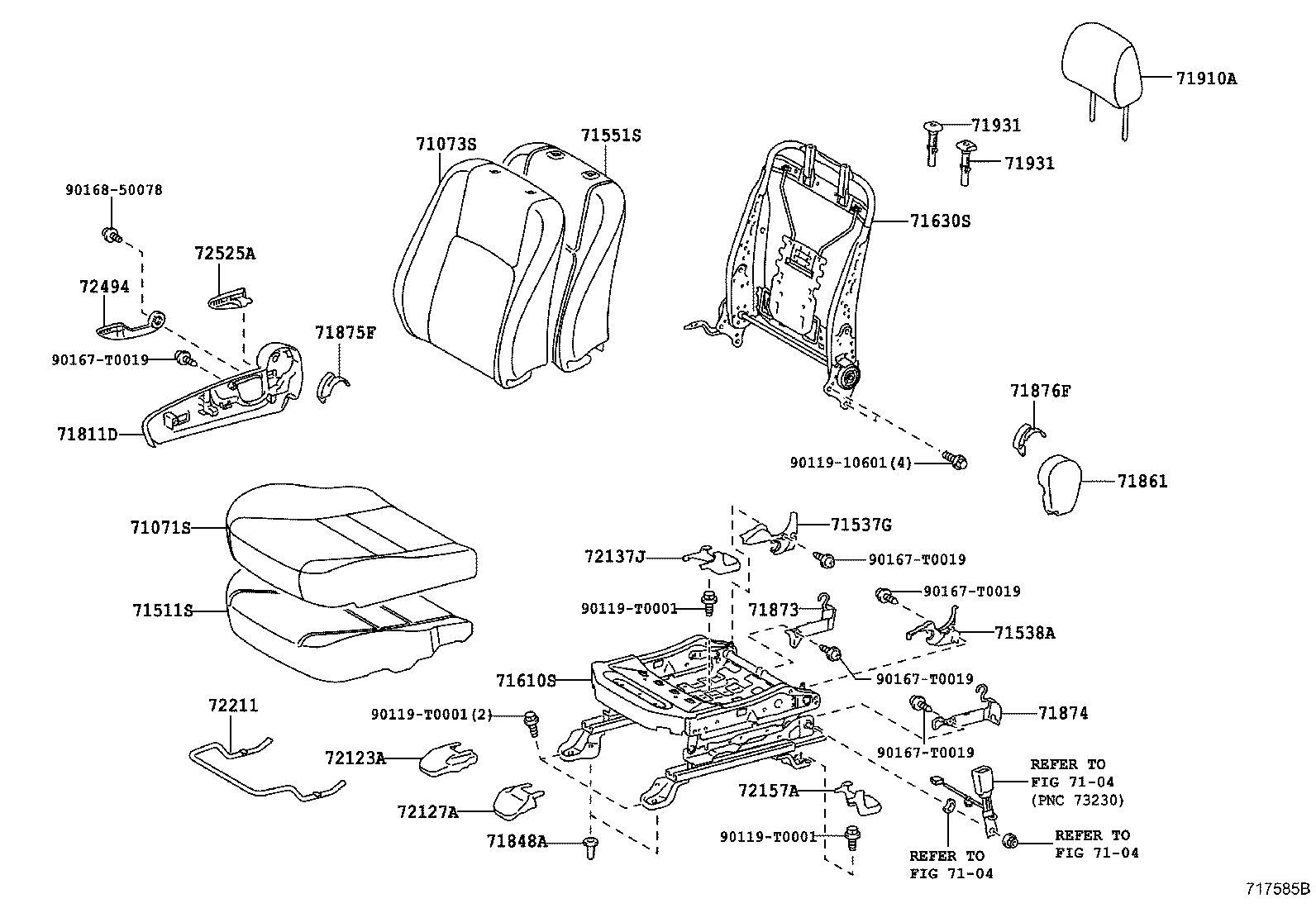

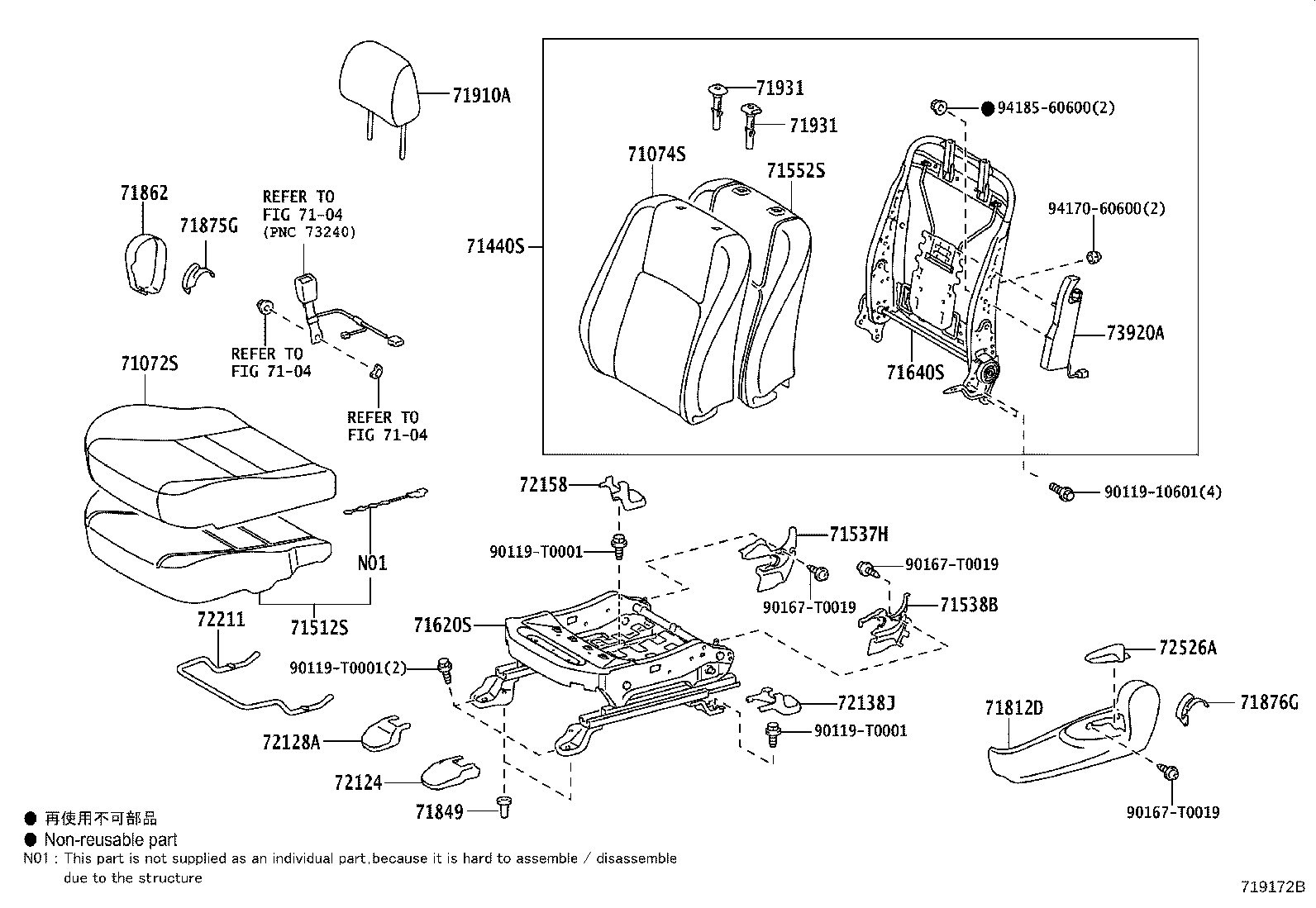

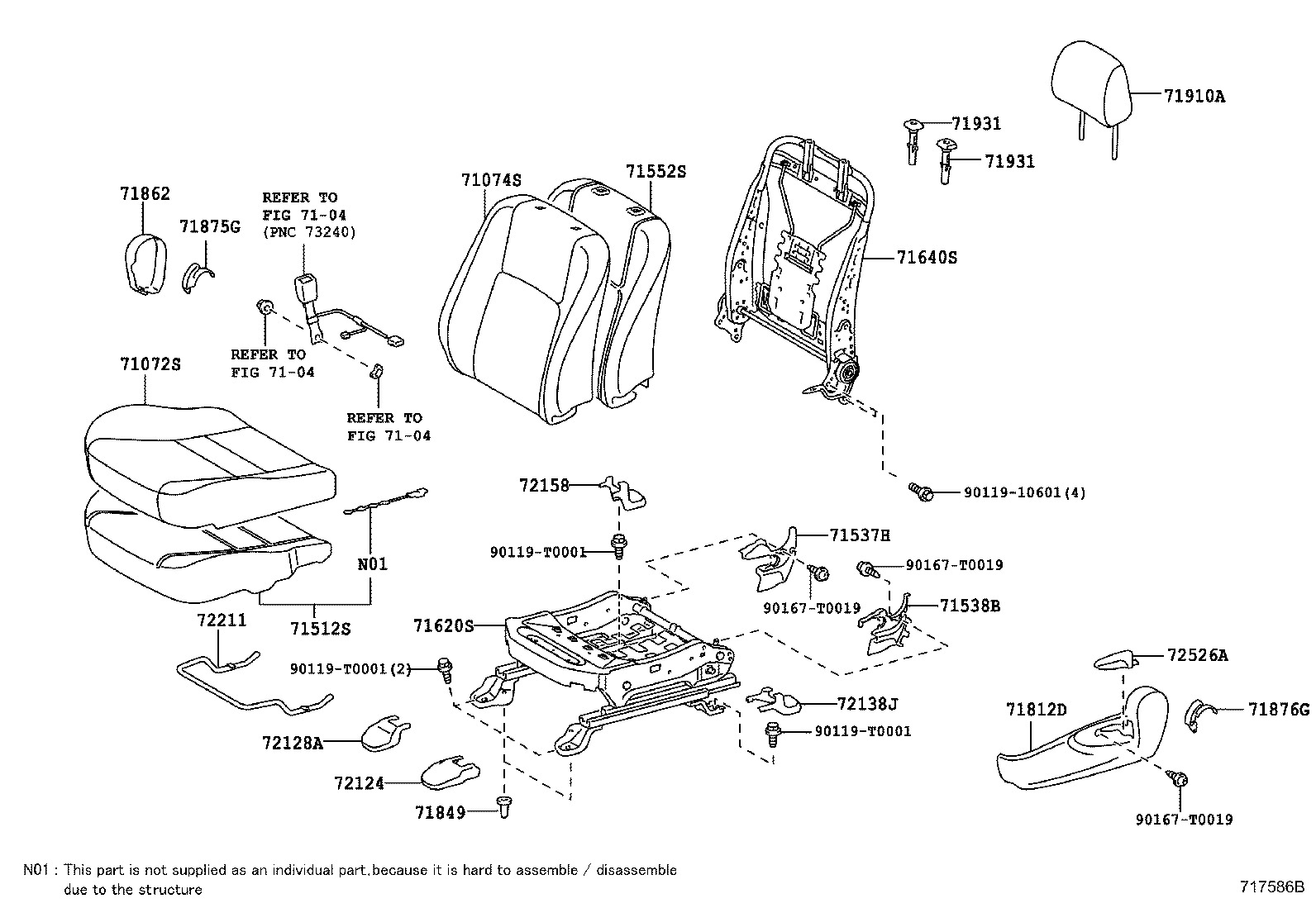

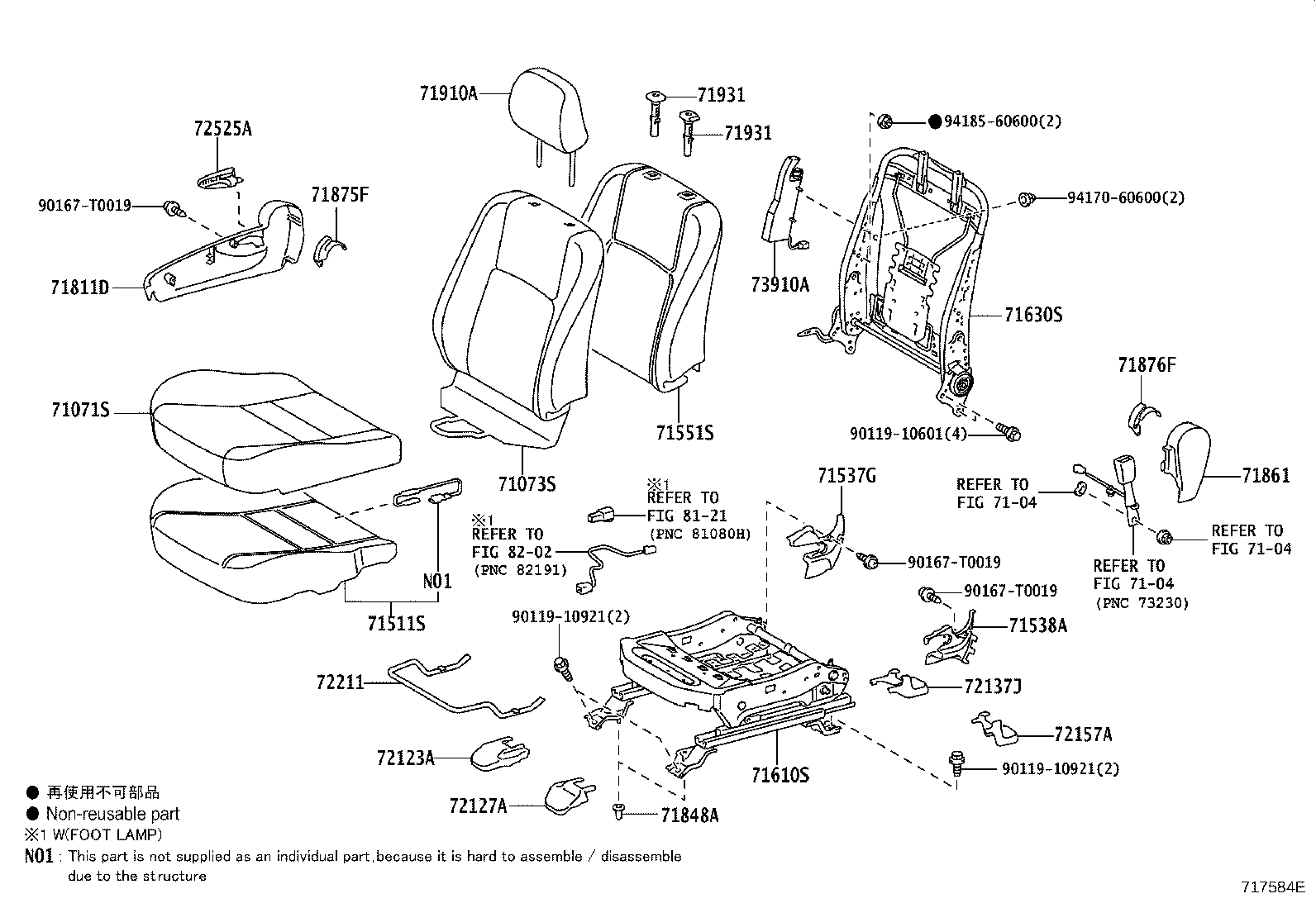

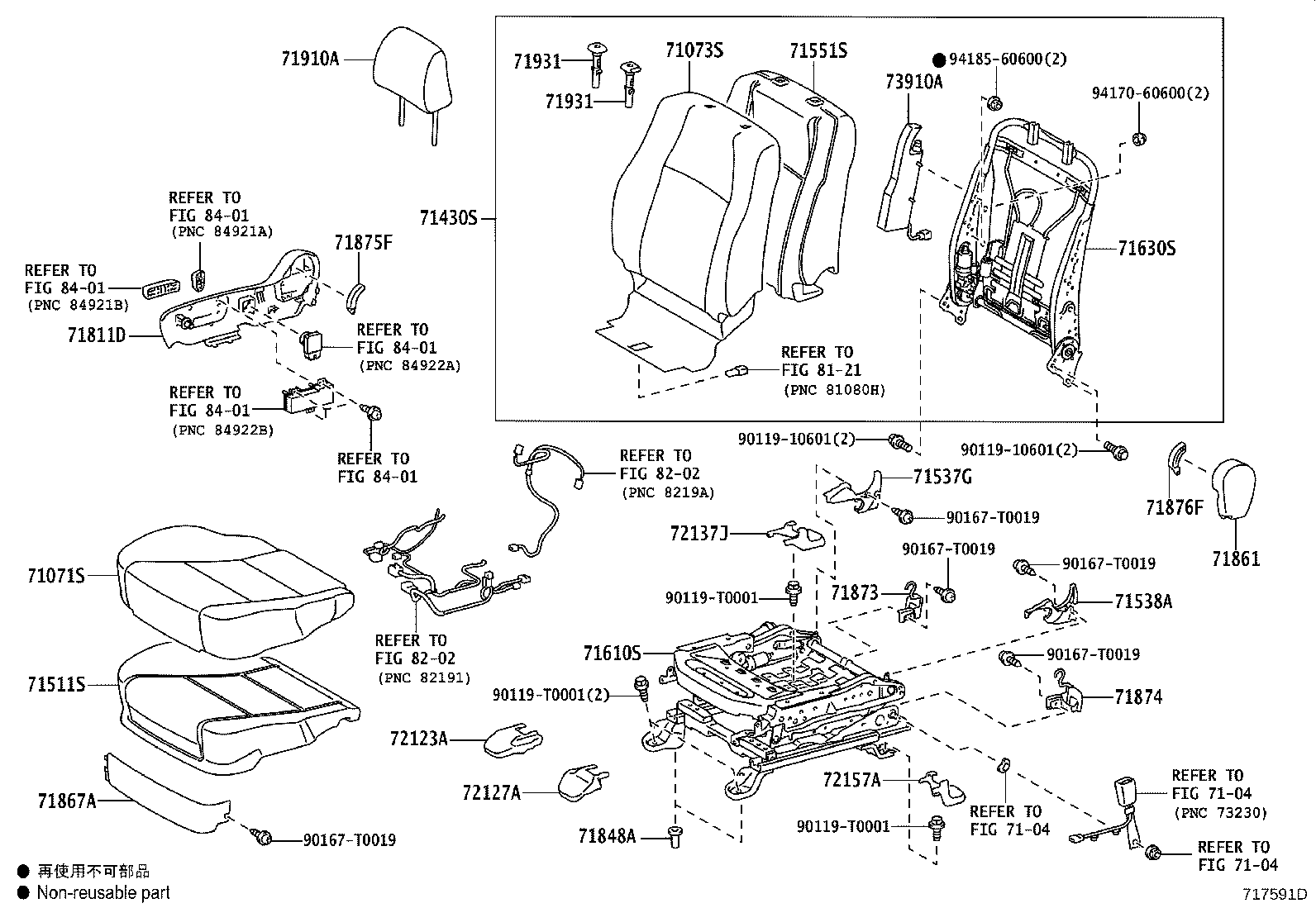

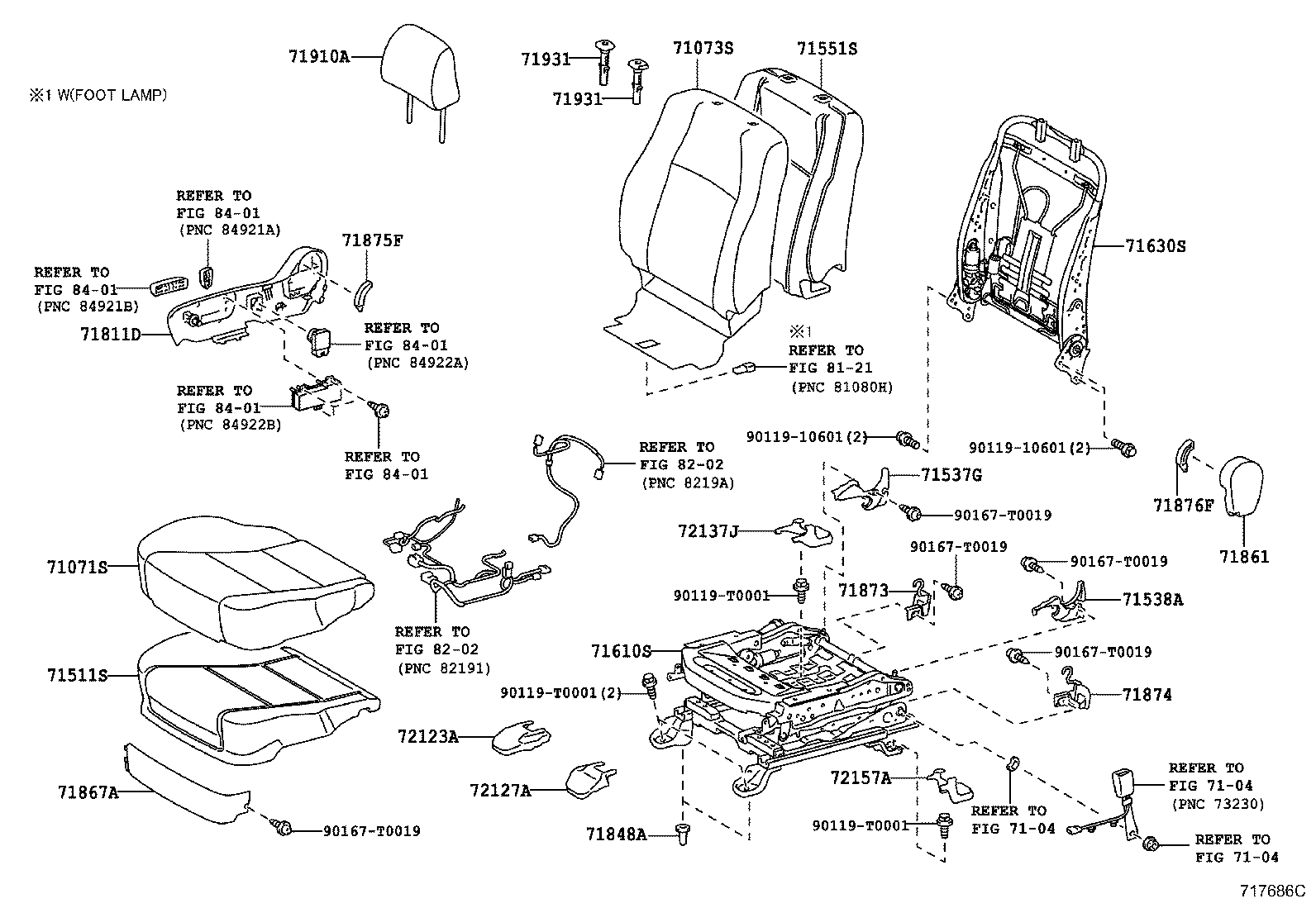

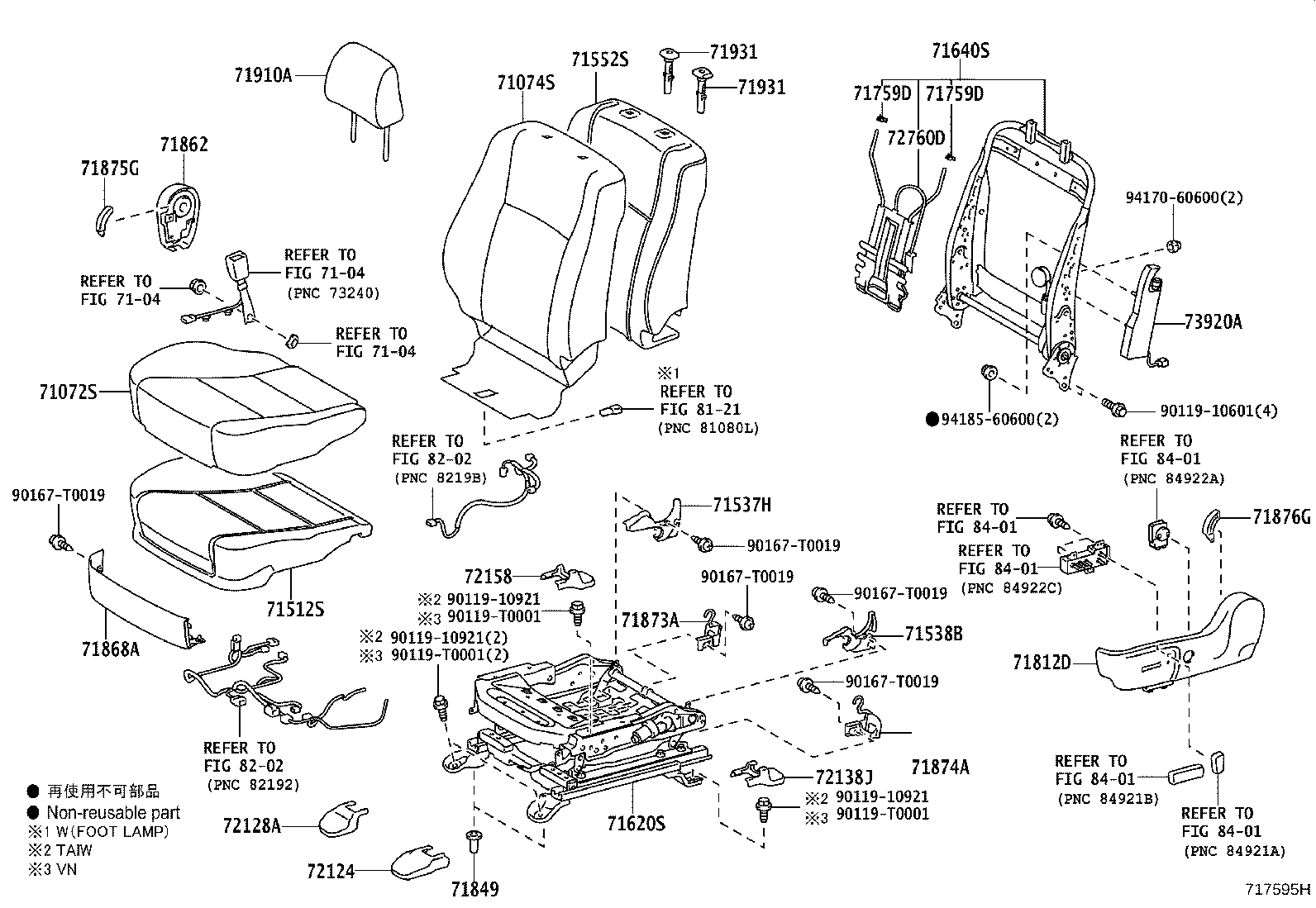

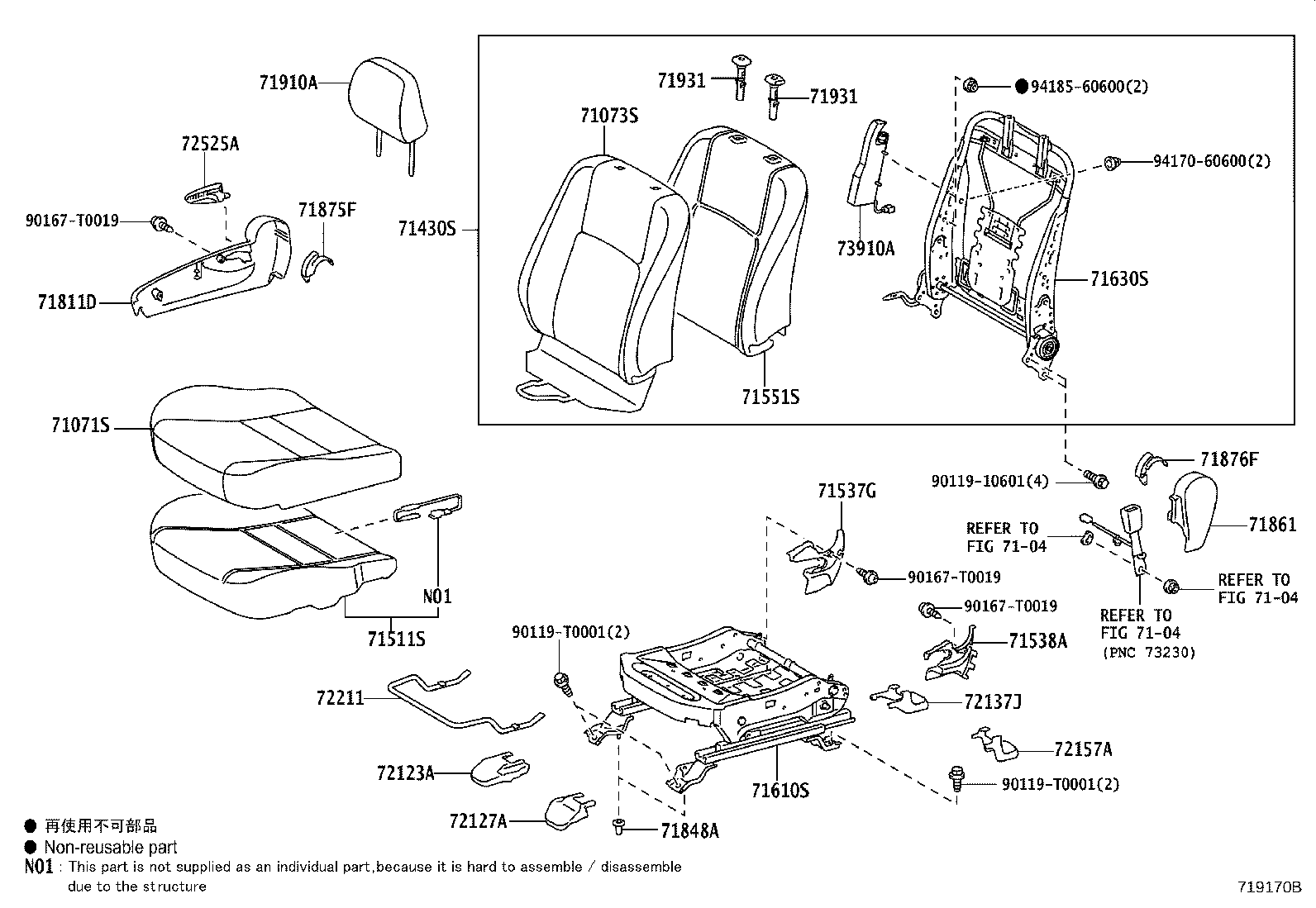

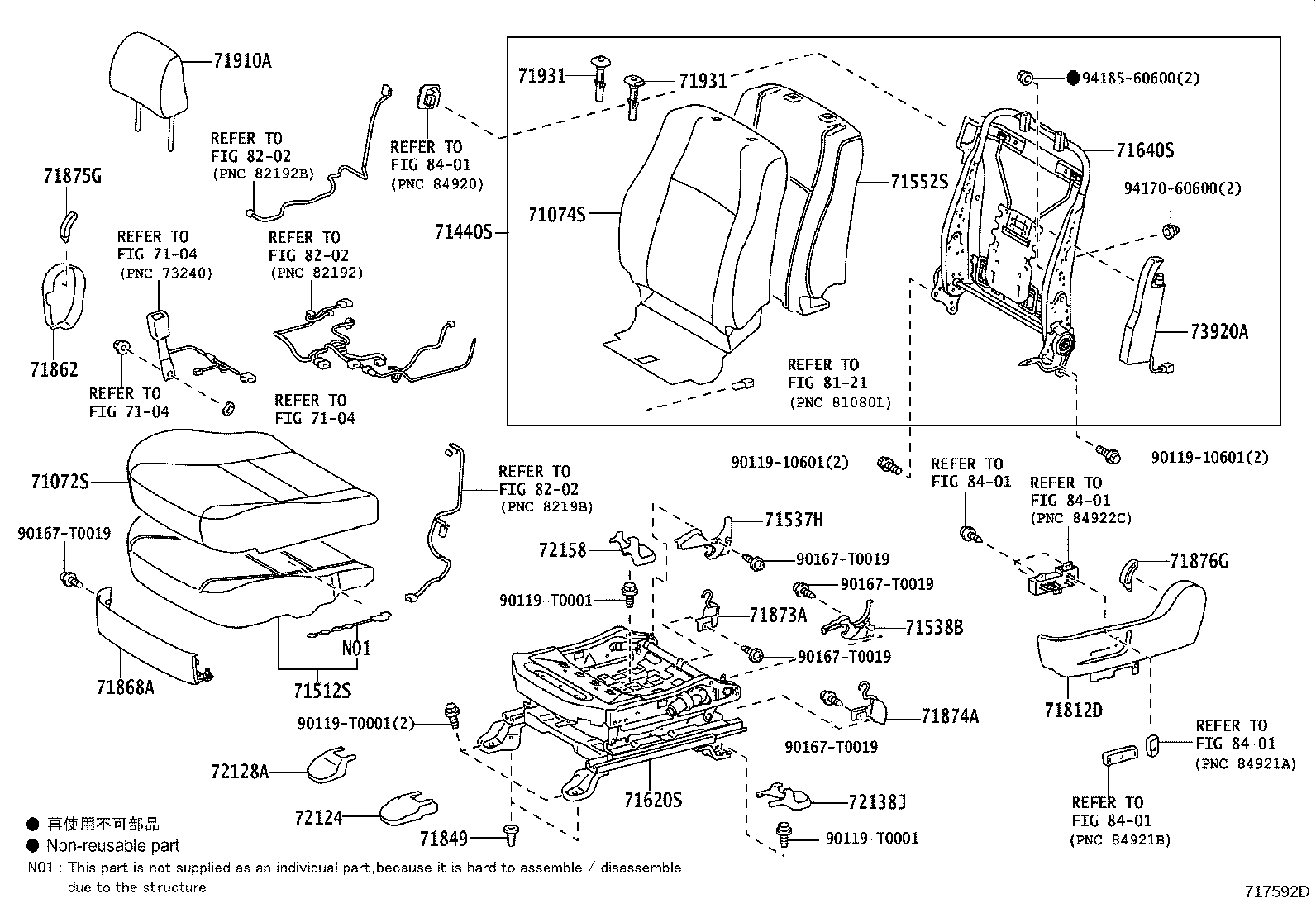

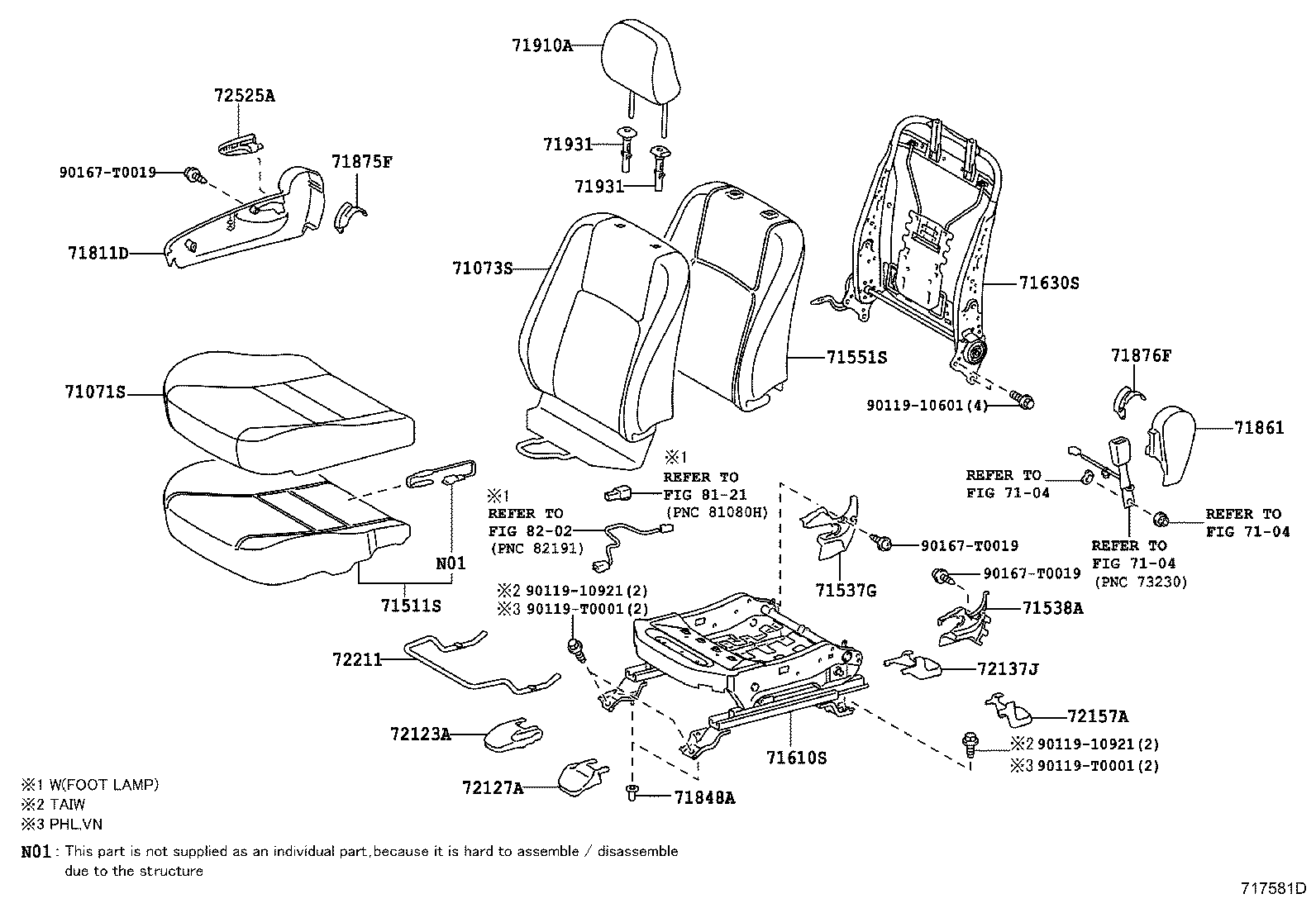

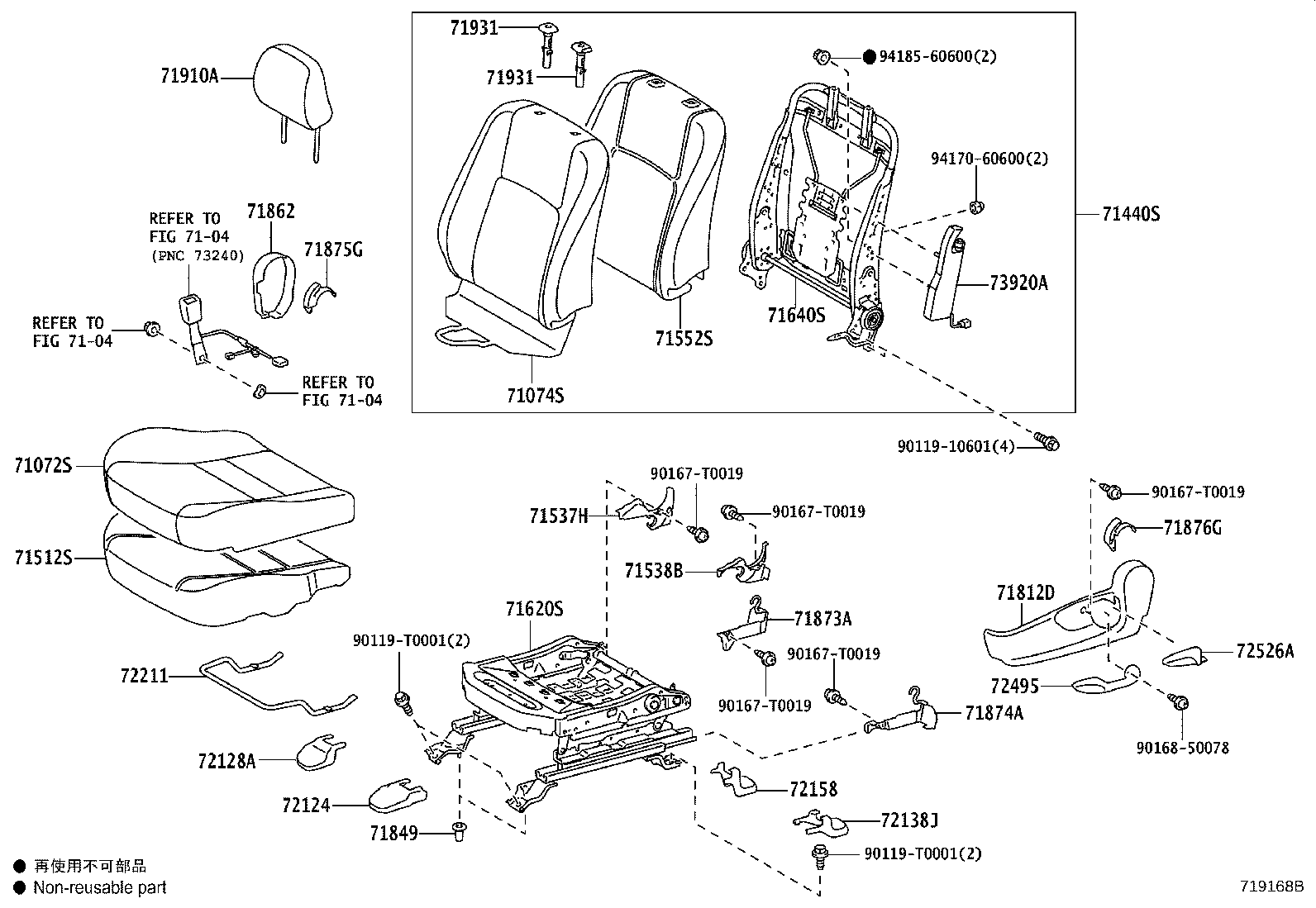

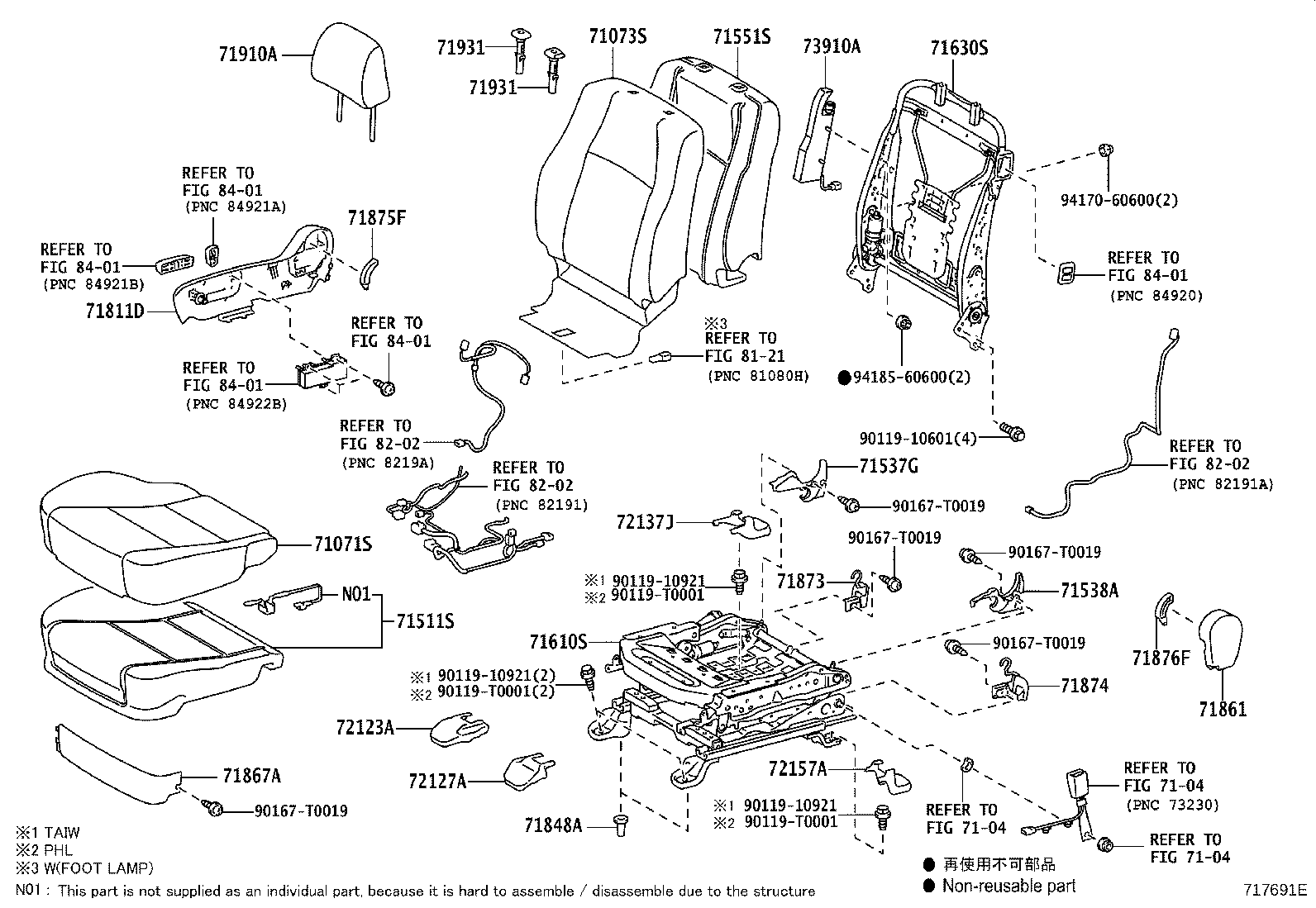

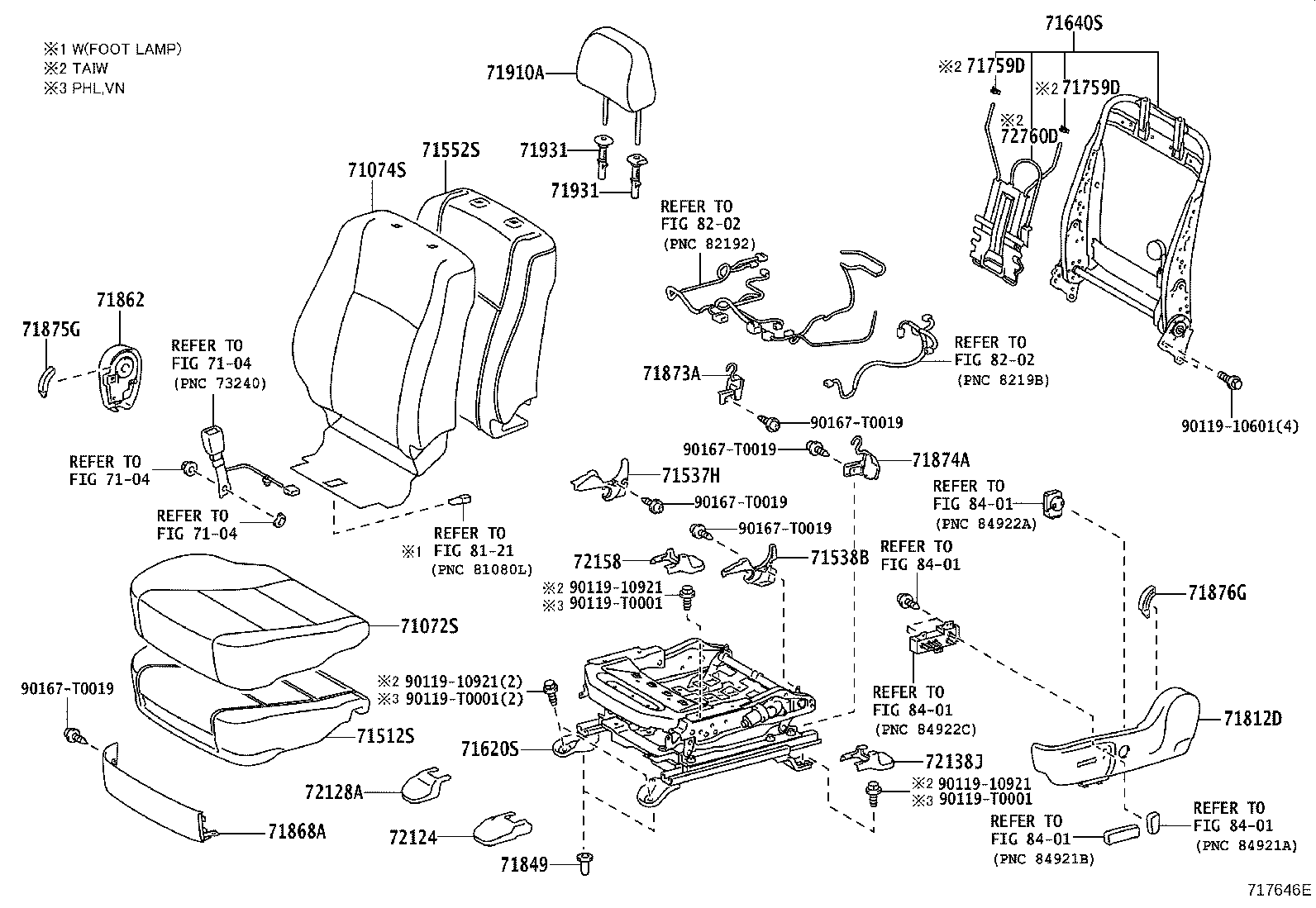

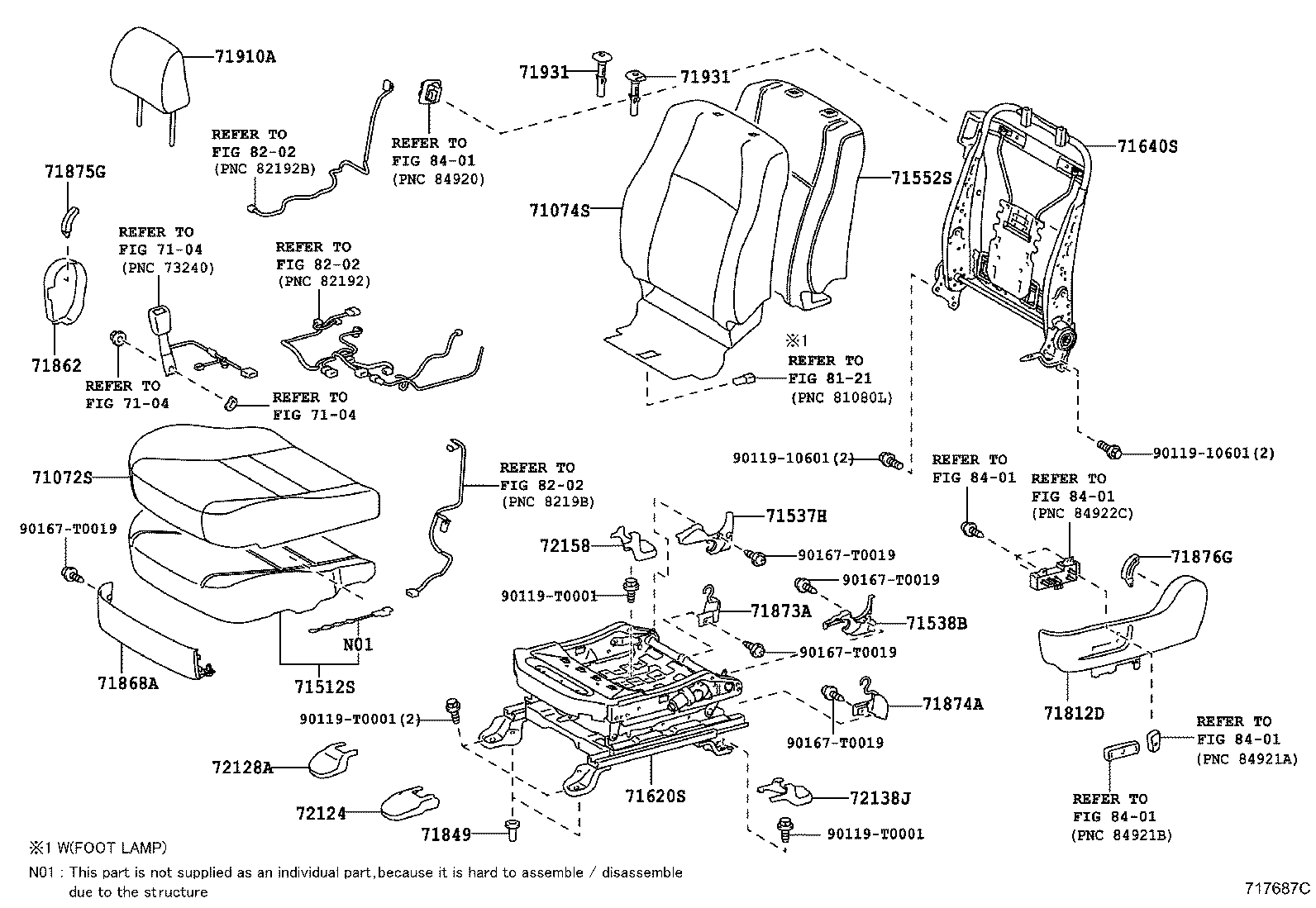

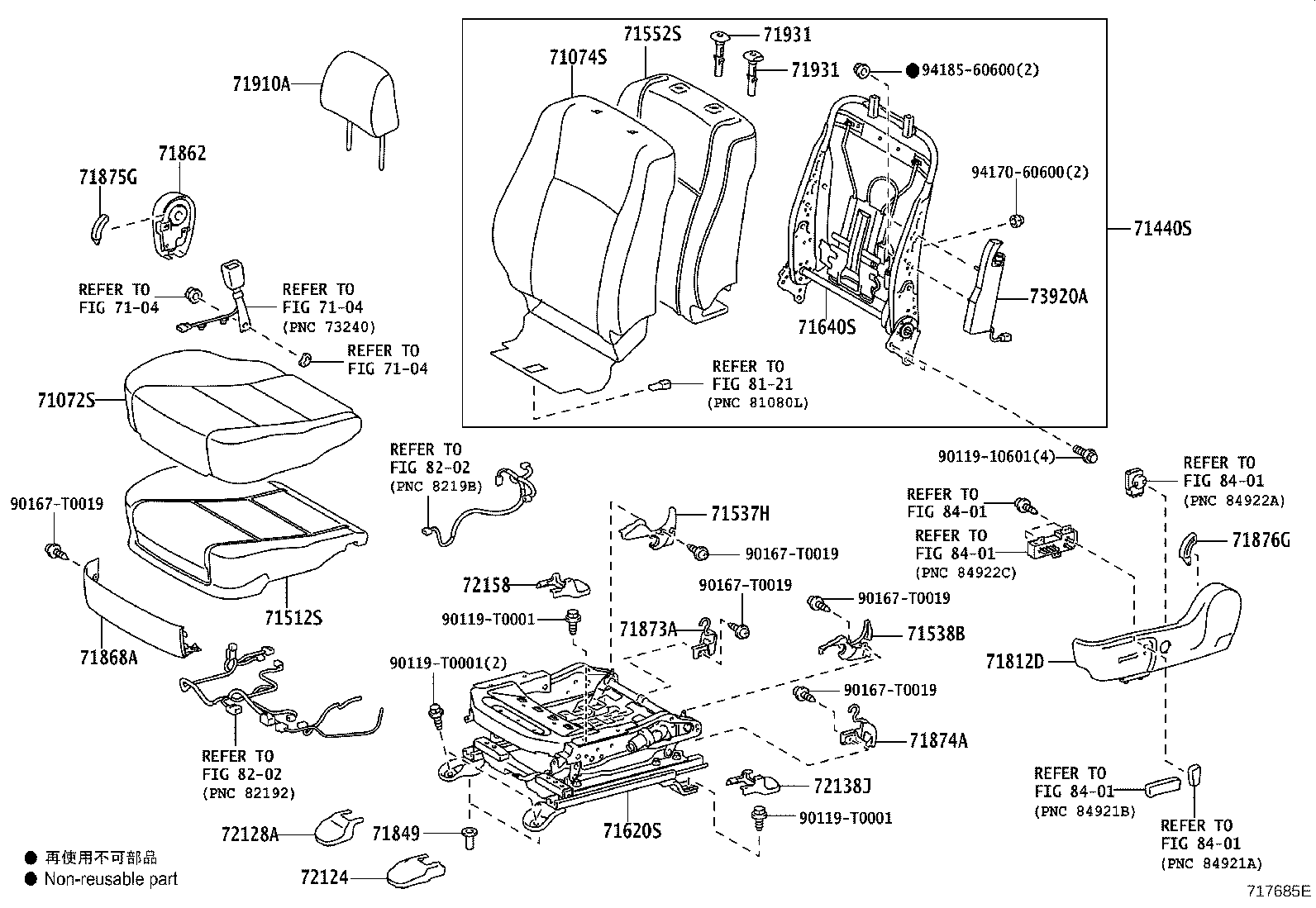

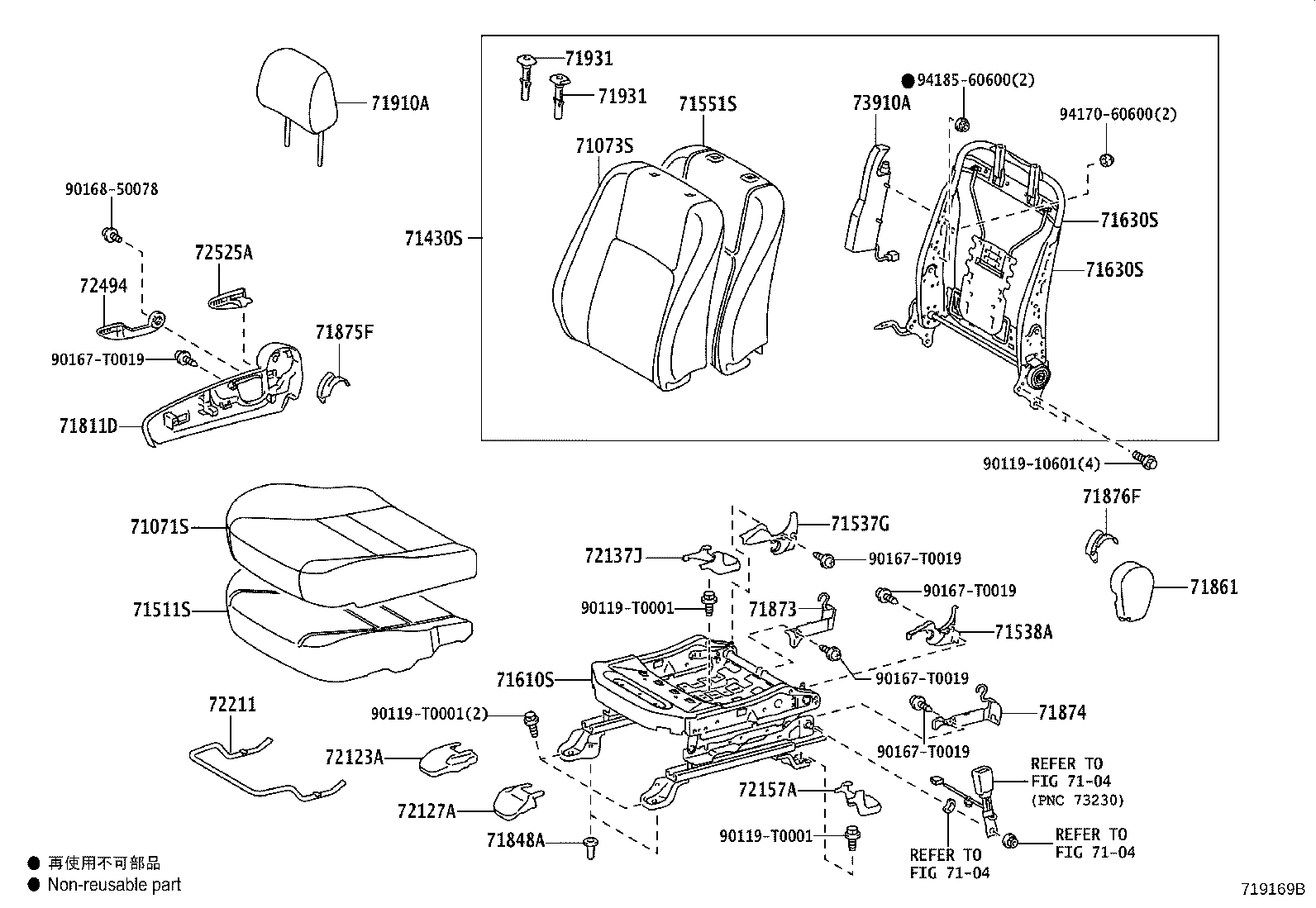

Figure 717583D 717583D 2011-12 → — Figure 717583D 717583D 2012-03 → 2015-02 Figure 717583D 717583D 2016-04 → — Figure 719168B 719168B 2015-02 → — Figure 717595H 717595H 2011-12 → — Figure 717585B 717585B 2012-03 → 2015-02 Figure 717585B 717585B 2012-03 → — Figure 719169B 719169B 2015-02 → — Figure 717591D 717591D 2012-03 → — Figure 717591D 717591D 2015-02 → — Figure 717646F 717646F 2012-02 → — Figure 717646F 717646F 2012-03 → 2015-02 Figure 717646F 717646F 2012-07 → — Figure 717686C 717686C 2012-03 → 2015-02 Figure 717686C 717686C 2012-03 → 2015-04 Figure 717686C 717686C 2012-03 → — Figure 717685E 717685E 2012-07 → — Figure 717685E 717685E 2015-02 → — Figure 717685E 717685E 2016-11 → — Figure 717581D 717581D 2011-12 → — Figure 717581D 717581D 2012-03 → 2015-02 Figure 717584E 717584E 2011-12 → — Figure 719170B 719170B 2015-02 → — Figure 717586B 717586B 2012-03 → 2015-02 Figure 717586B 717586B 2012-03 → — Figure 719172B 719172B 2015-02 → — Figure 717691E 717691E 2012-02 → 2015-02 Figure 717691E 717691E 2012-02 → — Figure 717592D 717592D 2012-03 → — Figure 717592D 717592D 2015-02 → — Figure 717687C 717687C 2012-03 → 2015-02 Figure 717687C 717687C 2012-03 → 2015-04 Figure 717687C 717687C 2012-03 → — Figure 717692C 717692C 2012-07 → 2015-04 Figure 717692C 717692C 2012-07 → — Figure 717765D 717765D 2012-07 → — Figure 717765D 717765D 2015-02 → — Figure 717639D 717639D 2012-03 → — Figure 717639D 717639D 2015-04 → — Figure 717639D 717639D 2016-09 → — Figure 717639D 717639D 2016-11 → — Figure 717642F 717642F 2012-02 → — Figure 717640B 717640B 2012-03 → — Figure 717640B 717640B 2015-04 → — Figure 717643C 717643C 2012-02 → — Figure 717641B 717641B 2012-03 → — Figure 717641B 717641B 2015-04 → — Figure 717644C 717644C 2012-02 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74611H Grip, Assist
74617D Plug, Assist Grip
82711H Clamp, Wiring Harness
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85866B Duct, Seatback Climate Control, RH
85866C Duct, Seatback Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85868 Bracket, Seat Cushion Climate Control, RH
85868A Bracket, Seat Cushion Climate Control, LH
85869 Cover, Seatback Climate Control, RH
85869A Cover, Seatback Climate Control, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
