Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

39 part groups · 21 illustrations

Illustrations

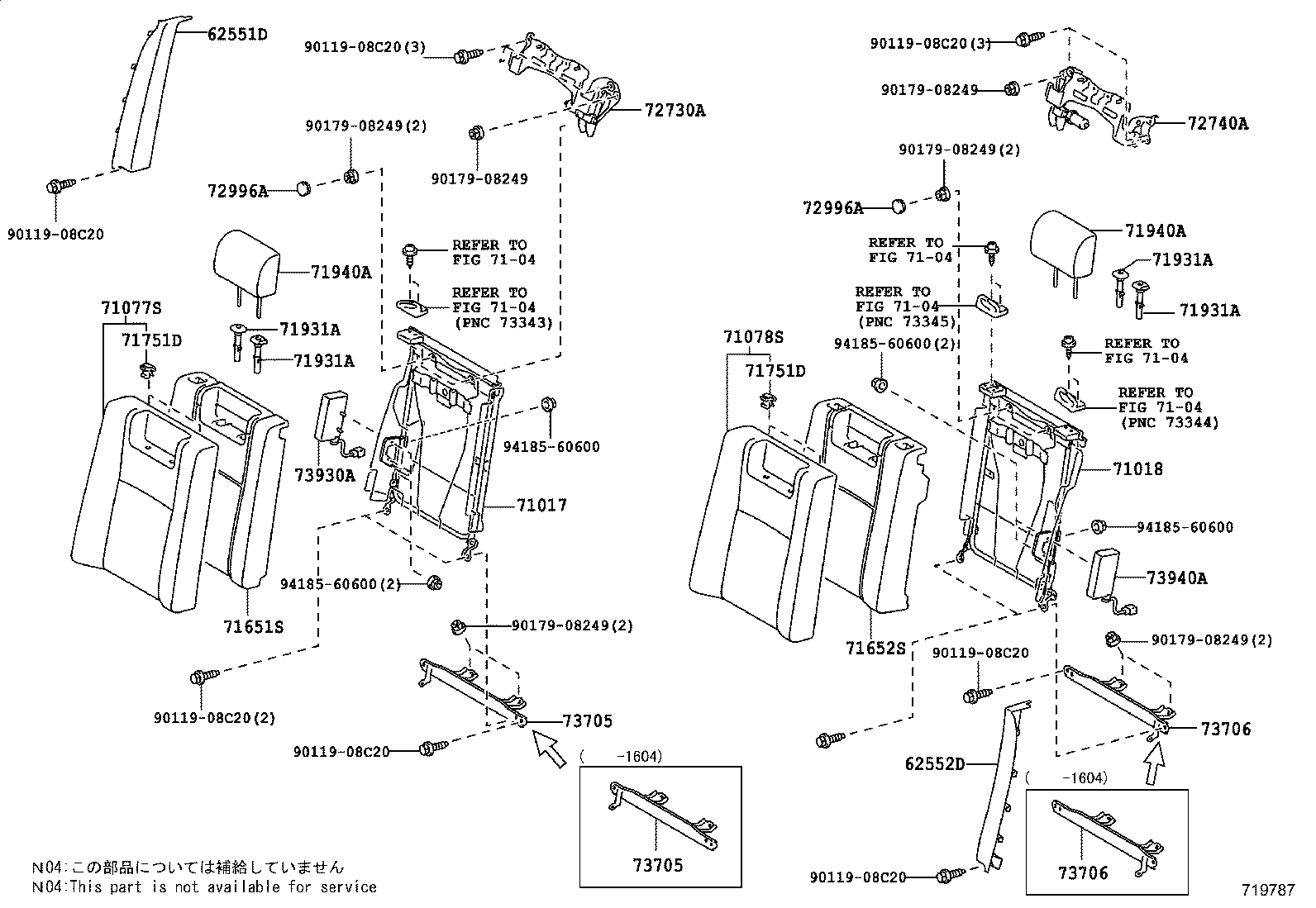

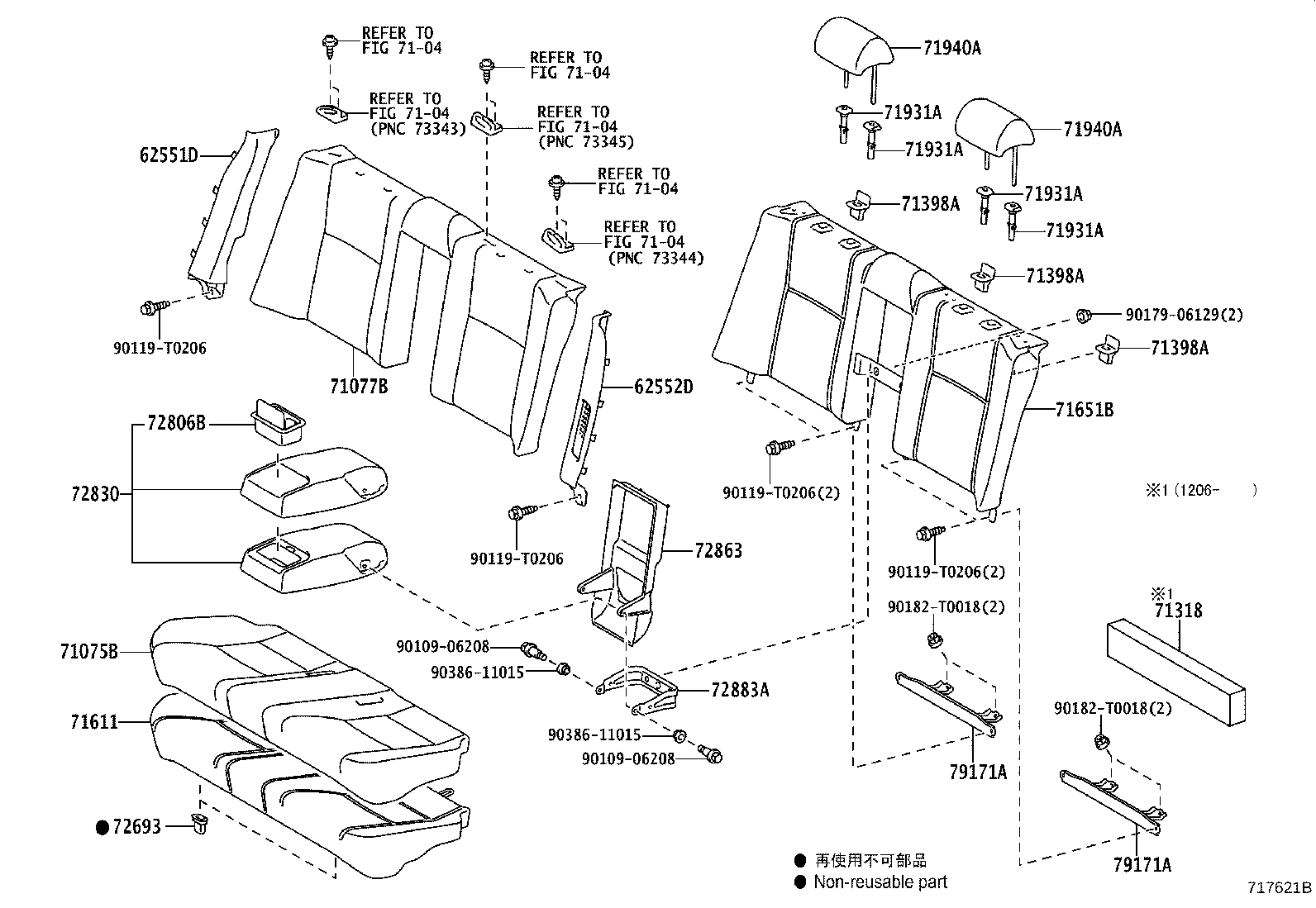

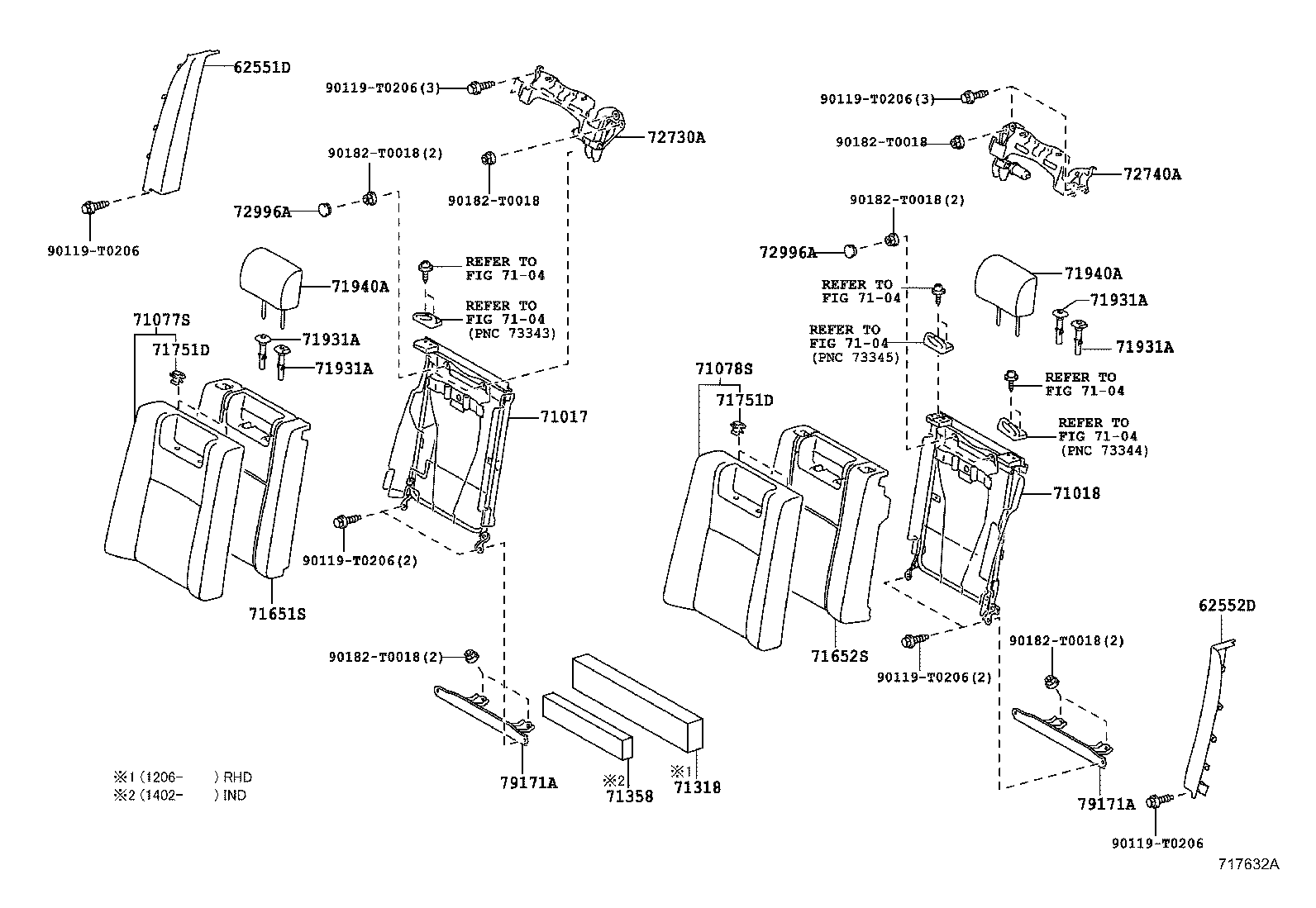

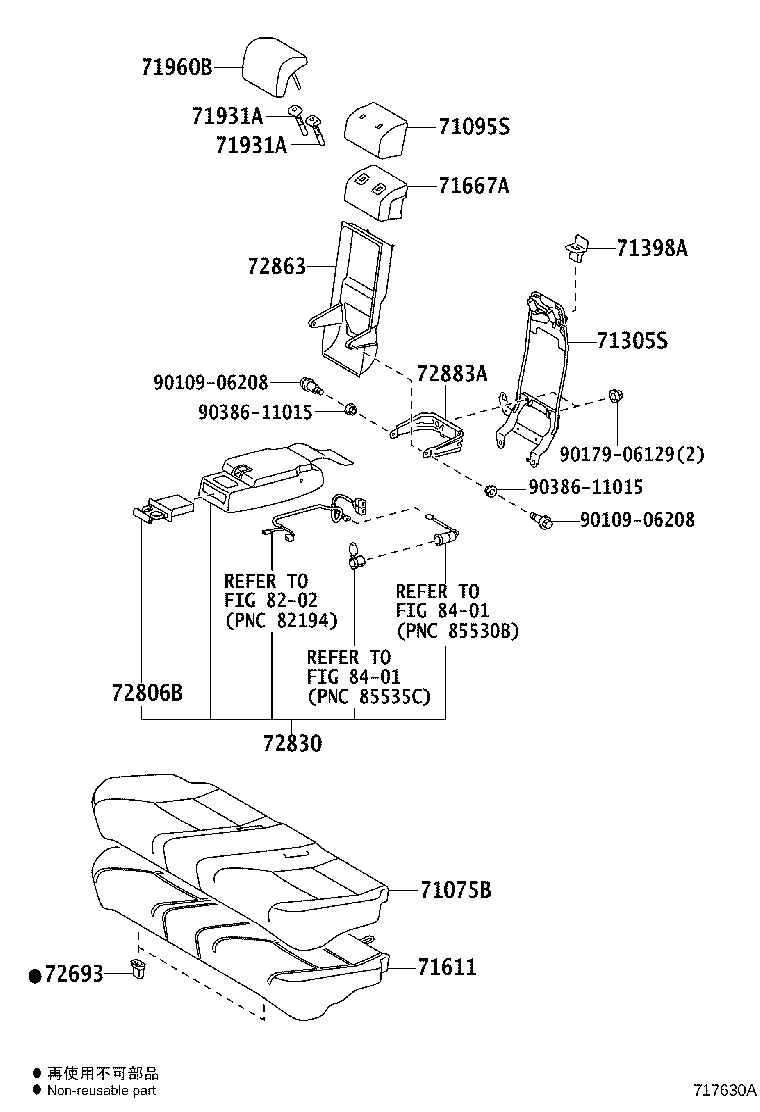

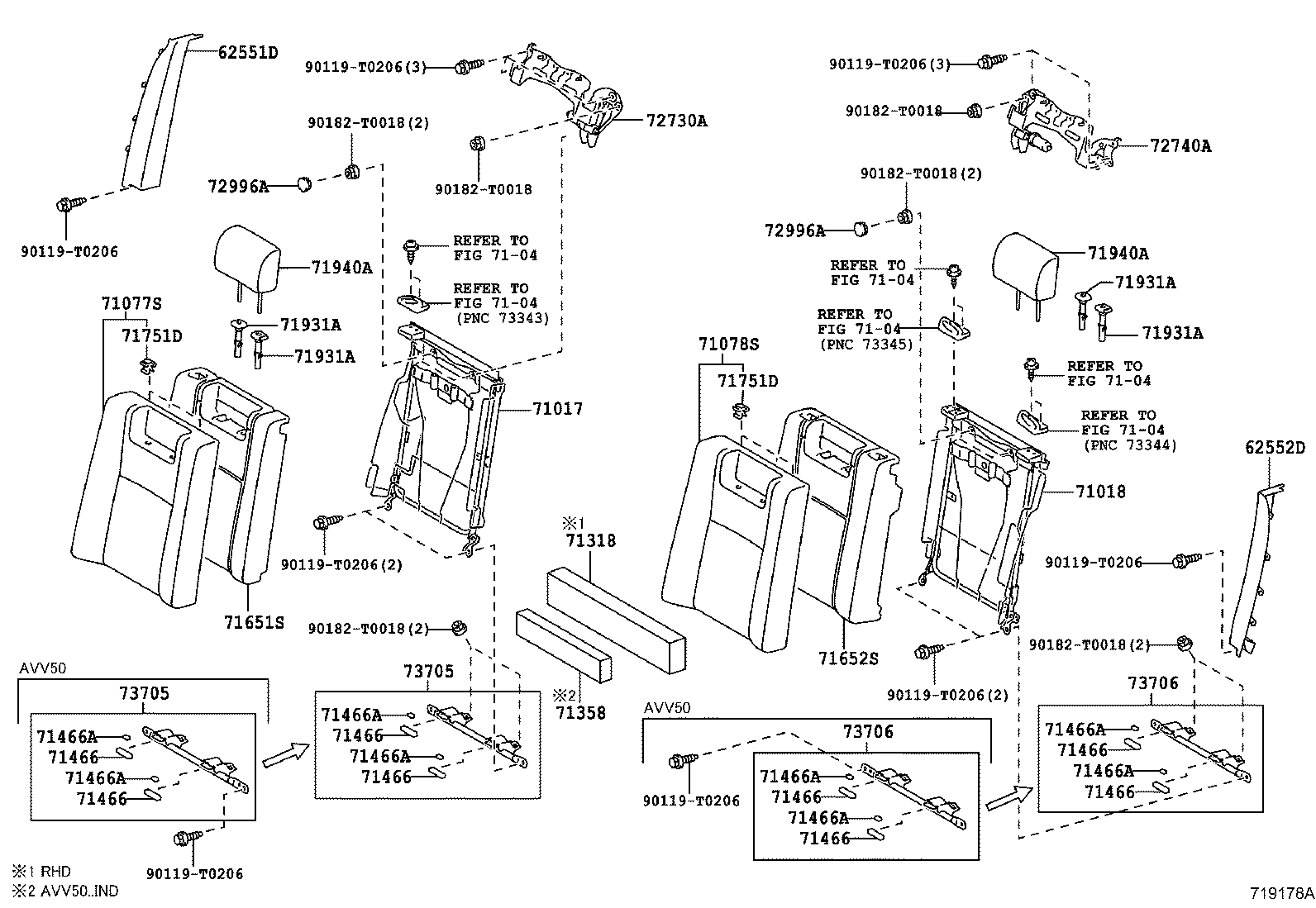

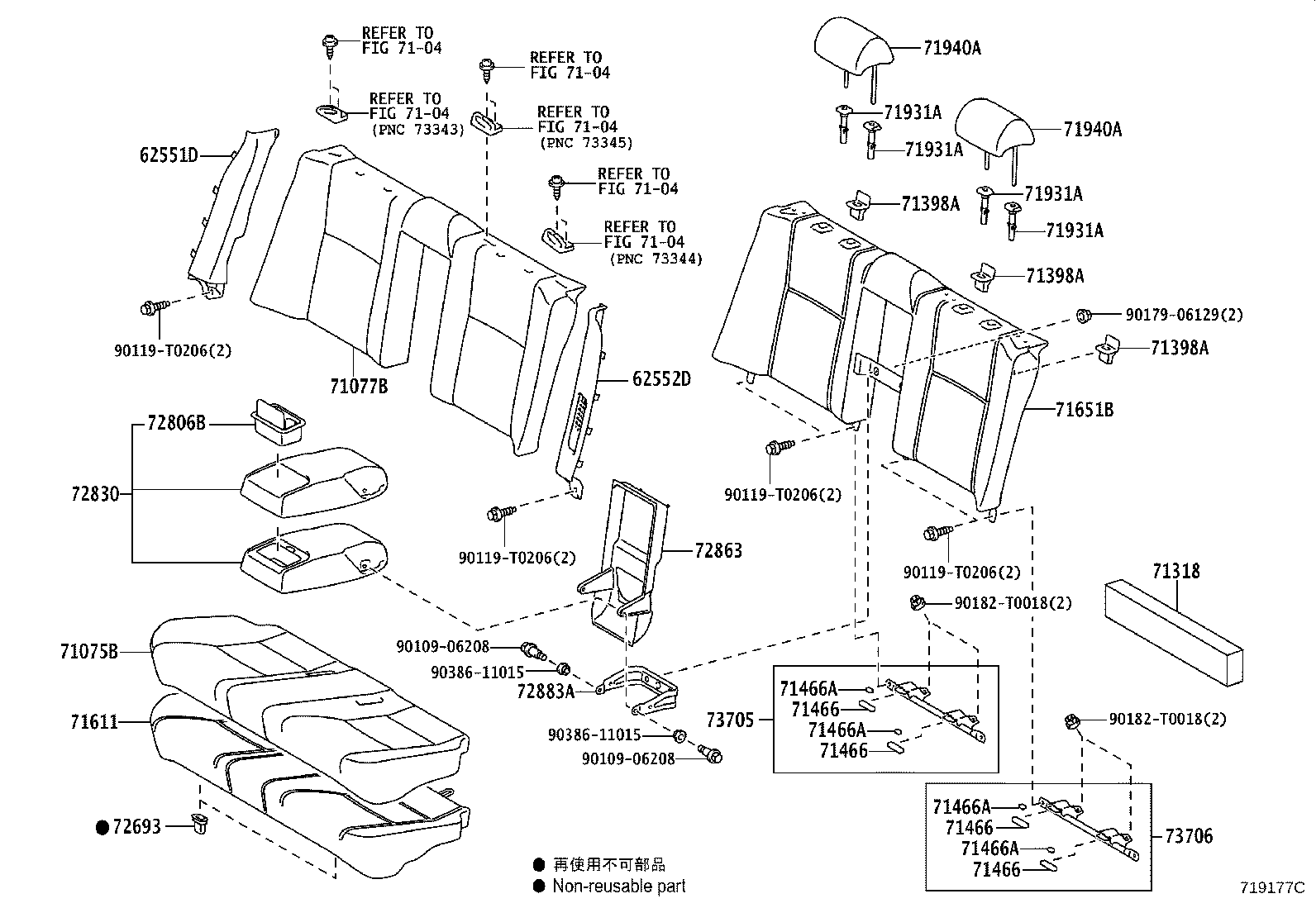

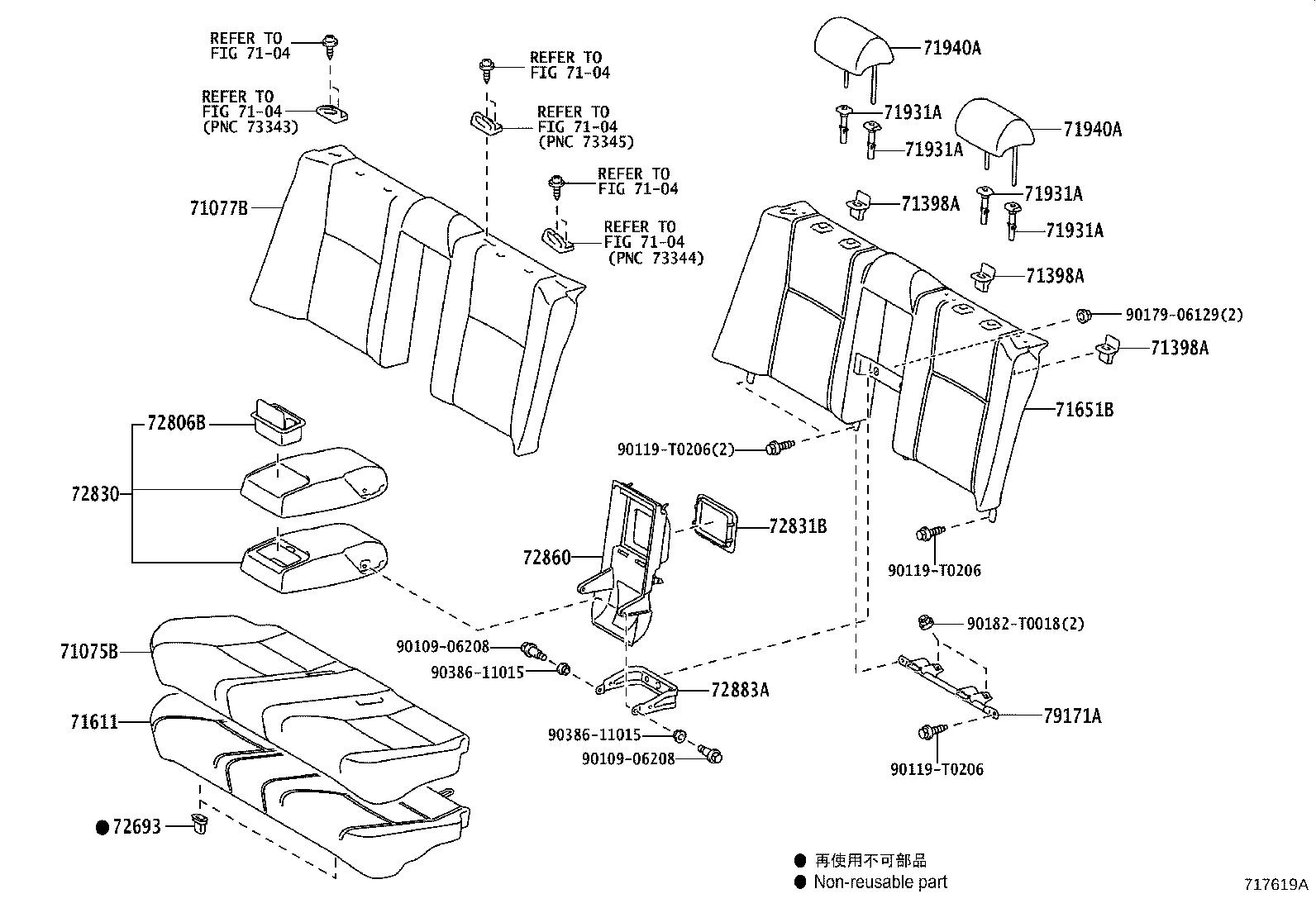

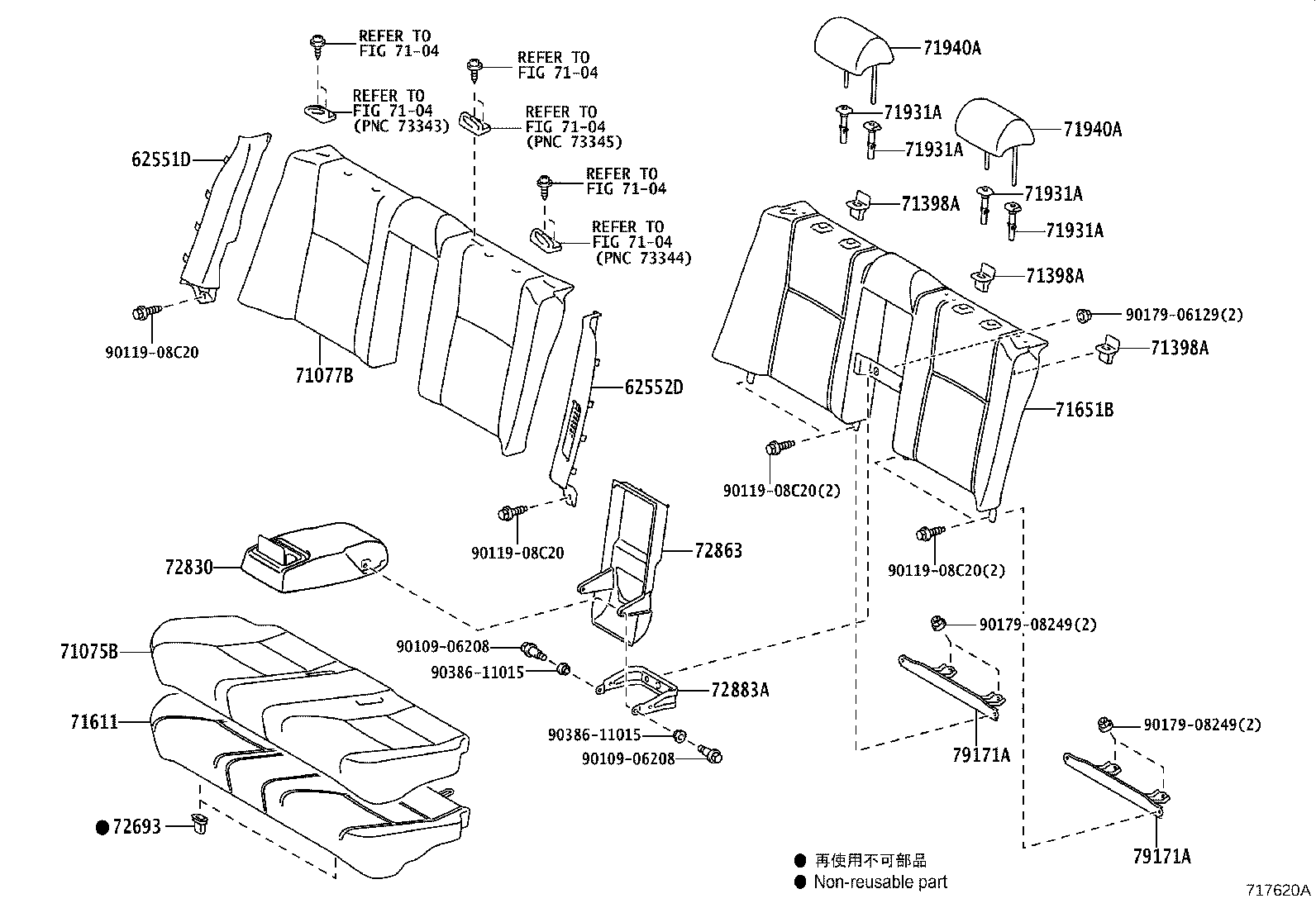

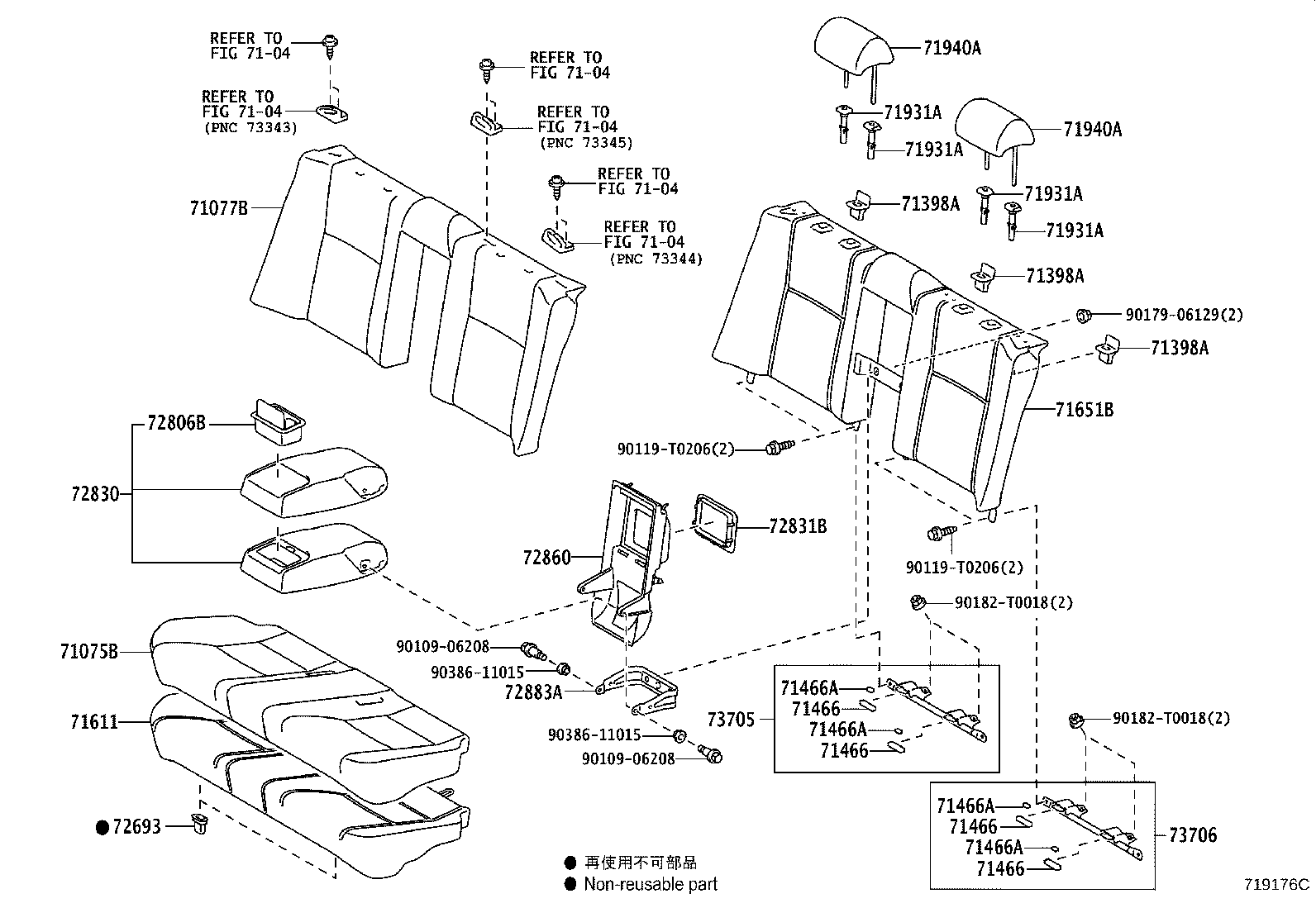

Figure 717618B 717618B 2011-12 → — Figure 717619A 717619A 2012-01 → 2015-02 Figure 717619A 717619A 2012-01 → 2015-03 Figure 717619A 717619A 2012-01 → 2015-04 Figure 719176C 719176C 2015-02 → — Figure 719176C 719176C 2015-03 → — Figure 719176C 719176C 2015-04 → — Figure 717620A 717620A 2012-02 → — Figure 717621B 717621B 2012-02 → 2015-02 Figure 719177C 719177C 2015-02 → — Figure 719787 719787 2012-02 → — Figure 719787 719787 2016-08 → — Figure 719787 719787 2016-10 → — Figure 717632A 717632A 2012-01 → 2015-02 Figure 717632A 717632A 2012-01 → 2015-04 Figure 719178A 719178A 2015-02 → — Figure 719178A 719178A 2015-04 → — Figure 717631A 717631A 2012-01 → — Figure 717631A 717631A 2012-07 → — Figure 717631A 717631A 2015-04 → — Figure 717630A 717630A 2012-02 → —

Part groups

PNCDescription
62551D Garnish, Rear Seat Side, RH
62552D Garnish, Rear Seat Side, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71095S Cover Sub-assy, Center Seatback
71305S Frame Sub-assy, Center Seatback
71318 Pad, Center Seat Cushion
71358 Pad, Center Seatback
71398A Holder, Rear Seatback
71466 Pad, Rear Seat Cushion Under
71466A Pad, Rear Seat Cushion Under
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71667A Pad, Rear Seatback, Center A
71751D Hanger, Rear Seat Cover
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72831B Plate, Rear Seat Center Armrest, NO.1
72860 Box Assy, Rear Seat Center Armrest
72863 Box, Rear Seat Center Armrest
72883A Bracket, Rear Seat Center Armrest, NO.1
72996A Cover, Rear Seatback
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
79171A Bracket, NO.1 Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
