Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12

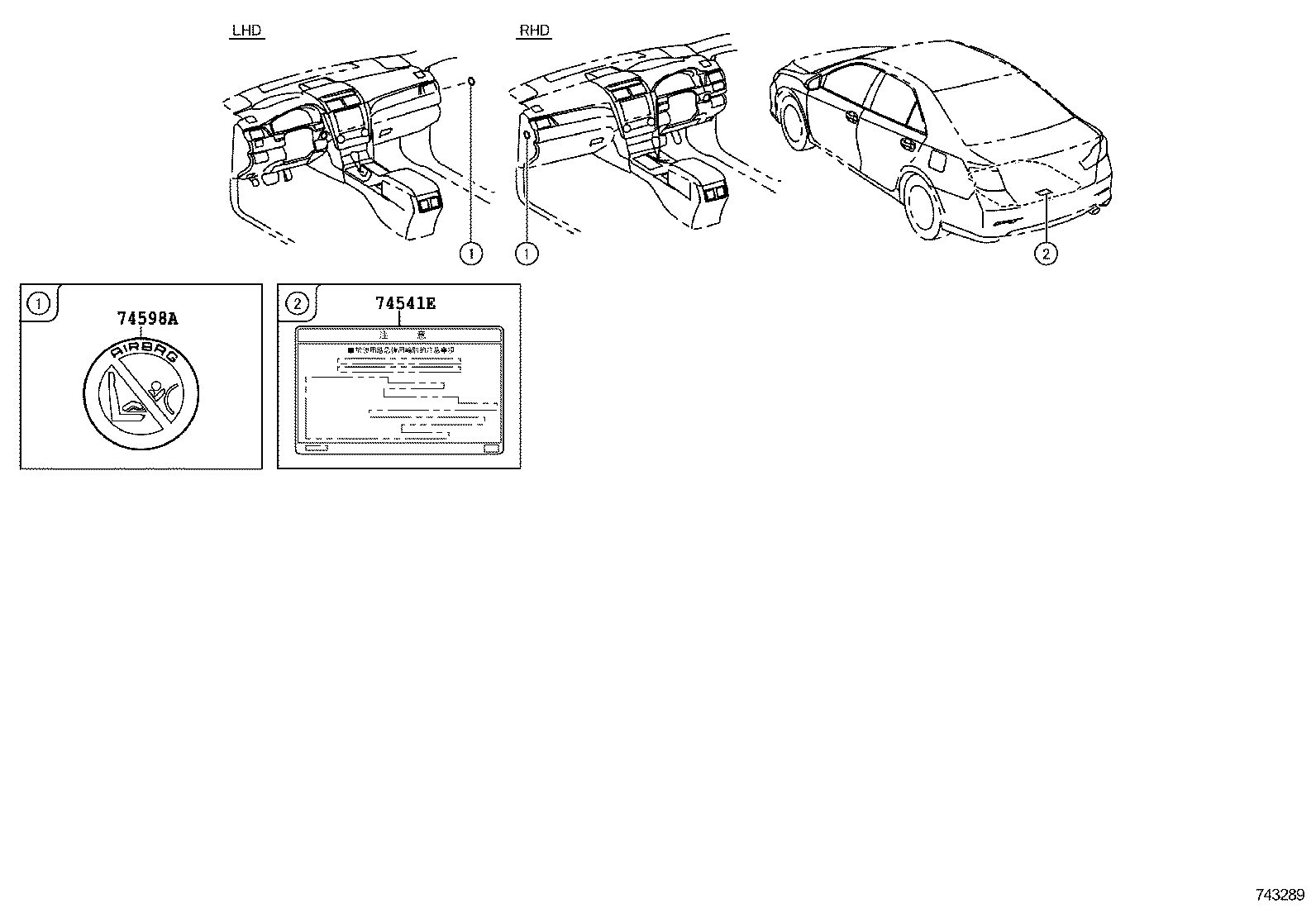

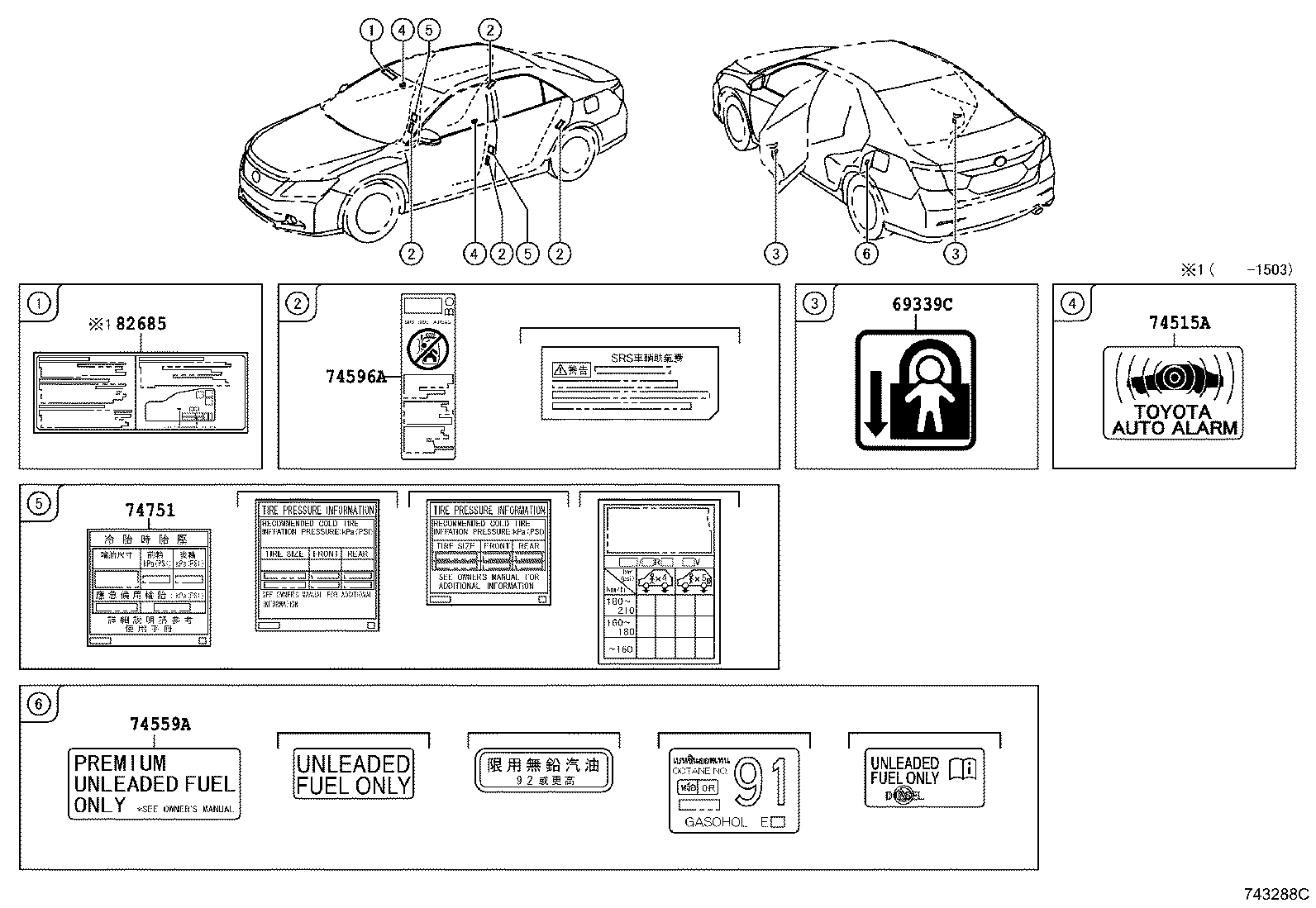

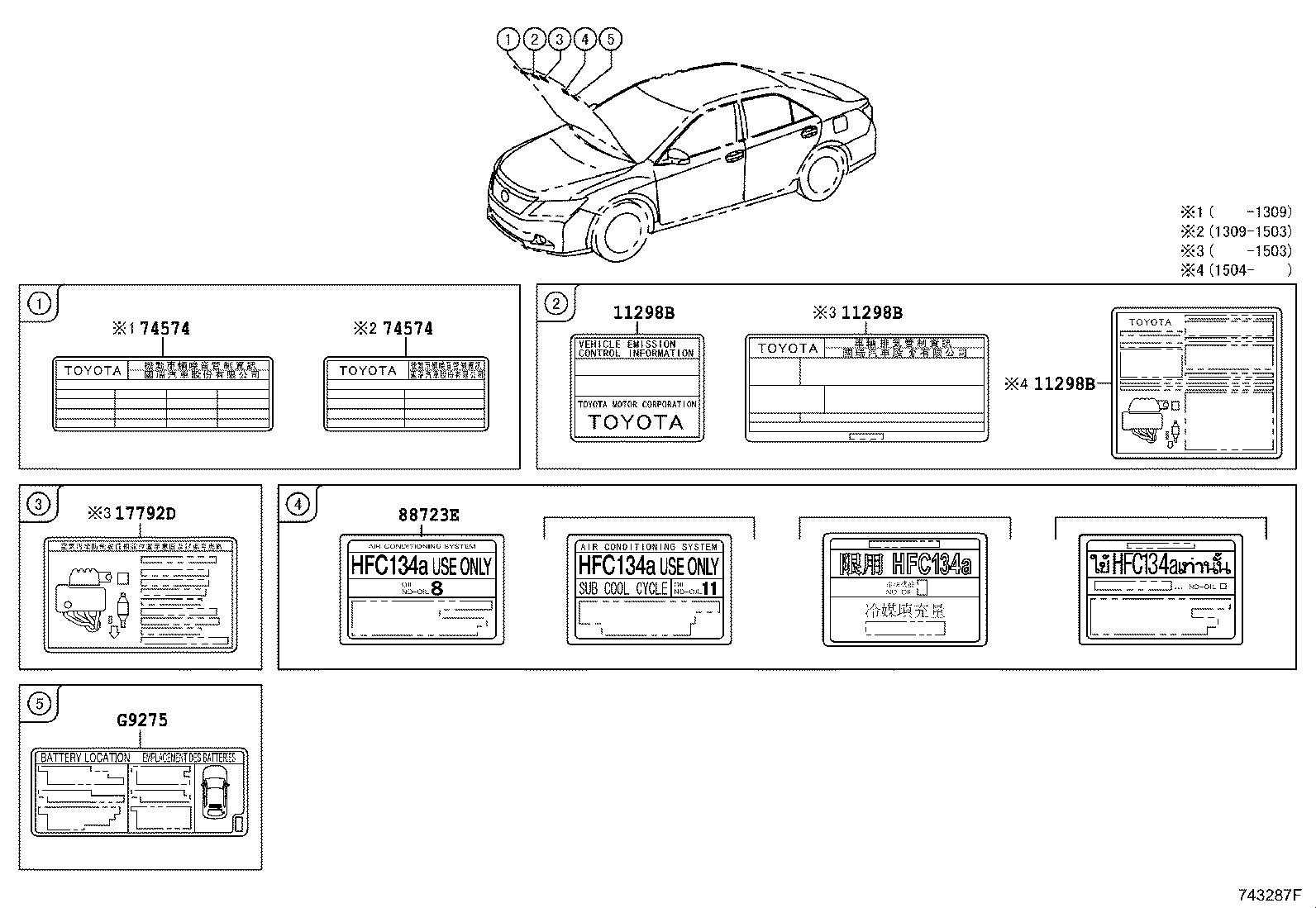

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 17792D | Label, Emission Control Device Information |
| 69339C | Label, Child Protector Information |
| 74515A | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74574 | Plate, Noise Identification |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
