Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

9 part groups · 6 illustrations

Illustrations

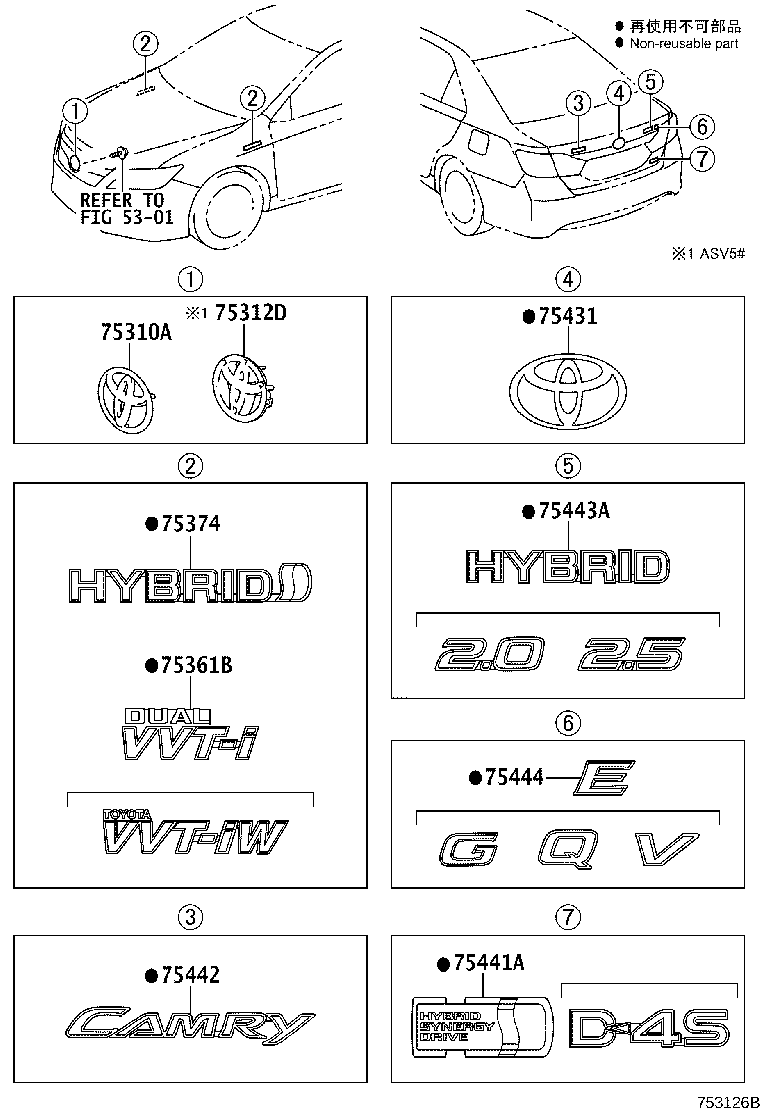

Figure 752607B 752607B 2011-12 → 2015-02 Figure 752607B 752607B 2011-12 → 2015-03 Figure 752607B 752607B 2011-12 → 2015-04 Figure 753126B 753126B 2015-02 → — Figure 753126B 753126B 2015-03 → — Figure 753126B 753126B 2015-04 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75312D Base, Radiator Grille Emblem
75361B Plate, Side Panel Name
75374 Emblem, Side Panel
75431 Emblem, Luggage Compartment Door
75441A Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
