Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

23 part groups · 20 illustrations

Illustrations

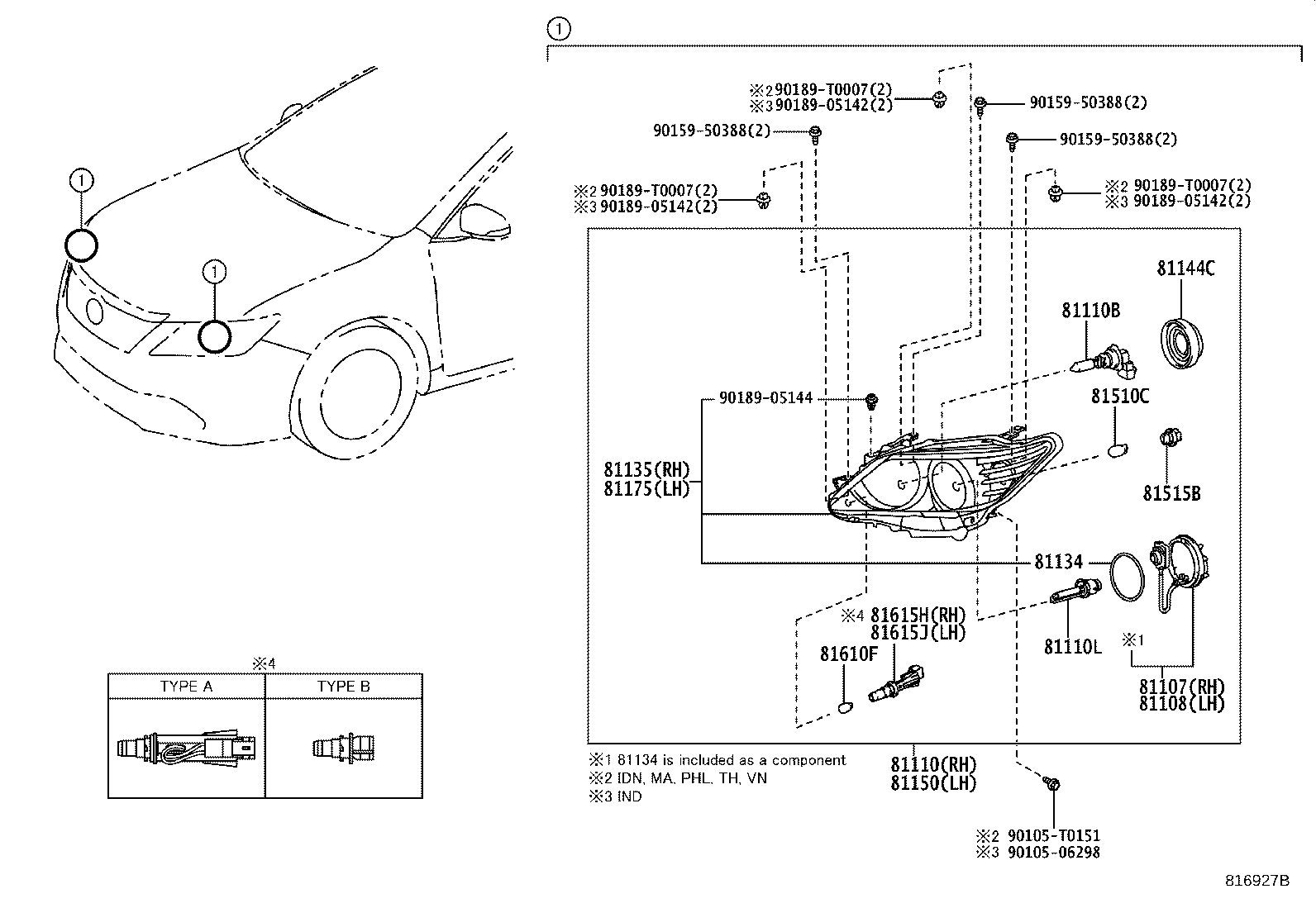

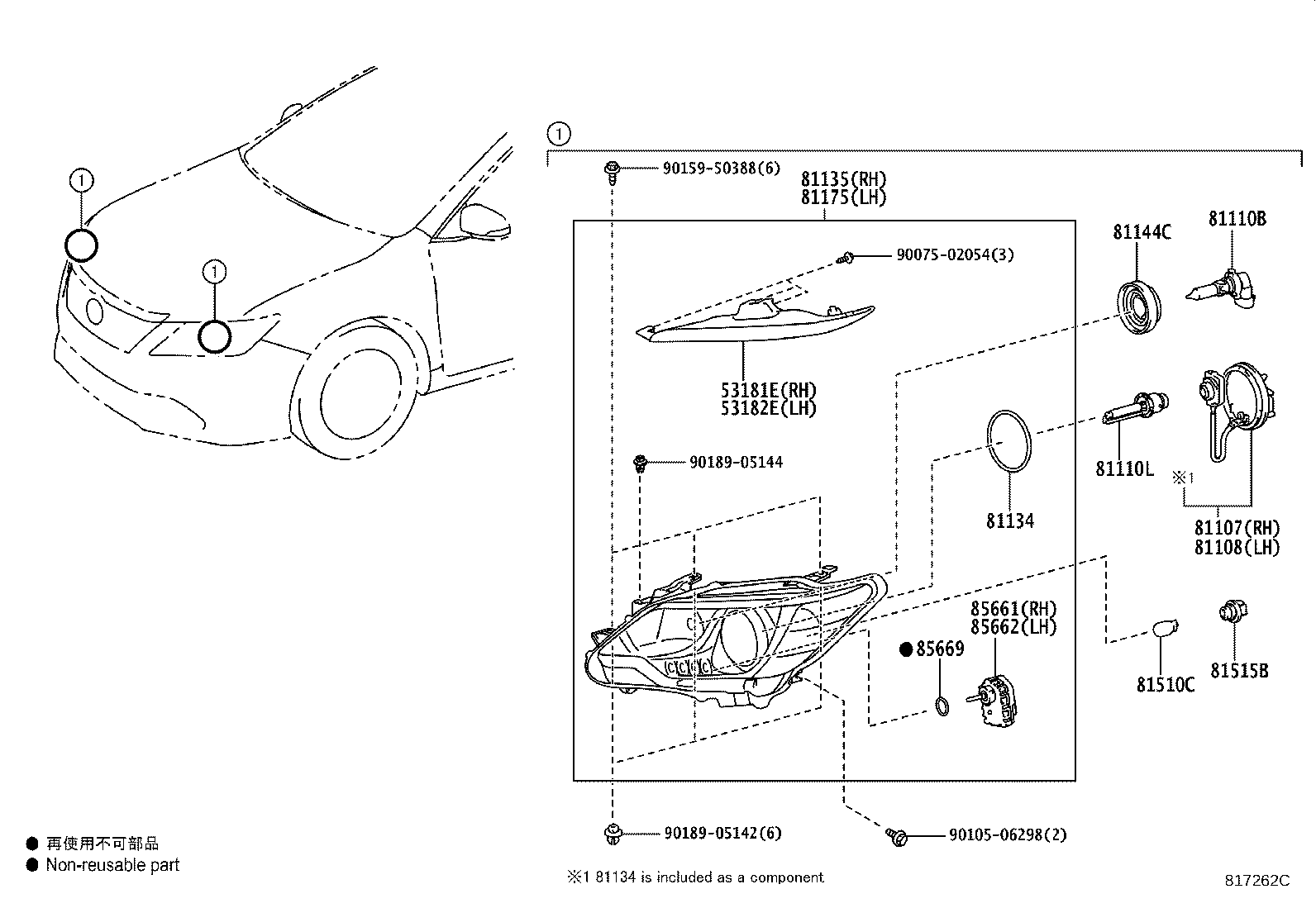

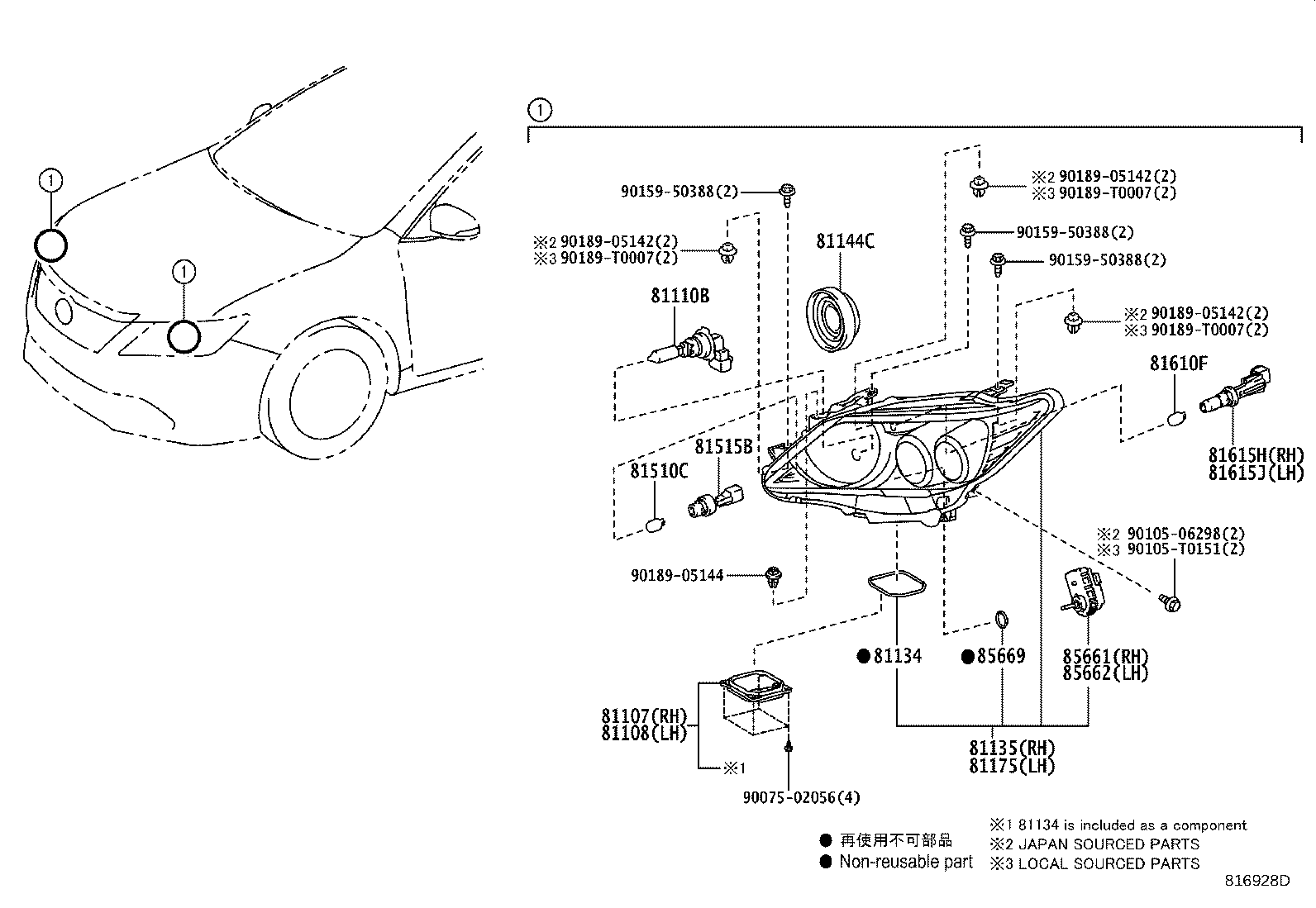

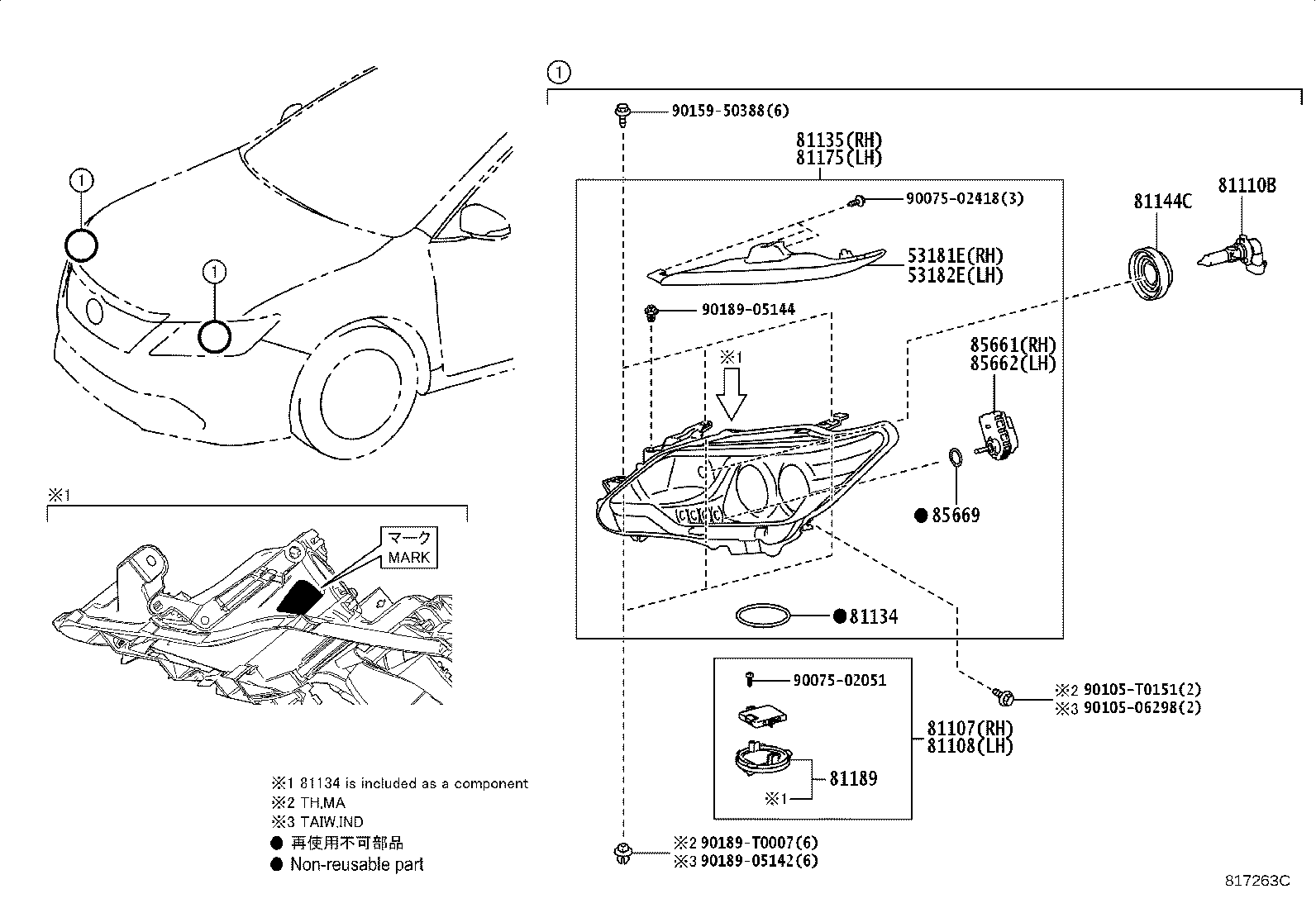

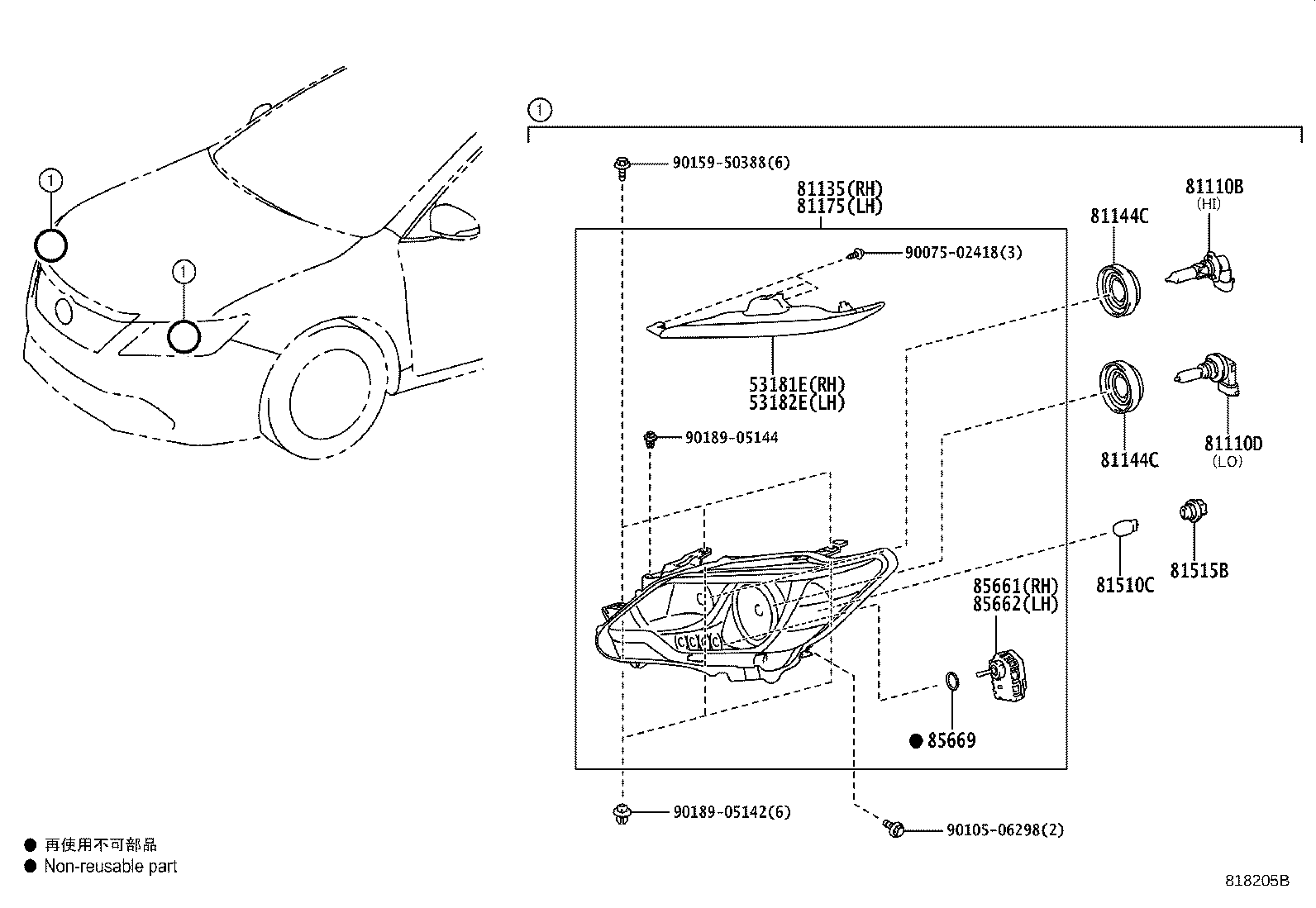

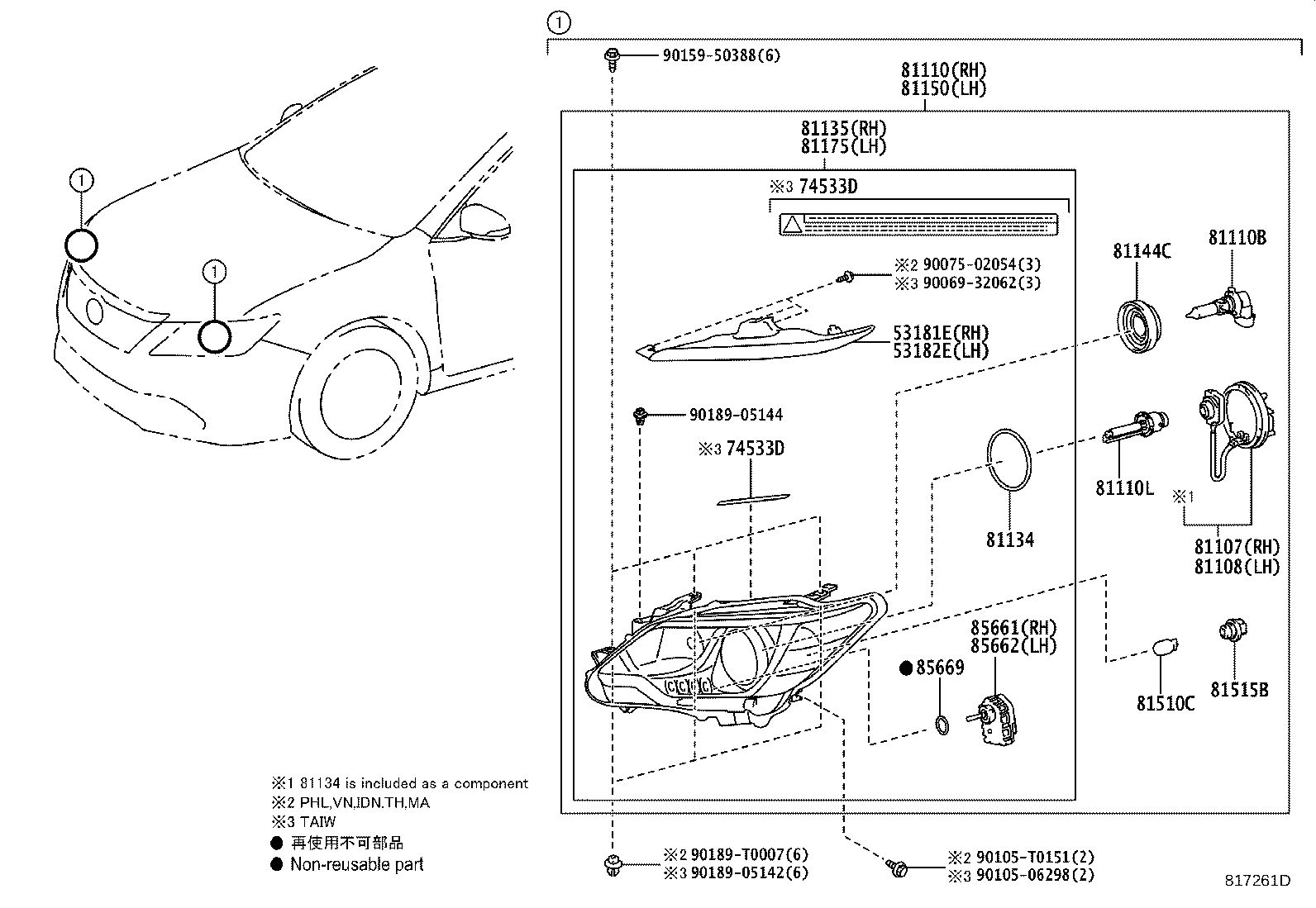

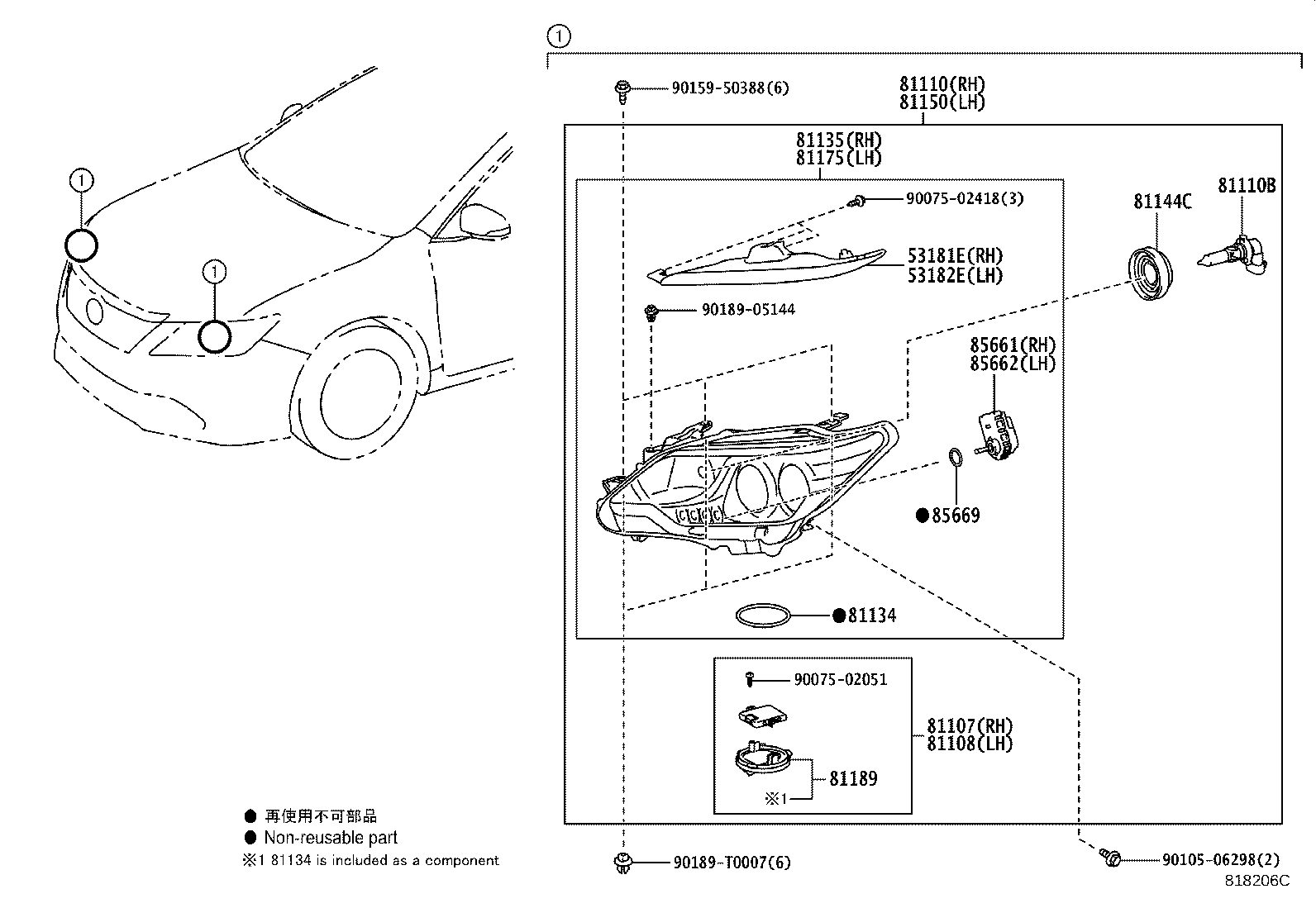

Figure 816012E 816012E 2011-12 → 2015-03 Figure 816927B 816927B 2012-03 → 2015-02 Figure 816927B 816927B 2012-05 → 2015-03 Figure 816927B 816927B 2012-07 → 2015-04 Figure 815985J 815985J 2012-02 → 2013-09 Figure 815985J 815985J 2013-08 → 2013-10 Figure 816928D 816928D 2013-09 → 2015-02 Figure 816928D 816928D 2013-09 → 2015-03 Figure 816928D 816928D 2013-10 → 2015-04 Figure 817261D 817261D 2015-02 → — Figure 817261D 817261D 2015-03 → — Figure 817261D 817261D 2015-04 → 2017-10 Figure 817261D 817261D 2018-01 → — Figure 817262C 817262C 2015-04 → 2017-09 Figure 817263C 817263C 2015-02 → — Figure 817263C 817263C 2015-03 → — Figure 817263C 817263C 2015-04 → — Figure 817263C 817263C 2017-07 → — Figure 818205B 818205B 2017-05 → — Figure 818206C 818206C 2017-10 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
74533D Label, Headlamp Voltage Caution
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615H Socket, Clearance Lamp, RH
81615J Socket, Clearance Lamp, LH
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
