Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 3 illustrations

Illustrations

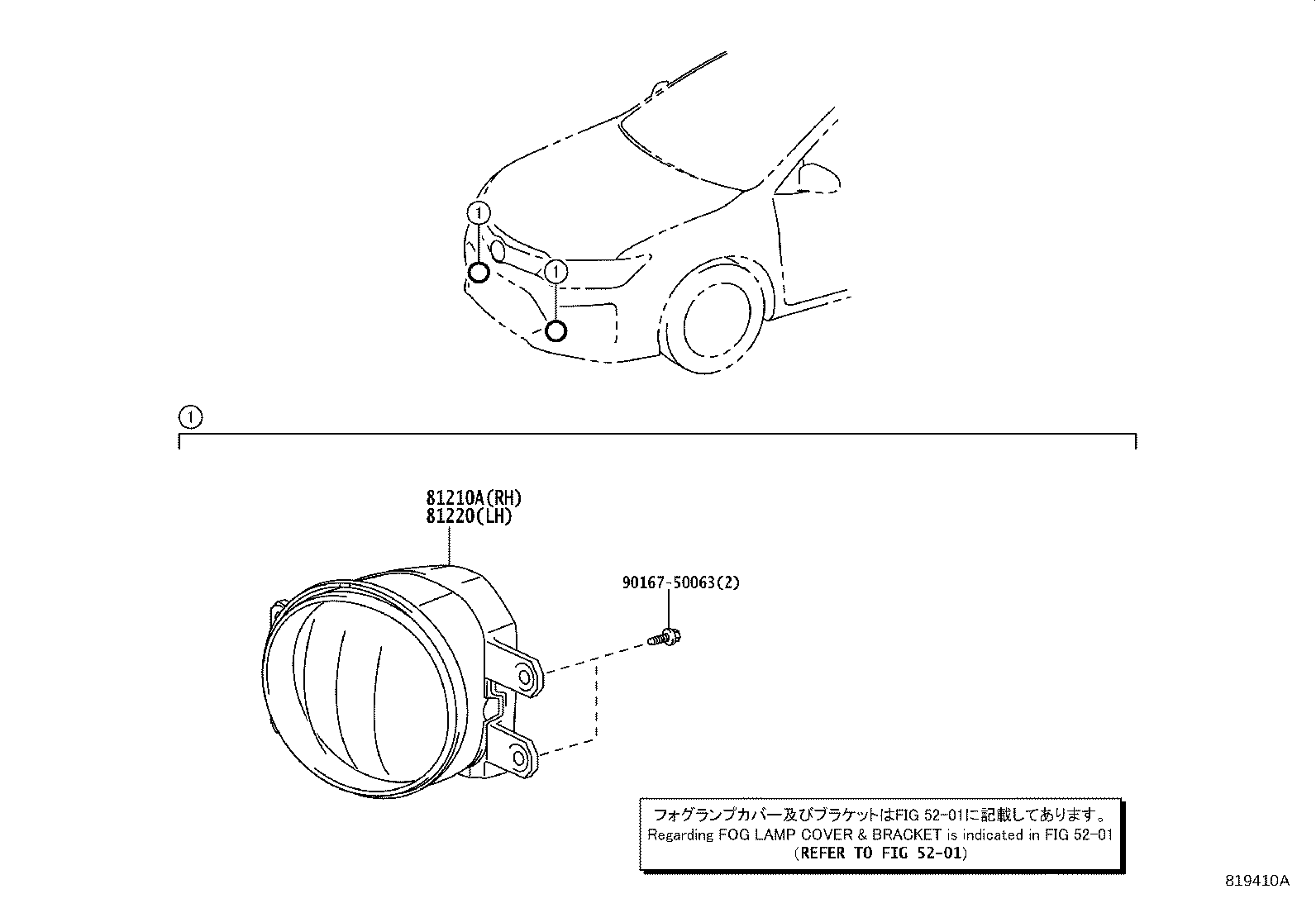

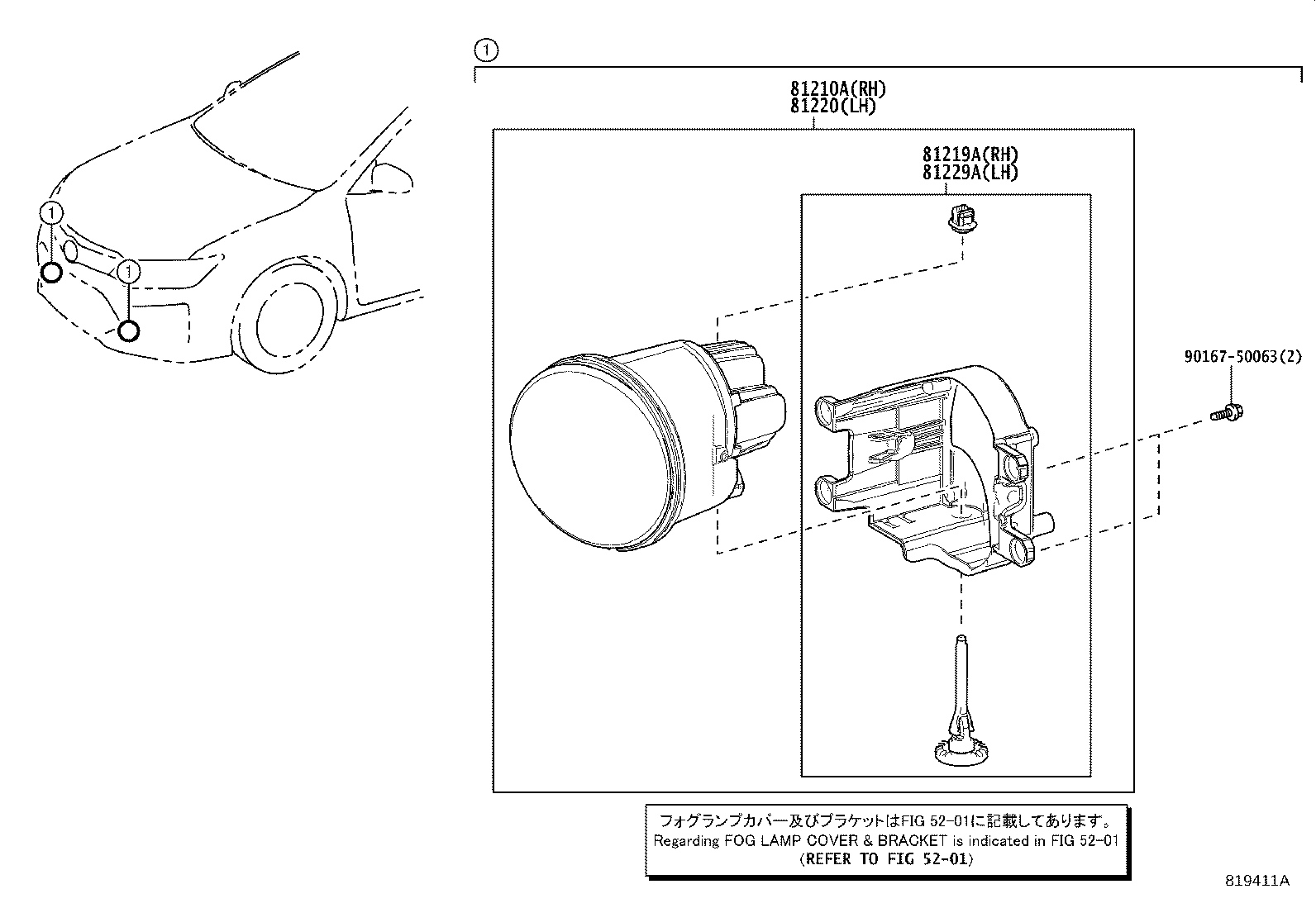

Figure 815899C 815899C 2011-12 → — Figure 819410A 819410A 2016-04 → 2017-05 Figure 819411A 819411A 2017-05 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211H Lens & Body, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221A Lens & Body, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
