Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

29 part groups · 11 illustrations

Illustrations

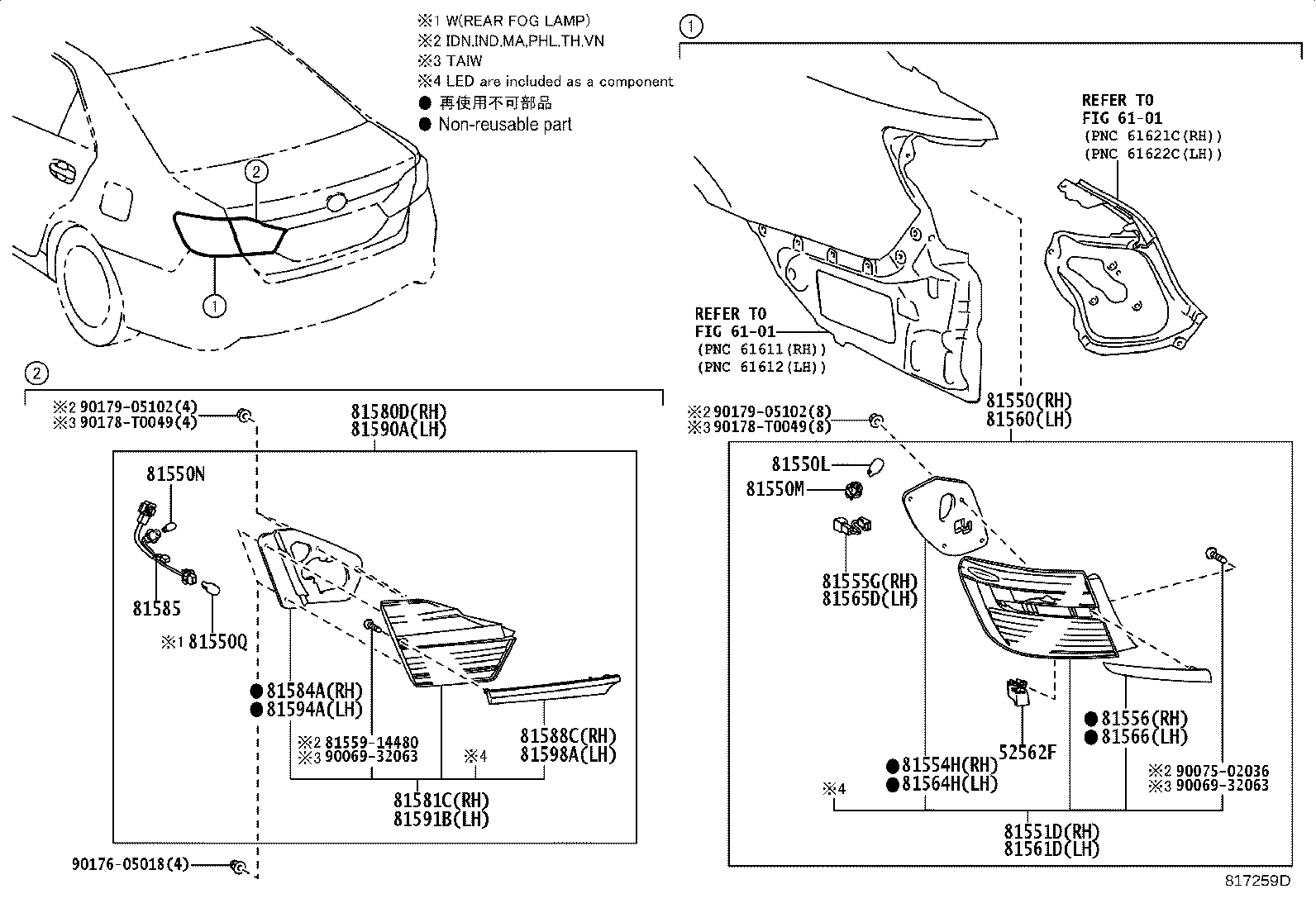

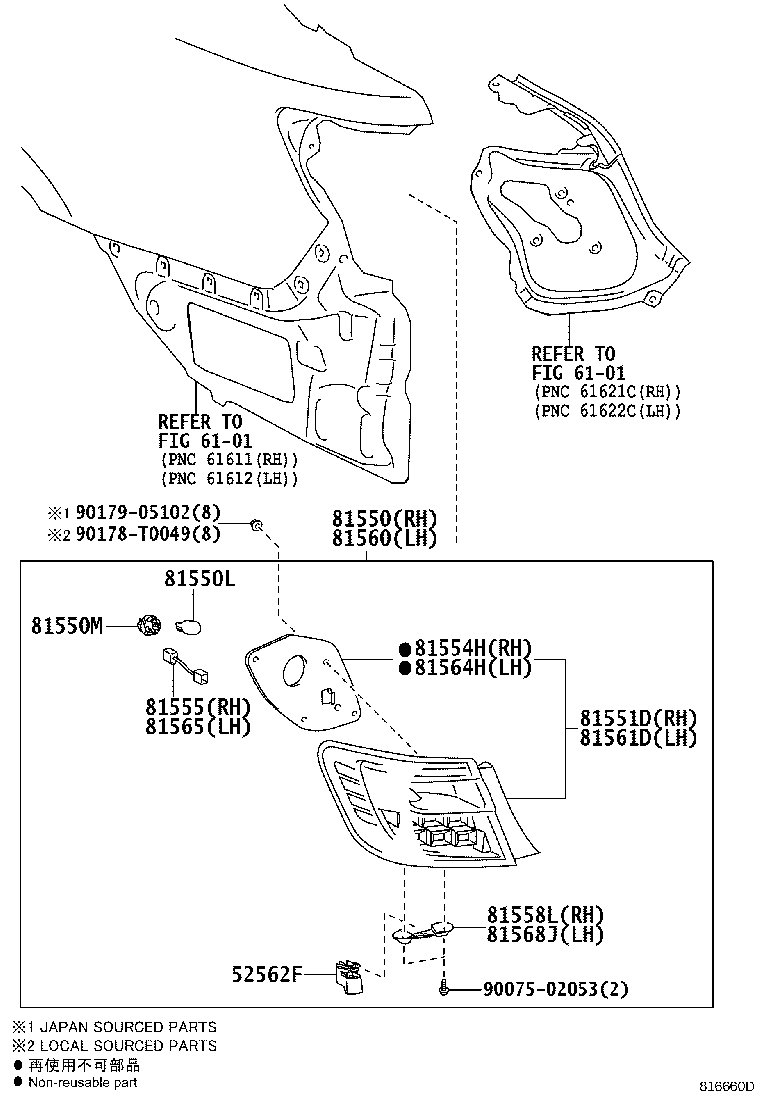

Figure 817910B 817910B 2011-12 → 2015-03 Figure 817910B 817910B 2012-02 → 2015-03 Figure 816660D 816660D 2012-03 → 2015-02 Figure 816660D 816660D 2012-05 → 2015-03 Figure 816660D 816660D 2012-07 → 2015-04 Figure 815931B 815931B 2011-12 → 2015-03 Figure 815931B 815931B 2012-03 → 2015-02 Figure 815931B 815931B 2012-07 → 2015-04 Figure 817259D 817259D 2015-02 → — Figure 817259D 817259D 2015-03 → — Figure 817259D 817259D 2015-04 → —

Part groups

PNCDescription
52562F Retainer, Rear Bumper, Upper Side
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551D Lens & Body, Rear Combination Lamp, RH
81554H Packing, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555G Cord, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81558L Protector, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81564H Packing, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565D Cord, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81568J Protector, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81588C Rim, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81598A Rim, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
