Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

28 part groups · 14 illustrations

Illustrations

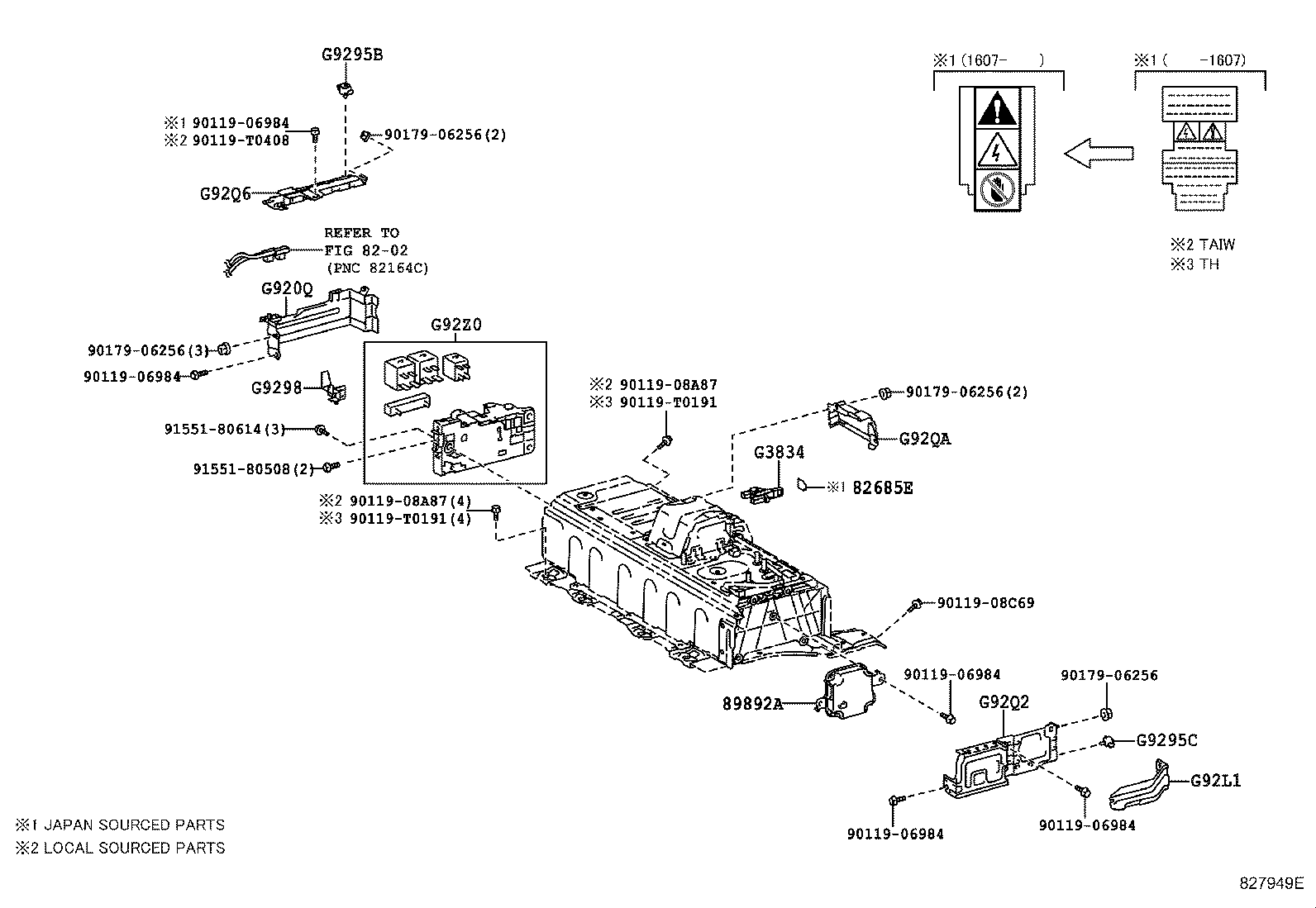

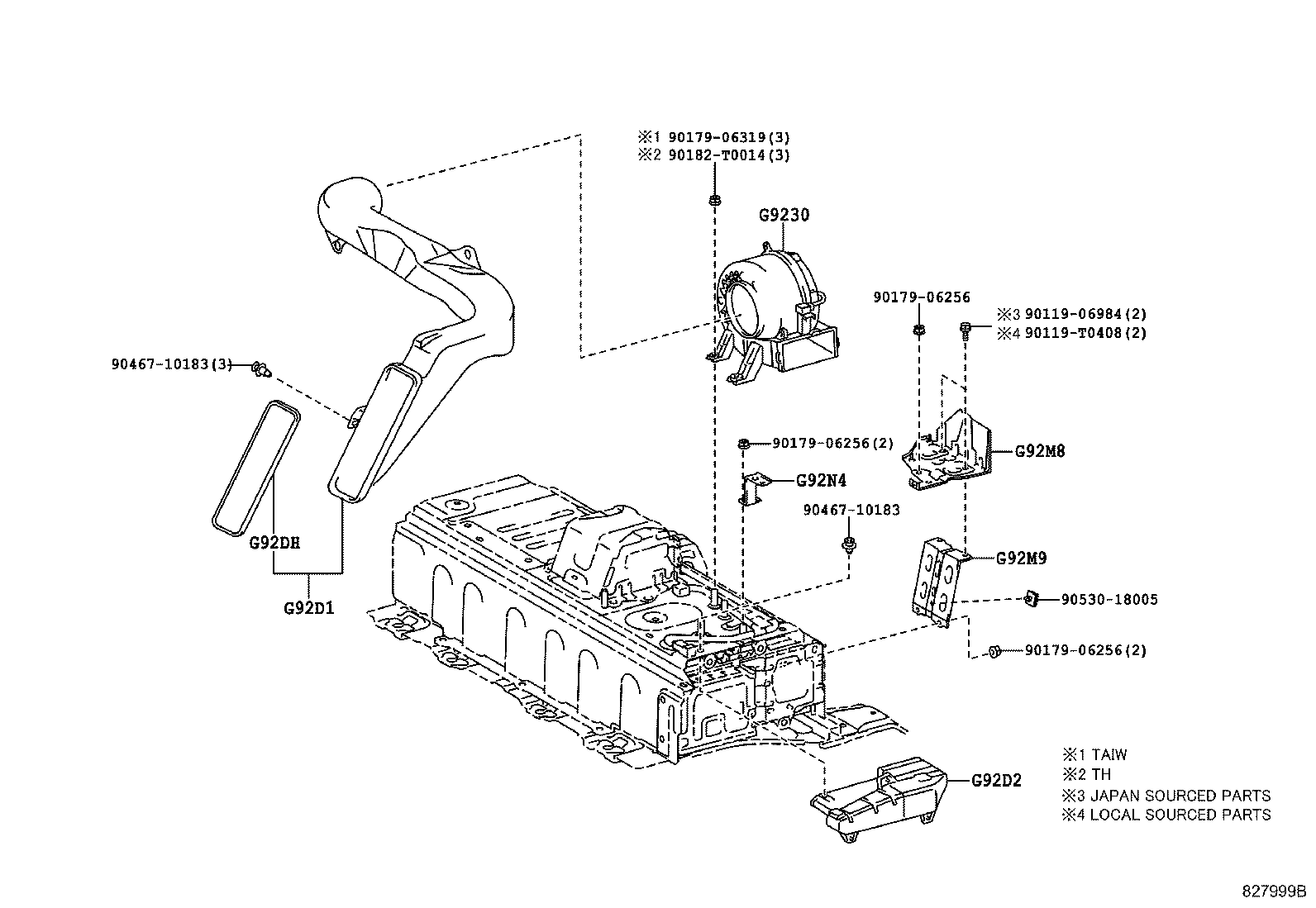

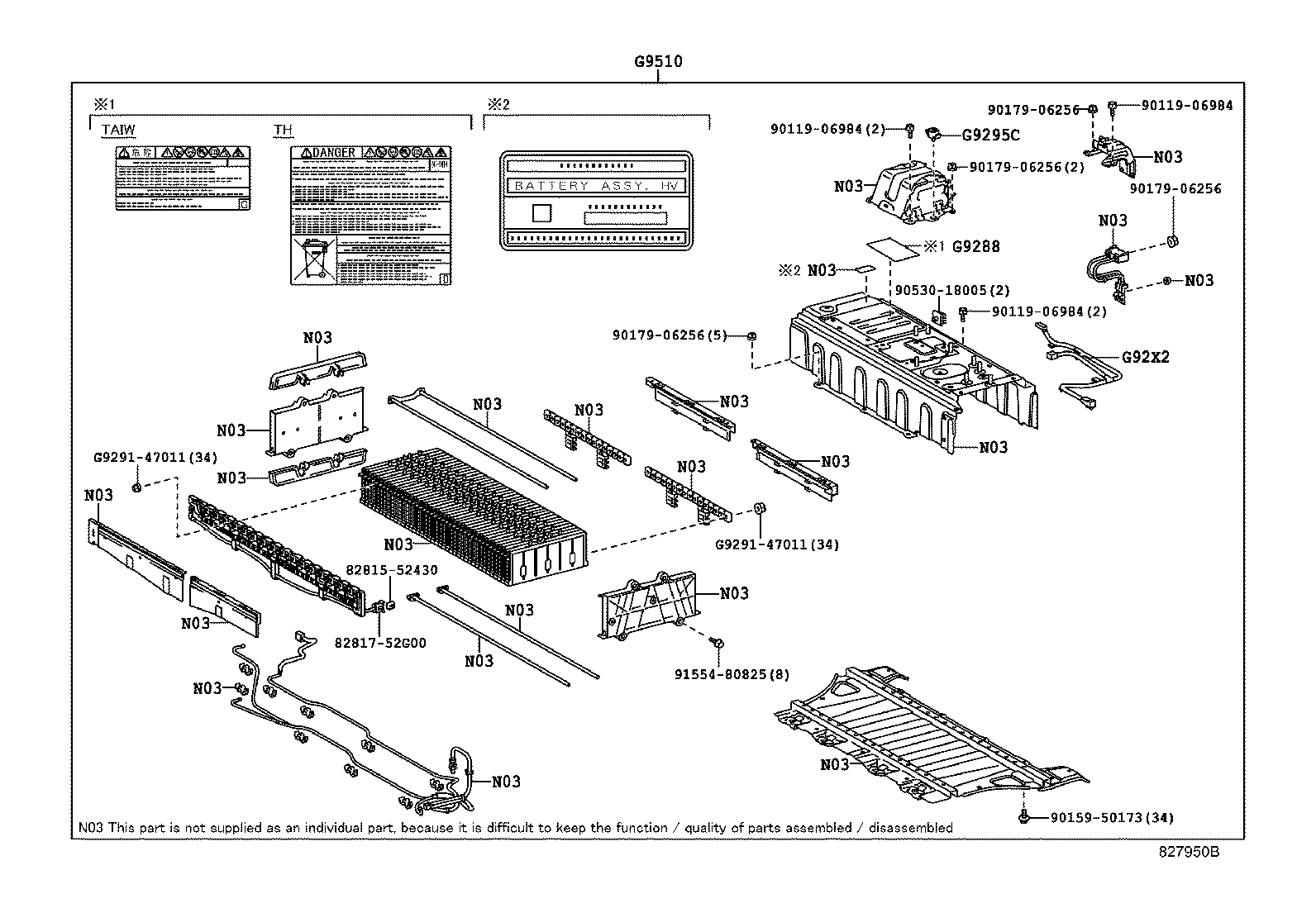

Figure 827948B 827948B 2011-12 → 2015-02 Figure 827948B 827948B 2012-05 → 2015-03 Figure 827948B 827948B 2012-07 → 2015-04 Figure 829861 829861 2015-02 → — Figure 829861 829861 2015-03 → — Figure 829861 829861 2015-04 → — Figure 827951A 827951A 2012-02 → 2015-02 Figure 827951A 827951A 2013-08 → 2015-04 Figure 829863 829863 2015-02 → — Figure 829863 829863 2015-03 → — Figure 829863 829863 2015-04 → — Figure 827999B 827999B 2012-02 → — Figure 827949E 827949E 2012-02 → — Figure 827950B 827950B 2012-02 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28885B Hose, Battery
28897 Plate, Battery Caution
28899 Insulator, Battery
82685E Plate, Service Plug Caution
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G920Q Shield Sub-assy, Hybrid Battery, NO.1
G9230 Blower Assy, Battery Cooling
G9288 Label, Battery Charging Notice
G9295B Striker, Battery Cover Lock
G9295C Striker, Battery Cover Lock, NO.2
G9298 Clamp, HV Battery
G92D1 Duct, Hybrid Battery Intake, NO.1
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DH Filter, HV Battery Intake, NO.1
G92L1 Panel, HV Battery Lower Cover
G92M8 Bracket, HV Battery Upper Carrier, NO.2
G92M9 Bracket, HV Battery Upper Carrier, NO.3
G92N4 Bracket, HV Battery Upper Cover, NO.2
G92Q2 Panel, HV Battery Shield, NO.2
G92Q6 Panel, HV Battery Shield, NO.4
G92QA Panel, HV Battery Shield, NO.8
G92X2 Wire, HV Battery Pack, NO.2
G92Z0 Block Assy, HV Battery Junction
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
