Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12
Wiring & Clamp
85 part groups · 44 illustrations
Illustrations

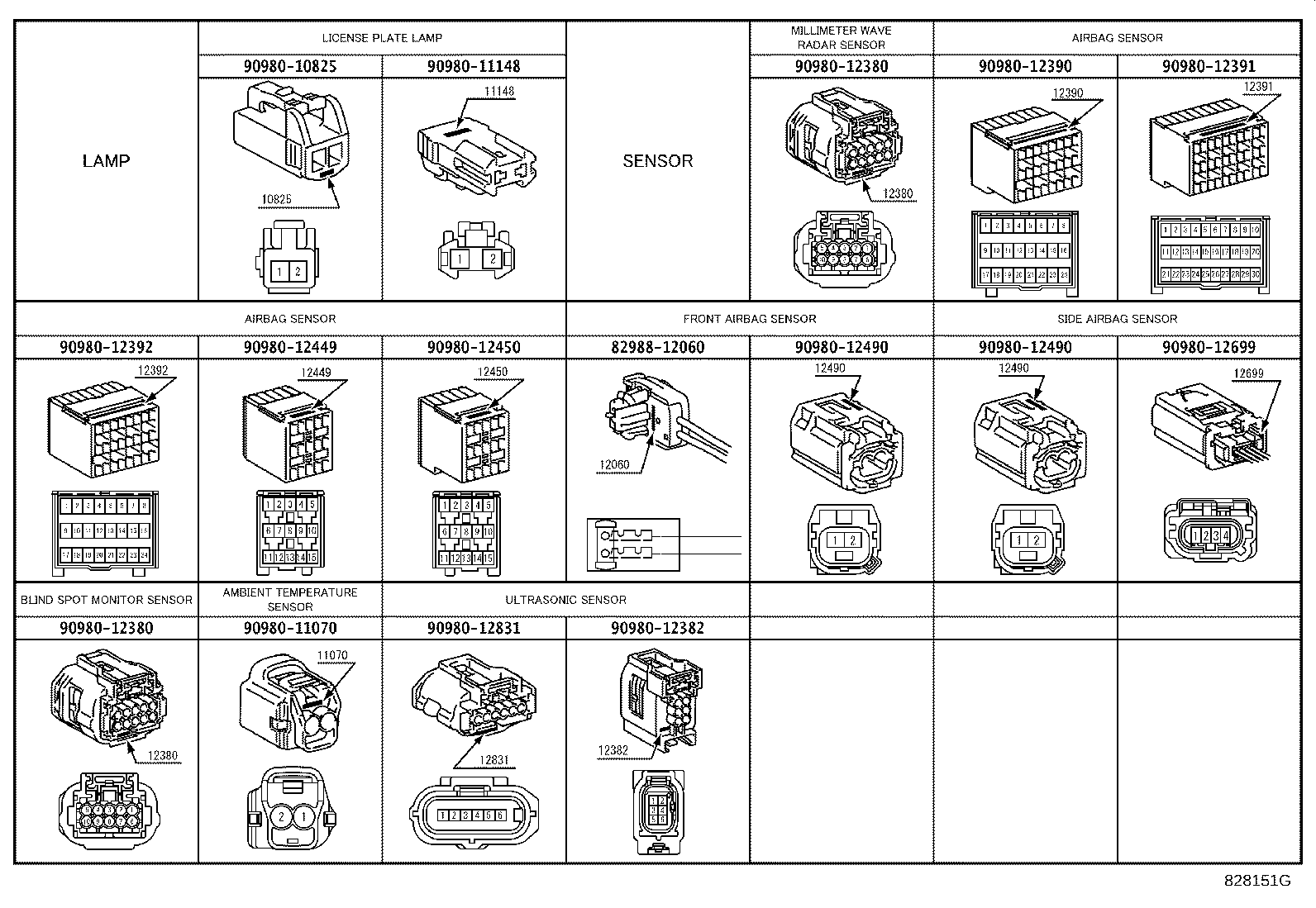

827981B

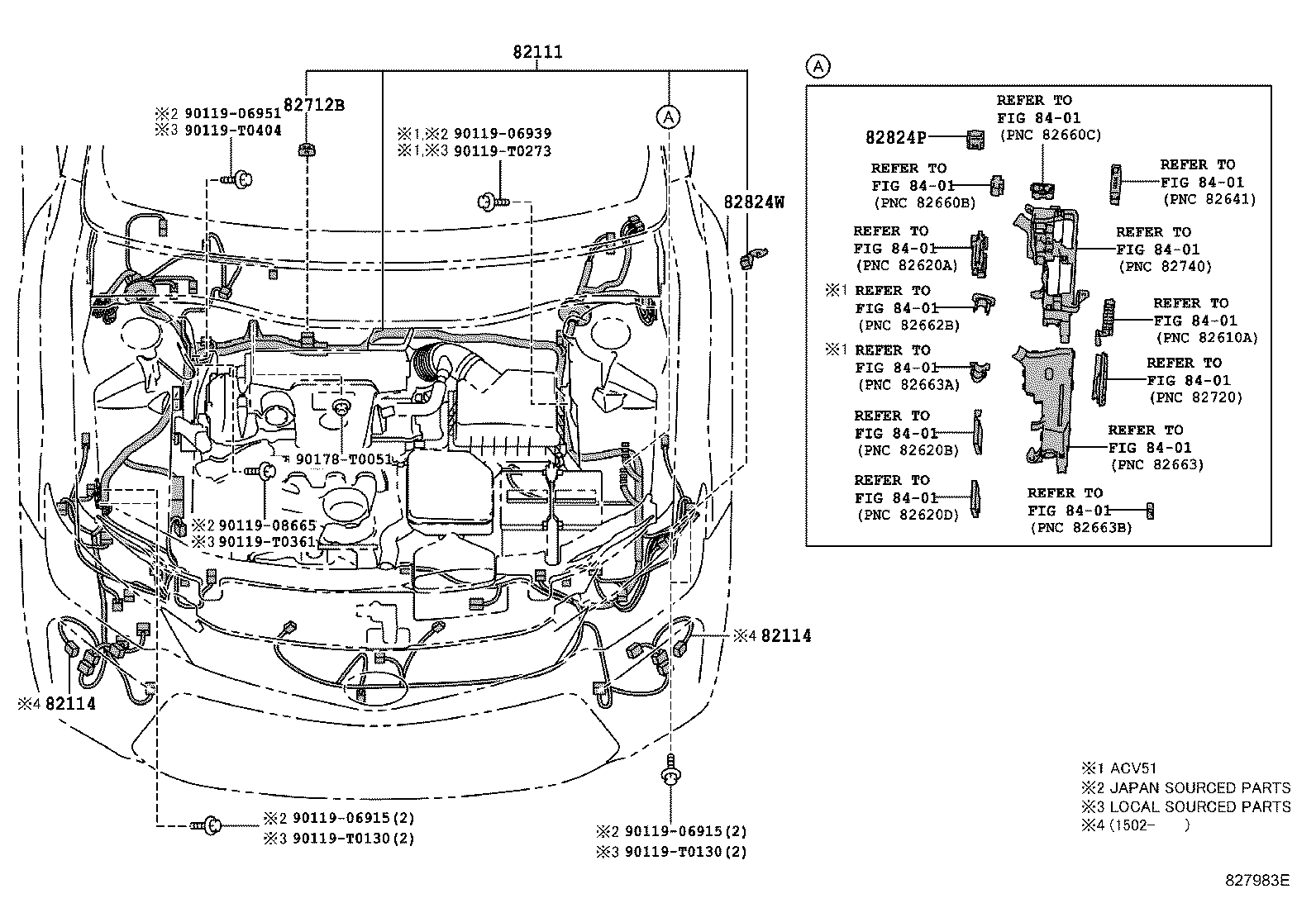

827983E

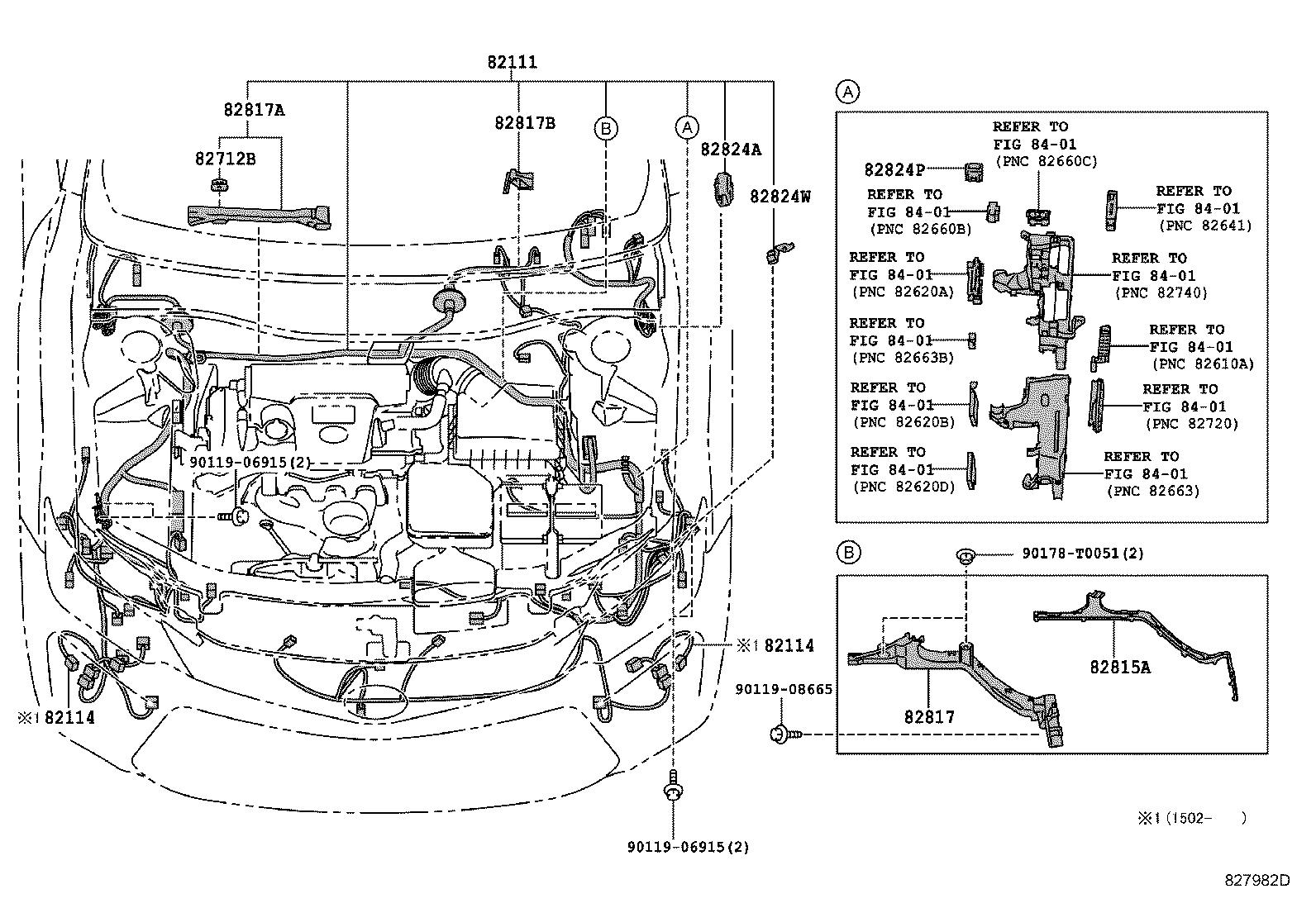

827982D

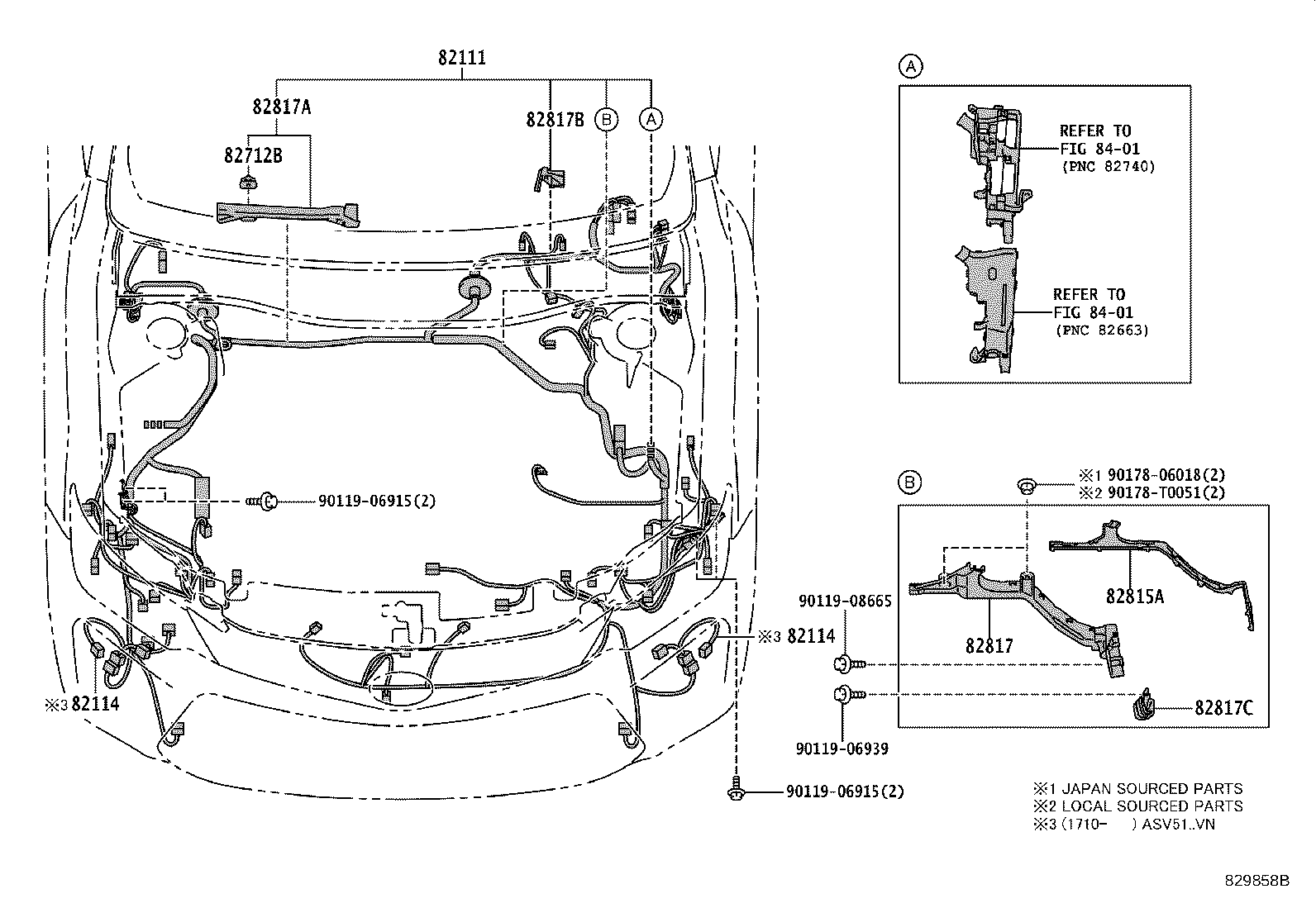

829858B
829858B

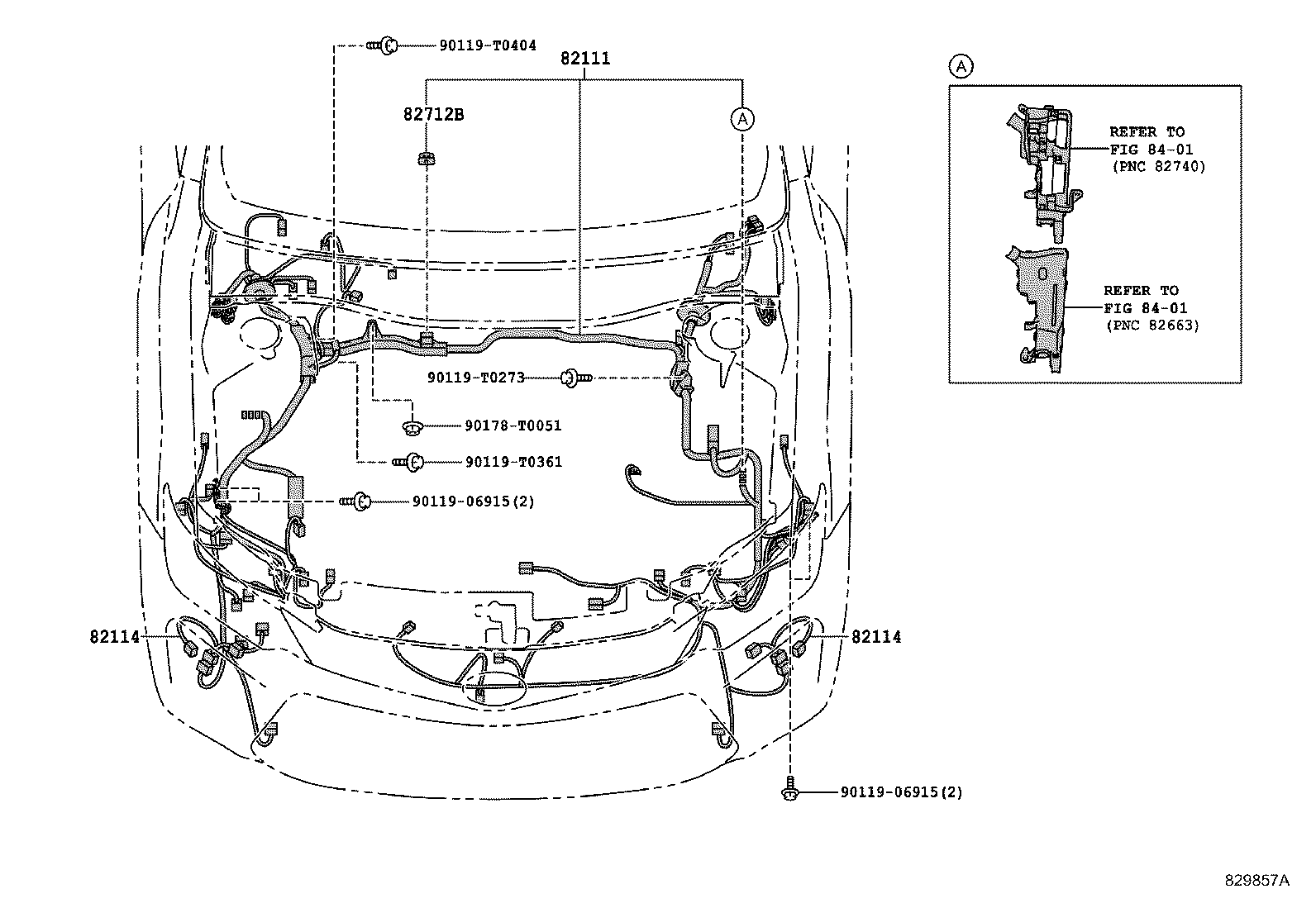

829857A
829857A

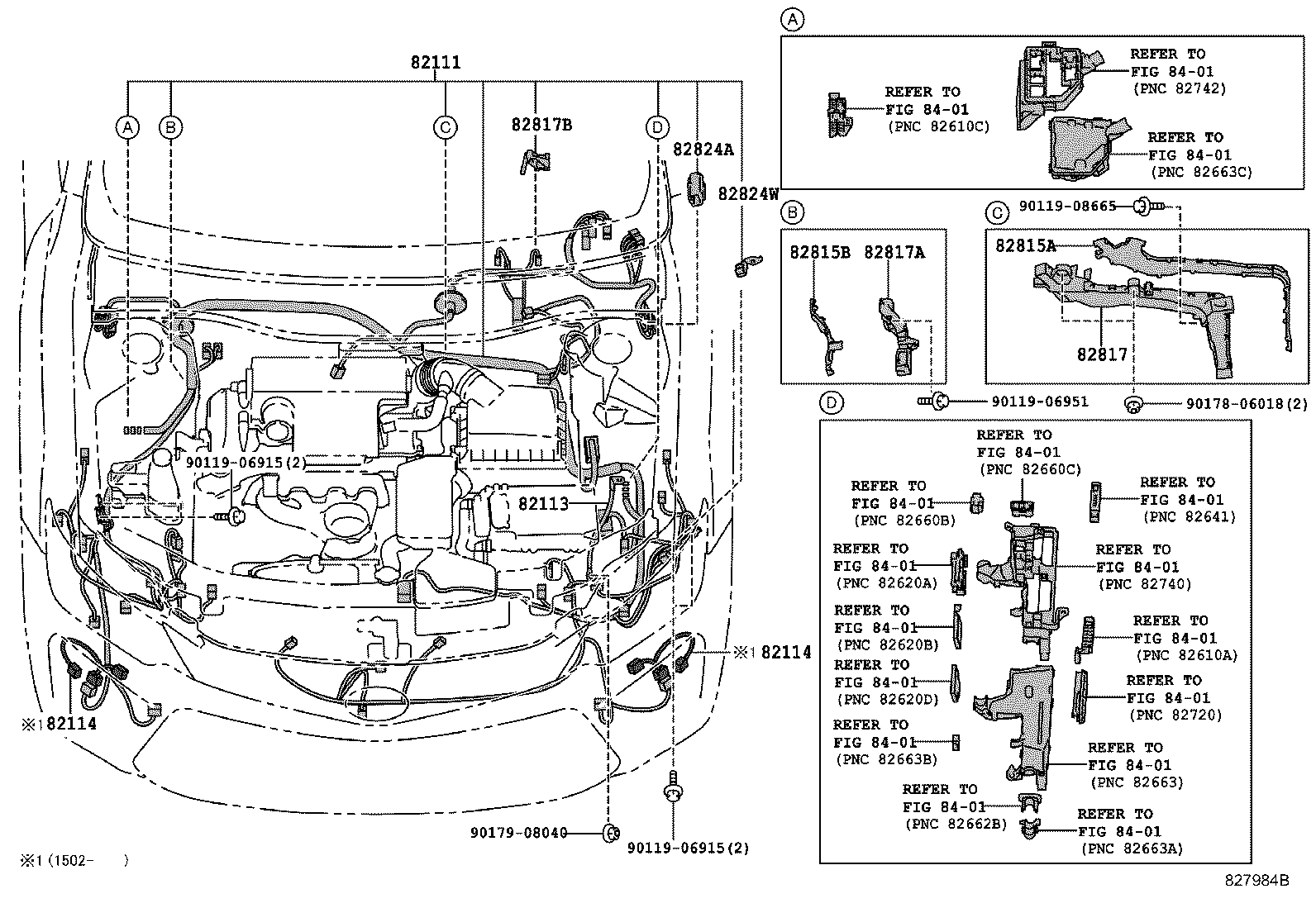

827984B
827985D

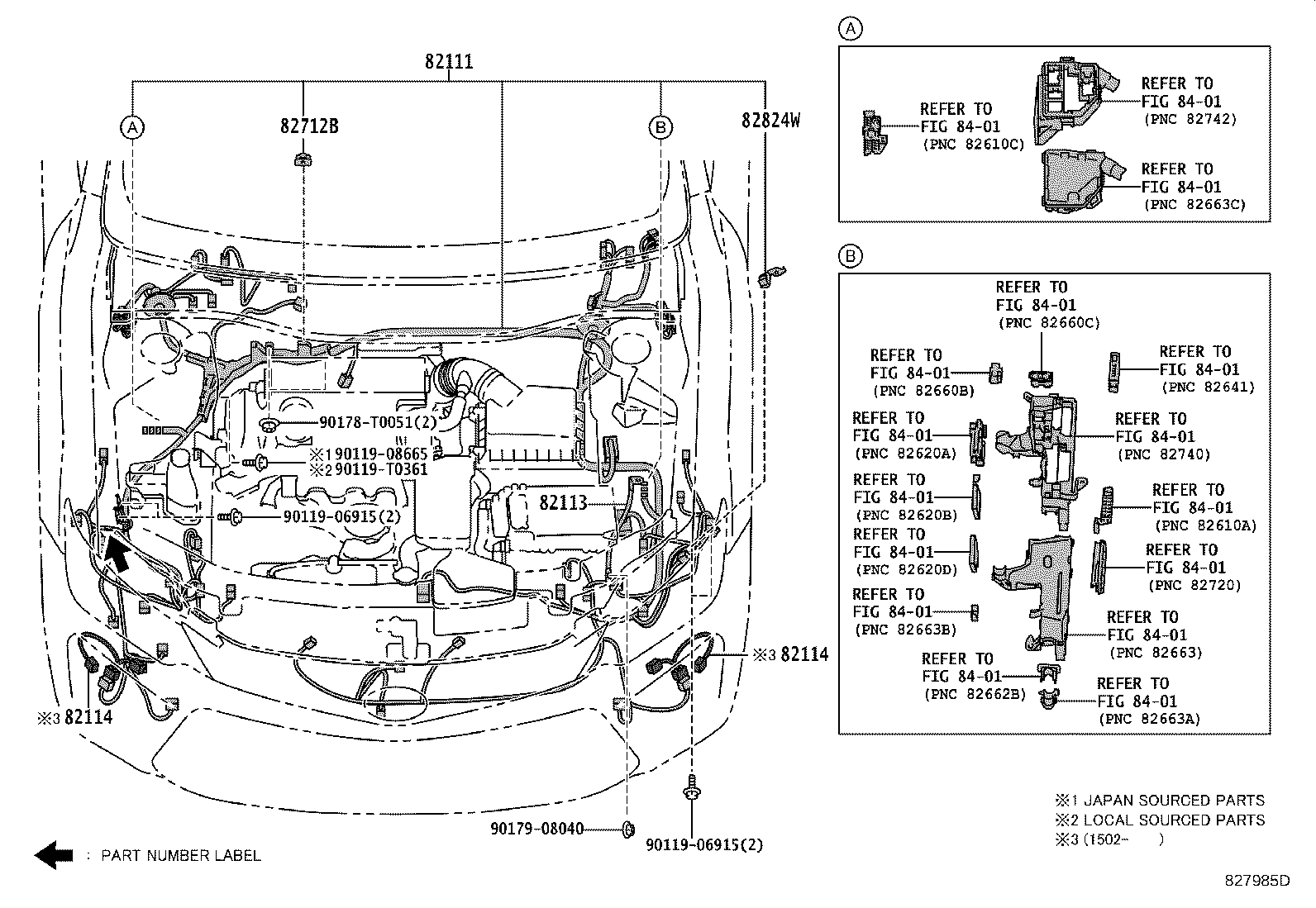

827985D

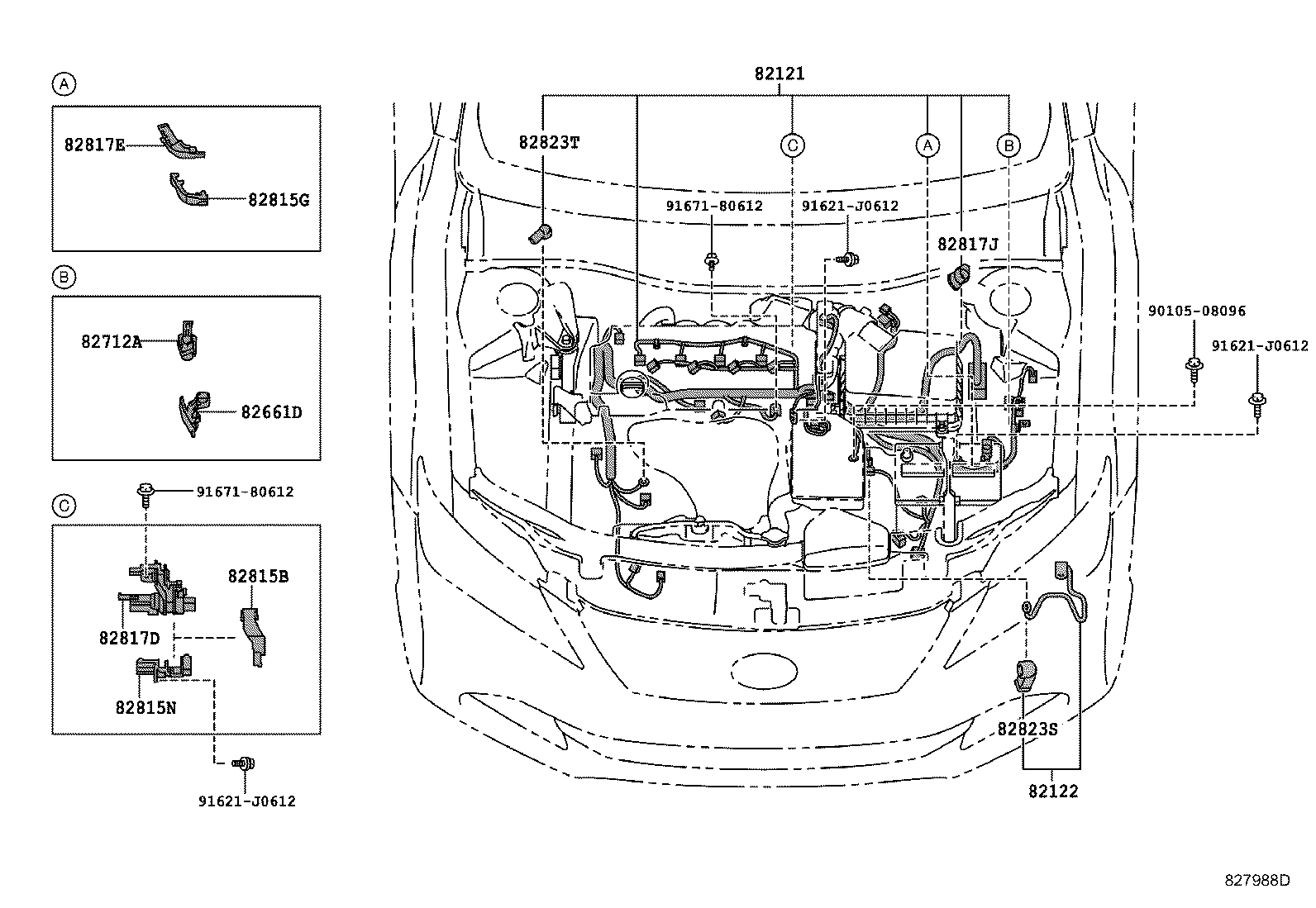

827988D

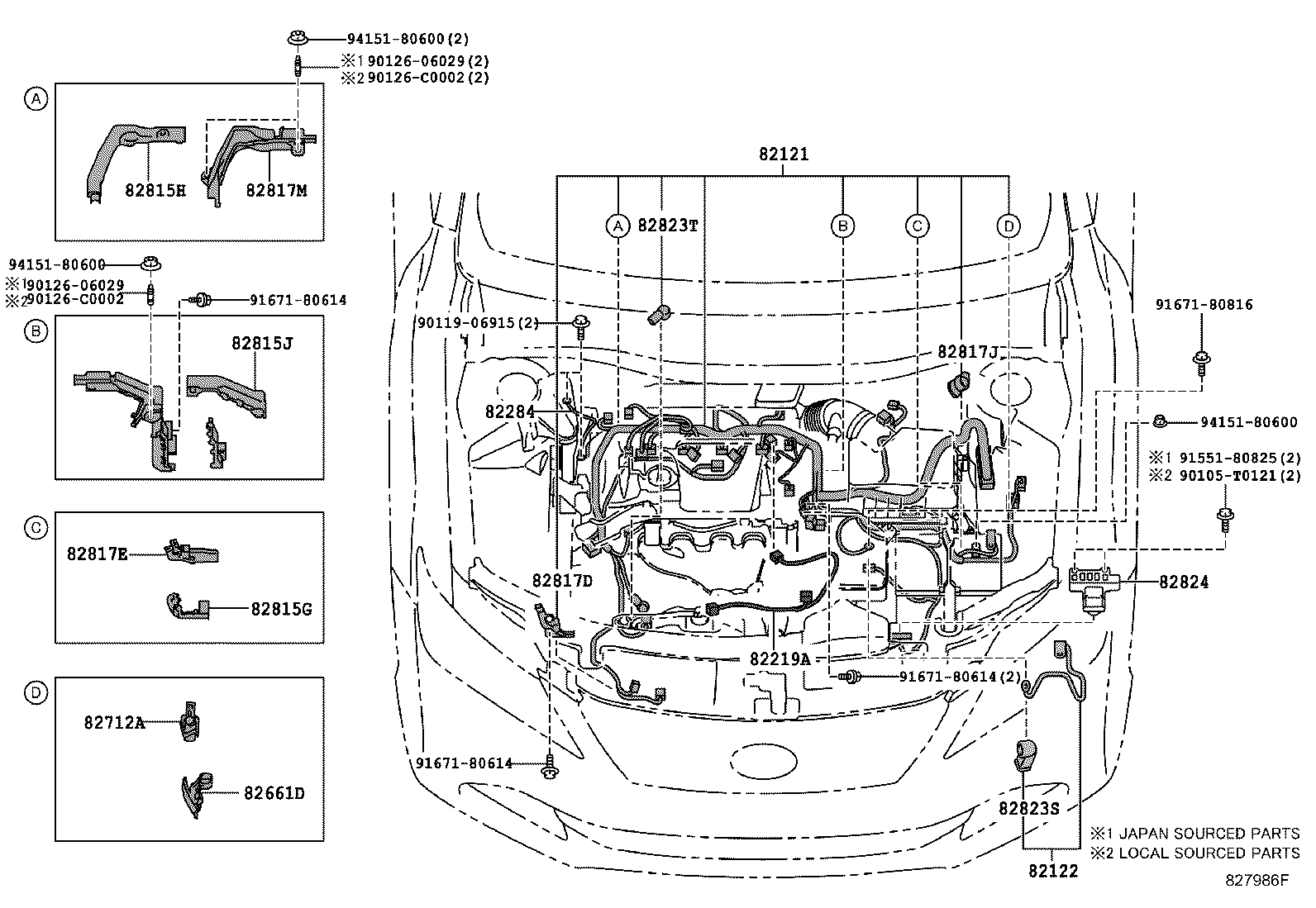

827986F

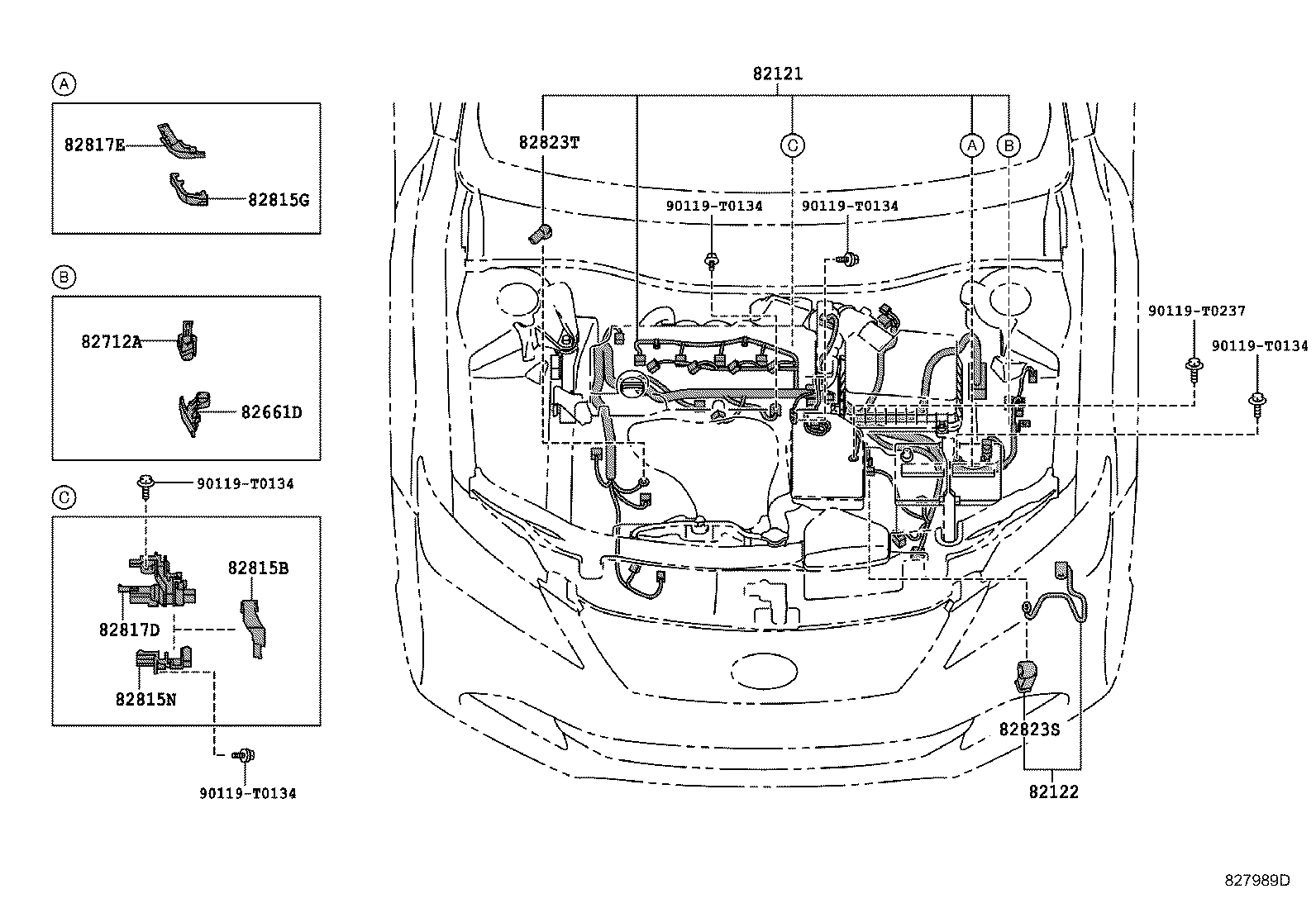

827989D
827989D
827989D

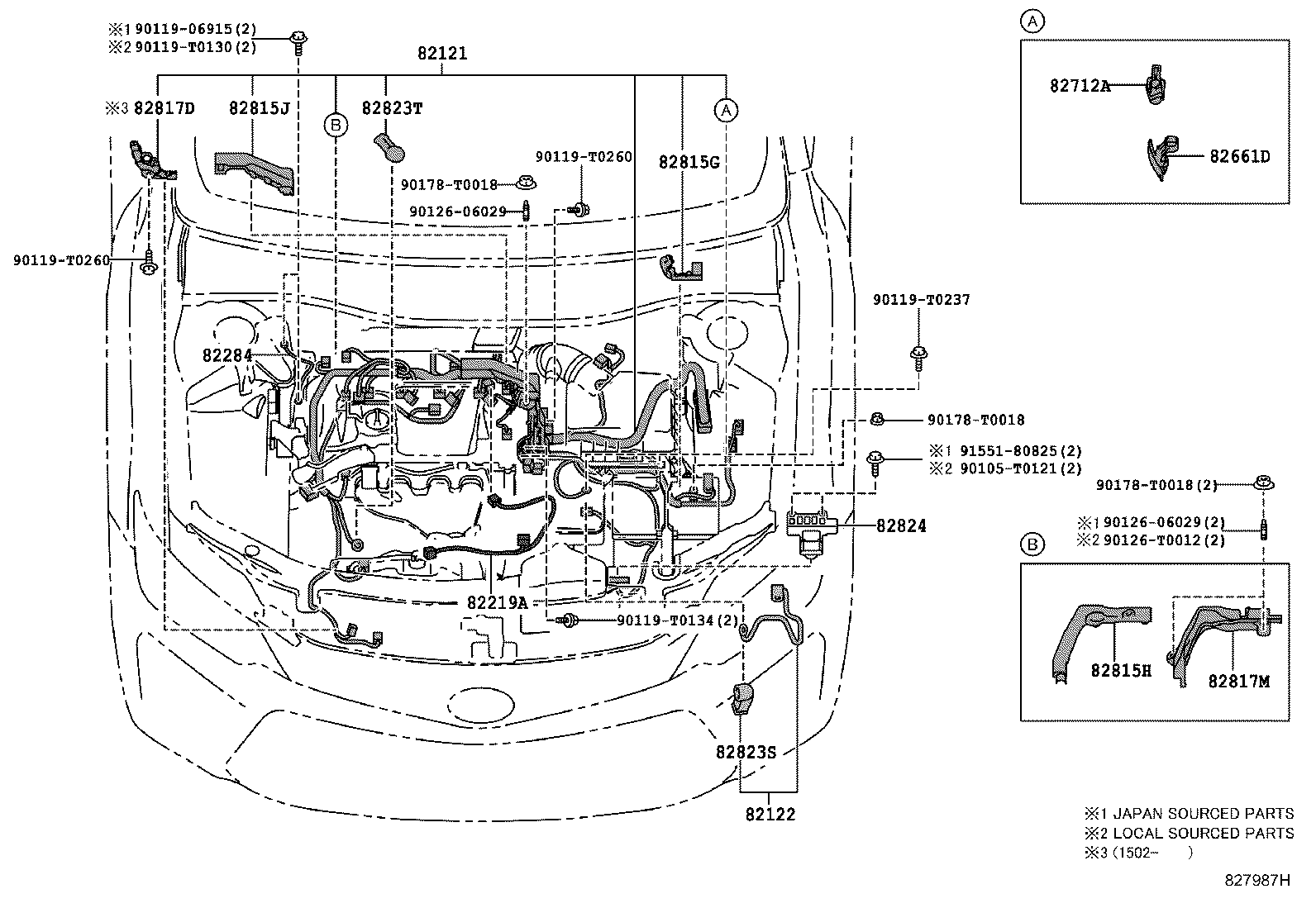

827987H

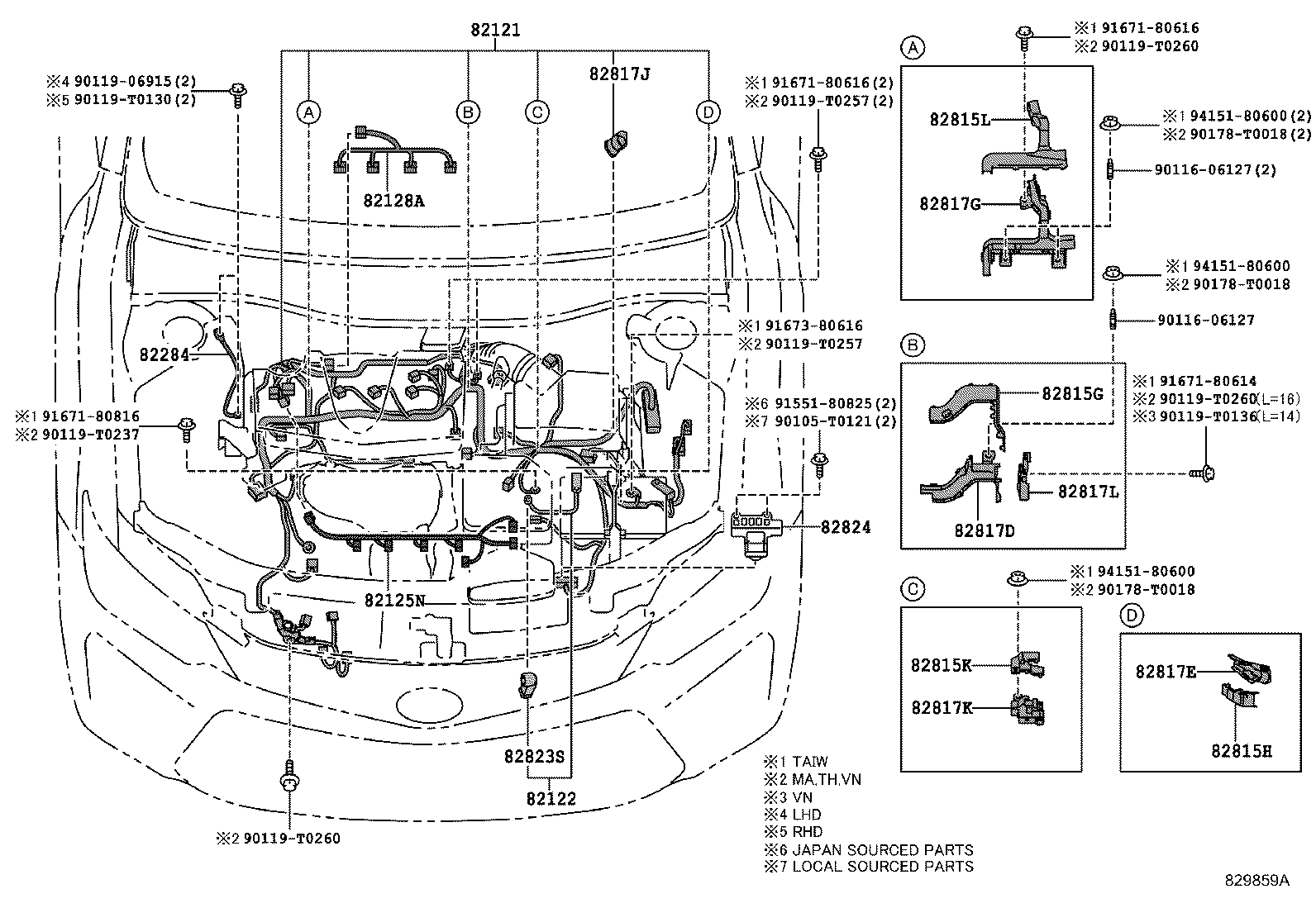

829859A
829859A
829859A
827990A

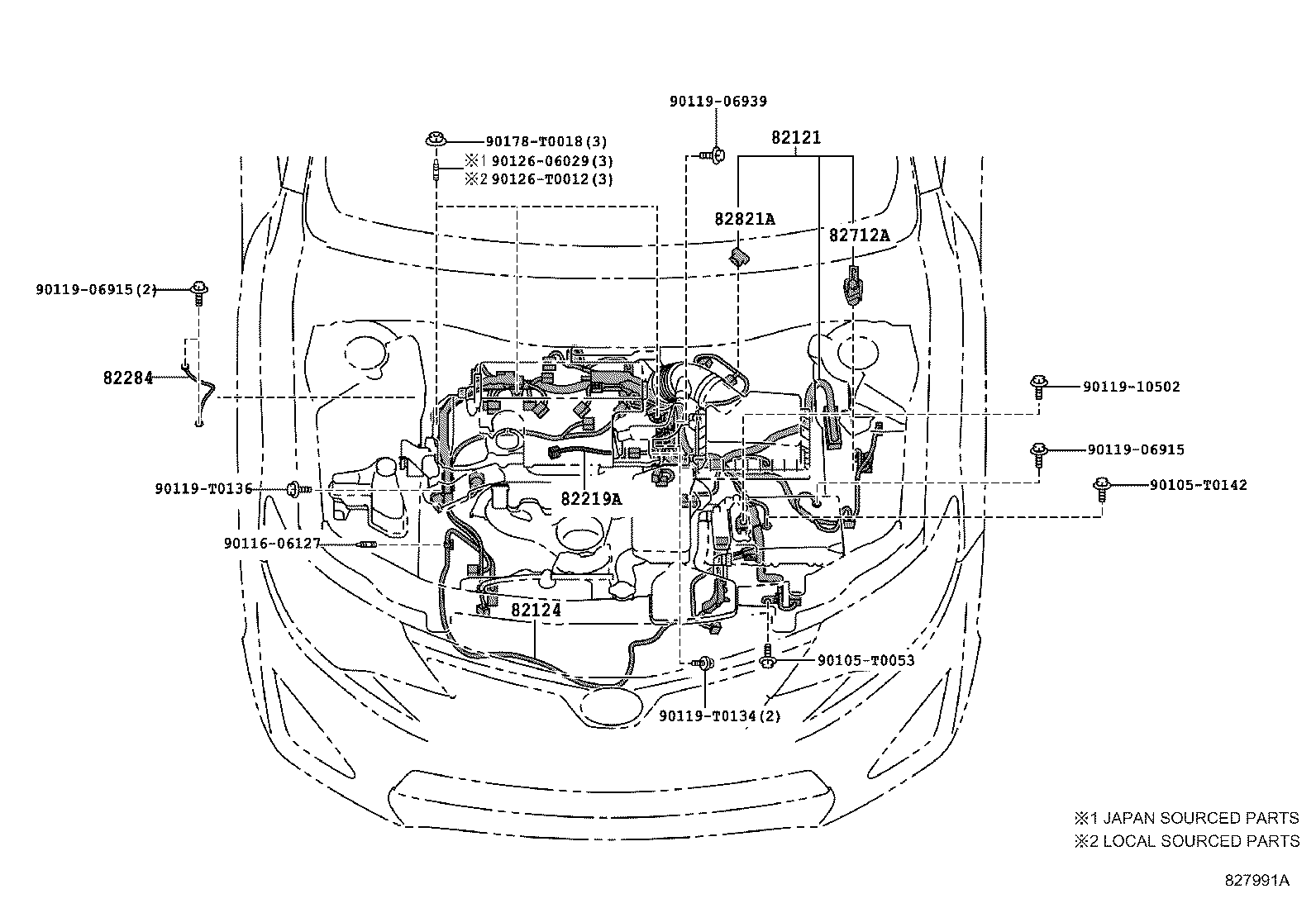

827991A
827991A
829860A
829860A
829860A
827992D

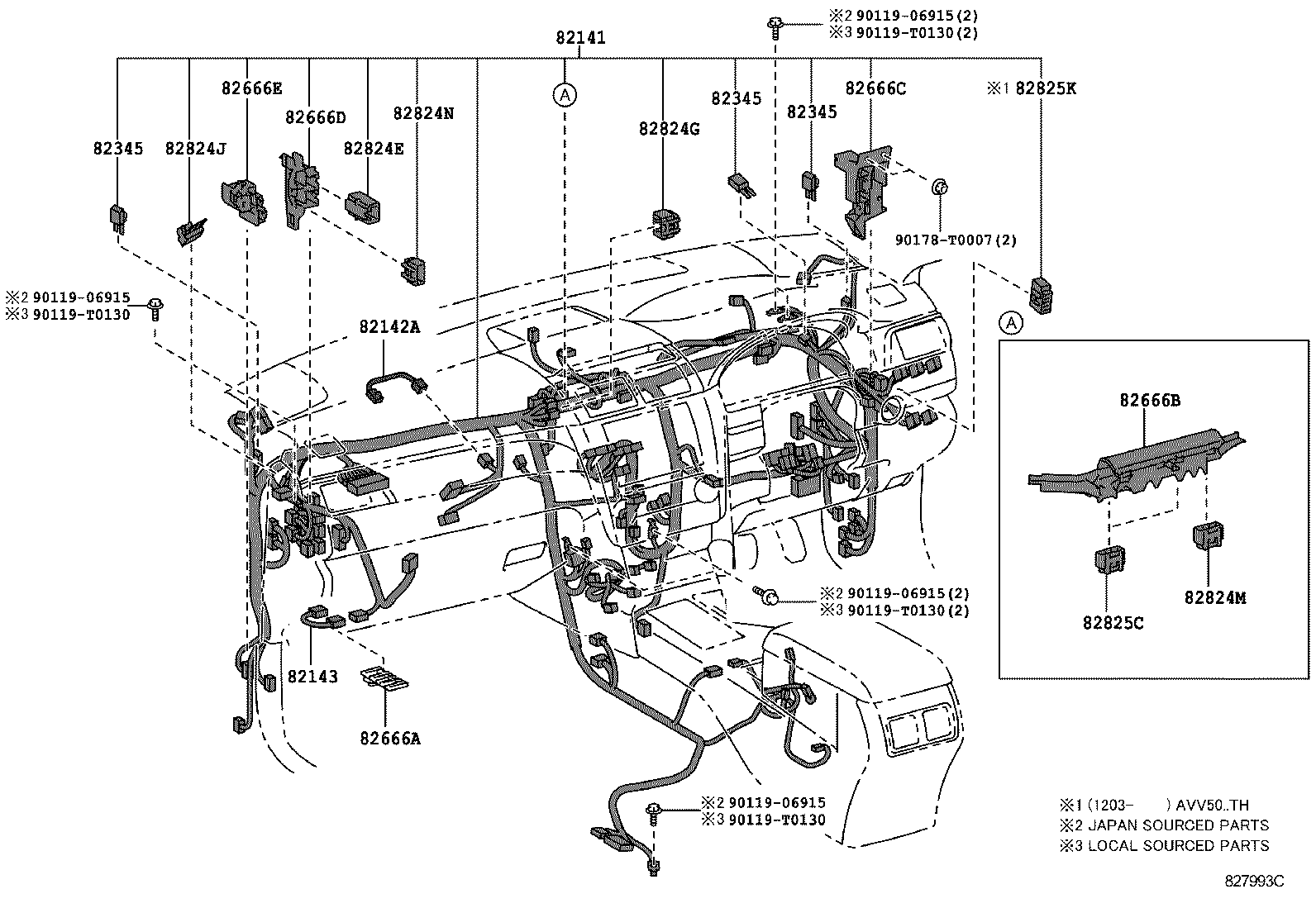

827993C

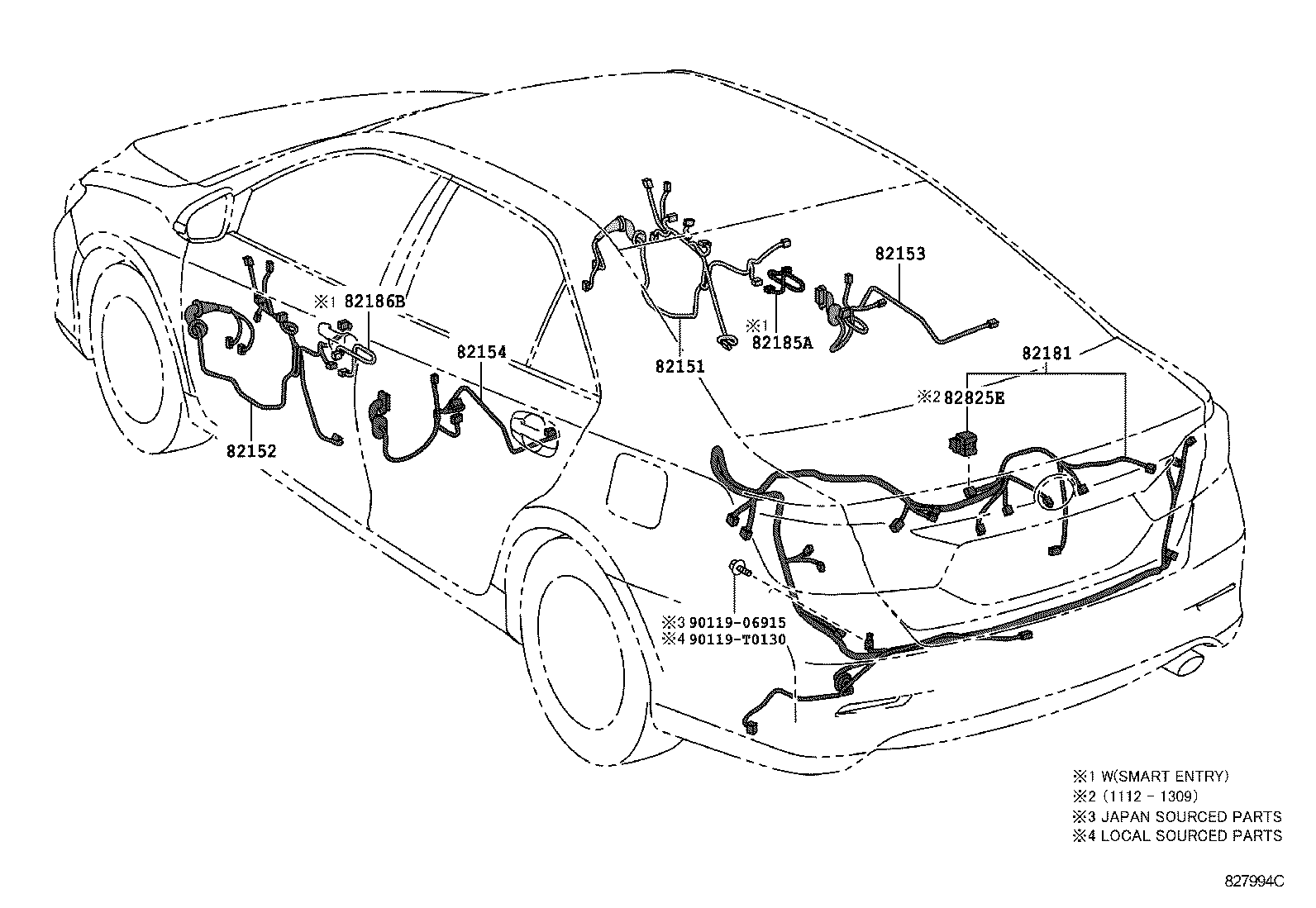

827994C

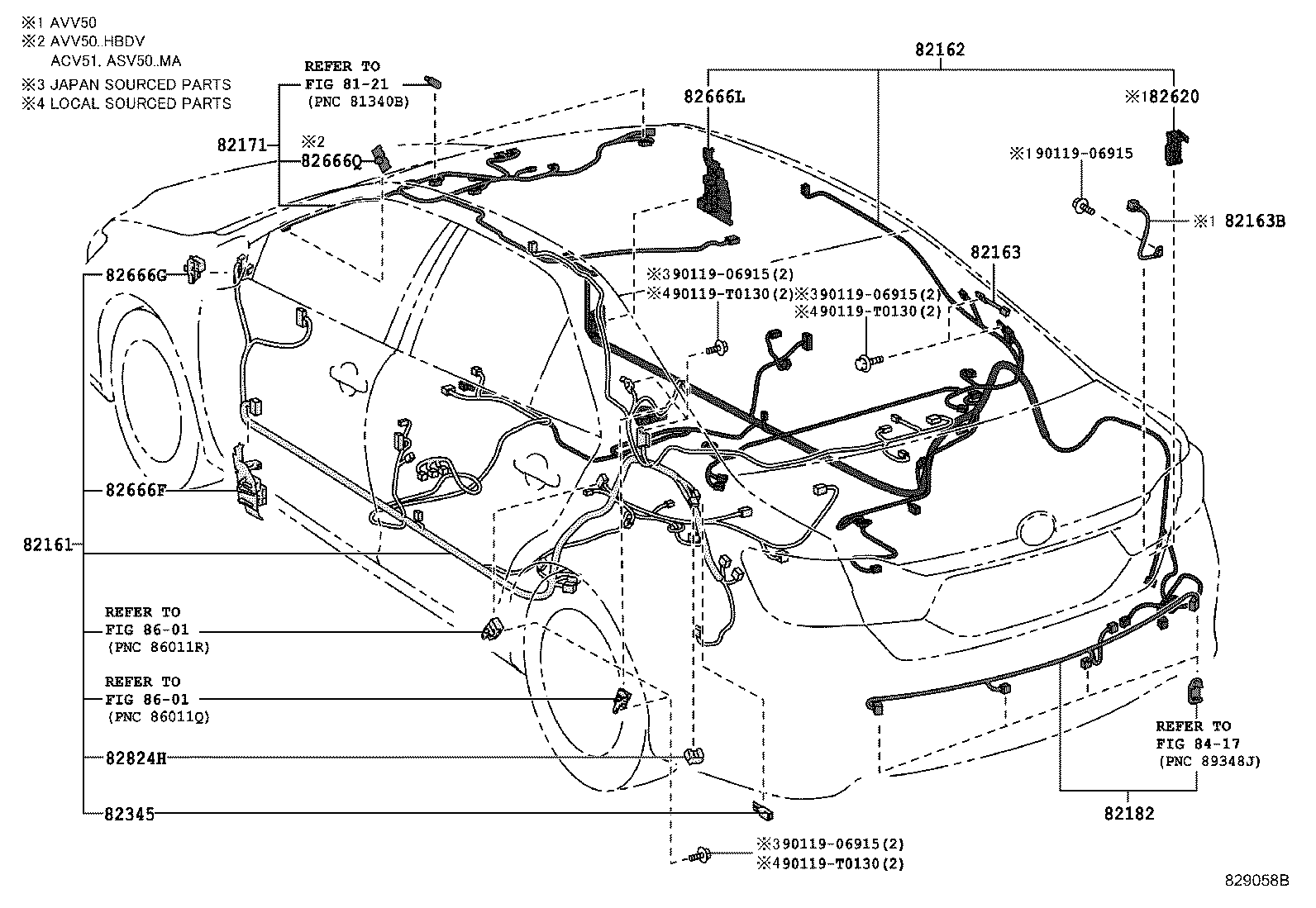

829058B
827996C

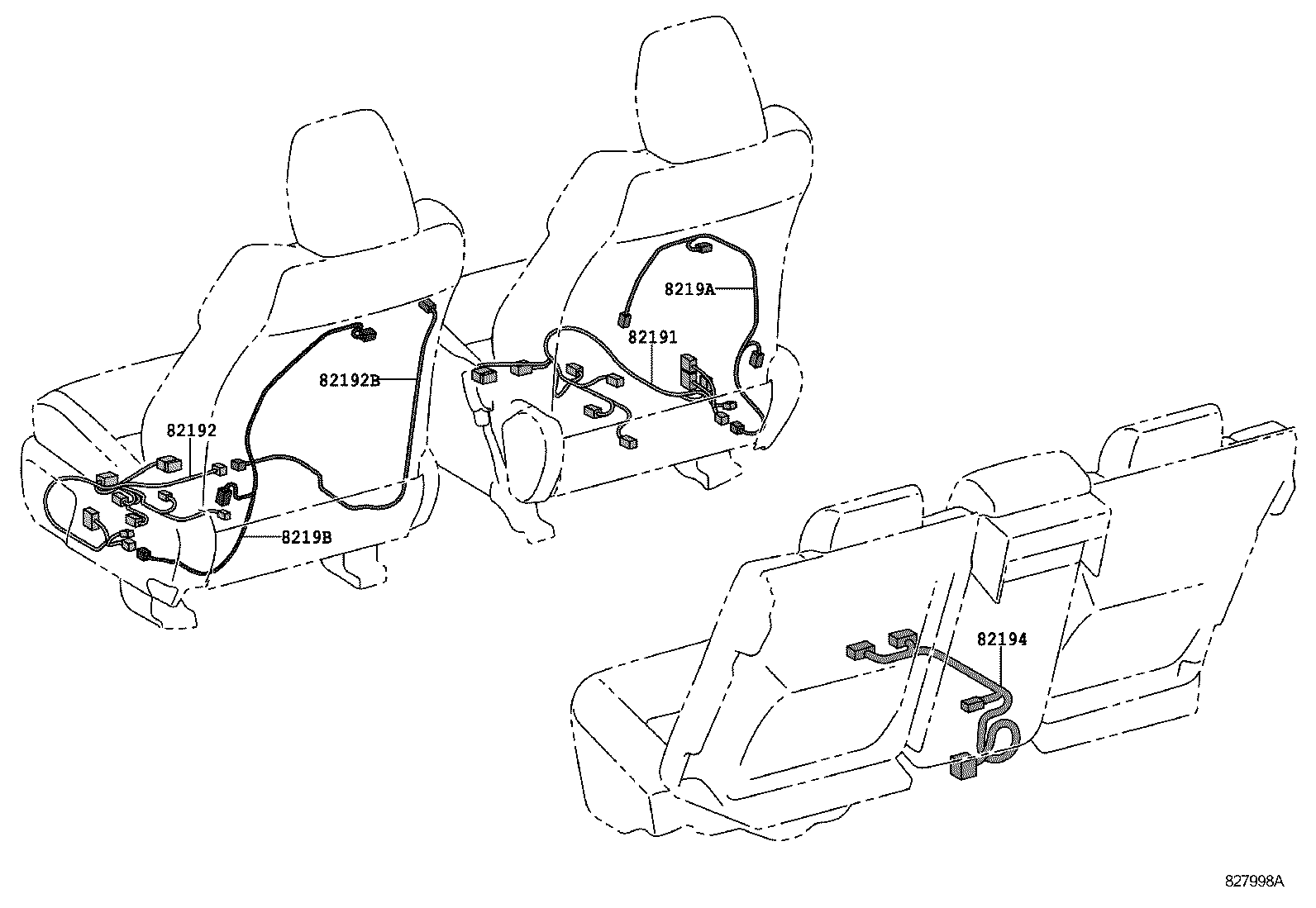

827997A
827998A

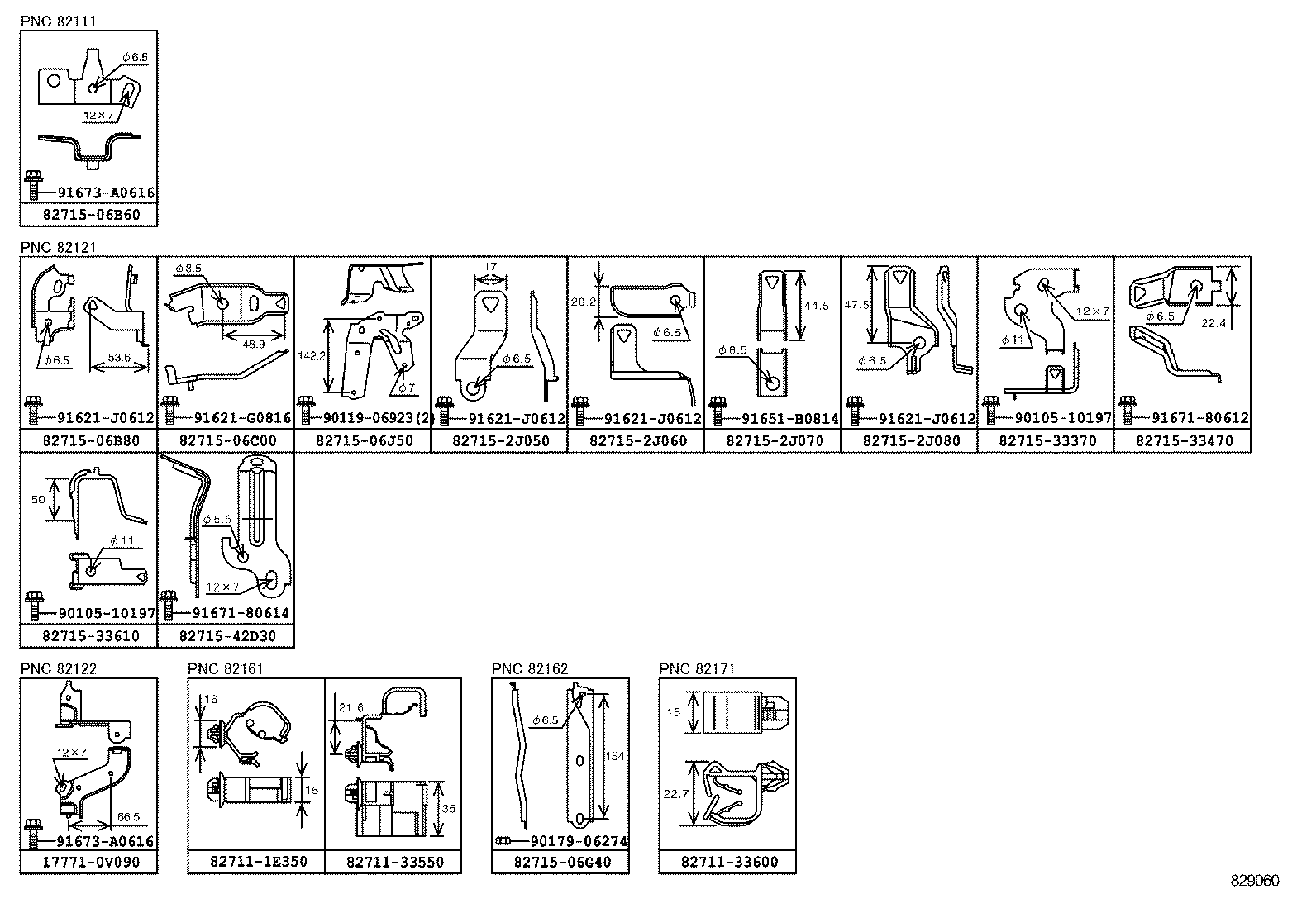

829060

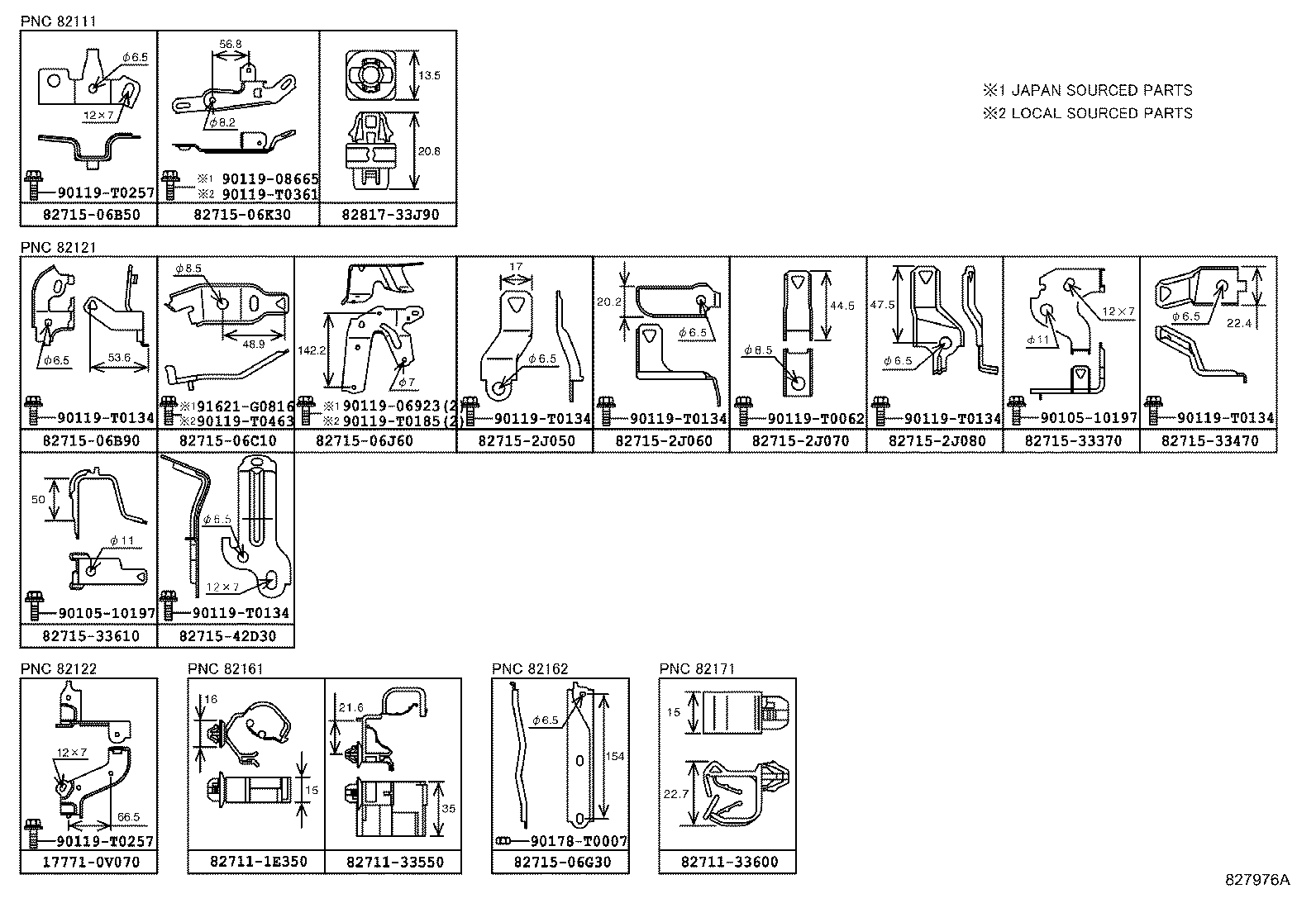

827976A

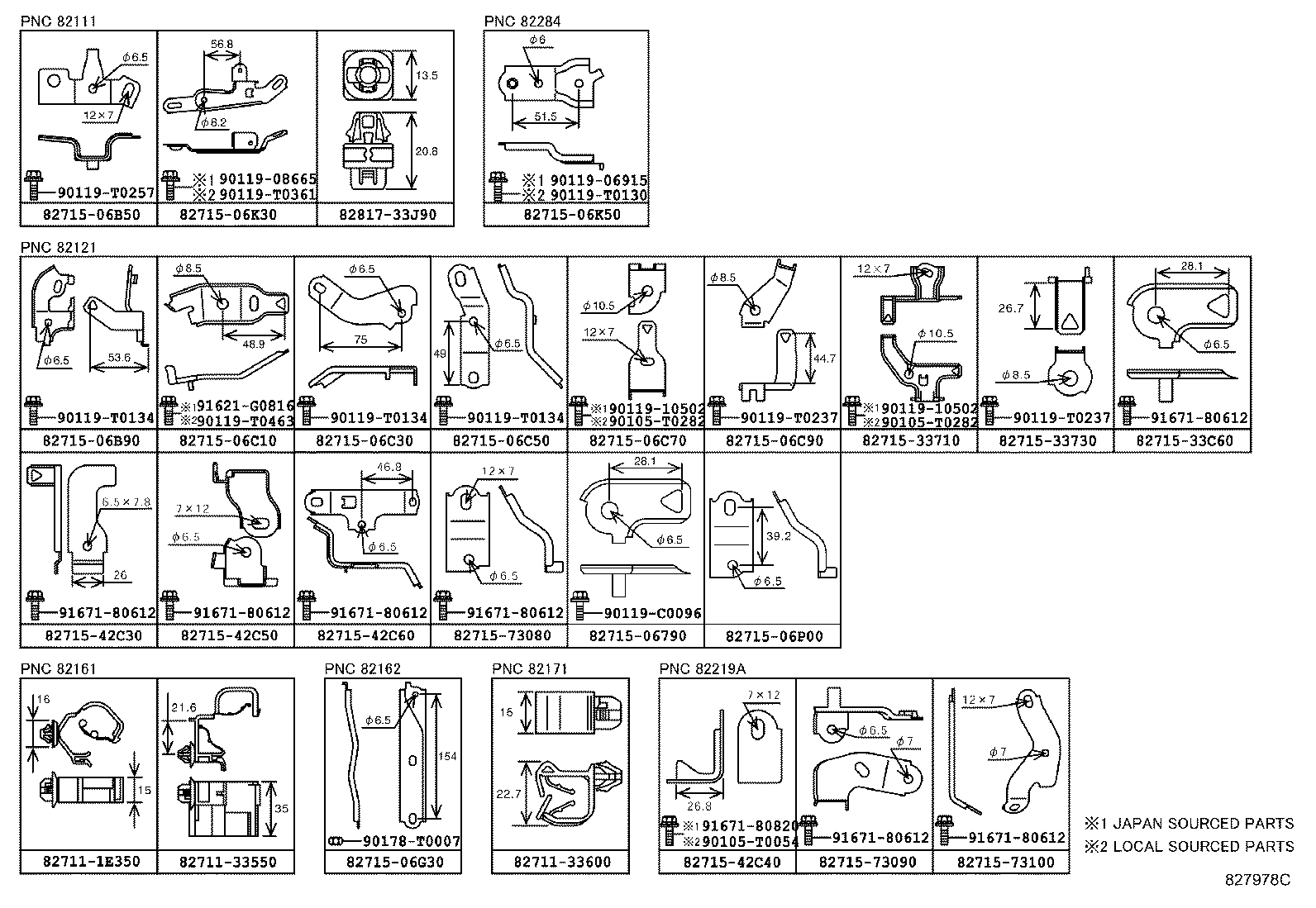

827978C

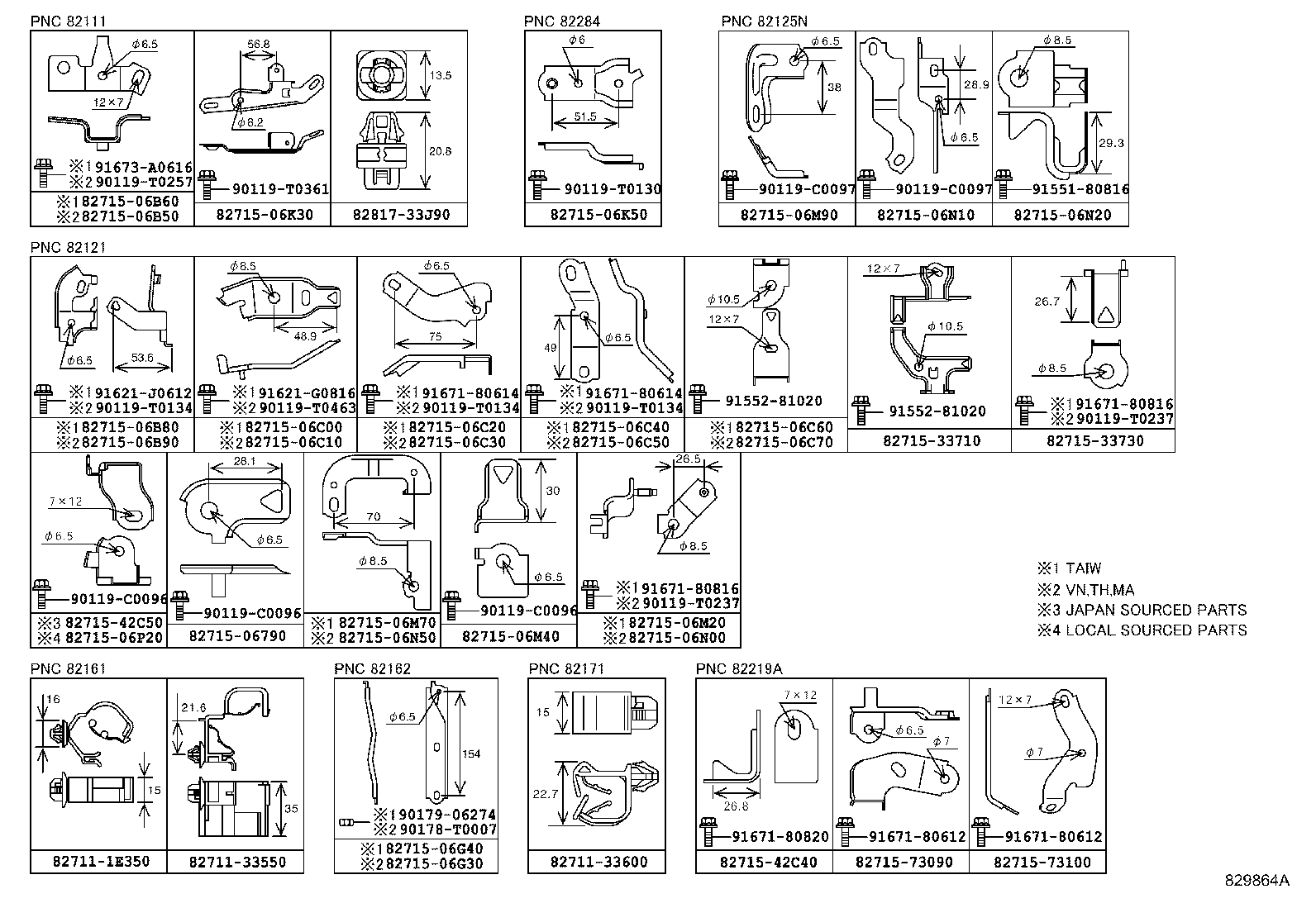

829864A
829864A
829864A
829573A

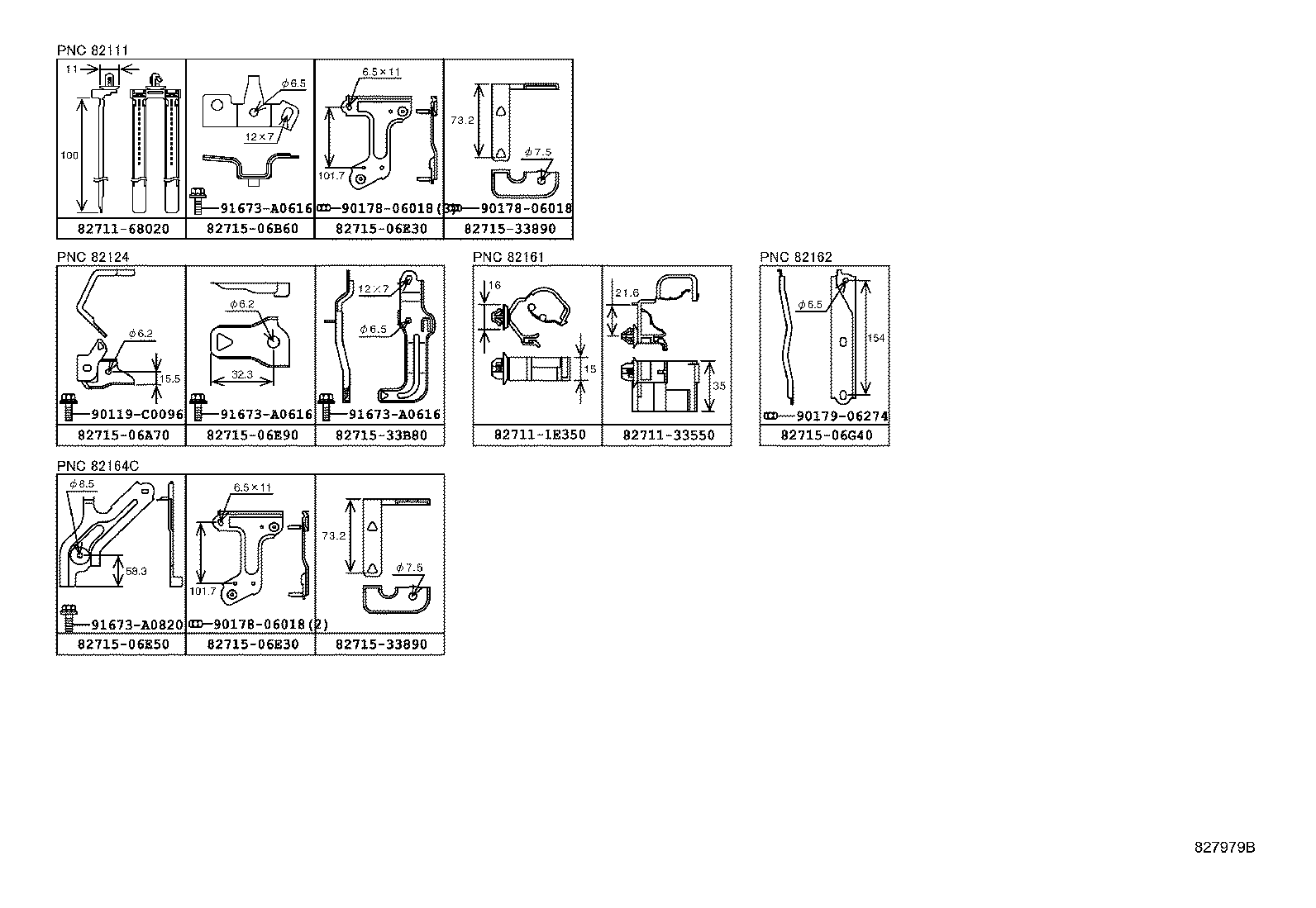

827979B
829061A

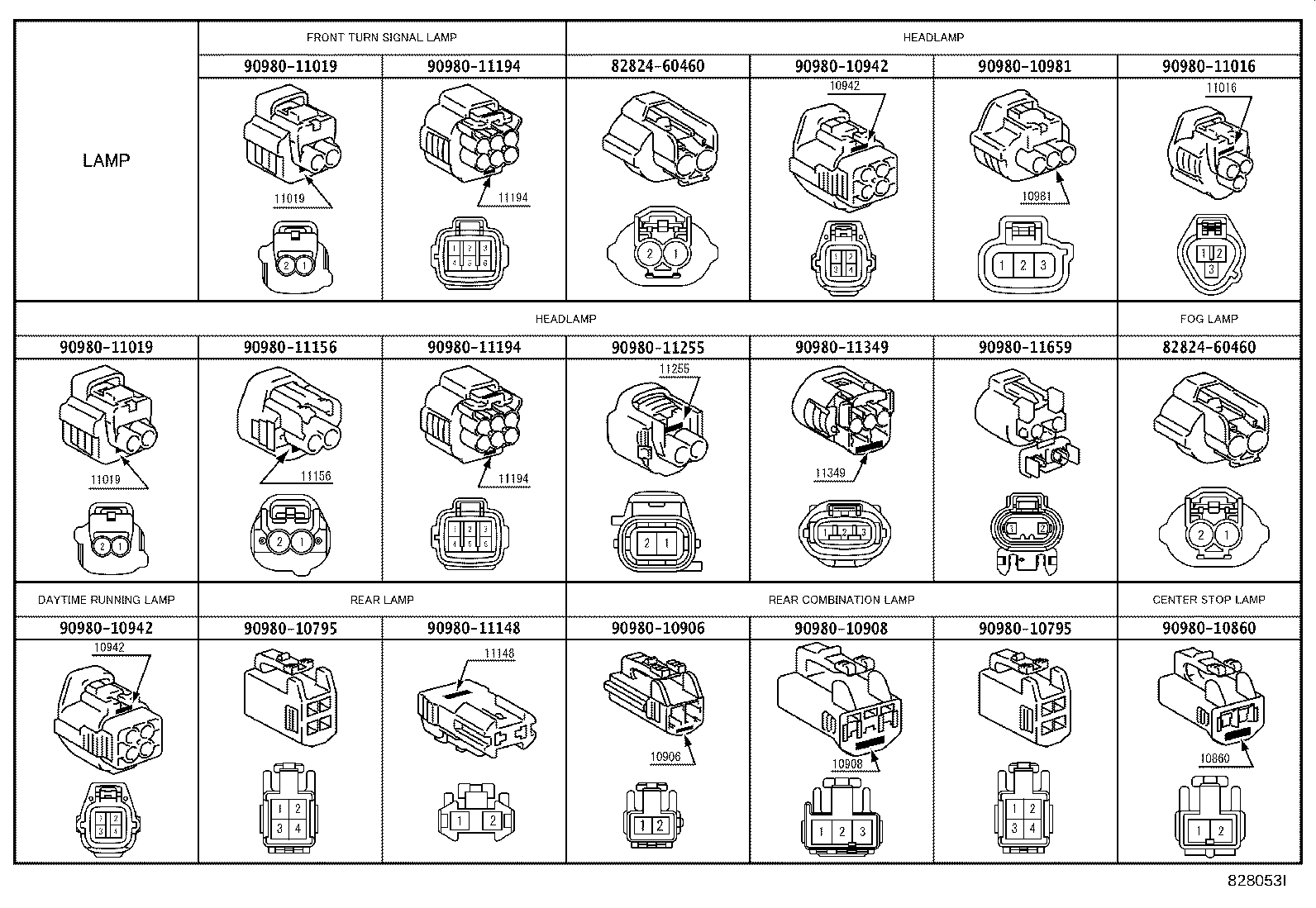

828053I
828151G

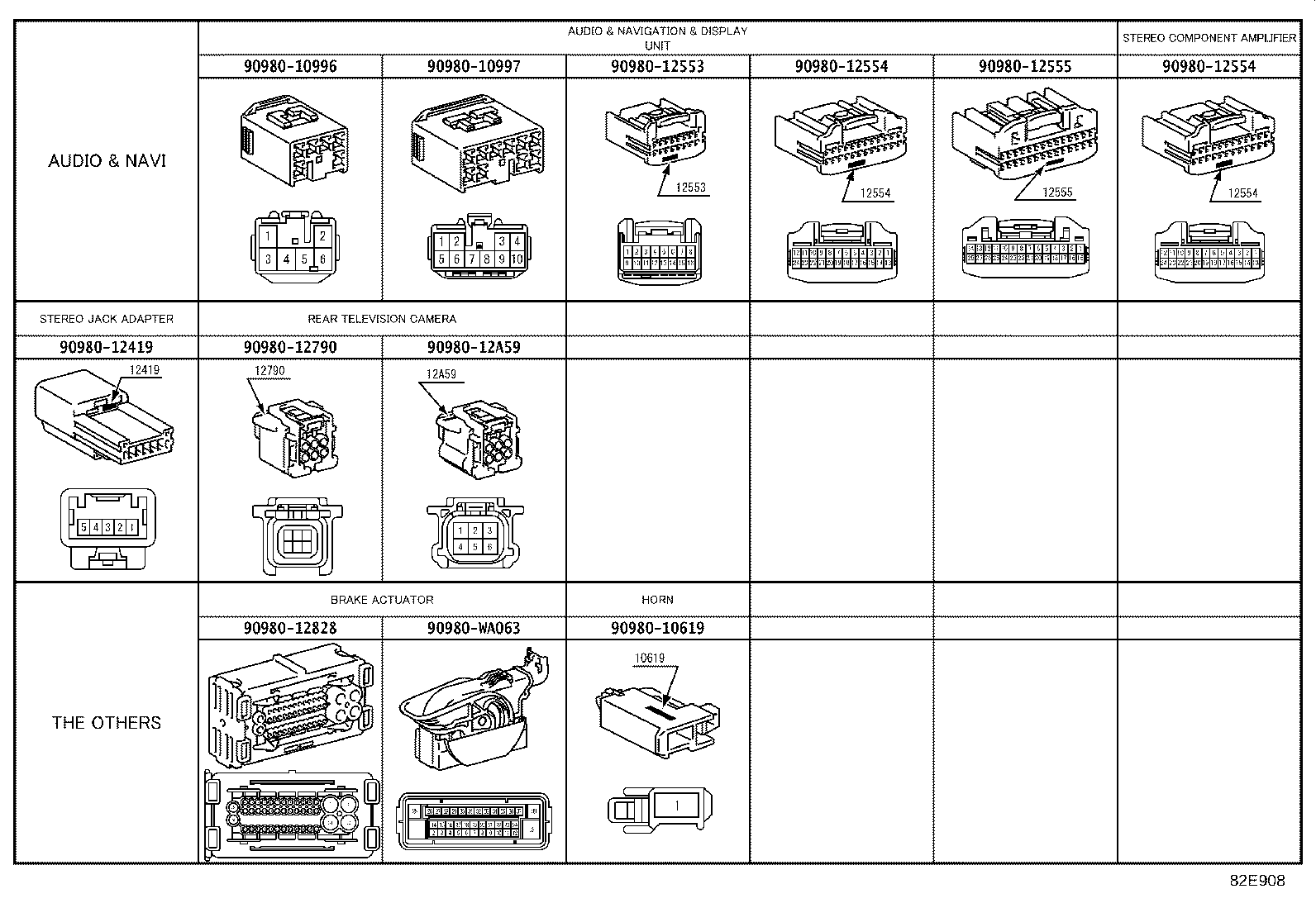

82E908

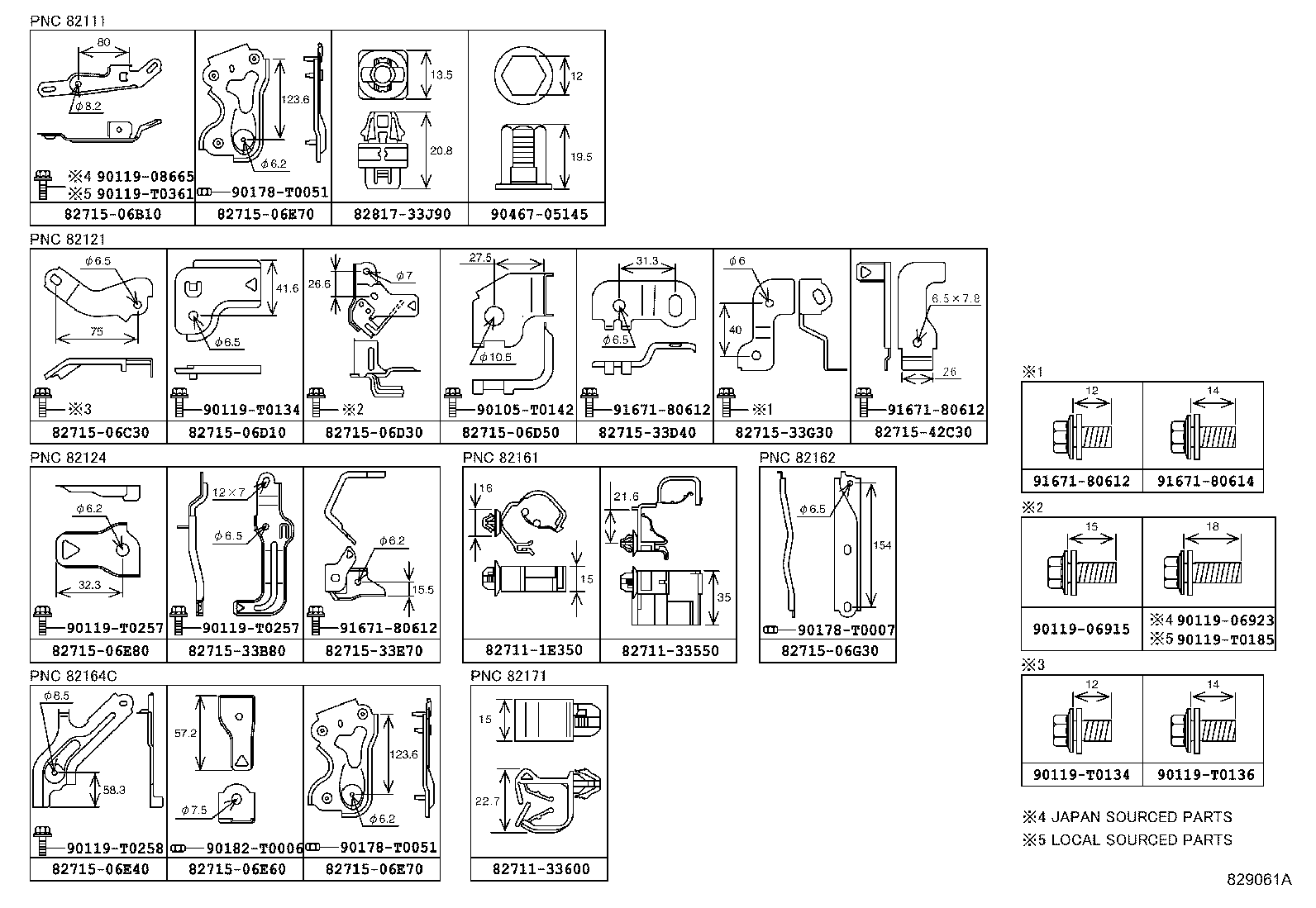

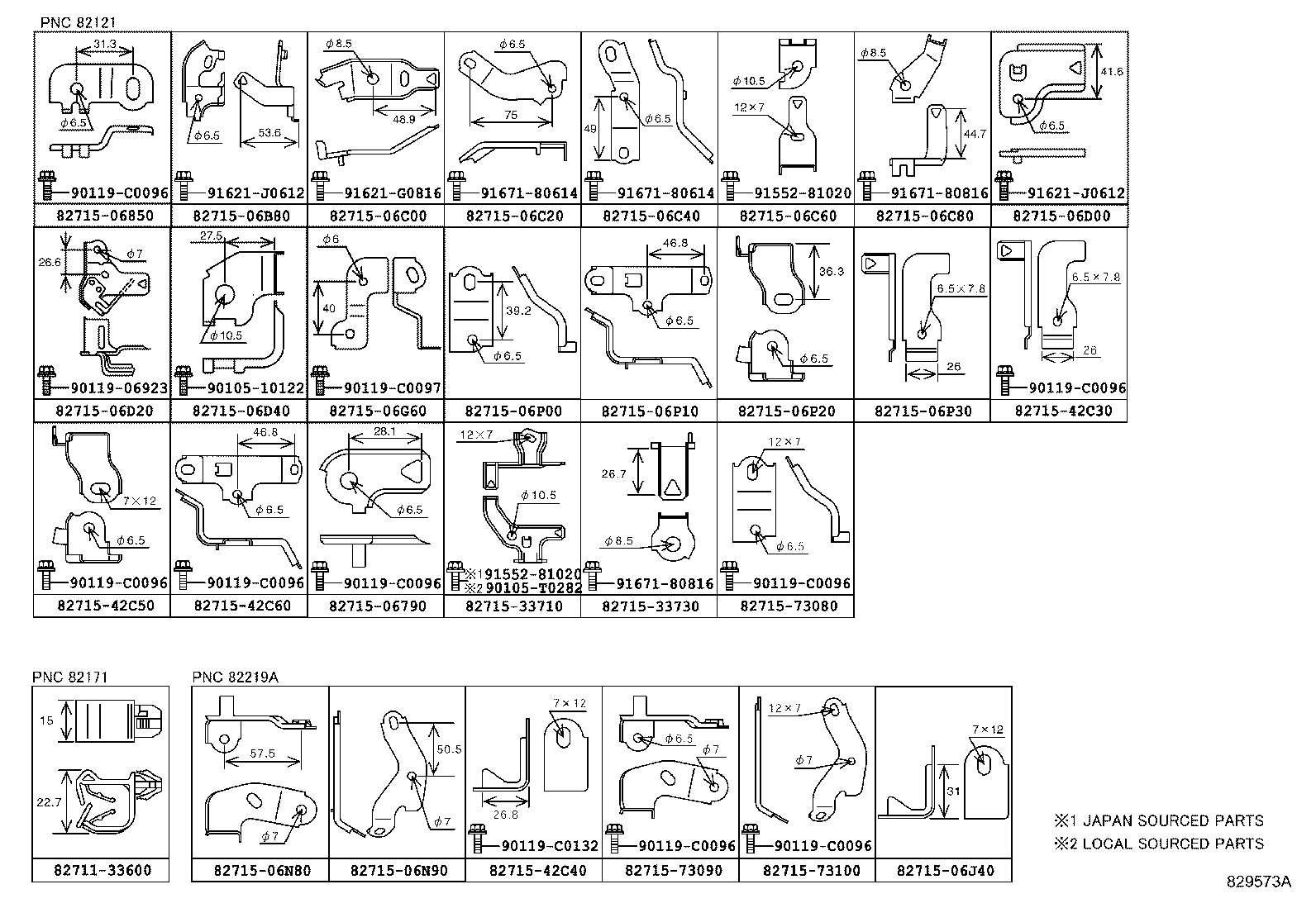

Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |

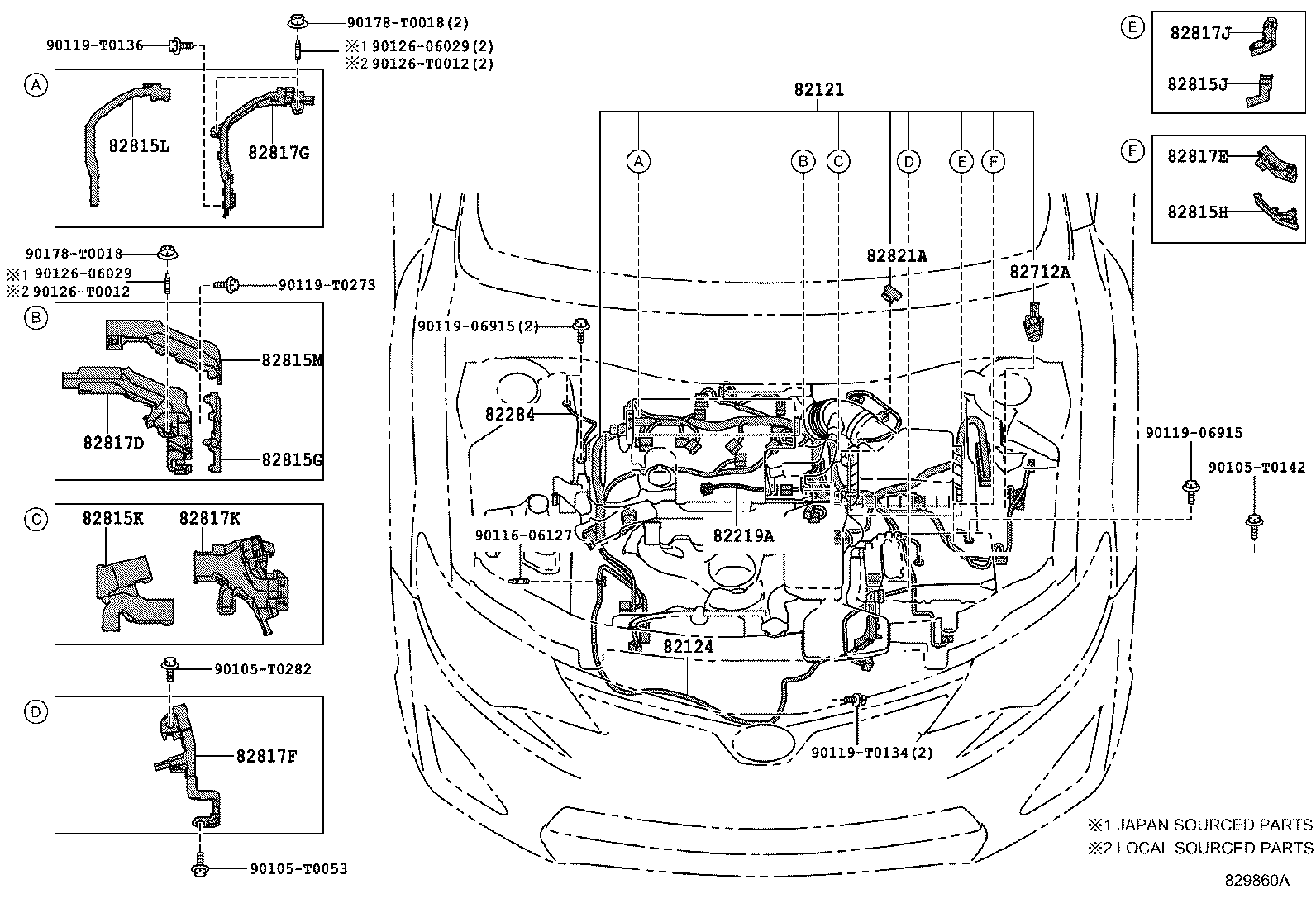

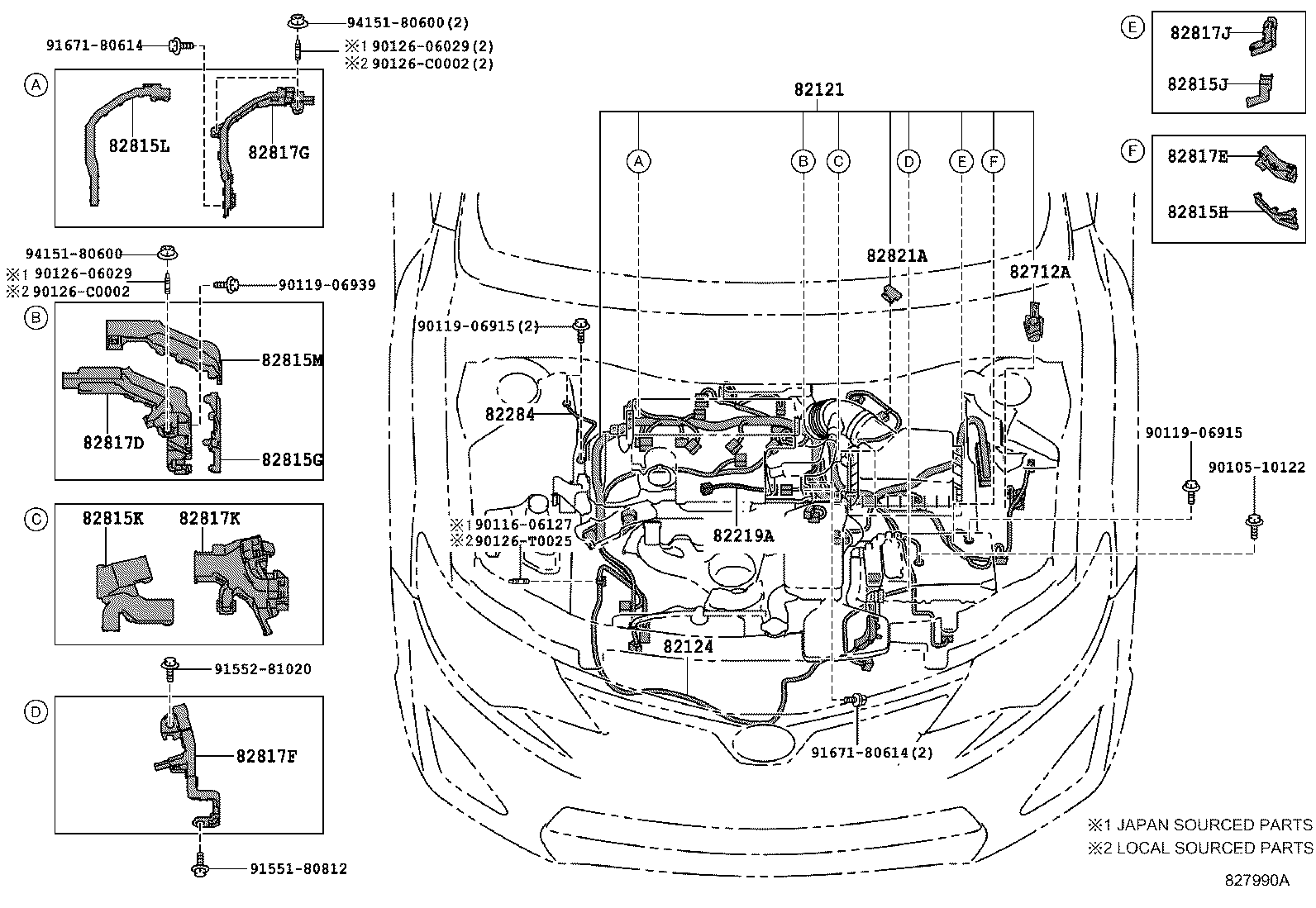

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |
| 82128A | Wire, Engine, NO.8 |

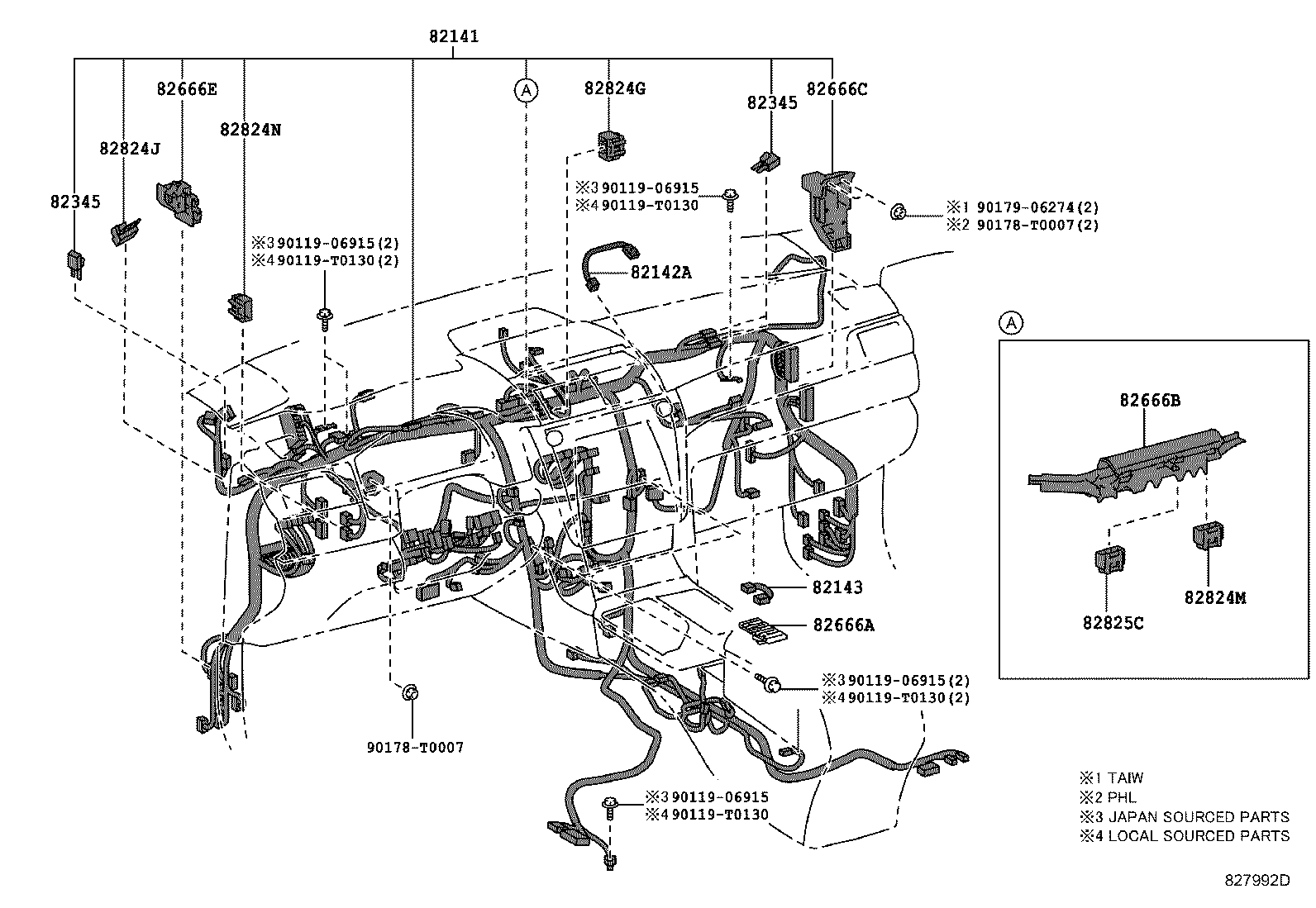

| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82163B | Wire, Floor NO.5 |

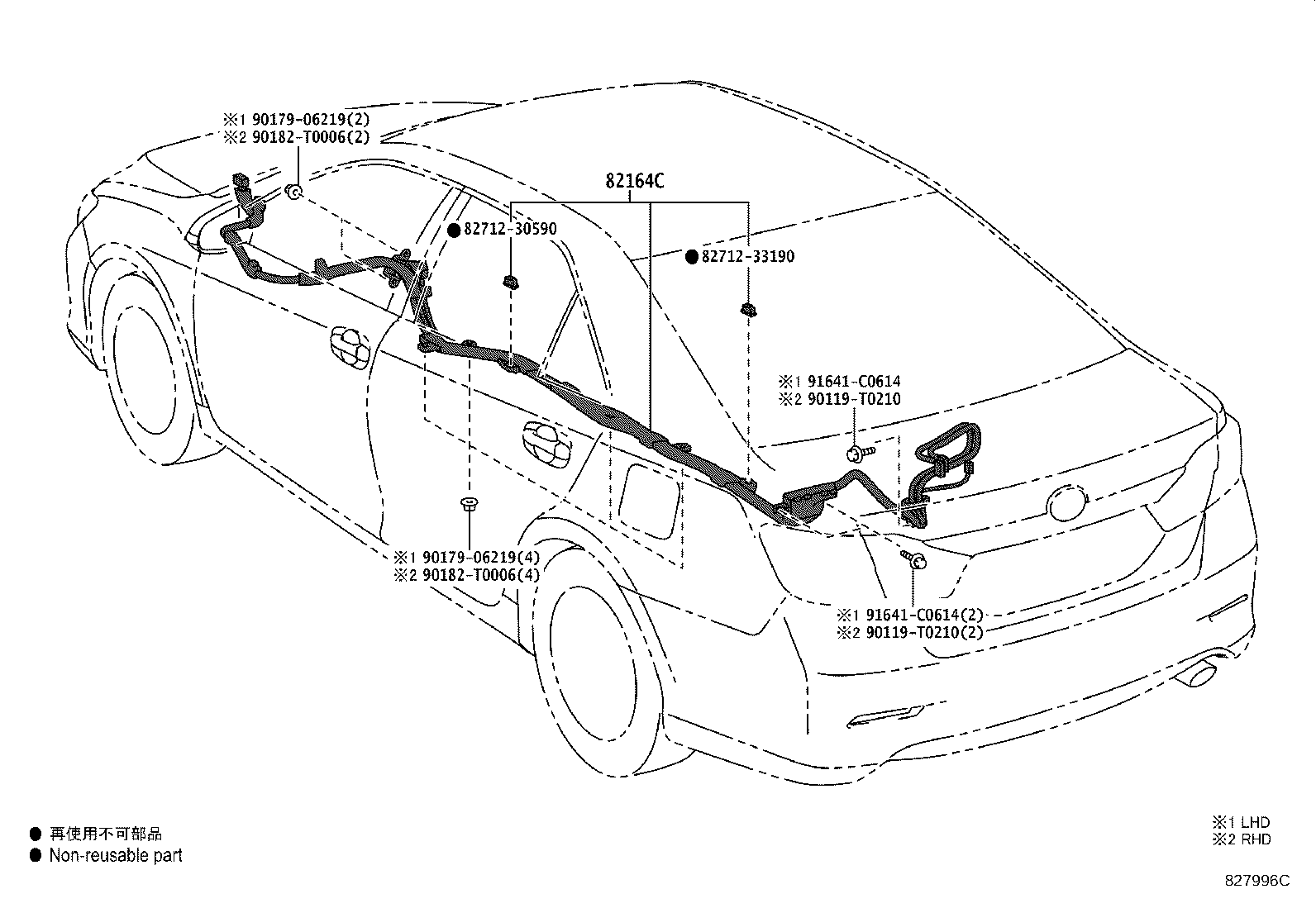

| 82164C | Wire, Floor, NO.4 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82185A | Wire, Smart Door, Front RH |
| 82186B | Wire, Smart Door, Front LH |

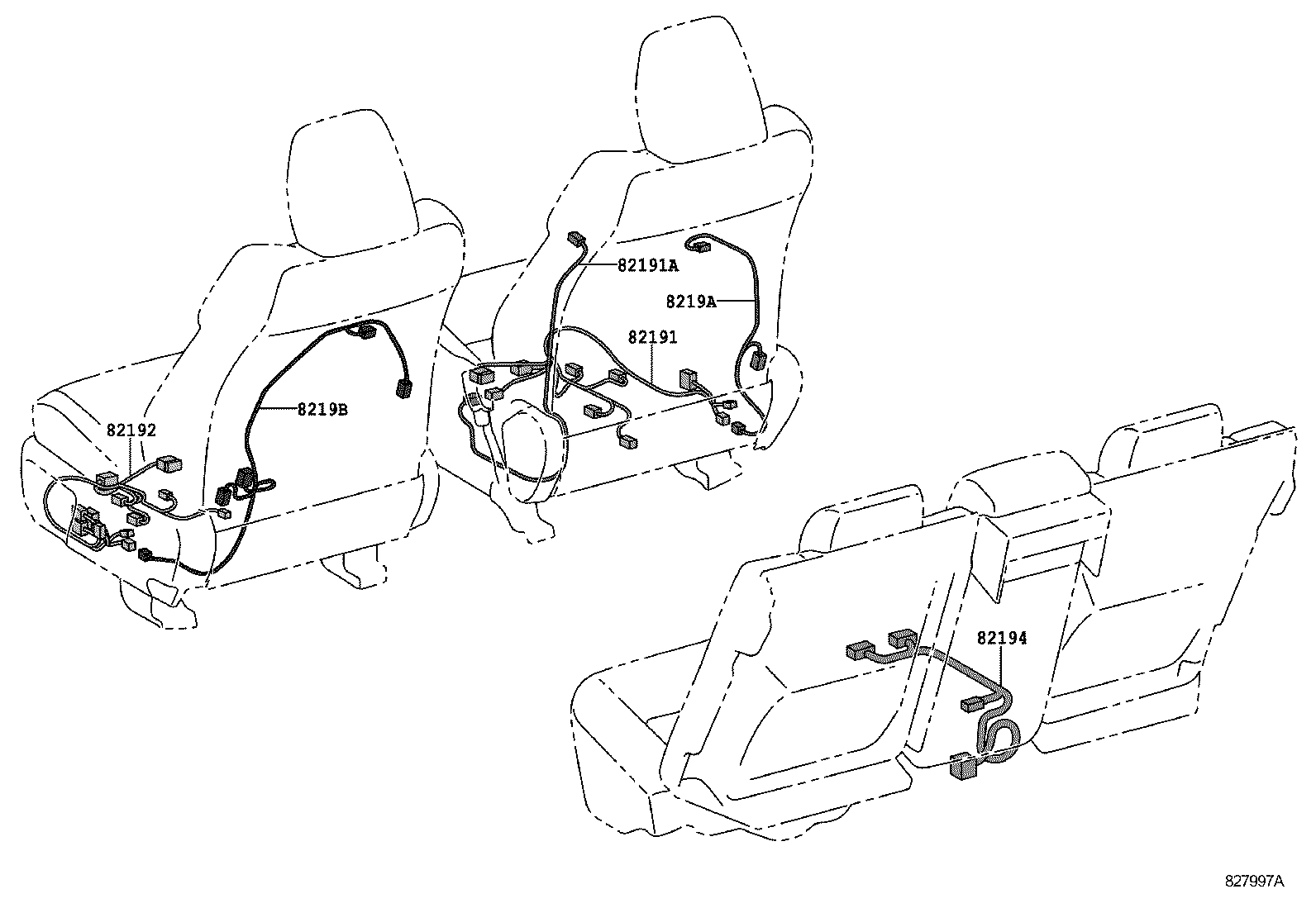

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 82194 | Wire, Rear Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82345 | Diode |
| 82620 | Block Assy, Fusible Link |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666Q | Holder, Connector NO.12 |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82821A | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82824A | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824H | Connector, Wiring Harness |
| 82824J | Connector, Wiring Harness |
| 82824M | Connector, Wiring Harness |
| 82824N | Connector, Wiring Harness |
| 82824P | Connector, Wiring Harness |
| 82824W | Connector, Wiring Harness |
| 82825C | Connector, Wiring Harness |
| 82825E | Connector, Wiring Harness |
| 82825K | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
