Toyota Camry/Hybrid (ASIA)
2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General
Supported model
Data version 2020-12

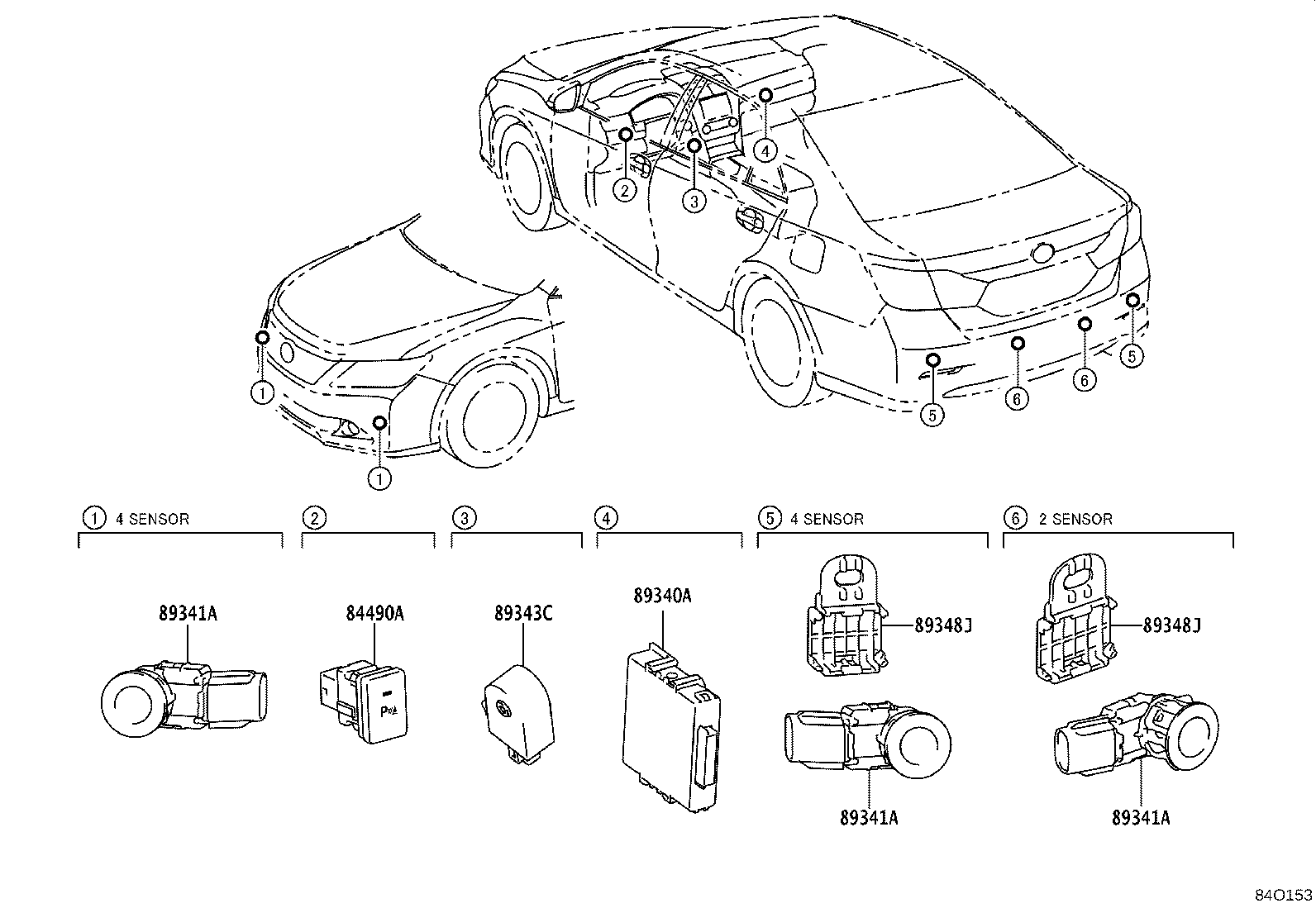

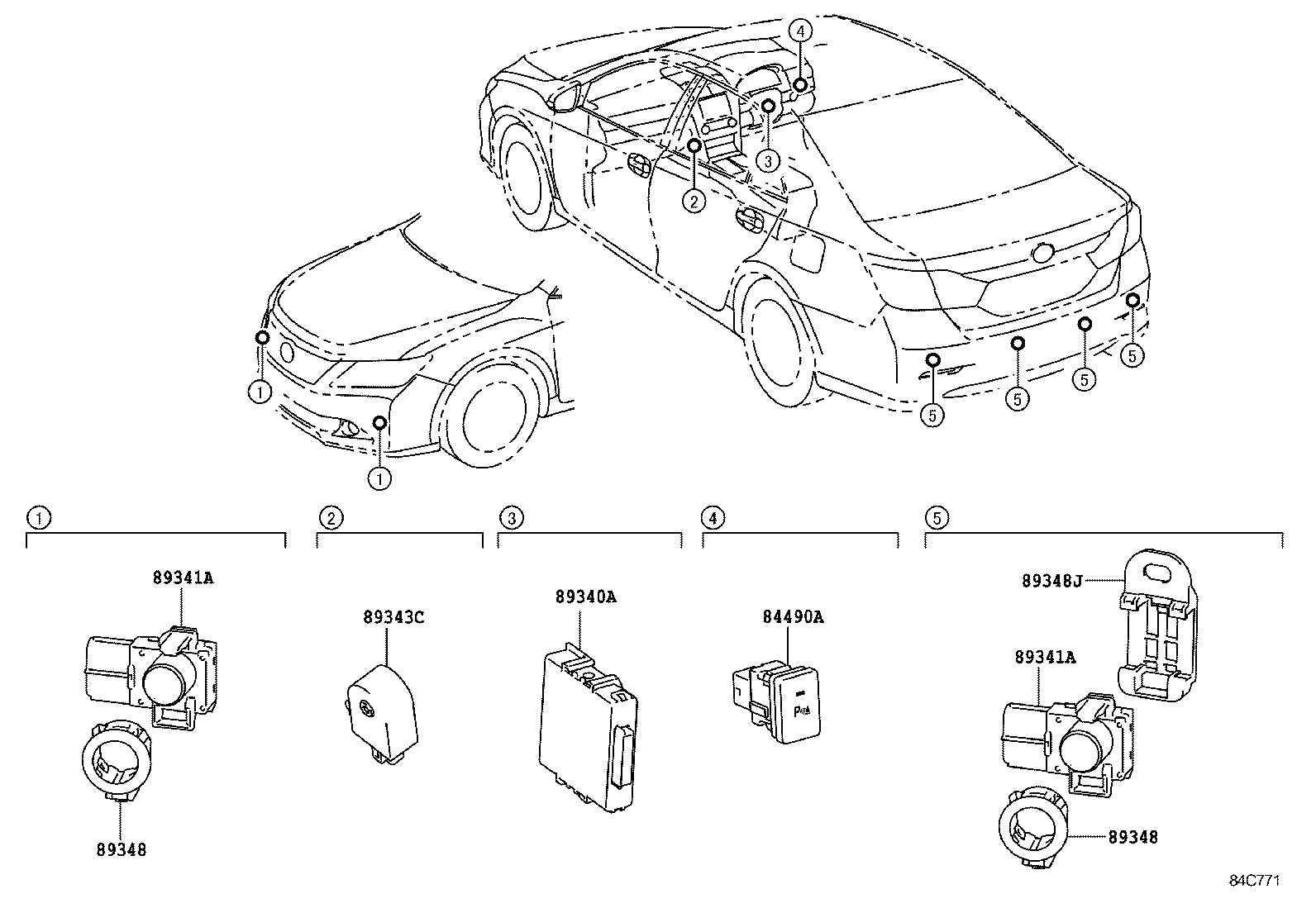

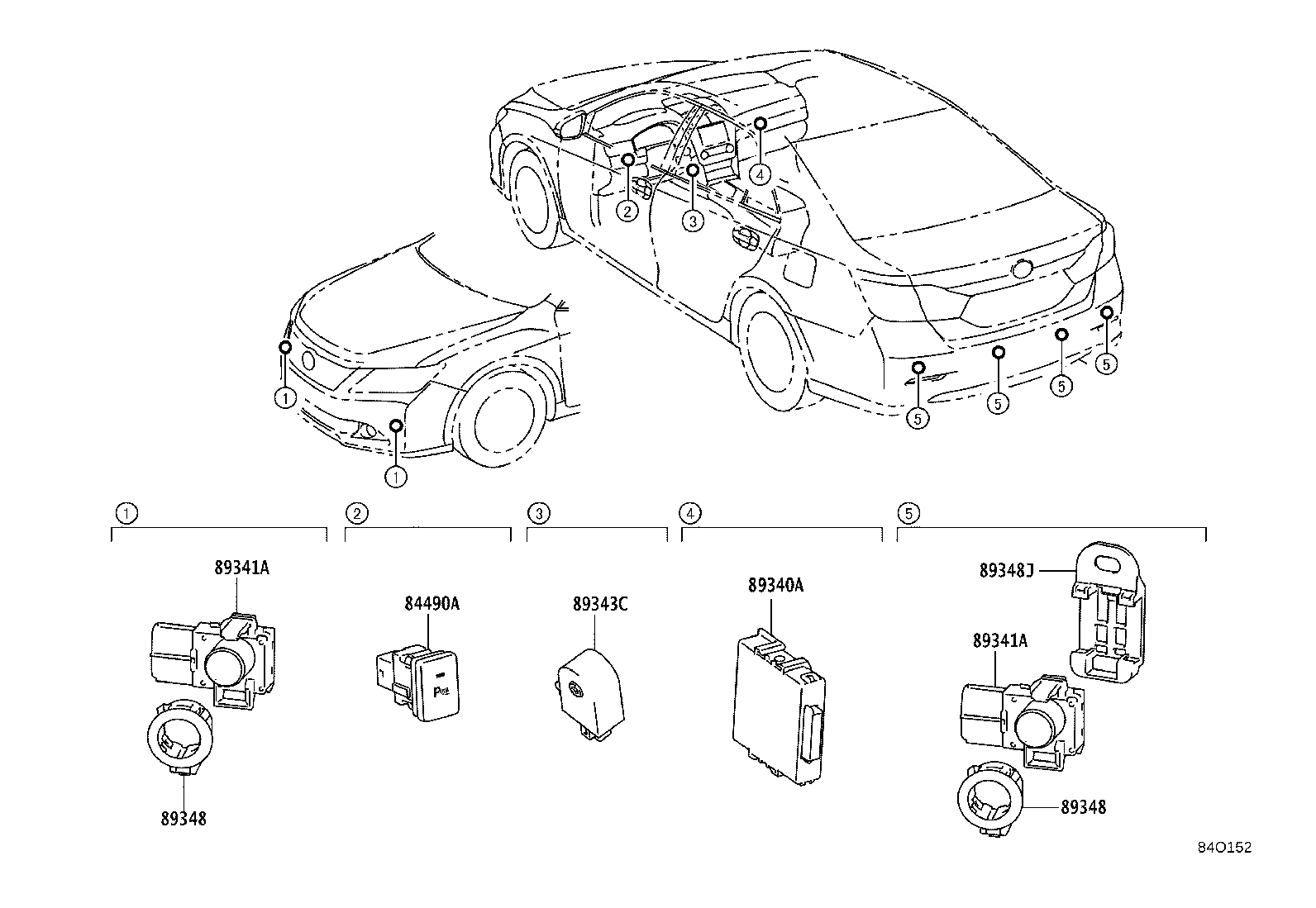

Clearance & Back Sonar
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 84490A | Switch Assy, Back Sonar OR Clearance Sonar |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348 | Retainer, Ultrasonic Sensor, NO.1 |
| 89348J | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
