Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 12 illustrations

Illustrations

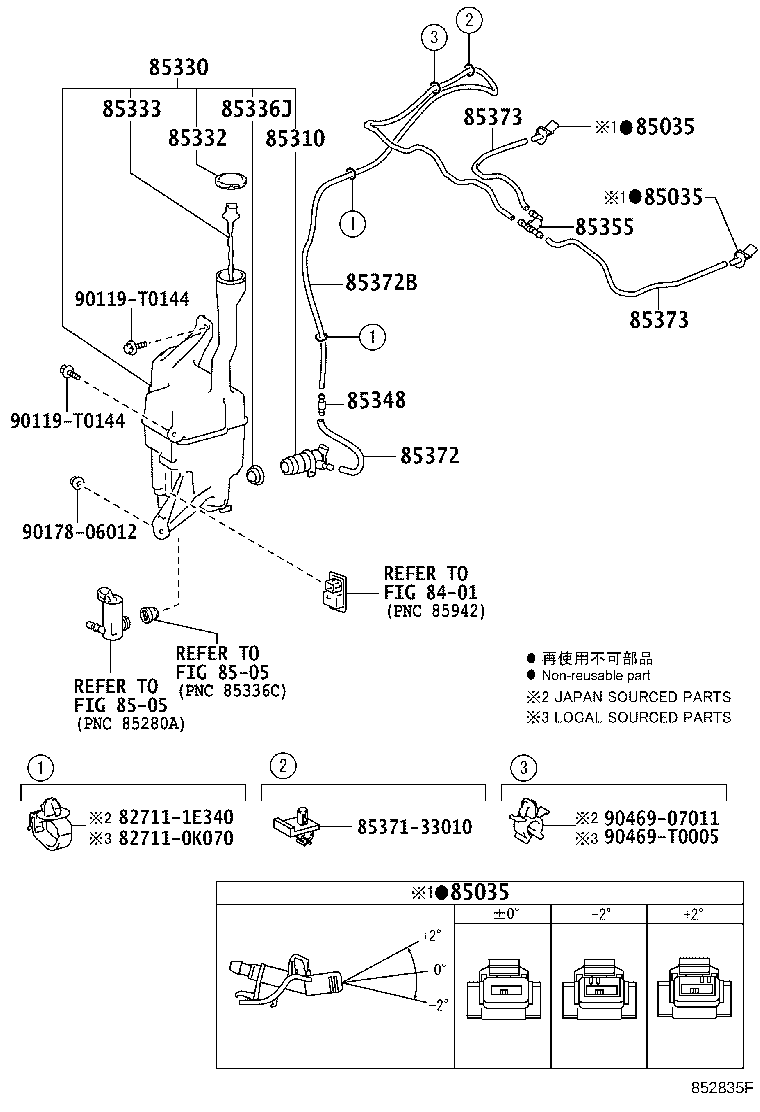

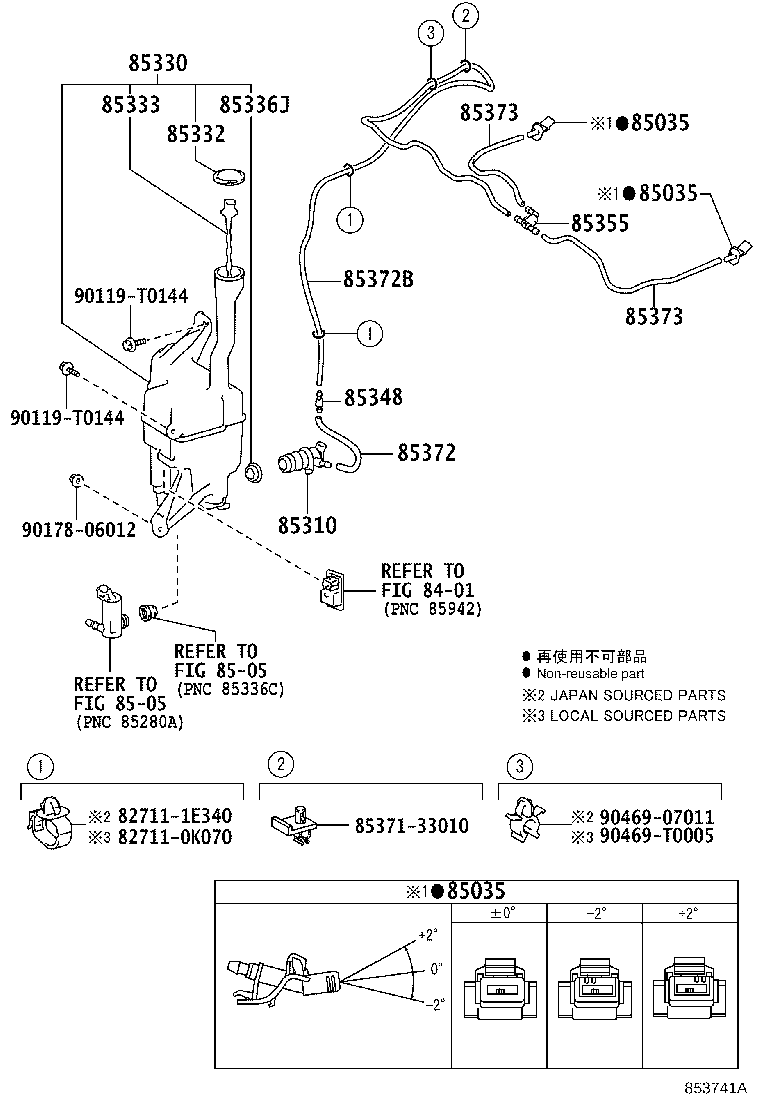

Figure 852806H 852806H 2011-12 → 2015-02 Figure 852806H 852806H 2011-12 → 2015-03 Figure 852806H 852806H 2011-12 → 2015-04 Figure 852806H 852806H 2011-12 → — Figure 852806H 852806H 2015-02 → — Figure 852806H 852806H 2015-03 → — Figure 852806H 852806H 2015-04 → — Figure 852835F 852835F 2012-05 → 2015-03 Figure 852835F 852835F 2012-05 → 2015-04 Figure 853741A 853741A 2015-03 → — Figure 853741A 853741A 2015-04 → — Figure 853741A 853741A 2017-07 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336J Protector, Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
