Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 5 illustrations

Illustrations

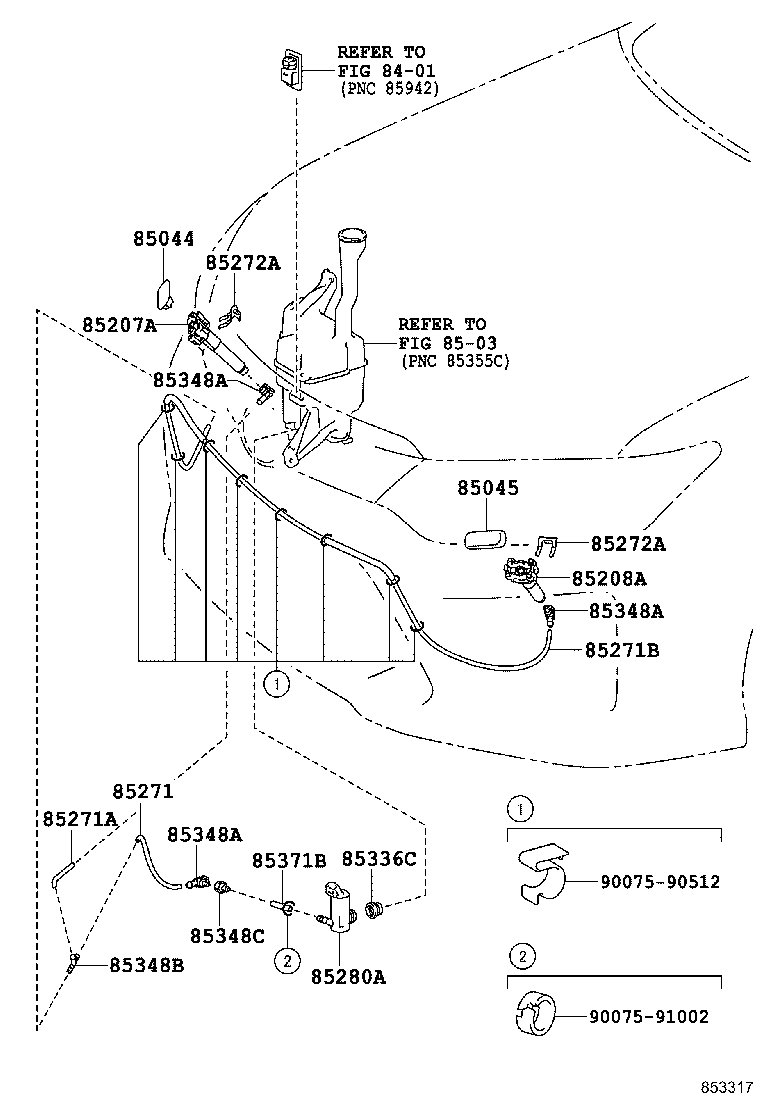

Figure 852836B 852836B 2012-05 → 2015-03 Figure 852836B 852836B 2012-05 → 2015-04 Figure 853317 853317 2015-03 → — Figure 853317 853317 2015-04 → — Figure 853317 853317 2017-08 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85272A Clamp, Headlamp Cleaner, NO.1
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85371B Hose, Headlamp Cleaner (FROM MOTOR TO JOINT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
