Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 11 illustrations

Illustrations

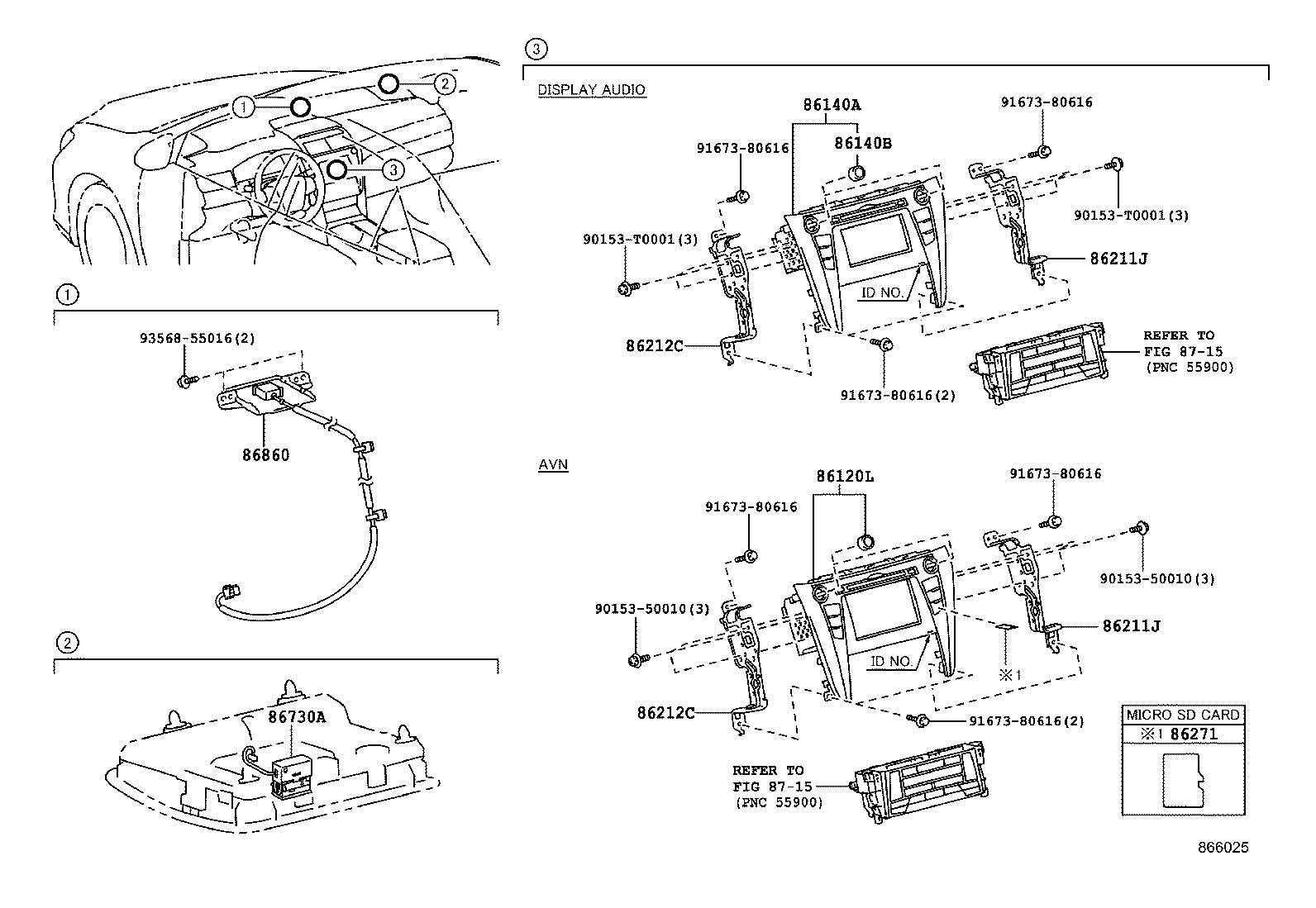

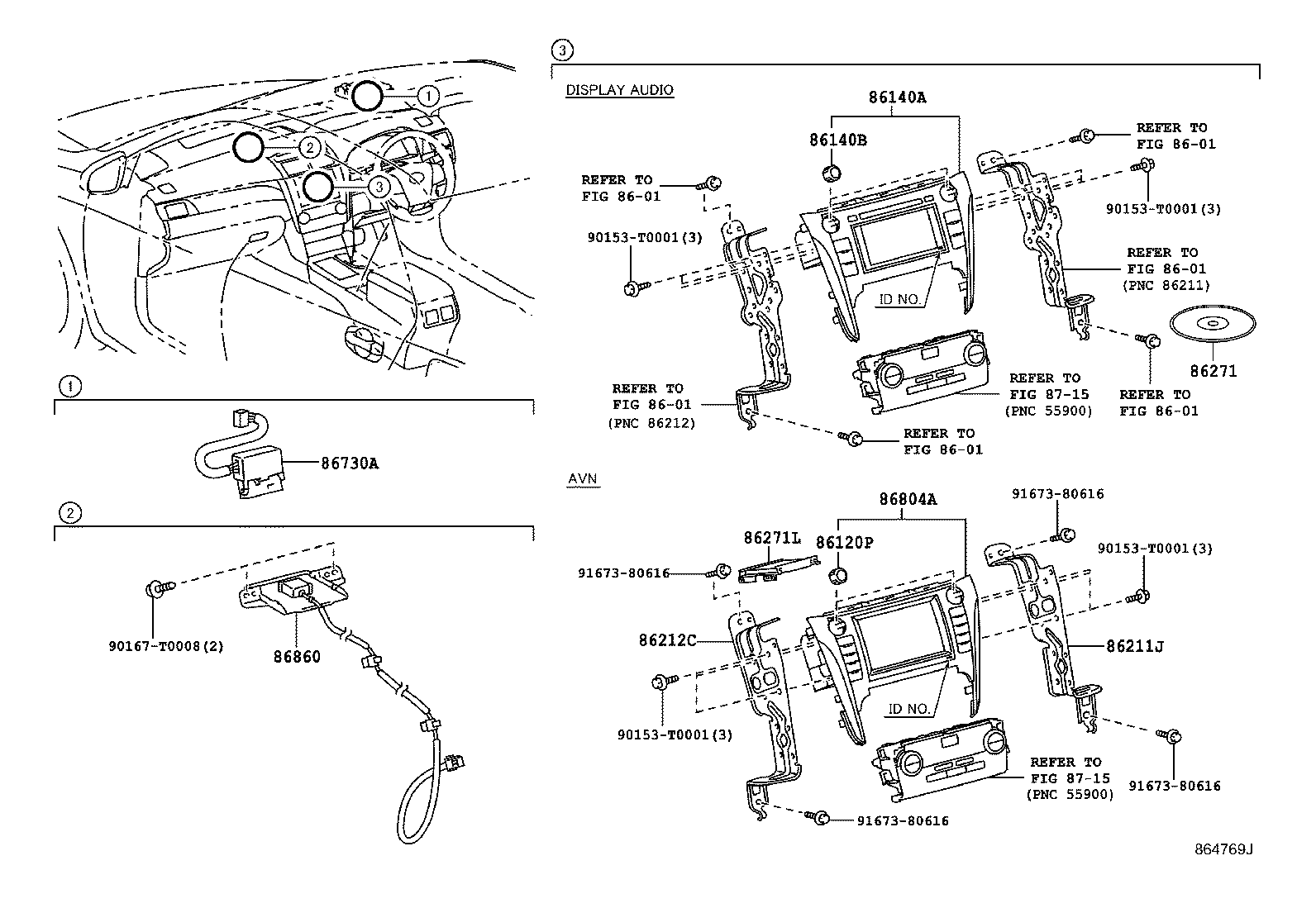

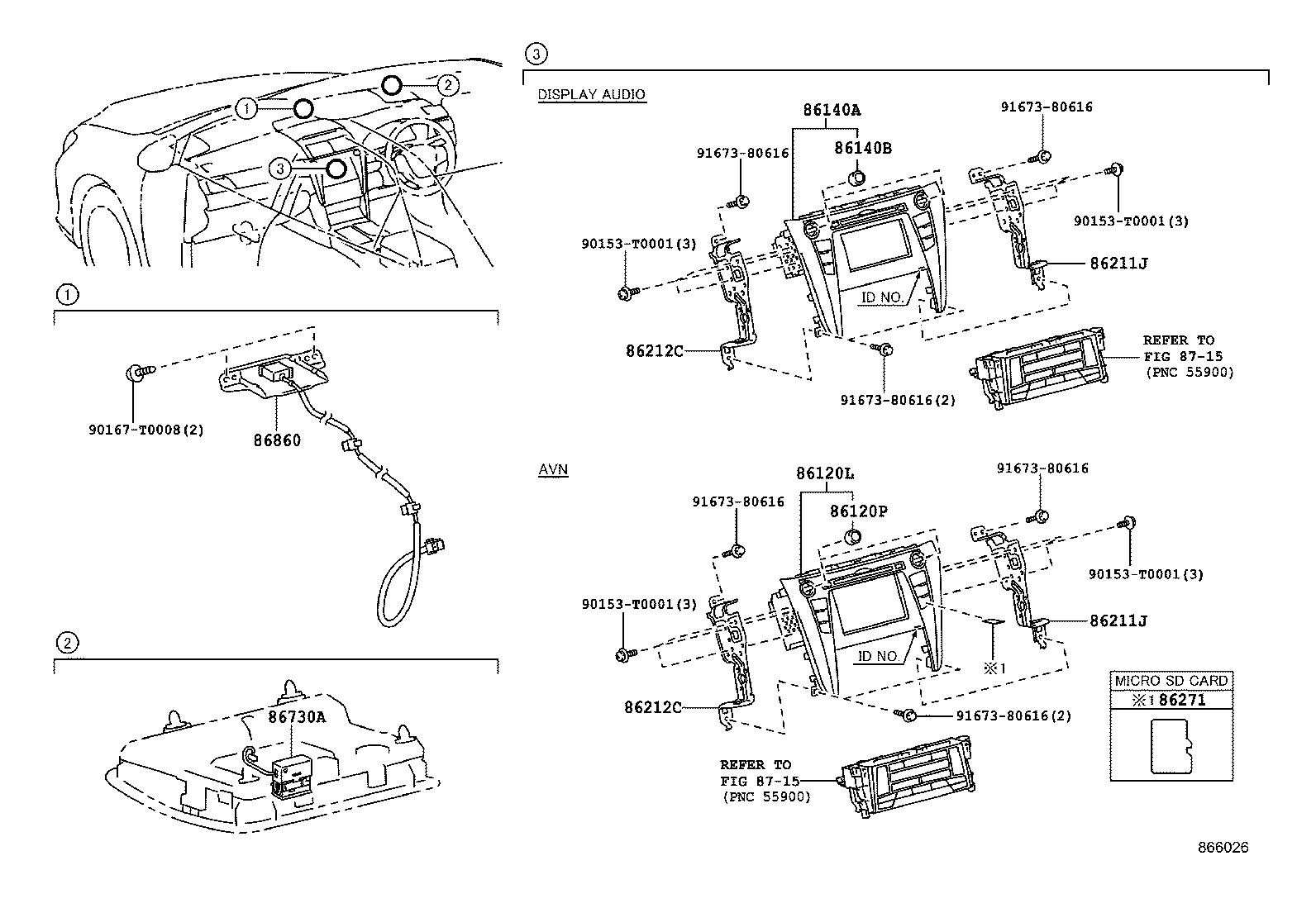

Figure 864768D 864768D 2012-02 → 2015-03 Figure 864768D 864768D 2012-07 → 2015-04 Figure 866025 866025 2015-02 → — Figure 866025 866025 2015-03 → — Figure 866025 866025 2015-04 → — Figure 864769J 864769J 2012-03 → 2015-02 Figure 864769J 864769J 2012-05 → 2015-03 Figure 864769J 864769J 2012-07 → 2015-04 Figure 866026 866026 2015-02 → — Figure 866026 866026 2015-03 → — Figure 866026 866026 2015-04 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
