Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

19 part groups · 3 illustrations

Illustrations

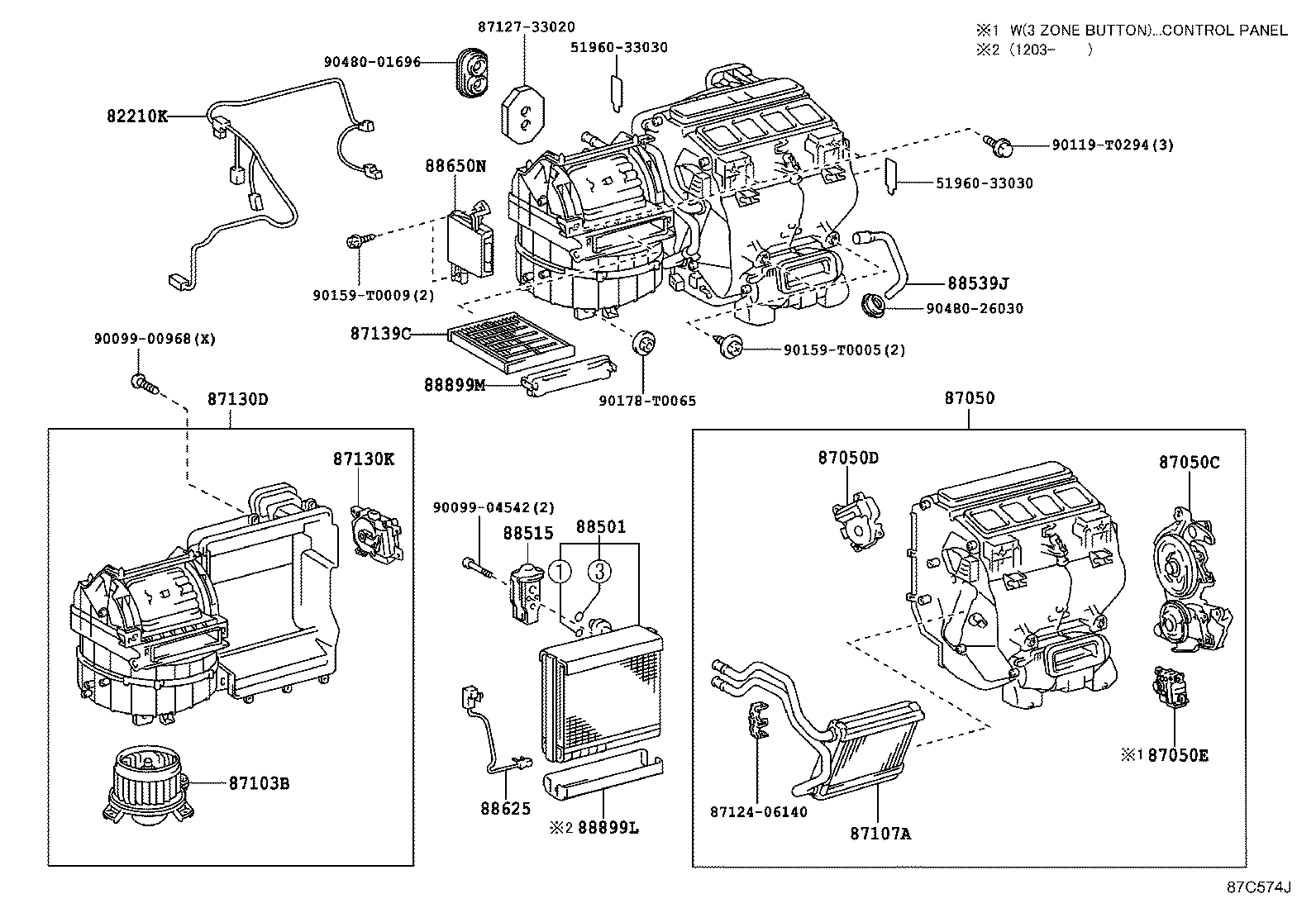

Figure 87C573J 87C573J 2011-12 → — Figure 87C574J 87C574J 2012-03 → — Figure 879932E 879932E 2011-12 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
