Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 13 illustrations

Illustrations

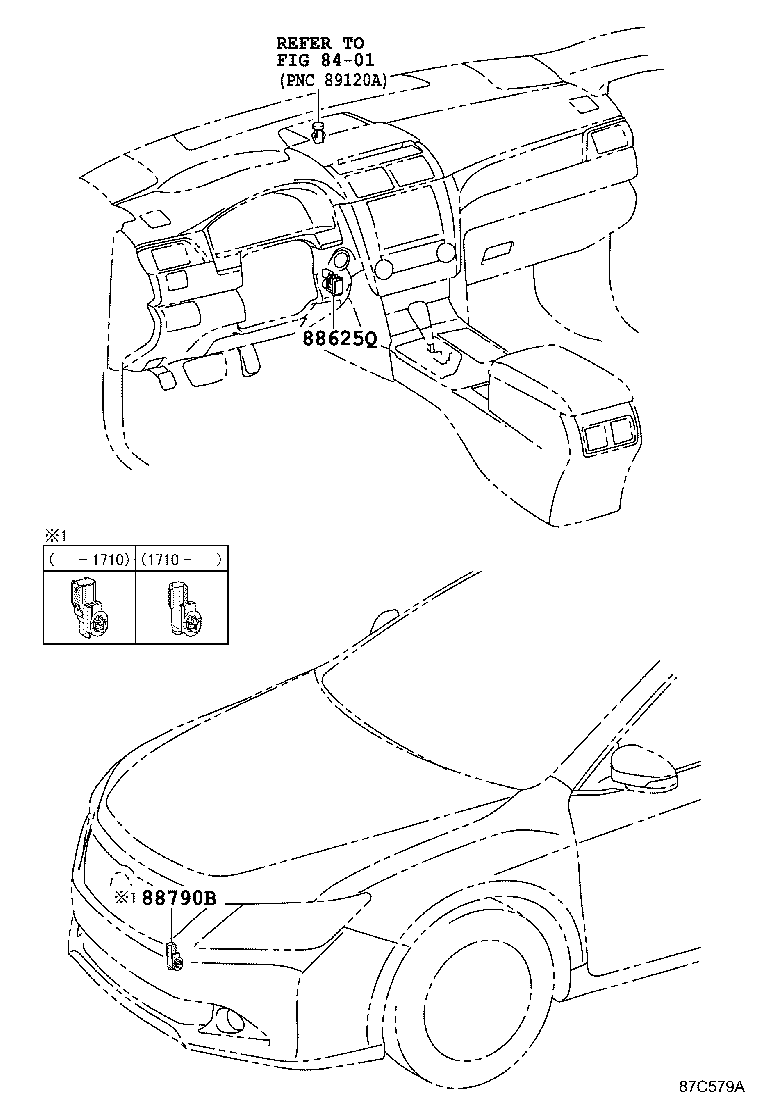

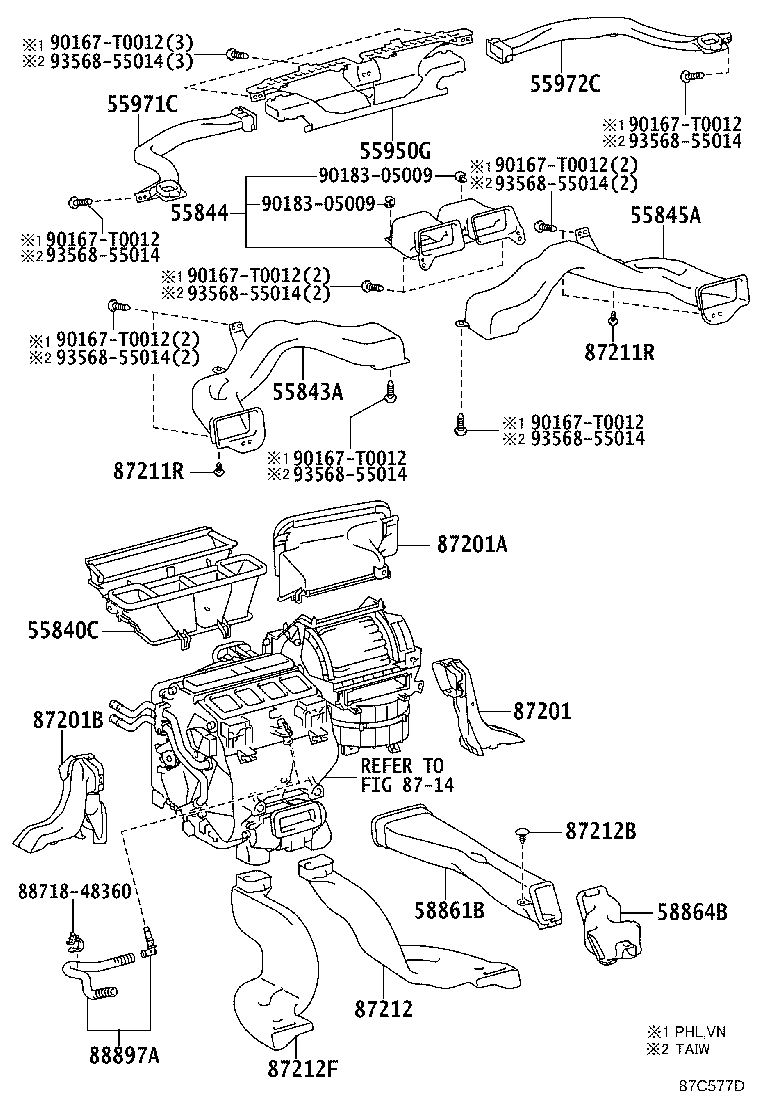

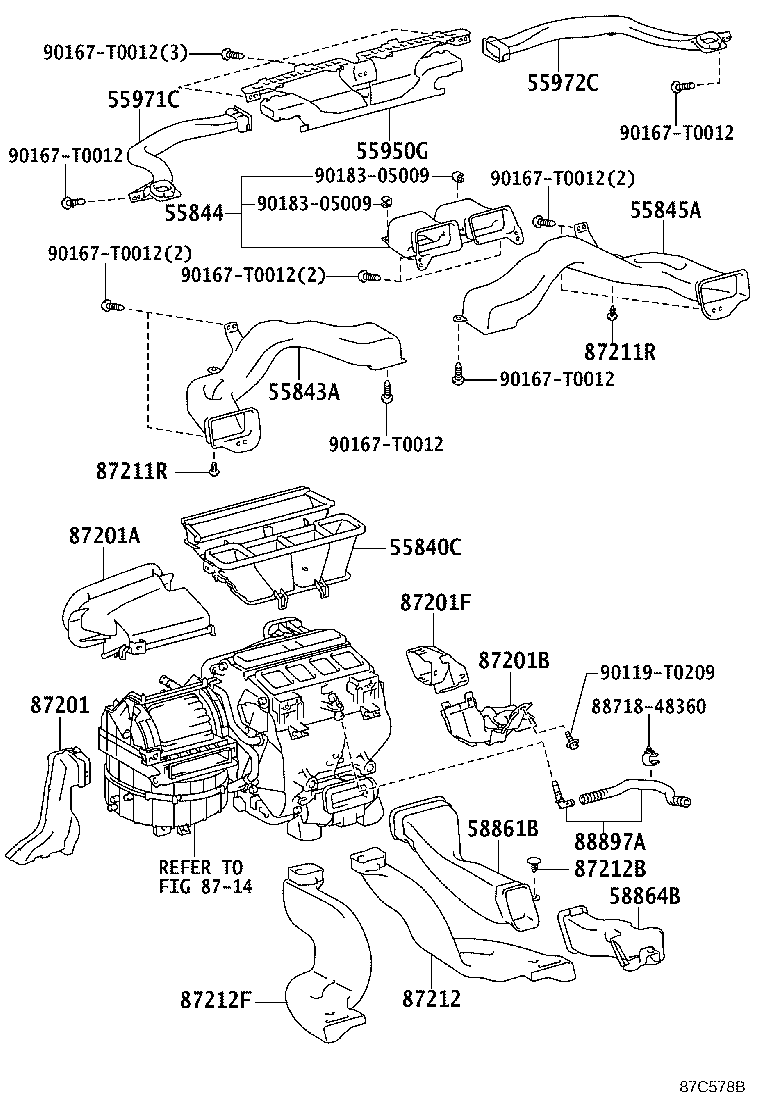

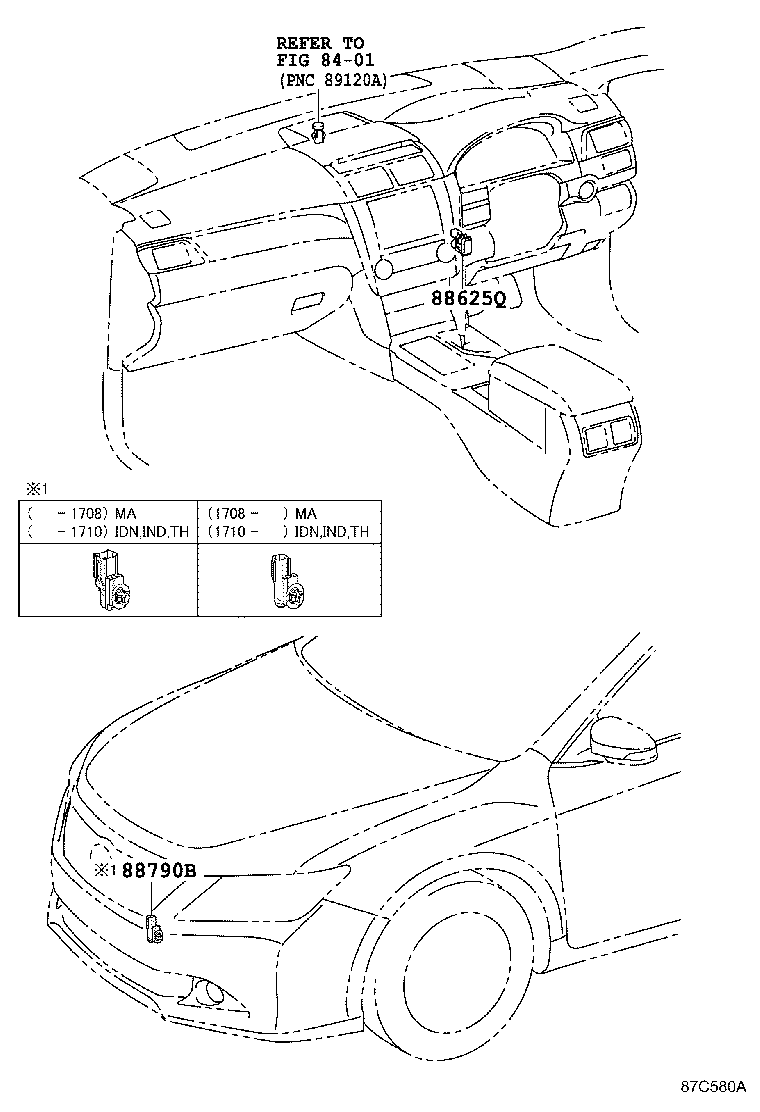

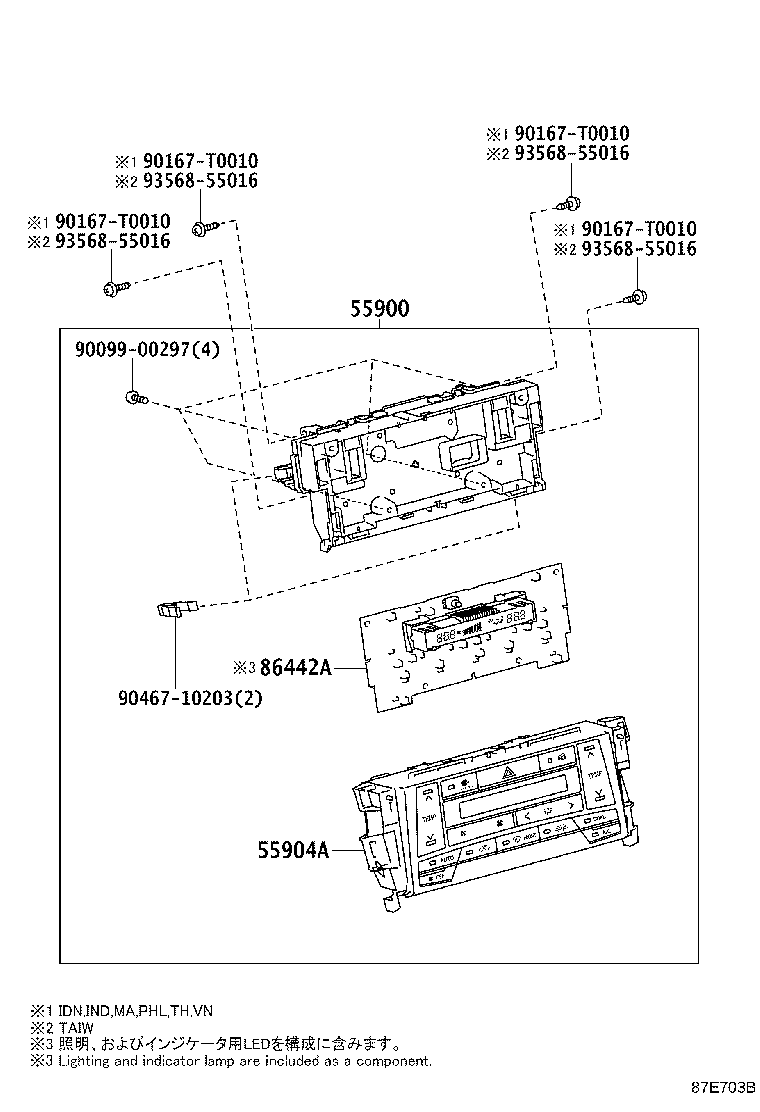

Figure 87C575B 87C575B 2011-12 → 2015-02 Figure 87C575B 87C575B 2011-12 → 2015-03 Figure 87C575B 87C575B 2012-05 → 2015-03 Figure 87C575B 87C575B 2012-07 → 2015-04 Figure 87E703B 87E703B 2015-02 → — Figure 87E703B 87E703B 2015-03 → — Figure 87E703B 87E703B 2015-04 → — Figure 87C576 87C576 2012-03 → — Figure 87C576 87C576 2015-04 → — Figure 87C577D 87C577D 2011-12 → — Figure 87C578B 87C578B 2012-03 → — Figure 87C579A 87C579A 2011-12 → — Figure 87C580A 87C580A 2012-03 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
86442A Board, Heater Control Switch
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897A Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
