Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

3 part groups · 7 illustrations

Illustrations

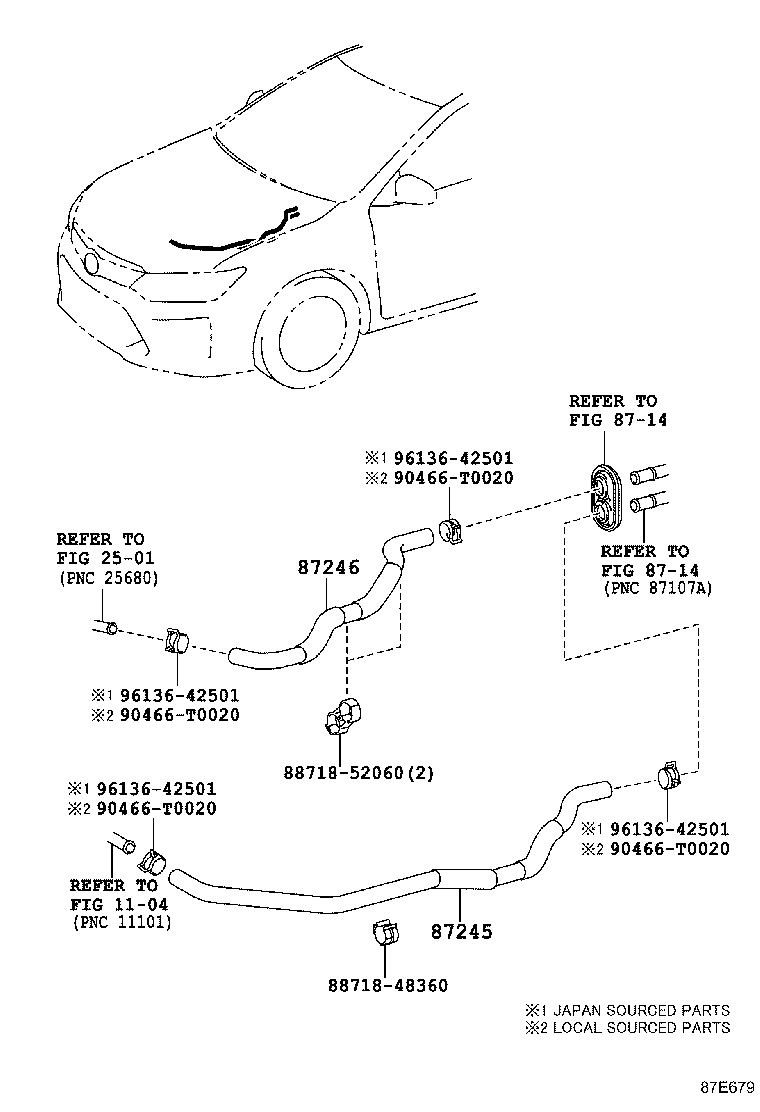

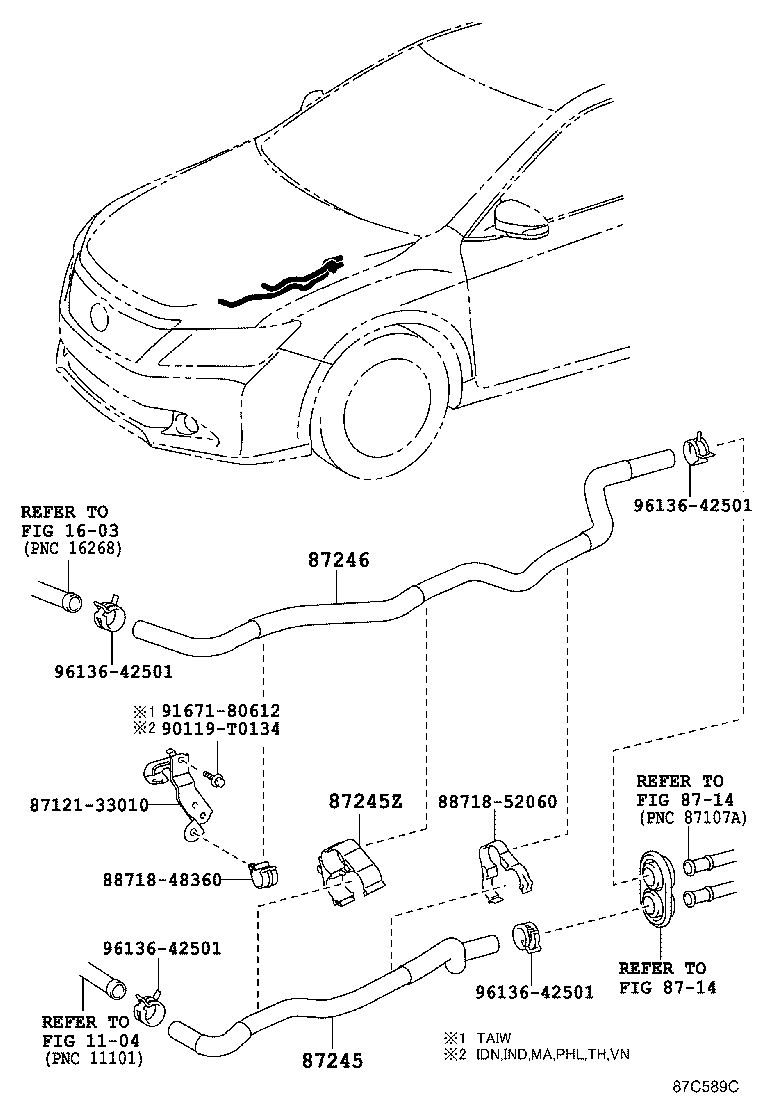

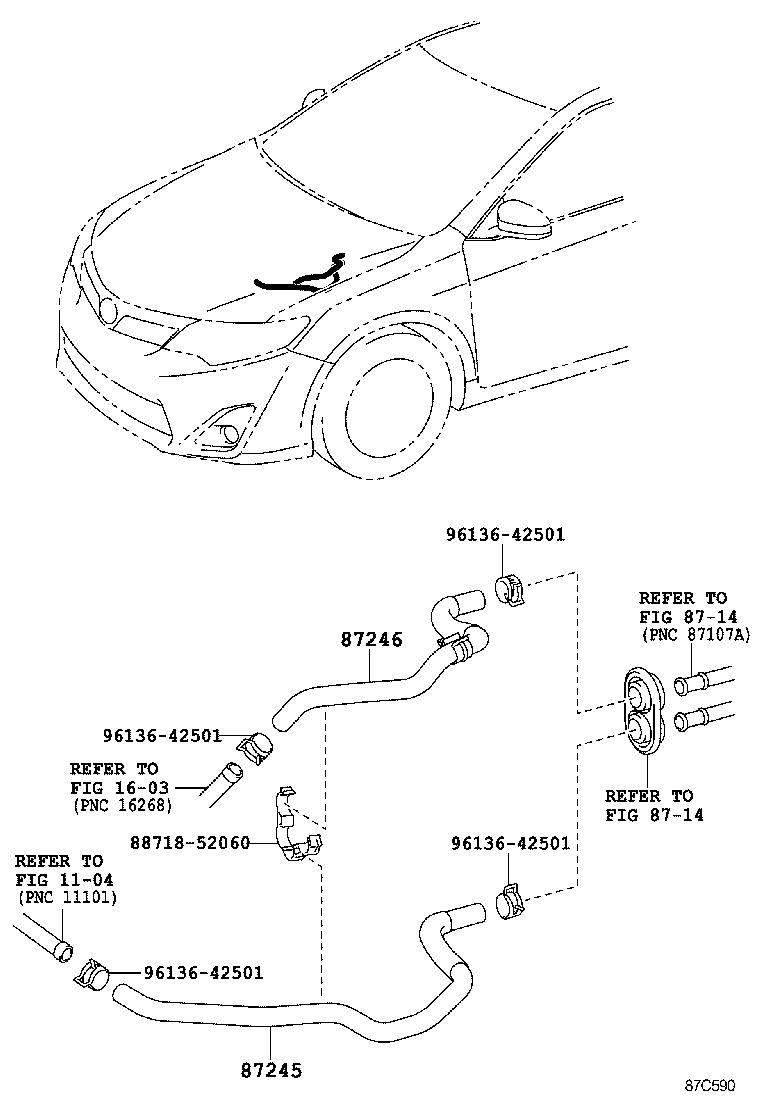

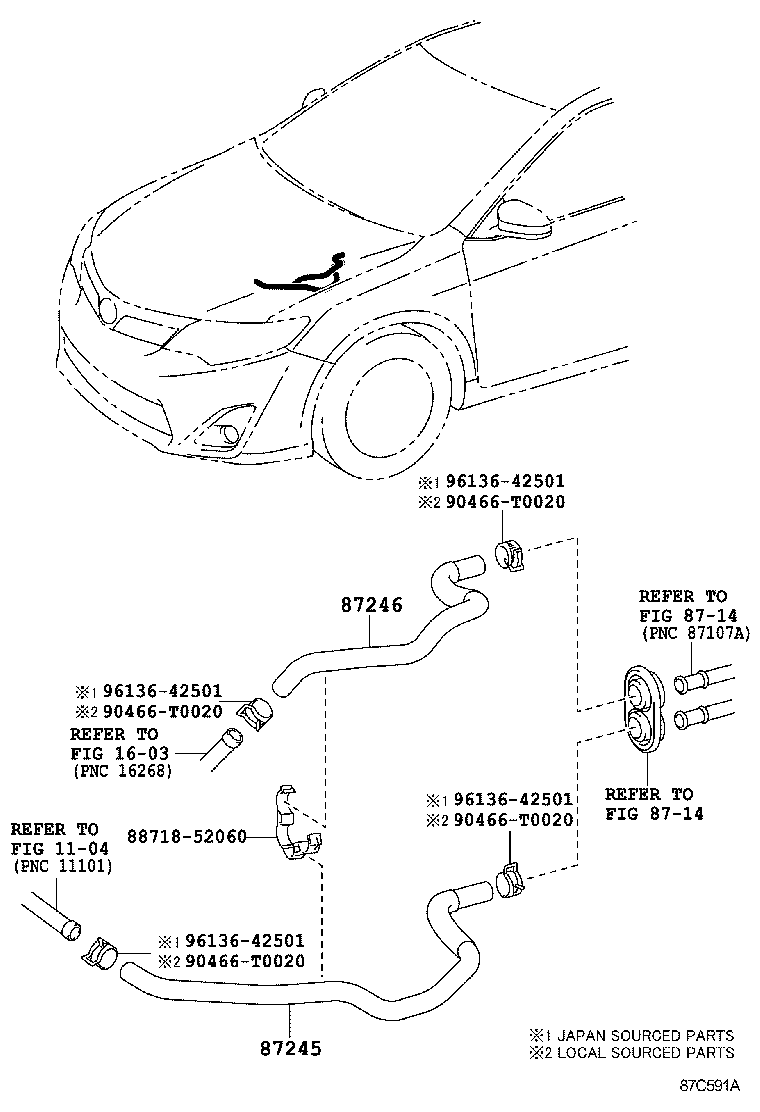

Figure 87C588B 87C588B 2011-12 → — Figure 87C589C 87C589C 2011-12 → — Figure 87E679 87E679 2015-02 → — Figure 87E679 87E679 2015-03 → — Figure 87E679 87E679 2015-04 → — Figure 87C590 87C590 2012-02 → — Figure 87C591A 87C591A 2012-03 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
