Toyota Camry/Hybrid (ASIA)

2011-12 → 2020-07 · chassis ACV51,ASV5#,AVV50 · catalogue 283320 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

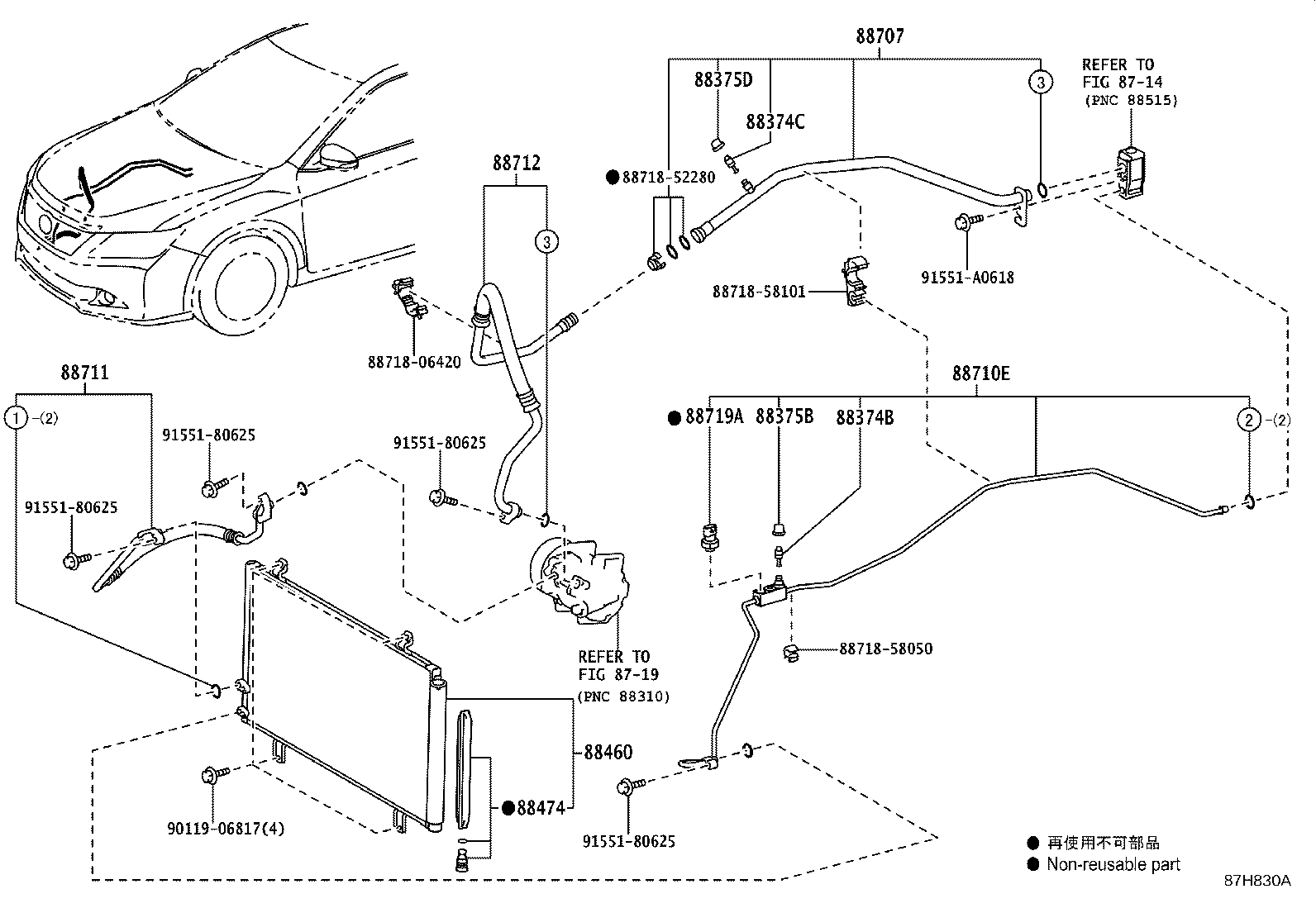

Heating & Air Conditioning - Cooler Piping

13 part groups · 18 illustrations

Illustrations

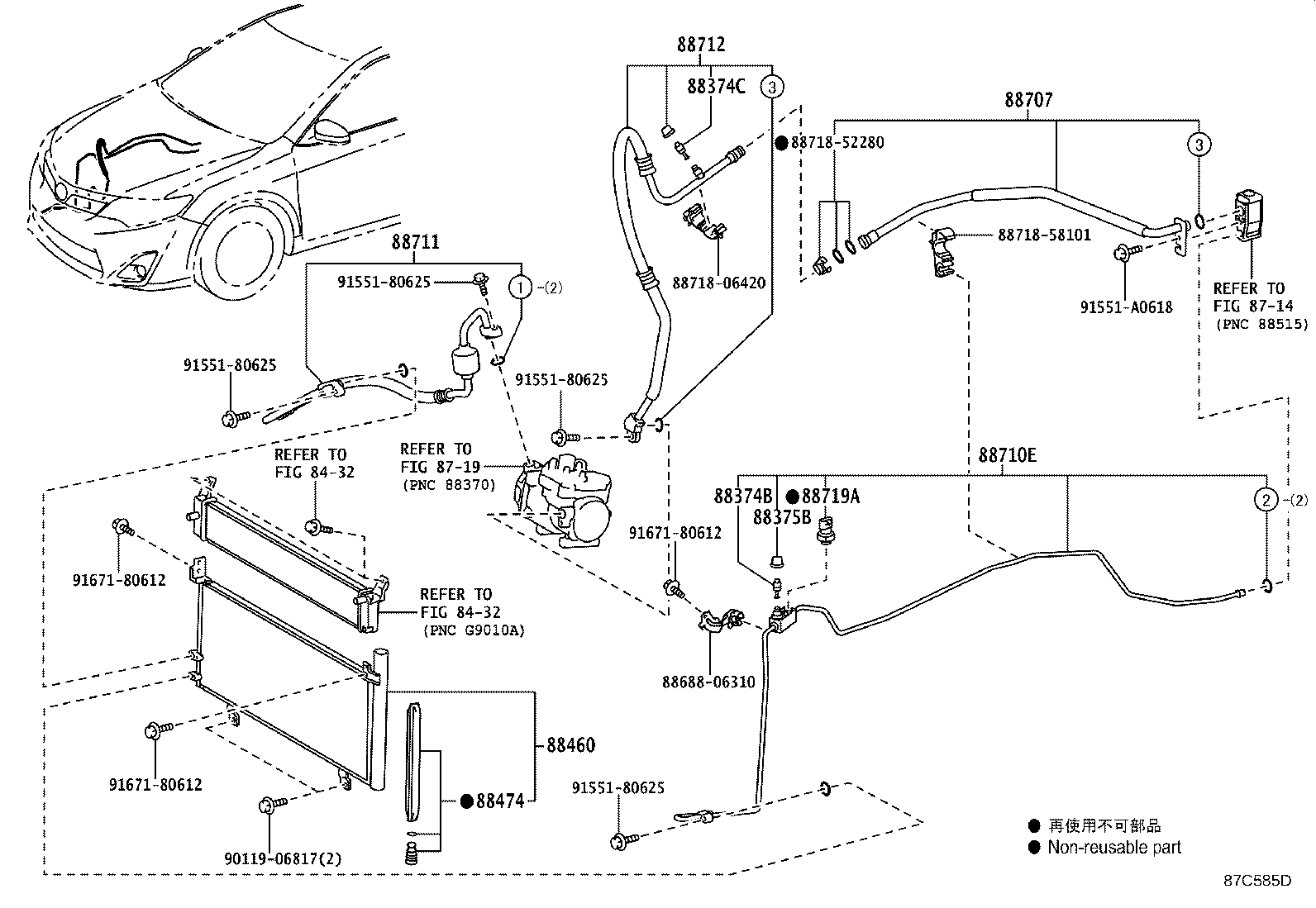

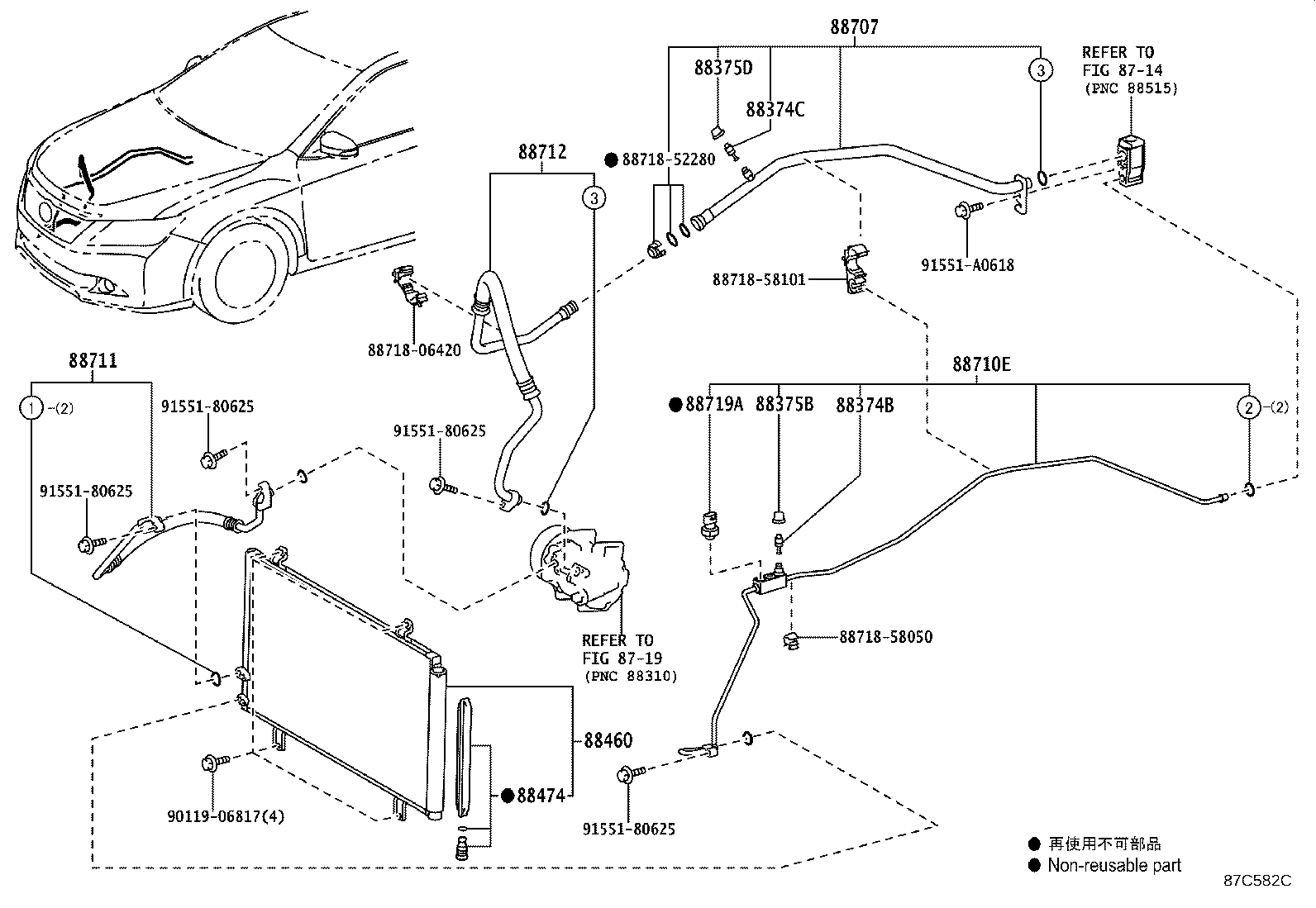

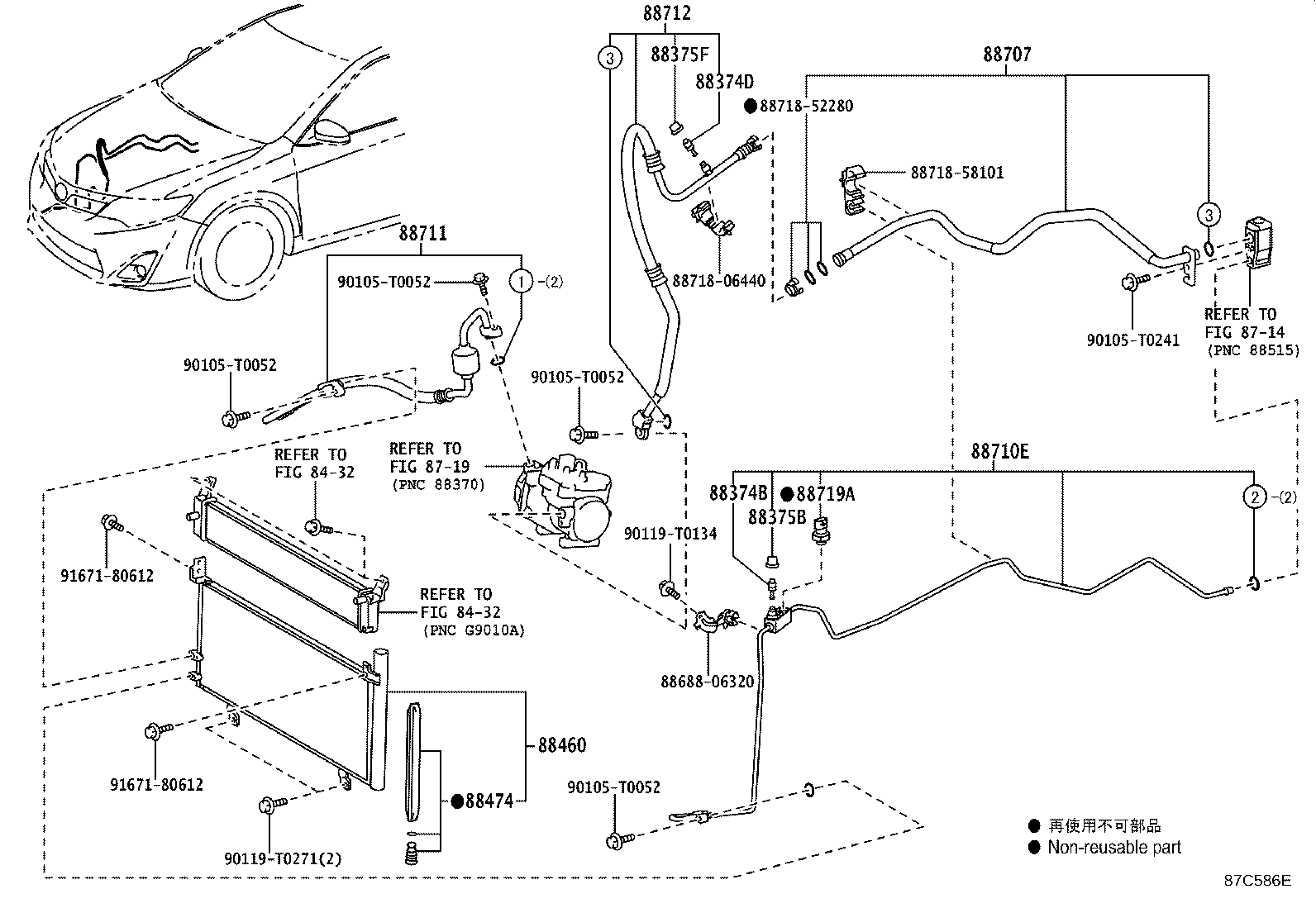

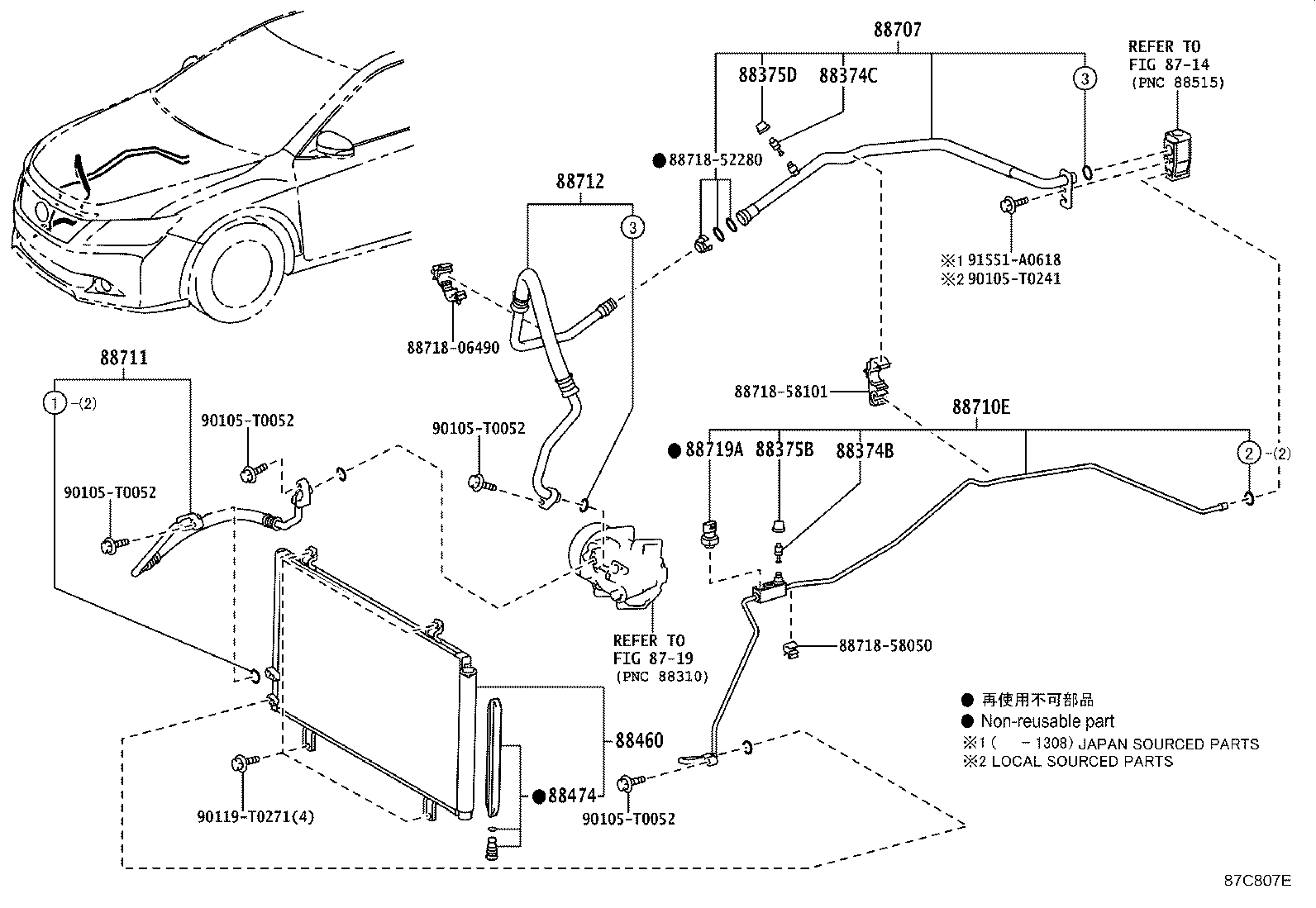

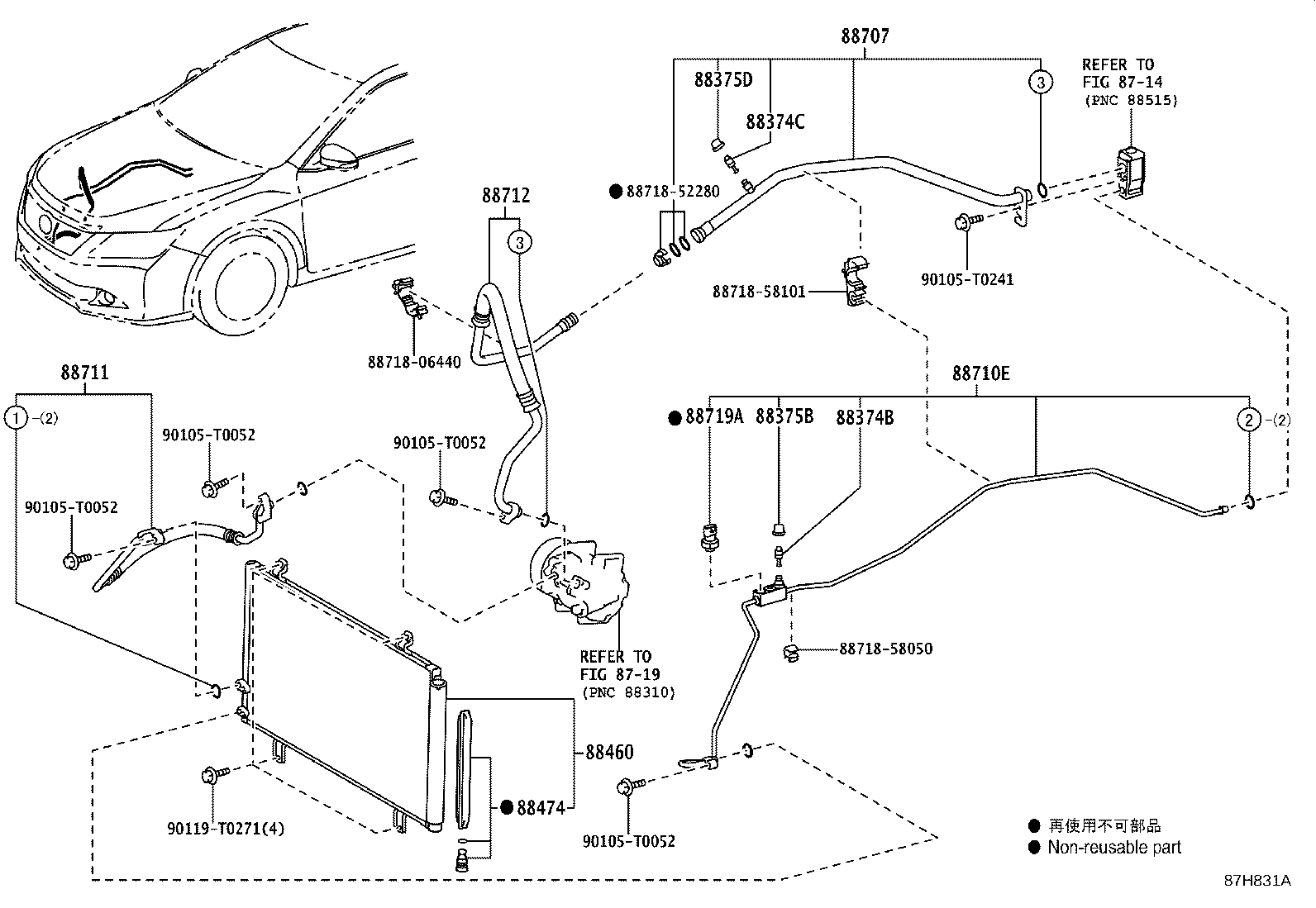

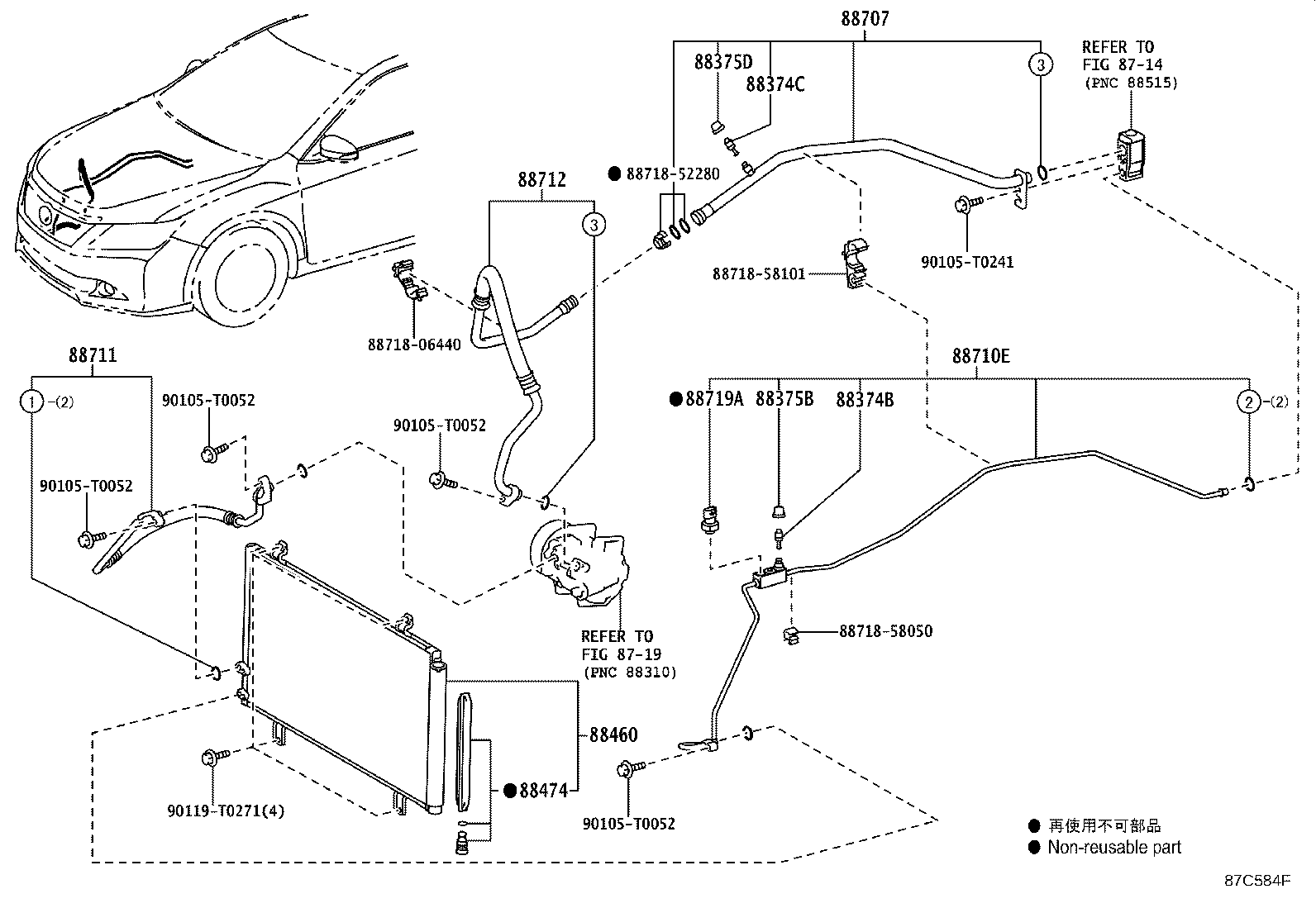

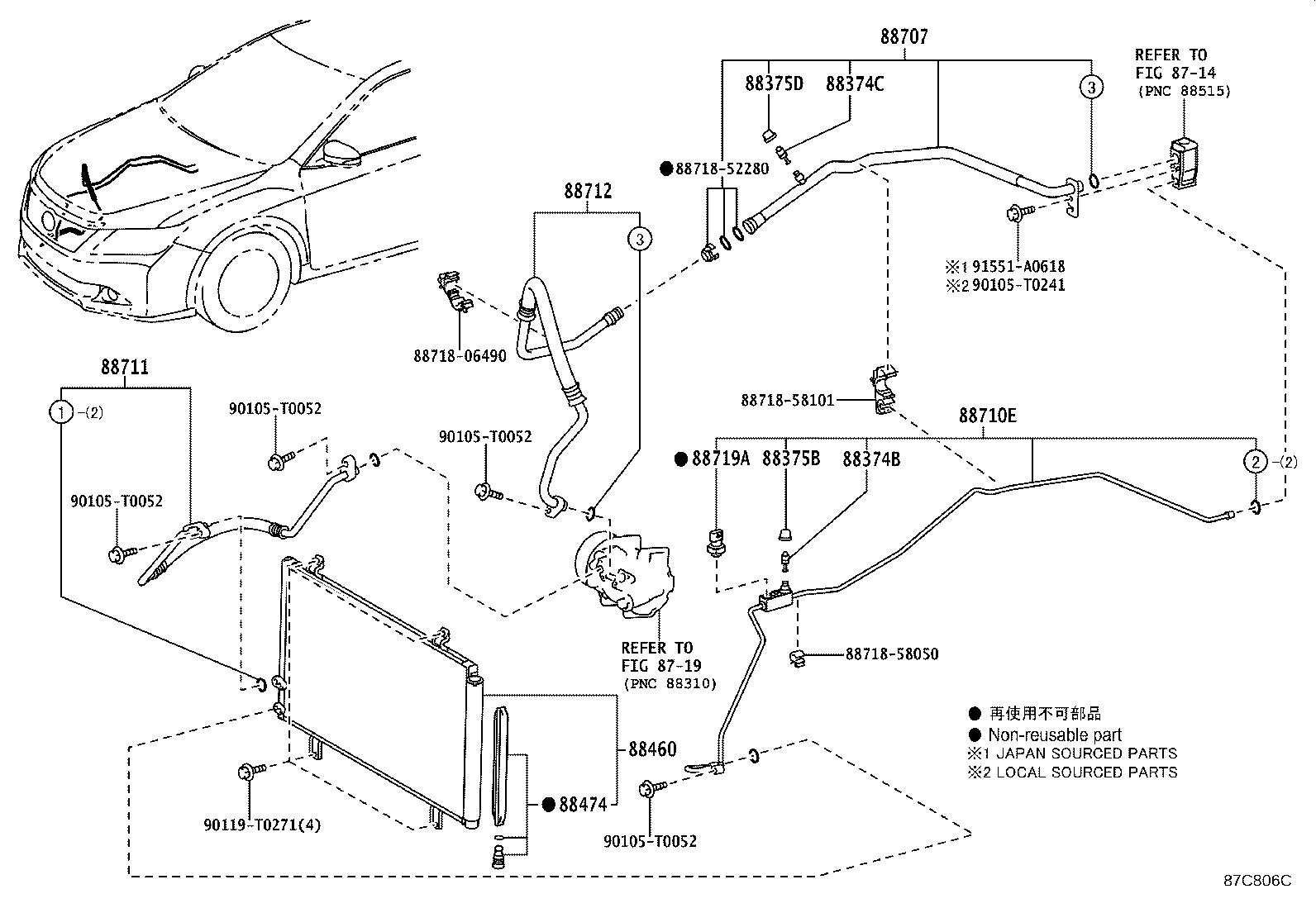

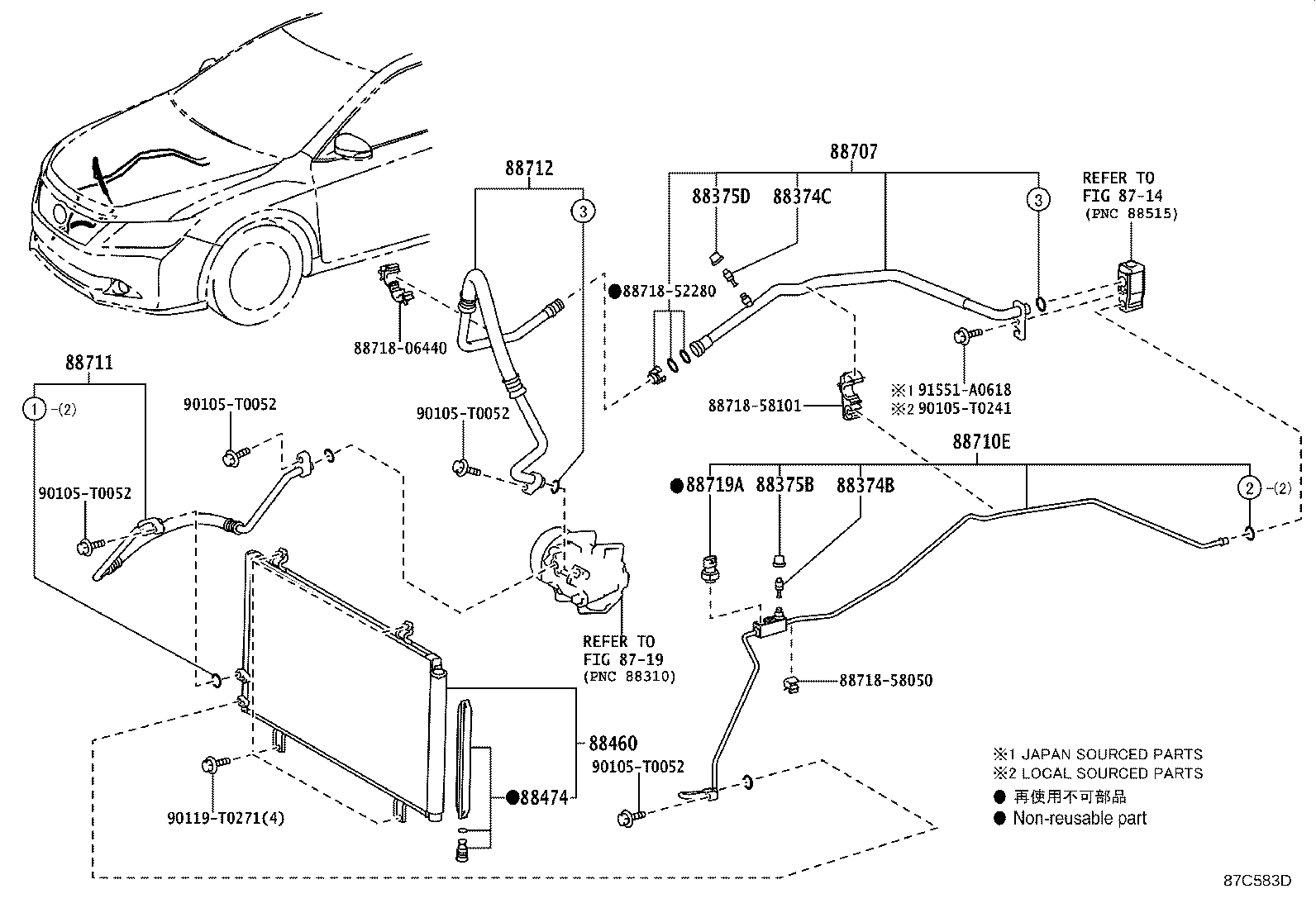

Figure 87C581C 87C581C 2011-12 → 2015-03 Figure 87C582C 87C582C 2011-12 → — Figure 87H830A 87H830A 2015-03 → — Figure 87C583D 87C583D 2012-03 → 2015-02 Figure 87C583D 87C583D 2012-07 → 2015-04 Figure 87C584F 87C584F 2012-03 → — Figure 87C584F 87C584F 2015-04 → — Figure 87H831A 87H831A 2015-02 → — Figure 87H831A 87H831A 2015-04 → — Figure 87C585D 87C585D 2012-02 → — Figure 87C586E 87C586E 2012-03 → — Figure 87C806C 87C806C 2012-05 → 2015-03 Figure 87C807E 87C807E 2012-05 → — Figure 87C807E 87C807E 2015-03 → — Figure 879932E 879932E 2011-12 → 2015-02 Figure 879932E 879932E 2011-12 → 2015-03 Figure 879932E 879932E 2011-12 → 2015-04 Figure 879932E 879932E 2011-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
